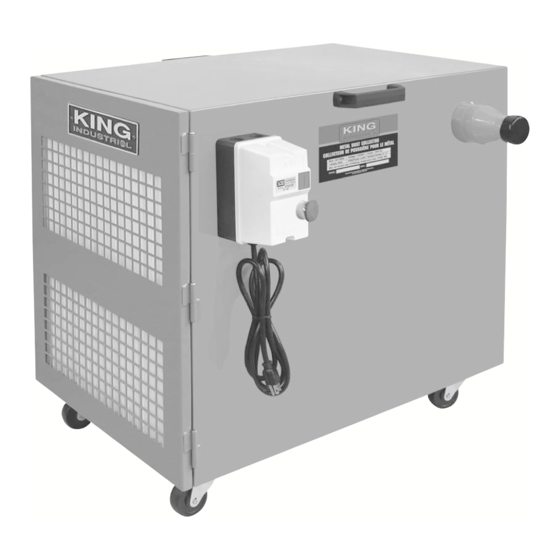

- Page 1 03/2013 METAL DUST COLLECTOR MODEL: KC-7200C INSTRUCTION MANUAL COPYRIGHT © 2013 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR COMMERCIAL USE. FOR THIS METAL DUST COLLECTOR PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday the tool. Learn its application and limitations as well as its eyeglasses only have impact resistant lenses, thet are NOT specific potential hazards. - Page 4 SPECIFIC SAFETY INSTRUCTIONS FOR YOUR METAL DUST COLLECTOR 9) Do not let the metal dust collector be used as a toy. Close BEFORE EACH USE: attention is necessary when used near children. 1) Inspect your metal dust collector. If any parts are missing, bent, or 10) Do not leave the metal dust collector plugged in.
-
Page 5: Electrical Information
ELECTRICAL INFORMATION WARNING! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE METAL DUST COLLECTOR DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! GENERAL INFORMATION- 110V/220V single phase operation PROPERLY GROUNDED OUTLET This metal dust collector comes with a 110V/220V single phase motor CURRENT CARRYING PRONGS prewired for 110V operation. -
Page 6: Specifications
7. Adaptor cap 8. Collection drawer 9. 3” Hose inlet w/ 3” to 2” adaptor 10. Access door latches SPECIFICATIONS MOTOR MODEL ....................................KC-7200C VOLTAGE ....................................110V/220V AMPERAGE .................................... 15A/7.5A R.P.M ......................................3,450 Hz ........................................60 PHASE ........................................1 MAX AIR SUCTION CAPACITY ..............................490 CFM MAX HOSE VELOCITY................................5610 SFPM... - Page 7 ASSEMBLY/OPERATION/ MAINTENANCE 1. Position the metal dust collector (A) Fig.4 upside down as shown and install the 2 locking castor wheels (B) and the 2 free spinning castor wheels (C) to the welded mounting brackets underneath the metal dust collector cabinet using 16 flange head hex. bolts (D). 2.
-
Page 8: Maintenance & Accessories
MAINTENANCE & ACCESSORIES MAINTENANCE GENERAL CLEANING Periodically empty the chip drawer (A) Fig.7 and clean the interior of the metal dust collector cabinet. MOTOR Excessive dust in the motor could cause excessive heat. Every effort should be made to prevent foreign material from entering the motor. A visual inspection should be made at frequent intervals.
