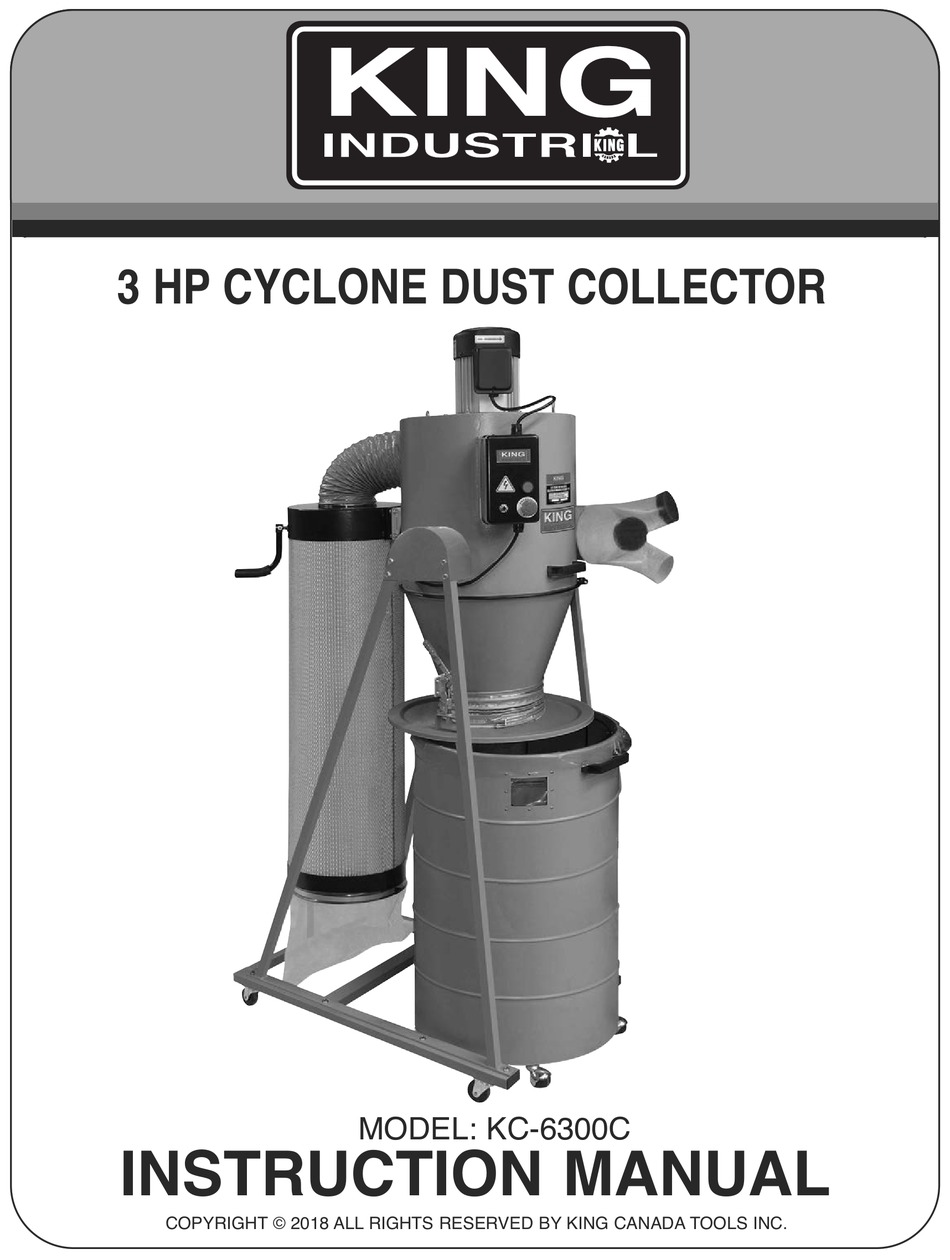

3 HP cyclone dust collector
InstructIon MAnuAl
MODEL: KC-6300C
COPYRIGHT © 2018 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading

Related Manuals for King Industrial KC-6300C

Summary of Contents for King Industrial KC-6300C

  • Page 1 3 HP cyclone dust collector InstructIon MAnuAl MODEL: KC-6300C COPYRIGHT © 2018 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

  • Page 2: Warranty Information

    wArrAnty InForMAtIon 2-yeAr kInG cAnAdA tools LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS 3 HP CYCLONE DUST COLLECTOR FOR COMMERCIAL USE. ProoF oF PurcHAse Please keep your dated proof of purchase for warranty and servicing purposes. rePlAceMent PArts Replacement parts for this product are available at our authorized King Canada service centers across Canada.

  • Page 3: General Safety Instructions For Power Tools

    GenerAl sAFety InstructIons For Power tools 1. know your tool 12. AlwAys weAr sAFety GlAsses. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday eyeglasses only have impact resistant lenses, thet are not the tool.
  • Page 4 sPecIFIc sAFety InstructIons For your cyclone dust collector 11) Use extra care when collecting dust on stairs. 2) Plan your work to protect your eyes, hands, face, ears and body. 12) To avoid injury from accidental starting, unplug power cord before 3) weAr sAFety GoGGles.

  • Page 5: Electrical Information

    electrIcAl InForMAtIon wArnInG! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE CYCLONE DUST COLLECTOR DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! GenerAl InForMAtIon- 220V single phase operation ProPerly Grounded outlet This cyclone dust collector comes with a 3 HP 220V single phase current cArryInG PronGs motor.

  • Page 6: Specifications

    12. On button 13. Off button 14. Increase timer setting 15. Decrease timer setting 16. Timer setting indicator lights sPecIFIcAtIons Motor MODEL ....................................KC-6300C HORSEPOWER ....................................3 HP VOLTAGE ......................................220V AMPERAGE ......................................18A R.P.M ......................................3,450 Hz ........................................60 PHASE ........................................1 MAX AIR SUCTION CAPACITY ............................2,111 CFM INLET HOSE DIAMETER ................................3 x 4’’...
  • Page 7 AsseMbly 1. Secure the wheels (A) Fig.4 to the base (B) with flange head bolts. FIGure 4 2. Secure the left stand (A) Fig.5 and right stand (B) to the base (C) using flange head bolts. Notice the placement of the stands as shown in Fig.5.
  • Page 8 AsseMbly 6. Secure the top section of the canister filter (A) Fig.7 to the mounting bracket (B) on the back of the main impellor housing (C) using flange head bolts and nuts. 7. Install the canister filter support bar (D) Fig.7 to the bottom section of the canister filter (A) and the base (E) using flange head bolts.

  • Page 9: Assembly & Maintenance

    AsseMbly & MAIntenAnce 14. Install the wheel castors (A) Fig.10 to the bottom of the drum (B). 15. Position the large plastic drum bag (C) inside the drum (B). 16. Assemble the drum bag frame as shown in Fig.10. Assemble the straight bars (D) and angled bars (E) to the top ring (F), middle ring (G) and bottom ring (H) using pan head screws (I) and hex.
