Lorex LHB927 Quick Connection Manual

HD Wire-Free Security System G2
GUIDE
1 / 2
LHB926 / LHB927
English Version 1.0
Package Contents

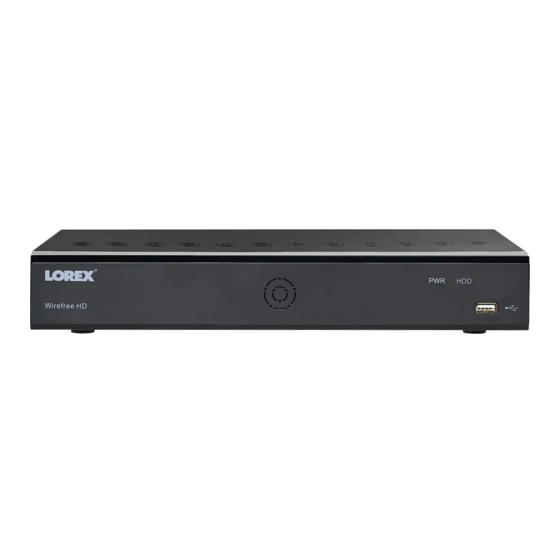

HD Recorder
(Model Number: LHB926 / LHB927)
Wireless Receiver Rechargeable
Camera Antenna*
& Antennas Power Pack*
Remote Control
Camera Mounting Kit*
STEP 1: Initial Setup
Before you begin, you will need to prepare the Wire-Free cameras and Power Packs.
NOTE: Power Packs come fully charged with no need for initial charging.
To prepare the cameras:
1. Attach an antenna to each camera. For
LWB4800 / LWB4900 Series cameras,
twist the adjustment ring counterclockwise
to reposition each camera as shown to
the right. Twist clockwise to tighten when
finished.
2. Peel off the PLEASE REMOVE label
covering the contacts on each Power
Pack. Insert the charged Power Packs
into each camera base. Push up until the
Power Pack 'clicks' into place.
NOTE: The camera will 'beep' when the
Power Pack is properly inserted. If you do
not hear this alert, remove the Power Pack
by pushing on the release tabs then re-
insert.
3. Connect the two black antennas to the
wireless receiver.
Need Help?
Visit us online for up-to-date software and complete instruction manuals.
1
Search for the model number
2
Click on your product in the
3
4
Click on the Downloads tab
Copyright © 2019 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design,
specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.
Quick Connection Guide
www.lorex.com
* Per camera in multi-camera packs
OR
HD Wire-Free Security Cameras
(Model Number: LWB4800 / LWB4900 / LWB5800 / LWB6800 Series)
USB Mouse Toolkit
Recorder Power
Ethernet Cable
Adapter
LWB4800 / LWB4900 Series LWB5800 / LWB6800 Series
Adjustment
ring
Visit lorex.com
of your product
search results
STEP 2: Setting Up the Recorder
Next, you must set up the recorder and connect the wireless receiver.
To set up the recorder:
1. Connect the wireless receiver to
the USB port on the back panel of
the recorder.
NOTE: The receiver includes double-sided tape and
mounting screws for optional wall mounting for
improved line-of-sight with cameras.
2. Connect the recorder to your router
using the included Ethernet cable.
3. Connect the included power
adapter to the recorder. Wait a few
minutes for the system to start
up.
• This guide describes basic setup of the recorder
only. This installation is intended for users who
wish to monitor their system using the free Lorex
Cirrus app on their smartphone or tablet.
• You may choose to connect the included USB
mouse and a monitor with HDMI or VGA cable (not
included) for complete control over your Wire-
Free security system using the recorder. See the
included Quick Reference Guide for details.
HDMI Cable
STEP 3: Connecting with Lorex Cirrus
Connect to your system using the free Lorex Cirrus app for smartphones and
tablets (iOS and Android).
Power Pack
To connect with Lorex Cirrus:
Adapter
1. Download and install the free Lorex Cirrus app from the
App Store or Google Play Store.
2. Tap the Lorex Cirrus icon to launch the app.
3. Tap to open the menu. Tap Devices, then tap Add.
4. Enter the following:
A
B
C
D
E
5. Enter a new, secure 8-15 character password. This password will be used
to connect to your system from now on.
Record your password below and store in a secure place:
6. Your cameras will appear on the Live screen of the app. Tap the play
button (
Initial setup is now complete! Turn the guide over for instructions on
positioning and mounting the cameras.
Dimensions
LWB4800 / LWB4900 Series
5.3"
130mm
2.9"
73mm
OPTIONAL: Full Recorder Setup
HDMI
A Ensure Device ID is selected.
Tap to scan the QR code on the top
B
F
of your recorder using the camera on
your mobile device.
C Ensure the Client Port reads 35000.
Enter the username (default: admin).
D
Enter the password (default:
E
00000000).
F Tap Save.
) to stream live video on channels that are in sleep mode.
1.9"
48mm
11.8"
300mm
5.5"
134mm
5.0"
126mm 73mm
OR VGA*
* Not included
8.2"
208mm
LWB5800 / LWB6800 Series
2.9" 6.6"
168mm
LHB926_LHB927_QCG_EN_R1
