BELIMED WD 750 Manual

Rack cart
Hide thumbs Also See for WD 750:
Table of Contents

Advertisement

Quick Links

Download this manual
Rack Cart WD 750
Loading Manual
1051929

Advertisement

Table of Contents
loading

Related Manuals for BELIMED WD 750

Summary of Contents for BELIMED WD 750

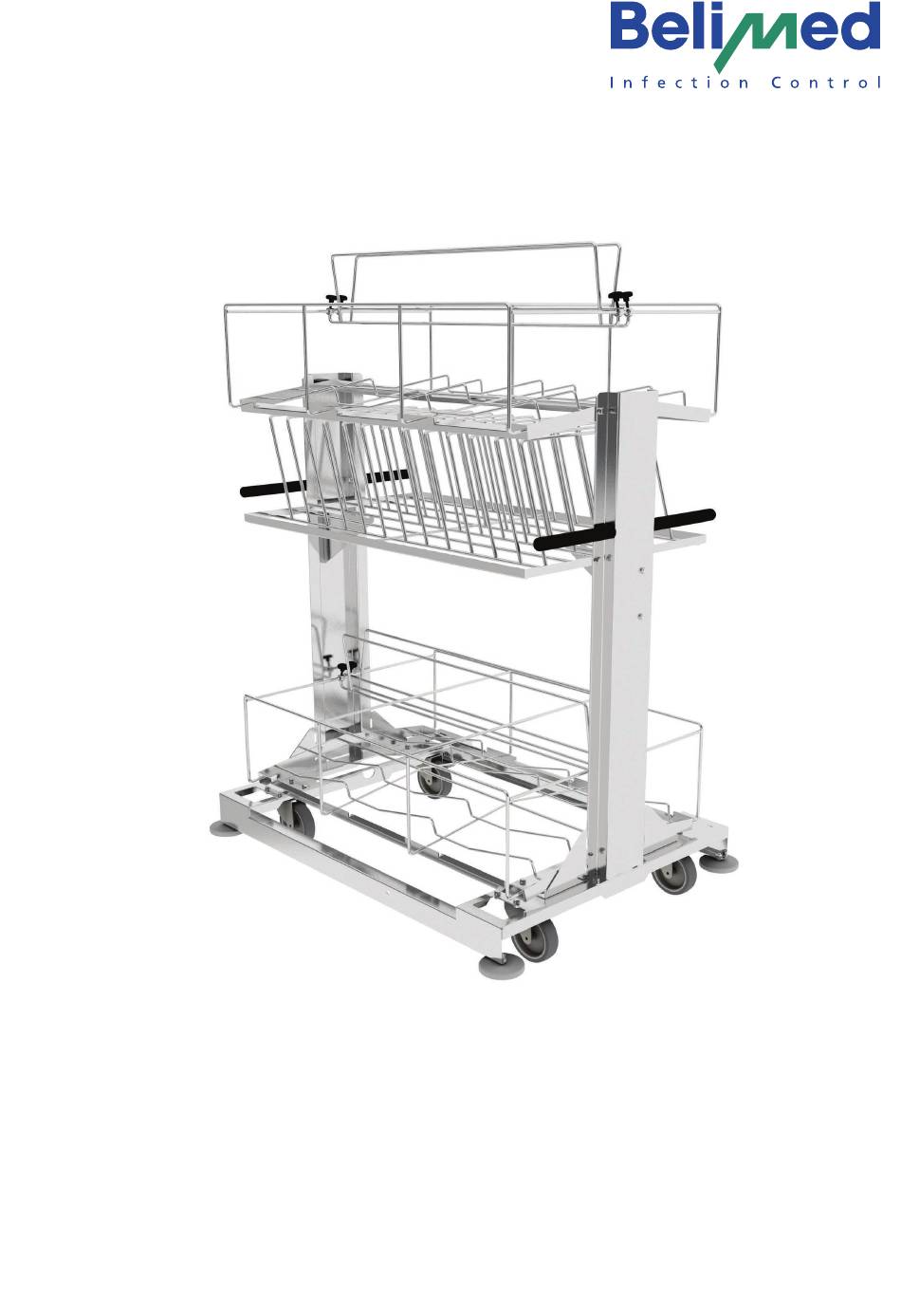

  • Page 1 Rack Cart WD 750 Loading Manual 1051929...
  • Page 2 Valid for Loading Manual Product Rack Cart WD 750 Product version – Product versions 730782, 731088, 731089, 156301, 731910, 156868, 732390, 730264, 731090 Material 1051929 Document | Version 90098002 | 01 Language EN-US English Month | Year 09 | 2023...

  • Page 3: Table Of Contents

    Rack Cart WD 750 Content Content Introduction Purpose of these instructions ..................4 Target group ........................4 Changes and copyright ....................4 Symbols and notices used ....................4 Safety General safety instructions ....................7 2.1.1 Instructing personnel ....................... 7 2.1.1.1 Procedure in the event of accidents at work with risk of infection ...........................

  • Page 4: Introduction Purpose Of These Instructions

    This manual, including all parts thereof, are protected by copyright law. Utilization or exploitation of any kind, whether for duplication, translation, or processing in other media, is not permissible without the consent of Belimed AG. The content of this manual must not be used for commercial purposes. Complying with trademark law ®...
  • Page 5 Rack Cart WD 750 Introduction WARNING Danger with moderate risk Can lead to death or serious injury if the hazard is not avoided. Possible consequences of the hazard.  Work steps to avoid the hazard. CAUTION Danger with low risk Can lead to injuries if the hazard is not avoided.
  • Page 6 Introduction Rack Cart WD 750  Execute substeps in sequence.  Response to substeps.  Reaction to all work steps. List • Bullet point • Subpoint 6 | 38 © Belimed AG 90098002 | 01...

  • Page 7: Safety

    Rack Cart WD 750 Safety Safety General safety instructions  Only operate the machine and accessories in perfect technical condition.  Comply with the following safety instructions to avoid risks for patients and operators. WARNING Infection hazard due to soiled wash items Contaminated wash items can lead to life-threatening infections.

  • Page 8: 2.1.1.1 Procedure In The Event Of Accidents At Work With Risk Of Infection

    Resolve the error and repair  If errors or damage occur, the supervisor must be informed.  Errors may only be resolved by Belimed-Service or personnel trained and authorized by Belimed AG.  Do not perform any unauthorized repairs, changes, or manipulations in or on the product.

  • Page 9: Maintaining The Rack Cart

     Only replace components with spare parts from Belimed AG.  Using spare parts that do not originate from Belimed AG or that have not been approved by Belimed AG voids the warranty.

  • Page 10: Summary Of The Safety Instructions

    Safety Rack Cart WD 750  Failure to comply with the instructions, improper use, normal wear, and the use of incorrect spare parts are excluded from the warranty. Summary of the safety instructions Summary of all safety instructions for safe operation of the product.
  • Page 11  Make sure that the spray holes of the wash arm are facing upward. WARNING Risk of infection due to irregular maintenance For safe and reliable operation, regular maintenance by Belimed-Service is required.  Have regular maintenance work carried out by Belimed-Service. WARNING Infection hazard due to contamination Product or dismantled parts may be contaminated due to work processes.
  • Page 12 Safety Rack Cart WD 750 CAUTION Loss of small parts The end cap and cotter pin are required to ensure an optimal cleaning result.  Store the end cap and cotter pin safely during inspection and cleaning work. CAUTION Burn hazard due to hot rack cart At the end of a program, the rack cart temperature may be up to 80 °C.

  • Page 13: Description

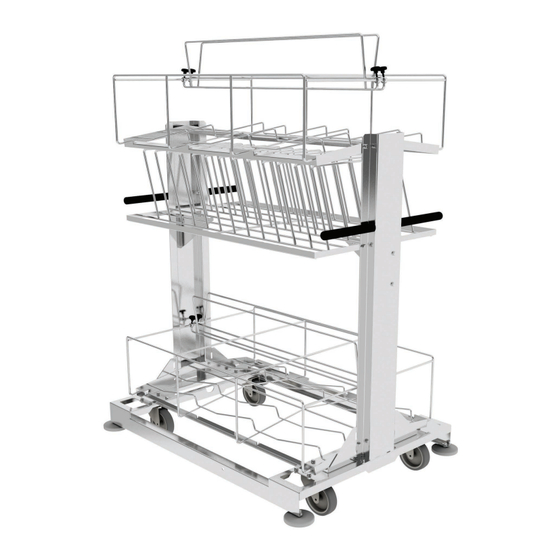

    Rack Cart WD 750 Description Description Rack Cart Container • Rack Cart S Container, P. Version 730782 • Rack Cart S Container with lid 3 level, P. Version 731088 • Rack Cart S Container 3 Level, P. Version 731089 Fig. 3-1 Example of Rack Cart Container, P. Version 730782...

  • Page 14: Rack Cart Universal

    Description Rack Cart WD 750 Rack Cart Container [units] Material 730782 731088 731089 WD 750 S WD 750 M WD 750 L Table 3-1 Maximum number [units] of rack carts in the chamber Rack Cart Universal • Rack Cart S 2M 2L Universal 4 Level, P. Version 156301 •...
  • Page 15 Rack Cart WD 750 Description 2 Wash arm 3 Handle 4 Bumper roll 5 Roller 6 Rack cart 7 Connection coupling Rack Cart Container/Instruments [units] Material 156301 731910 156868 WD 750 S – – WD 750 M – – WD 750 L –...

  • Page 16: Rack Cart Or Shoes

    Description Rack Cart WD 750 Rack Cart OR Shoes • Rack Cart 60 OR Shoes, material 732390 • Rack Cart 96 OR Shoes, material 730264 Fig. 3-3 Example of Rack Cart OR Shoes, P. Version 732390 1 OR shoe holder...

  • Page 17: Rack Cart Dishes

    Rack Cart WD 750 Description Rack Cart Dishes • Rack Cart Dishes, material 731090 Fig. 3-4 Example of Rack Cart Dishes, P. Version 731090 1 Dish holder 2 Handle 3 Bumper roll 4 Roller 5 Rack cart 6 Connection coupling...

  • Page 18: Loading

     Follow local work instructions. WARNING Risk of infection due to irregular maintenance For safe and reliable operation, regular maintenance by Belimed-Service is required.  Have regular maintenance work carried out by Belimed-Service. NOTICE Risk of damage due to incorrect loading and unloading Incorrect loading and unloading of the machine can lead to damage.

  • Page 19: Rack Cart Container

    Rack Cart WD 750 Loading Rack Cart Container Fig. 4-1 Example of loading a rack cart with sterilization containers 1 Trough, 12 units 2 Cover, 12 units 3 Rack cart 4 Star knob screw 5 Stop position Loading the lower level ...

  • Page 20: Rack Cart Universal

    Loading Rack Cart WD 750 Loading the upper level  Ensure that the loading height is 2000 mm (79 in) as described in Chapter 8.1 «Dimensions».  The wash items must not be higher than the loading height.  Lightly unscrew the 4× star knob screws 4.

  • Page 21: Rack Cart Or Shoes

    Rack Cart WD 750 Loading Loading the middle level  Load the troughs 2 with their openings facing downward.  Load 9 troughs 2. Loading the upper level  Load 11 covers 1.  Place the covers 1 on their long sides with the inside facing downward.

  • Page 22: Rack Cart Dishes

    Loading Rack Cart WD 750  Load 60 units OR shoes on rack cart 732390.  Load 96 units OR shoes on rack cart 730264.  Place wash items on the holder.  The wash items are rinsed inside and outside.

  • Page 23: Cleaning Performance

    Rack Cart WD 750 Cleaning performance Cleaning performance WARNING Infection hazard due to residues Residual contamination can lead to infections.  Wear the required personal protective equipment, e.g., protective goggles, protective gloves, etc., during inspections and cleaning work. CAUTION Burn hazard due to hot rack cart At the end of a program, the rack cart temperature may be up to 80 °C.
  • Page 24 Cleaning performance Rack Cart WD 750 Cleaning the spray nozzles Fig. 5-1 Spray nozzles WD 750 1 Bayonet quick-opening closure nut with spray nozzle 2 Pipe clamp with bayonet quick-opening closure 3 Nozzle pipe 4 Base spray nozzles in the lower nozzle pipe ...

  • Page 25: Checking And Cleaning

     Do not use aggressive solvents or abrasive cleaners. NOTICE Perform visual inspection daily Blockages, contamination, or loose parts can lead to damage.  Perform visual inspection daily.  Engage Belimed-Service if there are deficiencies.  Perform required inspection and cleaning work. Activity Note Interval ...
  • Page 26 Checking and cleaning Rack Cart WD 750 • Rack Cart Container • Rack Cart Container/Instruments • Rack Cart OR Shoes • Rack Cart Dishes Fig. 6-1 Example of cleaning the Rack Cart Container 1 Holder or level 2 Handle 3 Bumper roll...
  • Page 27 Rack Cart WD 750 Checking and cleaning Cleaning the roller  Clean the roller 4.  If necessary, remove soiling with a suitable tool, e.g., a brush or needle.  If required, remove the roller 4 and clean thoroughly.  Replace the roller 4 if there is significant damage Cleaning the rack cart ...
  • Page 28 Checking and cleaning Rack Cart WD 750 WARNING Infection hazard Missing, damaged, or soiled end caps lead to a loss of water pressure and a poor cleaning result, which entails an infection hazard.  Before each start of a program, check that the end caps are correctly seated.
  • Page 29 Rack Cart WD 750 Checking and cleaning Fig. 6-4 Uninstalling the end cap 1 End cap  Remove the end cap 1 from the end of the wash arm. Cleaning the end cap  Clean the end cap 1 with a suitable brush under running water.
  • Page 30 Checking and cleaning Rack Cart WD 750 Fig. 6-6 Inserting and turning the cotter pin  Insert the cotter pin into the wash arm from below.  Make sure that the end of the cotter pin protrudes slightly from the upper hole of the wash arm.
  • Page 31 Rack Cart WD 750 Checking and cleaning Fig. 6-7 Spraying system maintenance 1 Spraying system 2 Nozzle 3 Supply line 4 Cotter pin  Check the spraying system 1 for clogged nozzles 2 and clean if required.  Replacement criteria, e.g., score marks or deep scratches.
  • Page 32 Checking and cleaning Rack Cart WD 750 CAUTION Loss of small parts The end cap and cotter pin are required to ensure an optimal cleaning result.  Store the end cap and cotter pin safely during inspection and cleaning work.

  • Page 33: Disposal

    Rack Cart WD 750 Disposal Disposal WARNING Infection hazard due to contamination Product or dismantled parts may be contaminated due to work processes. Persons not wearing pro- tective gloves may unknowingly become infected.  Before starting work, clear the work area, secure it, and disinfect surfaces.

  • Page 34: Technical Data

    Technical data Rack Cart WD 750 Technical data Dimensions Fig. 8-1 Example of dimensions 34 | 38 © Belimed AG 90098002 | 01...
  • Page 35 Rack Cart WD 750 Technical data Material Height 1 Length 2 Width 3 Loading Weight Weight Rack Cart [mm] [mm] [mm] height [kg] with [in.] [in.] [in.] [mm] [lb] load [in.b] [kg] [lb] 1743 1150 730782 68.6 45.3 34.3 731088...

  • Page 36: Packaging

    Technical data Rack Cart WD 750 Packaging Fig. 8-2 Example of packaging Material Height 1 Length 2 Width 3 Weight Rack Cart [mm] [mm] [mm] [kg] [in.] [in.] [in.] [lb] 1290 730782 50.78 731088 731089 1780 156301 731910 2160 1040 40.94...
  • Page 37 Rack Cart WD 750 Technical data 90098002 | 01 © Belimed AG 37 | 38...
  • Page 38 Belimed AG | Grienbachstrasse 11 | 6300 Zug | Switzerland | +41 41 449 78 88 | www.belimed.com...
