30" (76.2 cm) Freestanding Gas Range
PRODUCT MODEL NUMBERS
AGR4422VD
AGR4433XD
Gas supply: Use
" (1.9 cm) rigid pipe gas supply
line to the range location. A smaller size pipe on longer
runs may result in insufficient gas supply. With L.P. gas,
piping or tubing size can be
" (1.3 cm) minimum. If
local codes permit, it is recommended that new flexible
metal appliance connector, design-certified by CSA, 4-
5 ft (122-152.4 cm) long,
" (1.3 cm) or
I.D., be used for connecting the range to the rigid gas
supply line. A
" (1.3 cm) male pipe thread is needed for
connection to pressure regulator female pipe threads.
Pipe joint compounds that resist the action of LP gas
must be used. Do not use TEFLON
manual shutoff valve must be located in the same room,
but external to the range.
Electrical: A 120-volt, 60-Hz, AC-only, electrical supply
is required on a separate 15-amp circuit, fused on both
sides of the line. A time-delay fuse or circuit breaker is
recommended.
†®
TEFLON is a registered trademark of E.I. Du Pont De Nemours and
Company.

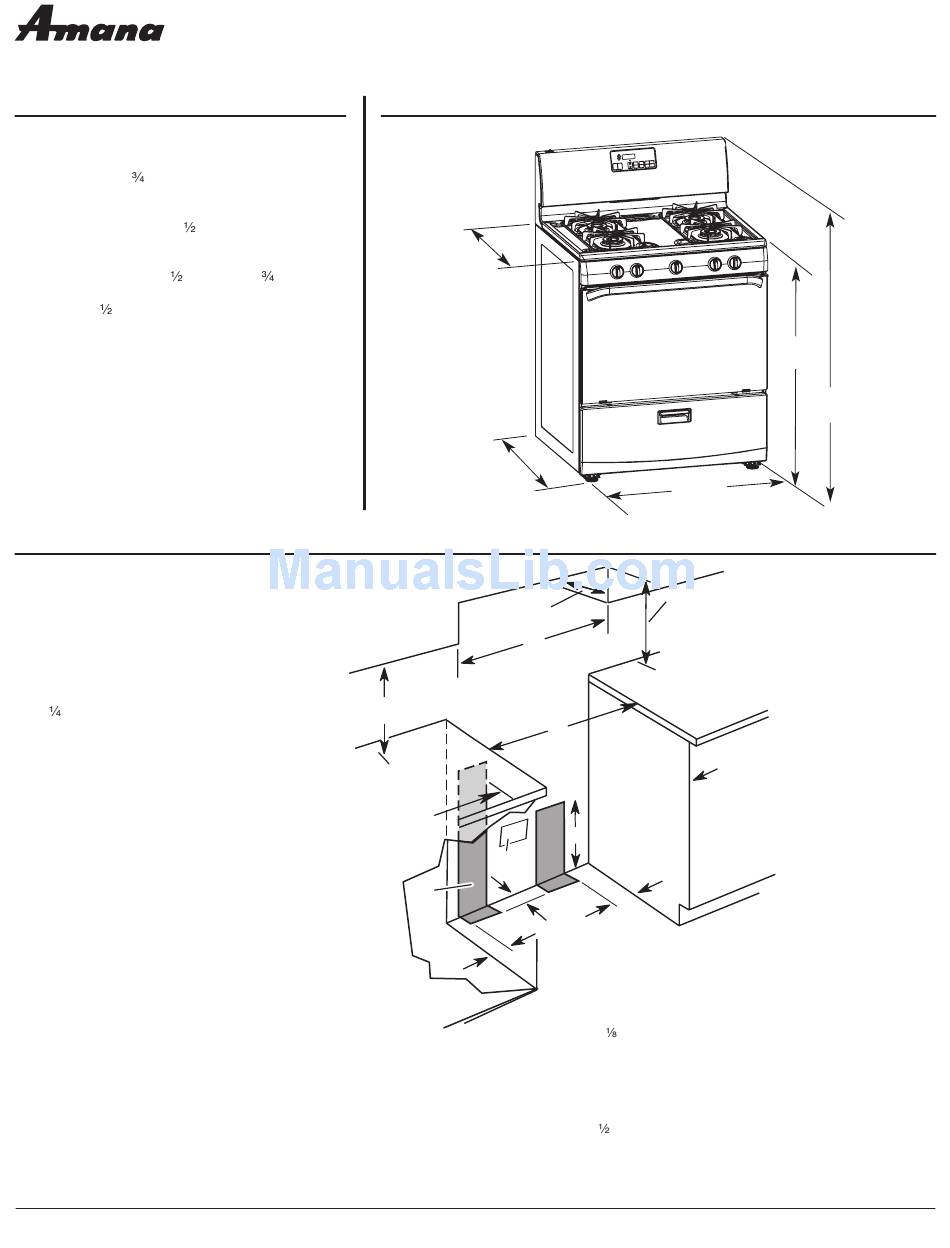

CABINET OPENING DIMENSIONS
Cabinet opening dimensions shown
are for 25" (64 cm) countertop depth,
24" (61 cm) base cabinet depth and
36" (91.4 cm) countertop height.
NOTE: 24" (61 cm) minimum when bottom of
wood or metal cabinet is protected by not less
than
" (0.64 cm) flame retardant millboard
covered with not less than No. 28 MSG sheet
steel, 0.015" (0.4 mm) stainless steel, 0.024"
(0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the
top of the cooking platform and the bottom of
an unprotected wood or metal cabinet.
If installing a range hood or microwave hood
combination above the range, follow the range
hood or microwave hood combination
installation instructions for dimensional
clearances above the cooktop surface.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
PRODUCT DIMENSIONS
" (1.9 cm)
®†
tape. An individual
A
26
3
/
"
4
(67.9 cm)
1
24
/
"
4
(61.6 cm)
B
C
E
L
I
H
F
G
G
J
A. 18" (45.7 cm) upper side cabinet to countertop
K
B. 13" (33 cm) max. upper cabinet depth
C. 30" (76.2 cm) min. opening width
D. For minimum clearance to top of cooktop, see NOTE*.
E. 30 " (76.5 cm) min. opening width
F. This shaded area recommended for installation of rigid gas
pipe.
G. 8" (20.3 cm)
H. Grounded outlet
I. 17" (43.2 cm)
J. 4 " (11.4 cm)
K. 2" (5.1 cm)
L. 2" (5.1 cm) min. clearance from both sides of range to side
wall or other combustible material.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
36"
(91.4 cm)
1
46
/
"
4
(117.5 cm)
7
29
/
"
8
(75.9 cm)
D
M
K
Ref. W10153329
06-01-10
