Airlink101 ASW208 Quick Installation Manual

Quick Installation Guide
8-Port 10/100Mbps Switch
Model # ASW208
Section 1
Introduction
Thanks for your purchase of Airlink101® 8-Port 10/100Mbps Switch. This
installation guide tells you how to install your Switch, and how to connect it to
your Ethernet network.
The 8-Port 10/100Mbps Switch is designed for easy installation and high
performance in an environment where network traffic and the number of
users increase continuously. You can add other network devices such as
computers, IP cameras, and Network Attached Storage (NAS) onto your
network with the Switch quickly and easily.
Ver. 1A
Package Contents:
• 8-Port 10/100Mbps
Switch
• Power Adapter
• Quick Installation Guide
Section 2

Hardware Description

This section describes the hardware features of the 8-Port Switch.
•

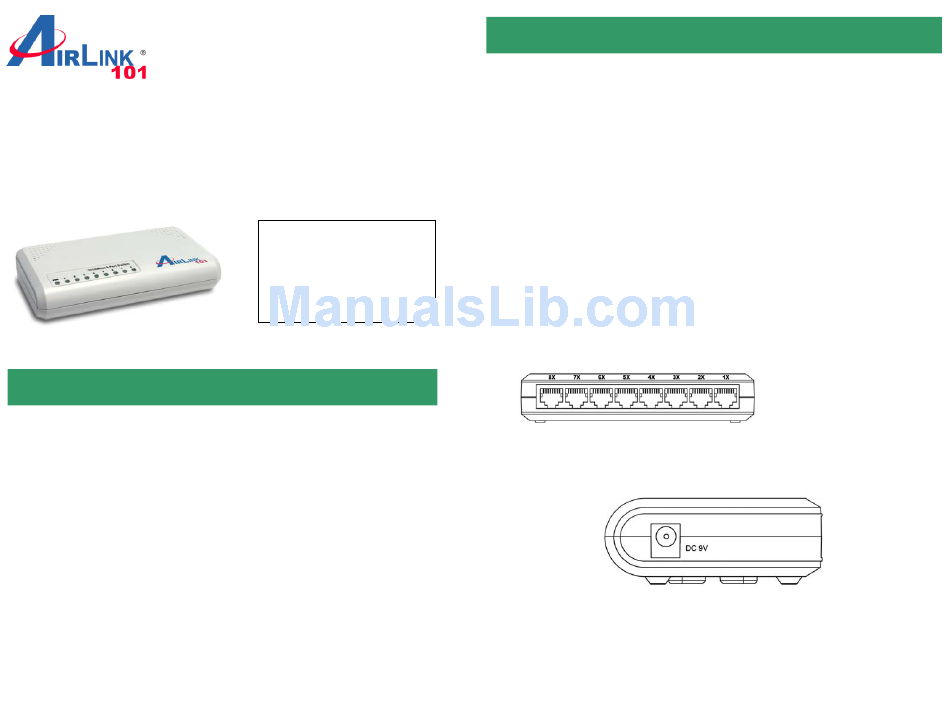

Front Panel
The front panel provides a simple interface monitoring the Switch. It has a power
LED and a Link/Activity LED for each port.
•
LED indicators
- PWR
Solid Green: Power On
- Link/Activity
Solid Green: Indicates the adapter is connected to switch
Blinking Green: Indicates data transmission
•
Rear Panel
The rear panel of the 8-Port Switch indicates 8 RJ-45 ports.
•
Side Panel
The side panel of the 8-Port Switch indicates a power port, which accepts DC
9V/700mA power adapter.
