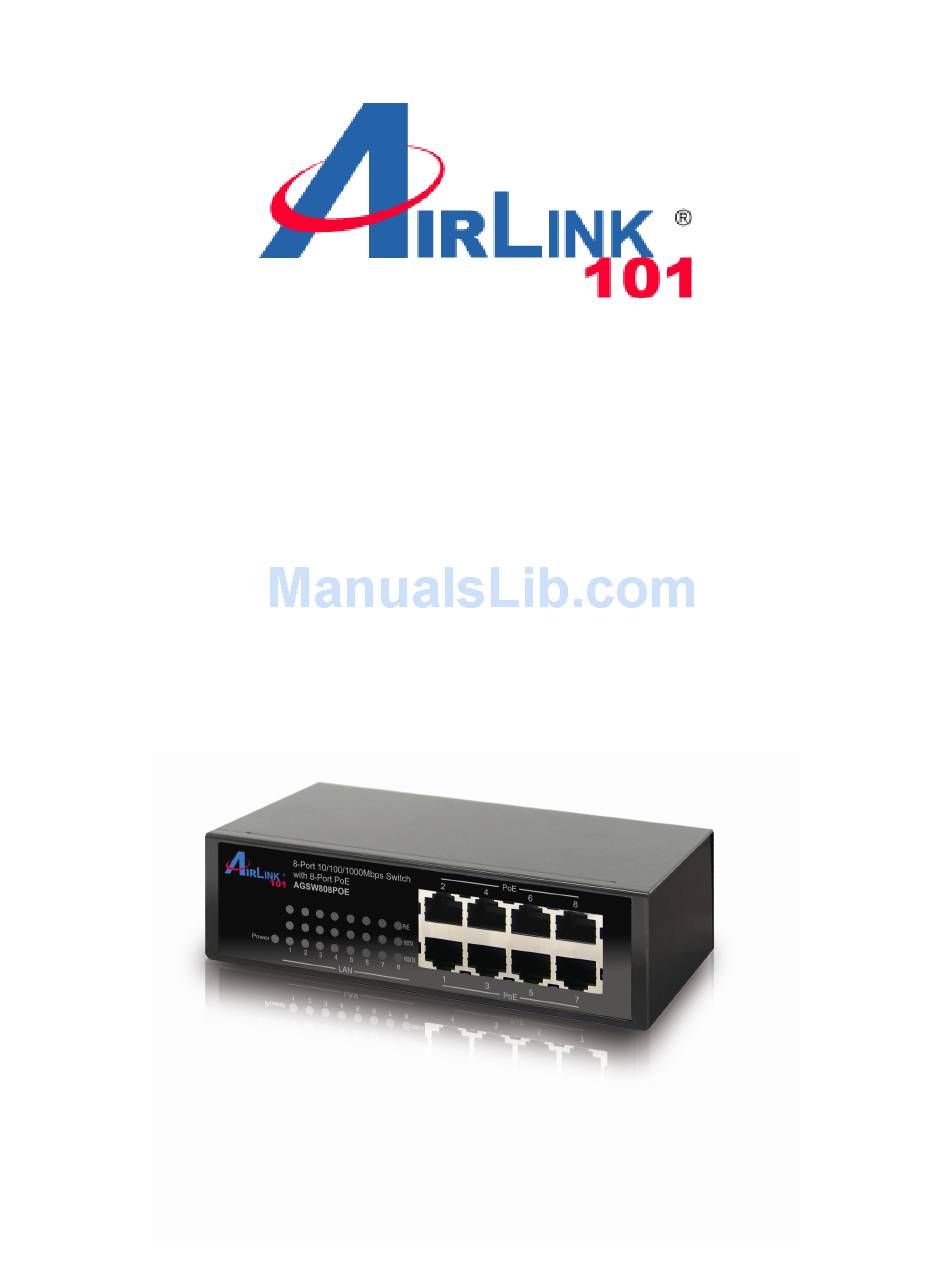

- Page 1 Quick Installation Guide 8-Port 10/100/1000Mbps Switch with 8-Port PoE Model# AGSW808POE Ver. 1A...
- Page 2 1. Introduction Power Over Ethernet (PoE) is an evolving technology designed to simultaneously deliver power and transmit data through an Ethernet cable. Modeling after the technology used in telecommunication systems which supplies power to telephones, PoE powers network device without the need of AC electrical outlets. By eliminating the power cords and the power infrastructure, the technology greatly simplifies the wiring and deployment matters and brings lots of convenience...
-
Page 3: Package Contents
1.1 Package Contents • 1 x AGSW808POE • 1 x Switching Power Adapter • 1 x Quick Installation Guide • 4 x Rubber foot for shock cushioning 1.2 Panel 1.2.1 Front Panel The picture below depicts the front panel of the PoE Switch: Figure 1-1 •... - Page 4 • LED Indicators Comprehensive LED indicators display the status of the switch and the network (see Section 1.2.3). 1.2.2 Rear Panel Figure 1-2 • Power Adapter Connector: DC 48V/1.5A, AC 100~240V, 50~60Hz • DC Terminal: used for connection to auxiliary backup DC power, DC 48V/1.5A 1.2.3 LED indicators information The front panel LEDs provide instant status feedback for help with...
- Page 5 • PoE 1~8 LEDs Color PoE 1~8 Green • LAN 1~8 LEDs Color Connected to Green 100TX network Connected to Green 1000TX network Status Solid PoE devices connected successfully Status Solid Blinking Transmitting/ Receiving data 100M on 100M network Transmitting/ Receiving data 1000M on 1000M...
-
Page 6: Technical Specifications
1.3 Technical Specifications Standards • IEEE 802.3 10BASE–T, IEEE 802.3u 100BASE–TX and IEEE 802.3af (PoE) Ports • 8 x 10/100/1000Mbps Auto-Negotiation RJ45 Port with 8 PoE ports Access Method • CSMA/CD Transmission Method • Store and Forward Topology • Star SRAM Buffers •... -
Page 7: Installing The Switch
• Humidity: 5% ~ 90% RH, non-condensing 2. Installing the Switch The site where you place the switch may greatly affect its performance. When installing, take the following into your consideration. 2.1 Installation The setup of the switch can be performed using the following steps: •... -
Page 8: Connecting The Switch
3. Connecting the Switch This section describes how to connect the Switch to your network. 3.1 Connection The Switch supports 8 10/100/1000Mbps Ethernet ports and all of the 8 ports are PoE enabled ports. These PoE ports will automatically activate when a compatible terminal is identified. The Switch will supply power through the Ethernet port to the connected PoE powered device (PD). -
Page 9: Technical Support
Technical Support E-mail: support@airlink101.com Web Site: www.airlink101.com *Network conditions and environmental factors as well as network overhead lower actual data throughput rate. Specifications are subject to change without notice. Photo of product may not reflect actual content. Copyright © 2011 AirLink101®. All rights reserved.
