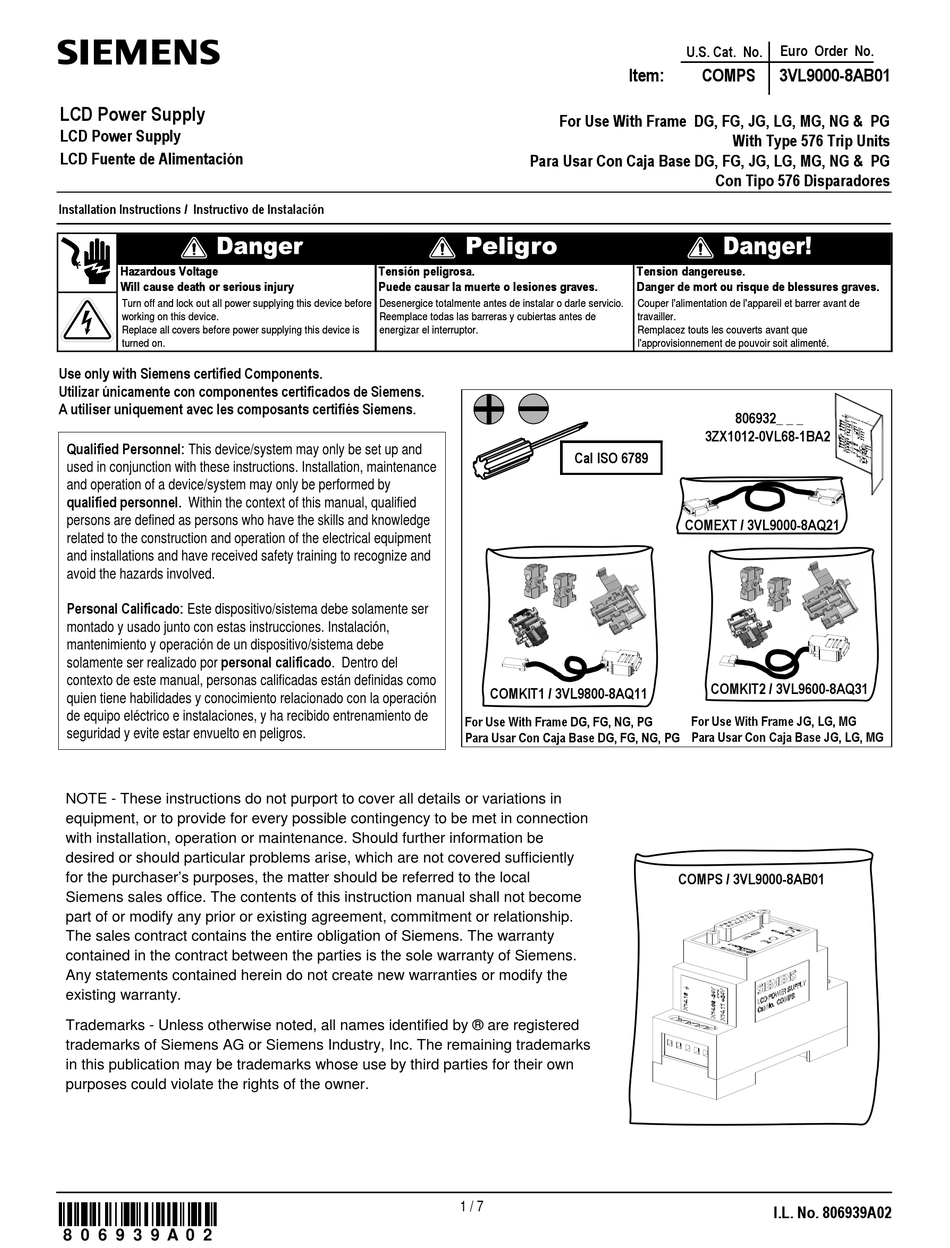

Siemens COMPS Installation Instructions Manual

s
LCD Power Supply
LCD Power Supply
LCD Fuente de Alimentación
Installation Instructions / Instructivo de Instalación
Hazardous Voltage Hazardous Voltage
Will cause death or serious injury Will cause death or serious injury
Turn off and lock out all power supplying this device before Turn off and lock out all power supplying this device before
working on this device. working on this device.
Replace all covers before power supplying this device is Replace all covers before power supplying this device is
turned on. turned on.
Use only with Siemens certified Components.
Utilizar únicamente con componentes certificados de Siemens.
A utiliser uniquement avec les composants certifiés Siemens.
Qualified Personnel: This device/system may only be set up and
used in conjunction with these instructions. Installation, maintenance
and operation of a device/system may only be performed by
qualified personnel. Within the context of this manual, qualified
persons are defined as persons who have the skills and knowledge
related to the construction and operation of the electrical equipment
and installations and have received safety training to recognize and
avoid the hazards involved.
Personal Calificado: Este dispositivo/sistema debe solamente ser
montado y usado junto con estas instrucciones. Instalación,
mantenimiento y operación de un dispositivo/sistema debe
solamente ser realizado por personal calificado. Dentro del
contexto de este manual, personas calificadas están definidas como
quien tiene habilidades y conocimiento relacionado con la operación
de equipo eléctrico e instalaciones, y ha recibido entrenamiento de
seguridad y evite estar envuelto en peligros.
NOTE - These instructions do not purport to cover all details or variations in
equipment, or to provide for every possible contingency to be met in connection
with installation, operation or maintenance. Should further information be
desired or should particular problems arise, which are not covered sufficiently
for the purchaser's purposes, the matter should be referred to the local
Siemens sales office. The contents of this instruction manual shall not become
part of or modify any prior or existing agreement, commitment or relationship.
The sales contract contains the entire obligation of Siemens. The warranty
contained in the contract between the parties is the sole warranty of Siemens.
Any statements contained herein do not create new warranties or modify the
existing warranty.
Trademarks - Unless otherwise noted, all names identified by ® are registered
trademarks of Siemens AG or Siemens Industry, Inc. The remaining trademarks
in this publication may be trademarks whose use by third parties for their own
purposes could violate the rights of the owner.
8 0 6 9 3 9 A 0 2
Para Usar Con Caja Base DG, FG, JG, LG, MG, NG & PG
Tensión peligrosa. Tensión peligrosa.
Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves.
Desenergice totalmente antes de instalar o darle servicio. Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de Reemplace todas las barreras y cubiertas antes de
energizar el interruptor. energizar el interruptor.
COMKIT1 / 3VL9800-8AQ11
For Use With Frame DG, FG, NG, PG
Para Usar Con Caja Base DG, FG, NG, PG
1 / 7
U.S. Cat. No.
Item: COMPS
For Use With Frame DG, FG, JG, LG, MG, NG & PG
With Type 576 Trip Units
Con Tipo 576 Disparadores
Tension dangereuse. Tension dangereuse.
Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
Couper l'alimentation de l'appareil et barrer avant de Couper l'alimentation de l'appareil et barrer avant de
travailler. travailler.
Remplacez touts les couverts avant que Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté. l'approvisionnement de pouvoir soit alimenté.
806932_ _ _
3ZX1012-0VL68-1BA2
Cal ISO 6789
COMEXT / 3VL9000-8AQ21
COMKIT2 / 3VL9600-8AQ31
For Use With Frame JG, LG, MG
Para Usar Con Caja Base JG, LG, MG
COMPS / 3VL9000-8AB01
Euro Order No.
3VL9000-8AB01
I.L. No. 806939A02
