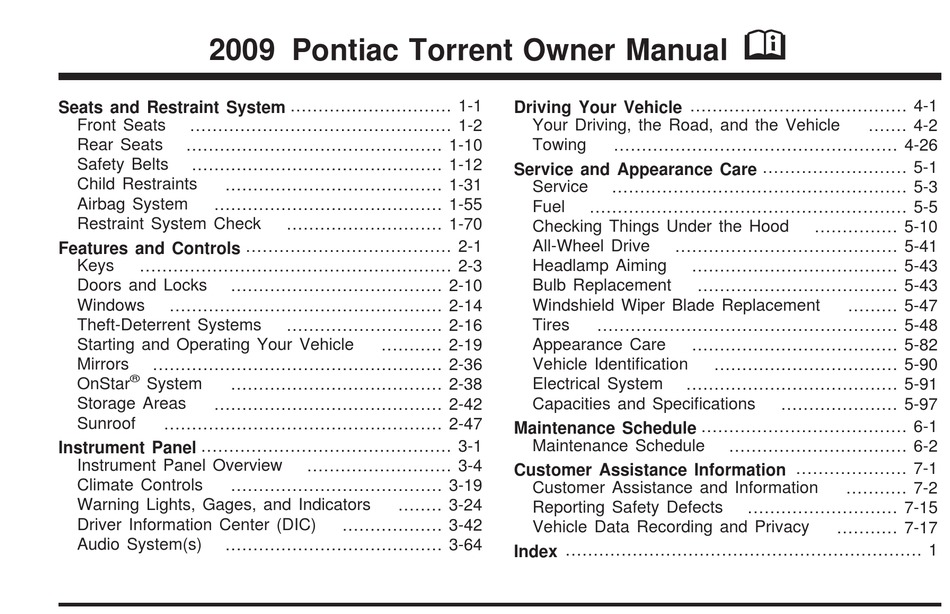

Page 1 2009 Pontiac Torrent Owner Manual Seats and Restraint System ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-10 Safety Belts ... 1-12 Child Restraints ... 1-31 Airbag System ... 1-55 Restraint System Check ... 1-70 Features and Controls ... 2-1 Keys ...
Page 2 GM reserves the right to make changes after that time without further notice. For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Pontiac Division wherever it appears in this manual. This manual describes features that may or may not be on your speciﬁc vehicle.
Page 3 Safety Warnings and Symbols A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this,” or “Do not let this happen.” A box with the word CAUTION is used to tell about things that could hurt you or others if you were to ignore the warning.
Page 4 Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index. : Airbag Readiness Light : Air Conditioning : Antilock Brake System (ABS) : Audio Steering Wheel Controls or OnStar : Brake System Warning Light "...
Page 5: Table Of Contents
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Seat Height Adjuster ...1-3 Power Seat ...1-3 Manual Lumbar ...1-4 Heated Seats ...1-4 Manual Reclining Seatbacks ...1-5 Head Restraints ...1-7 Passenger Folding Seatback ...1-8 Rear Seats ...1-10 Split Folding Rear Seat ...1-10 Safety Belts ...1-12 Safety Belts: They Are for Everyone ...1-12 How to Wear Safety Belts Properly ...1-17...
Page 6 Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 7: Power Seat
Seat Height Adjuster To manually raise or lower the seat, move the lever repeatedly upward or downward. Power Seat To adjust the seat: • Slide the control forward or rearward to move the seat forward or rearward. • Move the front and rear of the control up or down to raise or lower the front and rear part of the seat cushion.
Page 8: Manual Lumbar
Manual Lumbar On vehicles with this feature, the knob is located on the front of the driver seat lower cushion on the inboard side. Turn the knob clockwise or counterclockwise to increase or decrease the lumbar support. Heated Seats If your vehicle has heated seats, the switches are located on the instrument panel near the climate...
Page 9: Manual Reclining Seatbacks
Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 10 CAUTION: Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the safety belts cannot do their job when reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 11 Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash. Pull the head restraint up to raise it.
Page 12: Passenger Folding Seatback
Passenger Folding Seatback CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag. In a crash, an inﬂating airbag might force that object toward a person. This could cause severe injury or even death.
Page 13 4. Continue to fold the seat forward until it locks in the folded position. 5. Pull up on the seatback to be sure it is locked. To raise the seatback, do the following: 1. Lift up fully on the recliner lever, located on the outboard side of the seat, and push up on the seatback.
Page 14: Split Folding Rear Seat
Rear Seats Split Folding Rear Seat The rear split bench seatbacks have three available positions — folded forward, upright, or partially reclined. Both of the seatbacks can be moved to any of the three positions independent of the other seatback position.
Page 15 2. Lift the lever located on the top of the seatback to release the seatback. 3. Fold the seatback forward to the desired position. To recline the seatback, do the following: 1. Lift and hold the lever located on top of the seatback.
Page 16 Safety Belts Safety Belts: They Are for Everyone This section of the manual describes how to use safety belts properly. It also describes some things not to do with safety belts. CAUTION: Do not let anyone ride where a safety belt cannot be worn properly.
Page 17: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels. 1-13...
Page 18 Get it up to speed. Then stop the vehicle. The rider does not stop. 1-14 The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
Page 19 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-15...
Page 20 Questions and Answers About Safety Belts Will I be trapped in the vehicle after a crash if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.
Page 21: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and infants. If a child will be riding in the vehicle, see Older Children on page 1-31 or Infants and Young Children on page 1-34.
Page 22 What is wrong with this? The shoulder belt is too loose. It will not give as much protection this way. 1-18 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 23 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
Page 24 What is wrong with this? The belt is buckled in the wrong buckle. 1-20 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
Page 25 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied on the abdomen, not on the pelvic bones, and that could cause serious or fatal injuries.
Page 26 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-22 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 27 What is wrong with this? The belt is behind the body. CAUTION: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
Page 28 What is wrong with this? The belt is twisted across the body. 1-24 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to ﬁx it.
Page 29: Lap-Shoulder Belt
Lap-Shoulder Belt All seating positions in the vehicle have a lap-shoulder belt. The following instructions explain how to wear a lap-shoulder belt properly. 1. Adjust the seat, if the seat is adjustable, so you can sit up straight. To see how, see “Seats” in the Index. 2.
Page 30 5. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. 1-26 To unlatch the belt, just push the button on the buckle. For outboard seating positions, slide the latch plate up the safety belt webbing when the safety belt is not in use.
Page 31: Rear Safety Belt Comfort Guides
Shoulder Belt Height Adjuster The vehicle has a shoulder belt height adjuster for the driver and right front passenger seating positions. Adjust the height so that the shoulder portion of the belt is centered on the shoulder. The belt should be away from the face and neck, but not falling off the shoulder.
Page 32 There is one guide for each outside passenger position in the rear seat. Here is how to install a comfort guide to the safety belt: 1. Remove the guide from its storage clip on the back of the seatback. 2. Place the guide over the belt, and insert the two edges of the belt into the slots of the guide.
Page 33 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 34 Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 35 Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. The manufacturer’s instructions that come with the booster seat state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below ﬁt test: •...
Page 36 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 37 CAUTION: Never do this. Never allow a child to wear the safety belt with the shoulder belt behind their back. A child can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, the child would not be restrained by the shoulder belt.
Page 38 Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 39 CAUTION: Never do this. Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Never put a rear-facing child restraint in the right front seat. Secure a rear-facing child CAUTION: (Continued) CAUTION: (Continued) restraint in a rear seat.
Page 40 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 41 CAUTION: A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure.
Page 42 A forward-facing child seat (B) provides restraint for the child’s body with the harness. 1-38 A booster seat (C-D) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. A booster seat can also help a child to see out the window.
Page 43 Securing an Add-On Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Secure the child restraint properly in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that child restraint and the instructions in this manual.
Page 44: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that children and child restraints be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint;...
Page 45 When securing a child restraint in a rear seating position, study the instructions that came with your child restraint to make sure it is compatible with this vehicle. If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, we recommend that rear-facing child restraints not be transported in your vehicle, even if the airbag is off.
Page 46: Lower Anchors And Tethers For
A. Child restraint using LATCH B. Occupant prohibited C. Child restraint or occupant using safety belt A. Child restraint or occupant using safety belt A. Child restraint or occupant using safety belt B. Child restraint using LATCH 1-42 Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash.
Page 47 Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
Page 48 Some child restraints that have a top tether are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.
Page 49 The top tether anchors for each rear seating position are located on the back of the rear seatback. You may need to adjust the rear compartment storage panel/cover in the rear cargo area to access the anchors. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 50: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the child restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Install a LATCH-type child restraint properly using the anchors, or use the vehicle’s safety belts to secure the restraint, following the instructions that came with the child...
Page 51 A. Passenger’s Side Rear Seat Lower Anchors B. Center Rear Seat Lower Anchors C. Driver’s Side Rear Seat Lower Anchors Make sure to attach the child restraint at the proper anchor location. This system is designed to make installation of child restraints easier.
Page 52 2.3. Route, attach and tighten the top tether according to your child restraint instructions and the following instructions: If the position you are using does not have a headrest or head restraint and you are using a single tether, route the tether over the seatback.
Page 53: Securing A Child Restraint In A Rear
Securing a Child Restraint in a Rear Seat Position When securing a child restraint in a rear seating position, study the instructions that came with the child restraint to make sure it is compatible with this vehicle. If the child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-42 for how and where to install the child restraint using LATCH.
Page 54 3. Push the latch plate into the buckle until it clicks. 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.
Page 55 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. When installing a forward-facing child restraint, it may be helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 56: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position This vehicle has airbags. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-40. In addition, the vehicle has a passenger sensing system which is designed to turn off the right front passenger frontal airbag under certain conditions.
Page 57 If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-42 for how and where to install the child restraint using LATCH. If a child restraint is secured using a safety belt and it uses a top tether, see Lower Anchors and Tethers for Children (LATCH) on page 1-42 for top tether anchor locations.
Page 58 5. Pull the rest of the shoulder belt all the way out of 6. To tighten the belt, push down on the child restraint, the retractor to set the lock. pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 59: Airbag System
7. If the vehicle does not have a rear seat and your child restraint has a top tether, follow the child restraint manufacturer’s instructions regarding the use of the top tether. See Lower Anchors and Tethers for Children (LATCH) on page 1-42 for more information.
Page 60 Even if you do not have a right front passenger seat in your vehicle there is still an active frontal airbag in the right side of the instrument panel. Do not place cargo in front of this airbag. CAUTION: Be sure that cargo is not near an airbag. In a crash, an inﬂating airbag might force that object toward a person.
Page 61 CAUTION: Airbags inﬂate with great force, faster than the blink of an eye. Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Do not sit unnecessarily close to the airbag, as you would be if you were sitting on the edge of your seat or leaning forward.
Page 62: Where Are The Airbags
Where Are the Airbags? The driver’s airbag is in the middle of the steering wheel. 1-58 The right front passenger’s airbag is in the instrument panel on the passenger’s side.
Page 63 Driver Side shown, Passenger Side similar If your vehicle has roof-rail airbags for the driver, right front passenger, and second row outboard passengers, they are in the ceiling above the side windows. CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 64: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? Frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver’s or right front passenger’s head and chest. However, they are only designed to inﬂate if the impact exceeds a predetermined deployment threshold.
Page 65: What Makes An Airbag Inﬂate
Roof-rail airbags are not intended to inﬂate in frontal impacts, near-frontal impacts, or rear impacts. Both roof-rail airbags will deploy when either side of the vehicle is struck or if the sensing system predicts that the vehicle is about to roll over. In any particular crash, no one can say whether an airbag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs...
Page 66: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the frontal airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize an airbag inﬂated. Roof-rail airbags may still be at least partially inﬂated for some time after they deploy. Some components of the airbag module may be hot for several minutes.
Page 67: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for the airbag system.
Page 68 The passenger sensing system works with sensors that are part of the right front passenger seat. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger frontal airbag should be enabled (may inﬂate) or not. According to accident statistics, children are safer when properly secured in a rear seat in the correct child restraint for their weight and size.
Page 69 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, we recommend that rear-facing child restraints not be transported in your vehicle, even if the airbag is off. The passenger sensing system is designed to turn off the right front passenger frontal airbag if: •...
Page 70 If the On Indicator is Lit for a Child Restraint If a child restraint has been installed and the on indicator is lit: 1. Turn the vehicle off. 2. Remove the child restraint from the vehicle. 3. Remove any additional items from the seat such as blankets, cushions, seat covers, seat heaters, or seat massagers.
Page 71: Passenger Sensing System
If this happens, use the following steps to allow the system to detect that person and enable the right front passenger frontal airbag: 1. Turn the vehicle off. 2. Remove any additional material from the seat, such as blankets, cushions, seat covers, seat heaters, or seat massagers.
Page 72: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how the vehicle should be serviced. There are parts of the airbag system in several places around the vehicle. Your dealer/retailer and the service manual have information about servicing the vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 7-16.
Page 73 The passenger sensing system may not operate properly if the original seat trim is replaced with non-GM covers, upholstery or trim, or with GM covers, upholstery or trim designed for a different vehicle. Any object, such as an aftermarket seat heater or a comfort enhancing pad or device, installed under or on top of the seat fabric, could also interfere with the operation of the passenger sensing...
Page 74: Restraint System Check
Restraint System Check Checking the Restraint Systems Safety Belts Now and then, check that the safety belt reminder light, safety belts, buckles, latch plates, retractors, and anchorages are all working properly. Look for any other loose or damaged safety belt system parts that might keep a safety belt system from doing its job.
Page 75: Replacing Restraint System Parts
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as...
Page 76 ✍ NOTES 1-72...
Page 77: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry (RKE) System ...2-4 Remote Keyless Entry (RKE) System Operation ...2-5 Remote Vehicle Start ...2-7 Doors and Locks ...2-10 Door Locks ...2-10 Power Door Locks ...2-10 Delayed Locking ...2-10 Programmable Automatic Door Locks ...2-11 Rear Door Security Locks ...2-11 Lockout Protection ...2-12 Liftgate ...2-12...
Page 78 Section 2 ® OnStar System ...2-38 Storage Areas ...2-42 Glove Box ...2-42 Cupholders ...2-42 Center Console Storage ...2-42 Luggage Carrier ...2-42 Features and Controls Rear Compartment Storage Panel/Cover ...2-44 Rear Seat Armrest ...2-45 Table ...2-46 Convenience Net ...2-47 Sunroof ...2-47...
Page 79: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window.
Page 80: Remote Keyless Entry (Rke) System
Remote Keyless Entry (RKE) System If this vehicle has the Remote Keyless Entry (RKE) system, it operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 81 Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions work up to 195 feet (60 m) away from the vehicle. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2-4. With Remote Start Shown, Without Remote Start Similar...
Page 82: Battery Replacement
Press and hold for more than two seconds to activate the panic alarm. The turn signal lamps ﬂash and the horn sounds repeatedly for 30 seconds. The alarm turns off when the ignition is moved to ON/RUN or again. The ignition must be in LOCK/OFF for the panic alarm to work.
Page 83: Remote Vehicle Start
Remote Vehicle Start Your vehicle may have the remote start feature. This feature allows you to start the engine from outside the vehicle. See “REMOTE START” under DIC Vehicle Personalization on page 3-57 for instructions on how to enable and disable this feature. During a remote start, the climate control system will turn on at the fan, temperature, and mode settings the vehicle was set to when the vehicle was last turned...
Page 84 3. To extend the engine run time by 10 minutes, repeat Steps 1 and 2 while the engine is still running. The engine run time can only be extended if it is the ﬁrst remote start since the vehicle has been driven.
Page 85 The remote vehicle start feature will not operate if any of the following occur: • The vehicle’s key is in the ignition. • The vehicle’s hood, liftgate or doors are not closed. • The hazard warning ﬂashers are on. • There is an emission control system malfunction.
Page 86: Operation
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked.
Page 87: Programmable Automatic Door Locks
Programmable Automatic Door Locks Your vehicle has an automatic lock/unlock feature which enables you to program the power door locks through the Driver Information Center (DIC). See DIC Vehicle Personalization on page 3-57 for more information on DIC programming. Rear Door Security Locks Your vehicle has rear door security locks that prevent passengers from opening the rear doors from the inside.
Page 88: Lockout Protection
Lockout Protection If you press the power door lock switch when the key is in the ignition and any door is open, all the doors will lock and only the driver’s door will unlock. Be sure to remove the key from the ignition when locking your vehicle.
Page 89 Liftgate Operation with Loss of Power The liftgate is equipped with an electric latch. If the battery is disconnected or has low voltage, the liftgate will not open. To open the liftgate if this happens, remove the interior trim plug located at the base of the liftgate from inside the vehicle.
Page 90: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 91: Power Windows
Power Windows CAUTION: Leaving children in a vehicle with the keys is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function and they could be seriously injured or killed if caught in the path of a closing window.
Page 92: Sun Visors
Express-Down Window The driver’s window switch has an express-down feature that allows the window to be lowered without holding the switch. Press the switch part way, and the driver’s window opens a small amount. Press the switch down all the way, release it, and the window goes down automatically.
Page 93: Content Theft-Deterrent
Content Theft-Deterrent Your vehicle has a content theft-deterrent alarm system. To activate the theft-deterrent system: 1. Open the door. 2. Lock the door with the power door lock switch or the Remote Keyless Entry (RKE) transmitter. If you are using the RKE transmitter, the door does not need to be open.
Page 94: Pass-Key Iii+ Electronic Immobilizer Operation
® PASS-Key III+ Electronic Immobilizer Operation ® Your vehicle has PASS-Key III+ (Personalized Automotive Security System) theft-deterrent system. ® PASS-Key III+ is a passive theft-deterrent system. The system is automatically armed when the key is removed from the ignition. The system is automatically disarmed when the key is turned to ON/RUN, ACC/ACCESSORY or START from the LOCK/OFF position.
Page 95: Starting And Operating Your Vehicle
See your dealer/retailer or a locksmith who can service ® PASS-Key III+ to get a new key blank that is cut exactly as the ignition key that operates the system. To program the new additional key: 1. Verify that the new key has a 2.
Page 96: Ignition Positions
Ignition Positions The ignition switch has four different positions. In order to shift out of P (Park), ignition must be in the ON/RUN or ACC/ACCESSORY and the regular brake pedal must be applied. 2-20 Notice: Using a tool to force the key to turn in the ignition could cause damage to the switch or break the key.
Page 97: Retained Accessory Power (Rap)
ACC (ACC/ACCESSORY): This is the position in which you can operate some electrical accessories. (ON/RUN): This position can be used to operate the electrical accessories and to display some instrument panel cluster warning and indicator lights. The switch stays in this position when the engine is running. If you leave the key in the ACC/ACCESSORY or ON/RUN position with the engine off, the battery could be drained.
Page 98: Starting The Engine
Starting the Engine Move the shift lever to P (Park) or N (Neutral). The engine will not start in any other position. To restart the engine when the vehicle is already moving, use N (Neutral) only. Notice: Do not try to shift to P (Park) if the vehicle is moving.
Page 99: Engine Coolant Heater
Notice: The engine is designed to work with the electronics in the vehicle. If you add electrical parts or accessories, you could change the way the engine operates. Before adding electrical equipment, check with your dealer/retailer. If you do not, the engine might not perform properly.
Page 100: Automatic Transmission Operation
Automatic Transmission Operation (3.4L V6 with 5-Speed) The shift lever is located on the center console. When you change gears, the different shift positions will display on the instrument panel cluster. There are several different positions for the automatic transmission. P (Park): This position locks the front wheels.
Page 101 R (Reverse): Use this gear to back up. Notice: Shifting to R (Reverse) while the vehicle is moving forward could damage the transmission. The repairs would not be covered by the vehicle warranty. Shift to R (Reverse) only after the vehicle is stopped. To rock the vehicle back and forth to get out of snow, ice, or sand without damaging the transmission, see If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow on...
Page 102 I (Intermediate): This position is also used for normal driving. However, it reduces vehicle speed without using the brakes for slight downgrades where the vehicle would otherwise accelerate due to steepness of grade. If constant upshifting or downshifting occurs while driving up steep hills, this position can be used to prevent repetitive types of shifts.
Page 103: (3.6L V6 With 6-Speed)
Automatic Transmission Operation (3.6L V6 with 6-Speed) The shift lever for the automatic transmission is located on the console between the seats. Maximum engine speed is limited when the vehicle is in P (Park) or N (Neutral) to protect driveline components from improper operation.
Page 104 If you cannot shift out of P (Park), ease pressure on the shift lever and push the shift lever all way into P (Park) as you maintain brake application. Then press the shift lever button and move the shift lever into another gear. See Shifting Out of Park on page 2-33.
Page 105 D (Drive): This position is for normal driving. It provides the best fuel economy. If the vehicle needs more power for passing, and it is: • Going less than 35 mph (55 km/h), push the accelerator pedal about halfway down. •...
Page 106 In manual shift mode all six forward gears can be selected. While using the MSM (Manual Shift Mode) feature the vehicle will have operation similar to a manual transmission. You can use this for sport driving or when driving hilly roads to stay in gear longer or to downshift for more power or engine braking.
Page 107: Parking Brake
2 (Second) and 3 (Third) Gear Start Feature When accelerating the vehicle from a stop in snowy and icy conditions, you may want to select 2 (Second) and 3 (Third) gear. A higher gear, and light application of the gas pedal, may allow you to gain more traction on slippery surfaces.
Page 108: Shifting Into Park
Make sure to release the parking brake before driving the vehicle. If the parking brake is applied and the vehicle is moving at least 4 mph (6 km/h), a chime will activate to remind you to release the parking brake. Notice: Driving with the parking brake on can overheat the brake system and cause premature wear or damage to brake system parts.
Page 109: Shifting Out Of Park
Leaving the Vehicle With the Engine Running CAUTION: It can be dangerous to leave the vehicle with the engine running. The vehicle could move suddenly if the shift lever is not fully in P (Park) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 110: Parking Over Things That Burn
If the vehicle has an uncharged battery or a battery with low voltage, try charging or jump starting the battery. See Jump Starting on page 5-36 for more information. To shift out of P (Park): 1. Apply the brake pedal. 2.
Page 111: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. Exposure to CO can cause unconsciousness and even death. Exhaust may enter the vehicle if: • The vehicle idles in areas with poor ventilation (parking garages, tunnels, deep snow that may block underbody airﬂow or tail pipes).
Page 112: Running The Vehicle While Parked
Running the Vehicle While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling a vehicle in an enclosed area with poor ventilation is dangerous. Engine exhaust may enter the vehicle.
Page 113: Automatic Dimming Rearview Mirror
® Vehicles with OnStar have three additional control buttons located at the bottom of the mirror. See your dealer/retailer for more information on the system and how to subscribe to OnStar. See OnStar page 2-38 for more information about the services OnStar provides.
Page 114: Outside Convex Mirrors
Outside Convex Mirrors CAUTION: A convex mirror can make things, like other vehicles, look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on the right. Check the inside mirror or glance over your shoulder before changing lanes.
Page 115 OnStar service is provided subject to the OnStar Terms and Conditions included in the OnStar Subscriber glove box literature. Some services such as Remote Door Unlock or Stolen Vehicle Location Assistance may not be available until the owner of the vehicle registers with OnStar. After the ﬁrst prepaid year, contact OnStar to select a monthly or annual subscription payment plan.
Page 116 OnStar Hands-Free Calling OnStar Hands-Free Calling allows eligible OnStar subscribers to make and receive calls using voice commands. Hands-Free Calling is fully integrated into the vehicle, and can be used with OnStar Pre-Paid Minute Packages. Most vehicles include 30 trial minutes good for 60 days.
Page 117: How Onstar Service Works
How OnStar Service Works The OnStar system can record and transmit vehicle information. This information is automatically sent to an OnStar Call Center when the OnStar button is pressed, the emergency button is pressed, or if the airbags or AACN system deploy. This information usually includes the vehicle’s GPS location and, in the event of a crash, additional information regarding the crash that the vehicle was involved in (e.g.
Page 118: Storage Areas
Storage Areas Glove Box To open the glove box, pull the handle to the left and pull the glove box door down until it stops and is fully open. Cupholders Cupholders are located on the lower front of the center console.
Page 119 Press the levers down until the locking mechanisms fully engage to the side rail. Make sure each lever is in the down position. The crossrail will not slide when properly engaged. To move the crossrail, pull up on the end levers on each side of the crossrail to the upright position.
Page 120: Rear Compartment Storage Panel/Cover
Rear Compartment Storage Panel/Cover Your vehicle may have an adjustable panel/cargo cover feature. The panel/cargo cover can be adjusted into three positions. There is a ﬂip panel towards the front of the cargo cover. You may have to ﬂip this panel upward in order to gain access to the cargo cover.
Page 121: Rear Seat Armrest
CAUTION: If you were to carry things on the adjustable panel when it is in the upper (cargo cover) or center positions, during a sudden vehicle movement or a crash, those things could be thrown around in the vehicle. You or others could be injured. When it is in the upper or center position, always secure any cargo on the ﬂoor beneath the panel/cover.
Page 122 Table Your vehicle may have an adjustable panel that also functions as a table. The maximum load for the table is 100 lbs. distributed (45 kg). 2-46 To set up the table, do the following: 1. With the adjustable panel in the upper position, pull it rearward to position it for use as a table.
Page 123: Convenience Net
Convenience Net Use the convenience net, located in the rear, to store small loads as far forward as possible. The net should not be used to store heavy loads. Sunroof If the vehicle is equipped with a sunroof, the controls to operate it are located on the headliner above the rearview mirror.
Page 124 ✍ NOTES 2-48...
Page 125 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-8 Windshield Washer ...3-9 Rear Window Wiper/Washer ...3-10 Cruise Control ...3-10 Headlamps ...3-13 Headlamps on Reminder ...3-13...
Page 126 Section 3 Highbeam On Light ...3-38 Service All-Wheel Drive Light ...3-39 All-Wheel Drive Disabled Light ...3-39 Gate Ajar Light ...3-40 Door Ajar Light ...3-40 Service Vehicle Soon Light ...3-40 Fuel Gage ...3-41 Low Fuel Warning Light ...3-41 Driver Information Center (DIC) ...3-42 DIC Operation and Displays ...3-42 DIC Compass ...3-47 DIC Warnings and Messages ...3-49...
Page 127 ✍ NOTES...
Page 128: Instrument Panel Overview
Instrument Panel Overview...
Page 129 The main components of the instrument panel are the following: A. Outlet Adjustment on page 3-23. B. Turn Signal/Multifunction Lever on page 3-7. C. Instrument Panel Cluster on page 3-25. D. Windshield Wipers on page 3-8. E. DIC Operation and Displays on page 3-42. F.
Page 130: Hazard Warning Flashers
Hazard Warning Flashers (Hazard Warning Flasher): Press this button located on the instrument panel, to make the front and rear turn signal lamps ﬂash on and off. This warns others that you are having trouble. Press again to turn the ﬂashers off. Horn Press near or on the horn symbols on the steering wheel pad to sound the horn.
Page 131: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: : Turn and Lane-Change Signals : Headlamp High/Low-Beam Changer : Exterior Lamp Control Flash-to-Pass. Information for these features is on the pages following. Turn and Lane-Change Signals An arrow on the instrument panel cluster ﬂashes in the direction of the turn or...
Page 132: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer To change the headlamps from low beam to high, push the turn signal lever away from you. To change from high beam to low beam, pull the turn signal lever towards you. To ﬂash the high beams from low beam, pull the turn signal lever all the way towards you.
Page 133: Windshield Washer
(Delay Adjustment): Move the lever to the delay position to choose a delayed wiping cycle. Turn the intermittent adjust band down for a longer delay or up for a shorter delay. (Off): Turns off the windshield wipers. (Mist): Move the lever all the way down to mist and release for a single wiping cycle.
Page 134: Rear Window Wiper/Washer
Rear Window Wiper/Washer The rear wiper and rear wash buttons are located on the instrument panel above the audio system. (Rear Wiper): Press to turn the rear wiper on and off. When the wiper is on it runs intermittently at a preset speed.
Page 135: Setting Cruise Control
Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 136 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed. • If the cruise control system is already engaged, press and hold the RES+ button until the desired speed is reached, then release it. •...
Page 137: Headlamps
Headlamps The exterior lamp control is located on the turn signal/multifunction lever. (Exterior Lamp Control): Turn the control with this symbol on it to operate the exterior lamps. The exterior lamp control has the following positions: AUTO (Off/Automatic Headlamps): Automatic mode turns the exterior lamps on and off depending upon how much light is available outside of the vehicle.
Page 138: Automatic Headlamp System
To idle your vehicle with the DRL off, move the shift lever to P (Park). The DRL will stay off until the shift lever is moved out of the P (Park) position. The regular headlamp system should be turned on when needed.
Page 139: Instrument Panel Brightness
Instrument Panel Brightness This feature controls the brightness of the instrument panel lights. The control for this feature is located on the instrument panel to the left of the steering column. Turn the control up to brighten the lights or down to dim them.
Page 140: Map Lamps
Map Lamps The vehicle may have lamps located on the headliner above the rearview mirror. Push on the lens in the lamp to turn them on and off. 3-16 Cargo Lamp The cargo lamp is located over the rear compartment, and is controlled by the dome lamp.
Page 141: Battery Run-Down Protection
The battery can be discharged at idle if the electrical loads are very high. This is true for all vehicles. This is because the generator (alternator) may not be spinning fast enough at idle to produce all the power that is needed for very high electrical loads.
Page 142: Accessory Power Outlet(S)
Accessory Power Outlet(s) The accessory power outlets can be used to connect electrical equipment, such as a cellular phone. The two accessory power outlets are located in the front and at the rear of the center console storage area. To use the outlets, remove the cover. When not in use, always cover the outlet with the protective cap.
Page 143: Climate Controls
Climate Controls Climate Control System The heating, cooling, and ventilation for the vehicle can be controlled with this system. For vehicles with the remote start feature, the climate control system functions as part of the remote start feature. See Remote Keyless Entry (RKE) System Operation on page 2-5.
Page 144 Select from the following modes: (Vent): Air is directed to the instrument panel outlets. (Bi-Level): Air is divided between the instrument panel outlets and the ﬂoor outlets. (Floor): Air is directed to the ﬂoor outlets with some air directed to the windshield. When this mode is selected, the system turns the recirculation mode off.
Page 145: Air Conditioning
Air Conditioning (Air Conditioning): Press to turn the air conditioning system on or off. An indicator light comes on to show that the air conditioning is on. The air conditioning can be selected in any mode as long as the fan is on and the outside temperature is above freezing.
Page 146: Rear Window Defogger
Recirculation mode is not available in ﬂoor, defog or defrost modes and will shut off automatically and change to outside air. If the button is selected in these modes, the indicator will ﬂash. This helps prevent window fogging and moisture building up within the cabin. Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window.
Page 147: Outlet Adjustment
Outlet Adjustment Use the louvers located on the air outlets to change the direction of the airﬂow. Operation Tips • Clear away any ice, snow, or leaves from the air inlets at the base of the vehicle that may block the ﬂow of air into the vehicle.
Page 148: Warning Lights, Gages, And Indicators
5. Press the release tab on the driver’s side of the ﬁlter and pull out the edge of the ﬁlter. 6. Remove the ﬁlter from the vehicle. 7. Install a new passenger compartment air ﬁlter. For the type of ﬁlter to use see Maintenance Replacement Parts on page 6-15.
Page 149: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, how much fuel you are using, and many other things you will need to drive safely and economically.
Page 150: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper resistant odometer.
Page 151: Safety Belt Reminders
Safety Belt Reminders Safety Belt Reminder Light When the engine is started, a chime sounds for several seconds to remind a driver to fasten the safety belt, unless the driver safety belt is already buckled. The safety belt light comes on and stays on for several seconds, then ﬂashes for several more.
Page 152: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensor, the pretensioners, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 153: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator The vehicle has the passenger sensing system. See Passenger Sensing System on page 1-63 for important safety information. The instrument panel has a passenger airbag status indicator. United States When the vehicle is started, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 154: Charging System Light
Charging System Light If this light comes on while you are driving, you may have a problem with the charging system. A charging system Driver Information Center (DIC) message may also appear. See DIC Warnings and Messages on page 3-49 for more information. This light could indicate that you have problems with a generator drive belt, or another electrical problem.
Page 155: Antilock Brake System (Abs) Warning Light
When the ignition is on, the brake light will come on when you set your parking brake. The light will stay on if your parking brake does not release fully. A chime will also sound if the parking brake is not fully released and the vehicle is moving.
Page 156: Traction Control System (Tcs) Warning Light
Traction Control System (TCS) Warning Light Your vehicle has a Traction Control System (TCS) and StabiliTrak warning light. When the traction control is activated the light will ﬂash when the TCS is limiting wheel spin or when the ® StabiliTrak system is active.
Page 157: Tire Pressure Light
Engine Coolant Temperature Gage This gage measures the temperature of the vehicle’s engine coolant. If the indicator needle moves towards the shaded in thermostat, the engine is too hot. The engine coolant temperature warning light will turn on. See Engine Coolant Temperature Warning Light on page 3-32 for more information.
Page 158: Malfunction Indicator Lamp
When the Light Flashes First and Then is On Steady This indicates that there could be a problem with the Tire Pressure Monitor System. The light ﬂashes for about a minute and stays on steady for the remainder of the ignition cycle.
Page 159 This light comes on during a malfunction in one of two ways: Light Flashing: A misﬁre condition has been detected. A misﬁre increases vehicle emissions and could damage the emission control system on the vehicle. Diagnosis and service might be required. To prevent more serious damage to the vehicle: •...
Page 160: Maintenance Schedule
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or might begin programs to inspect the emission control equipment on the vehicle. Failure to pass this inspection could prevent getting a vehicle registration. Here are some things to know to help the vehicle pass an inspection: •...
Page 161: Change Engine Oil Light
This light comes on brieﬂy while starting the engine. If it does not, have the vehicle serviced by your dealer/retailer. If the system is working normally the indicator light then goes off. If the light comes on and stays on, it means that oil is not ﬂowing through the engine properly.
Page 162: Cruise Control Light
Cruise Control Light The cruise control light comes on whenever the cruise control is set. The light goes out when the cruise control is turned off. See Cruise Control on page 3-10 for more information. Reduced Engine Power Light Your vehicle has a reduced engine power light.
Page 163: Service All-Wheel Drive Light
Service All-Wheel Drive Light This light is located in the center of your instrument panel cluster. This light and the SERVICE ALL WHEEL DRIVE message in the Driver Information Center (DIC) will come on and stay on to indicate that there may be a problem with the drive system and service is required.
Page 164: Gate Ajar Light
Gate Ajar Light If this light comes on, your liftgate is not completely closed. Driving with the liftgate open can cause carbon monoxide (CO) to enter the vehicle. See Engine Exhaust on page 2-35 for more information. Door Ajar Light This light will come on when a door is open.
Page 165: Fuel Gage
Fuel Gage When the ignition is on, the fuel gage tells you about how much fuel you have left in your tank. When the indicator nears empty, the low fuel light will come on. You still have a little fuel left, but you should get more soon.
Page 166: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle has a Driver Information Center (DIC). All messages will appear in the DIC display located in the center of the instrument panel cluster. The DIC buttons are located on the center of the instrument panel. The DIC comes on when the ignition is on.
Page 167 (Vehicle Information): Press this button to scroll through the vehicle information displays and to personalize the feature settings on your vehicle. See “Vehicle Information Menu Items” following and DIC Vehicle Personalization on page 3-57 for more information on these displays. (Set/Reset): Press this button to set or reset certain functions and to turn off or acknowledge messages on the DIC.
Page 168: Oil Life
RANGE Press the trip/fuel button until RANGE displays. This display shows the approximate number of remaining miles (mi) or kilometers (km) the vehicle can be driven without refueling. The fuel range estimate is based on an average of the vehicle’s fuel economy over recent driving history and the amount of fuel remaining in the fuel tank.
Page 169 Remember, you must reset the OIL LIFE yourself after each oil change. It will not reset itself. Also, be careful not to reset the OIL LIFE accidentally at any time other than when the oil has just been changed. It cannot be reset accurately until the next oil change. To reset the engine oil life system, see Engine Oil Life System on page 5-18.
Page 170 LEARN REMOTE KEY This display allows you to match Remote Keyless Entry (RKE) transmitters to your vehicle. To match an RKE transmitter to your vehicle: 1. Make sure the vehicle is in P (Park). 2. Press the vehicle information button until LEARN REMOTE KEY PRESS TO BEGIN displays.
Page 171: Dic Compass
DIC Compass Your vehicle may have a compass in the Driver Information Center (DIC). Compass Zone The zone is set to zone eight upon leaving the factory. Your dealer/retailer will set the correct zone for your location. Under certain circumstances, such as during a long distance cross-country trip or moving to a new state or province, it will be necessary to compensate for compass variance by resetting the zone through the...
Page 172: Compass Calibration
Compass Calibration The compass can be manually calibrated. Only calibrate the compass in a magnetically clean and safe location, such as an open parking lot, where driving the vehicle in circles is not a danger. It is suggested to calibrate away from tall buildings, utility wires, manhole covers, or other industrial structures, if possible.
Page 173: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another.
Page 174: Check Tire Pressure
CALIBRATING: DRIVE IN CIRCLES This message displays when calibrating the compass. Drive the vehicle in circles at less than 5 mph (8 km/h) to complete the calibration. See DIC Compass on page 3-47 for more information. CALIBRATION COMPLETE This message displays when the compass calibration is complete.
Page 175 ENGINE HOT A/C (Air Conditioning) OFF This message displays when the engine coolant becomes hotter than the normal operating temperature. To avoid added strain on a hot engine, the air conditioning compressor is automatically turned off. When the coolant temperature returns to normal, the A/C operation automatically resumes.
Page 176: Fuel Level Low
FUEL LEVEL LOW This message displays and the Low Fuel Warning Light in the instrument panel cluster comes on when your vehicle is low on fuel. Reﬁll the fuel tank as soon as possible. See Fuel Gage on page 3-41, Low Fuel Warning Light on page 3-41, and Filling the Tank on page 5-8 for more information.
Page 177: Service Air Bag
REMOTE KEY LEARNING ACTIVE This message displays while you are matching a Remote Keyless Entry (RKE) transmitter to your vehicle. See “LEARN REMOTE KEY” under DIC Operation and Displays on page 3-42 for more information. SERVICE A/C (Air Conditioning) SYSTEM This message displays when there is a problem detected in the air conditioning system.
Page 178 SERVICE POWER STEERING On some vehicles, this message displays when a problem is detected with the power steering system. When this message is displayed, you may notice that the effort required to steer the vehicle increases or feels heavier, but you will still be able to steer the vehicle.
Page 179: Service Vehicle Soon
SERVICE TRACTION CONTROL This message displays when the Traction Control System (TCS) is not functioning properly. A warning light also appears on the instrument panel cluster. See Traction Control System (TCS) Warning Light on page 3-32 and Traction Control System (TCS) on page 4-7 for more information.
Page 180: Traction Control Off
STARTING DISABLD (Disabled) SERVICE THRTTLE (Throttle) This message displays if the starting of the engine is disabled due to the electronic throttle control system. Have your vehicle serviced by your dealer/retailer immediately. This message only appears while the ignition is in ON/RUN, and will not disappear until the problem is resolved.
Page 181: Dic Vehicle Personalization
TURN SIGNAL ON This message displays as a reminder to turn off the turn signal if you drive your vehicle for more than about 0.75 mile (1.2 km) with a turn signal on. See Turn Signal/Multifunction Lever on page 3-7. This message displays and a chime sounds only when the ignition is in ON/RUN.
Page 182 DISPLAY LANG. (Language) This feature allows you to select the language in which the DIC messages will appear. Press the vehicle information button until DISPLAY LANG. (Language) appears on the DIC display. Press the set/reset button to access the settings for this feature. Then press the vehicle information button to scroll through the following settings: ENGLISH (default): All messages will appear in...
Page 183 AUTO UNLOCK This feature allows you to select whether or not to turn off the automatic door unlocking feature. It also allows you to select which doors and when the doors will automatically unlock. See Programmable Automatic Door Locks on page 2-11 for more information. Press the vehicle information button until AUTO UNLOCK appears on the DIC display.
Page 184 To select a setting, press the set/reset button while the desired setting is displayed on the DIC. REMOTE UNLOCK This feature allows you to select the type of feedback you will receive when unlocking the vehicle with the RKE transmitter. You will not receive feedback when unlocking the vehicle with the RKE transmitter if the doors are open.
Page 185 EXIT LIGHTNG (Lighting) This feature allows you to select the amount of time you want the exterior lamps to remain on when it is dark enough outside. This happens after the key is turned from ON/RUN to LOCK/OFF. Press the vehicle information button until EXIT LIGHTNG (Lighting) appears on the DIC display.
Page 186 CHIME VOLUME This feature allows you to select the volume level of the chime. Press the vehicle information button until CHIME VOLUME appears on the DIC display. Press the set/reset button to access the settings for this feature. Then press the vehicle information button to scroll through the following settings: NORMAL: The chime volume will be set to a normal level.
Page 187 FACTORY SETTNGS (Settings) This feature allows you to set all of the personalization features back to their factory default settings. Press the vehicle information button until FACTORY SETTNGS (Settings) appears on the DIC display. Press the set/reset button to access the settings for this feature.
Page 188: Audio System(S)
Audio System(s) Determine which radio the vehicle has and read the following pages to become familiar with its features. CAUTION: Taking your eyes off the road for extended periods could cause a crash resulting in injury or death to you or others. Do not give extended attention to entertainment tasks while driving.
Page 189: Setting The Clock
Setting the Clock AM/FM Base Radio with a Single CD Player If the vehicle has a AM/FM Base Radio with a Single CD Player, it has a button for setting the time. To adjust the time: 1. Turn the radio on. 2.
Page 190: Six-Disc Cd Player)
To change the time default setting from 12 hour to 24 hour or to change the date default setting from month/day/year to day/month/year: 1. Press and then the pushbutton located under the forward arrow tab that displays on the radio screen until the time 12H (hour) and 24H (hour), and the date MM/DD (month and day) and DD/MM (day and month) displays.
Page 191 Radio(s) Radio with CD and DVD (MP3) The vehicle has one of these radios as its audio Radio with CD (MP3) shown, Base Radio with CD system. and Radio with Six-Disc CD (MP3) similar If the vehicle has a Rear Seat Entertainment (RSE) system, it has a CD/DVD radio.
Page 192: Playing The Radio
Radio Data System (RDS) The vehicle’s audio system may have Radio Data System (RDS). The RDS feature is available for use only on FM stations that broadcast RDS information. This system relies upon receiving speciﬁc information from these stations and only works when the information is available.
Page 193: Finding A Station
Finding a Station BAND: Press to switch between AM, FM, or XM (if equipped). The selection displays. (Tune): Turn to select radio stations. © ¨ SEEK : Press the arrows to go to the previous or to the next station and stay there. To scan stations, press and hold either arrow for a few seconds until a beep sounds.
Page 194: Storing A Radio Station As A Favorite
Storing a Radio Station as a Favorite Drivers are encouraged to set up their radio station favorites while the vehicle is parked. Tune to favorite stations using the presets, favorites button, and steering wheel controls, if the vehicle has them. See Defensive Driving on page 4-2.
Page 195: Adjusting The Speakers (Balance/Fade)
Setting the Tone (Bass/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): To adjust bass, midrange, or treble, press the until the tone control tabs display. Continue pressing to highlight the desired tab, or press the pushbutton positioned under the desired tab. Turn the clockwise or counterclockwise to adjust the highlighted setting.
Page 196: Finding A Category (Cat) Station
Adjusting the Speakers (Balance/Fade) BAL/FADE (Balance/Fade): To adjust balance or fade, press the knob until the speaker control tabs display. Continue pressing to highlight the desired tab, or press the pushbutton positioned under the desired tab. Turn knob clockwise or counterclockwise to adjust the highlighted setting.
Page 197: Radio Messages
Undesired XM categories can be removed through the setup menu. To remove an undesired category, perform the following: 1. Press the MENU button to display the radio setup menu. 2. Press the pushbutton located below the XM CAT tab. 3. Turn the knob to display the category to be removed.
Page 198: Playing A Cd (Single Cd Player)
Radio Messages for XM™ Only See XM Radio Messages on page 3-97 later in this section for further detail. Playing a CD (Single CD Player) Insert a CD partway into the slot, label side up. The player pulls it in and the CD should begin playing. Playing a CD(s) (Six-Disc CD Player) LOAD : Press to load CDs into the CD player.
Page 199 Care of CDs If playing a CD, the sound quality can be reduced due to CD quality, the method of recording, the quality of the music that has been recorded, and the way the CD has been handled. Handle them carefully. Store CD(s) in their original cases or other protective cases and away from direct sunlight and dust.
Page 200 EJECT: Press to eject CD(s). To eject the CD that is currently playing, press and release this button. A beep sounds and Ejecting Disc displays. Once the disc is ejected, Remove Disc displays. The CD can be removed. If the CD is not removed, after several seconds, the CD automatically pulls back into the player and begins playing.
Page 201 RPT (Repeat) (Base Radio with CD): With the repeat setting, one track can be repeated. • To repeat the current track, press and release the RPT button. An arrow symbol displays. Press again to turn off repeat play. When repeat is off, the arrow symbol no longer displays.
Page 202 CD (Eject): Press and release to eject the CD that is currently playing in the bottom slot. A beep sounds and Ejecting Disc displays. Once the disc is ejected, Remove Disc displays. The CD can be removed. If the CD is not removed, after several seconds, the CD automatically pulls back into the player.
Page 203 BAND: Press to listen to the radio when a CD or DVD is playing. The CD or DVD remains inside the radio for future listening or viewing entertainment. DVD/CD AUX (Auxiliary): Press to cycle through DVD, CD, or Auxiliary when listening to the radio. The DVD/CD text tab and a message showing track or chapter number displays when a disc is in either slot.
Page 204 Playing an MP3/WMA CD-R or CD-RW Disc If the vehicle has a radio with a single CD (MP3/WMA), a six-disc CD (MP3/WMA), or a radio with a CD and DVD player, it is capable of playing an MP3/WMA CD-R or CD-RW disc. For more information on how to play an MP3/WMA CD-R or CD-RW disc, see “Using an MP3”...
Page 205: Using The Dvd Player
Using the DVD Player The DVD player is controlled by the buttons on the remote control, by the RSA system, or by the buttons on the radio faceplate. See “Remote Control” under Rear Seat Entertainment (RSE) System on page 3-109 for more information.
Page 206 (Power): Press to turn the radio on or off. Turn clockwise or counterclockwise to increase or decrease the volume. Press and hold for more than two seconds turns off the entire radio and Rear Seat Entertainment (RSE) system and starts the parental control feature which prevents the rear seat occupant from operating the Rear Seat Audio (RSA) system or remote control.
Page 207 DVD-V (Video) Display Buttons Once a DVD-V is inserted, the radio display menu shows several tag options for DVD playing. Press the pushbuttons located under any desired tag option during DVD playback. See the tag options listed below for more information. The rear seat passenger navigates the DVD-V menus and controls through the remote control.
Page 208: Inserting A Disc
DVD-A (Audio) Display Buttons Once a DVD-A is inserted, a radio display menu shows several tag options for DVD playing. Press the pushbuttons located under any desired tag option during DVD playback. See the tag options listed below for more information. The rear seat operator navigates the DVD-A menus and controls through the remote control.
Page 209: Ejecting A Disc
Stopping and Resuming Playback To stop playing a DVD without turning off the system, press the button on the remote control, or press the pushbutton located under the stop or the play/pause symbol tags displayed on the radio. If the radio head is sourced to something other than DVD-V, press the DVD/CD AUX button to make DVD-V the active source.
Page 210: Using Auxiliary Input Jack
Using the Auxiliary Input Jack The radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. An external audio device such as an iPod, laptop computer, MP3 player, CD changer, etc.
Page 211: Using An Mp3 (Radio With Cd Or)
Using an MP3 (Radio with CD or Six-Disc CD Player) MP3/WMA CD-R or CD-RW Disc The radio plays MP3 and WMA ﬁles that were recorded on a CD-R or CD-RW disc. The ﬁles can be recorded with the following ﬁxed bit rates: 32 kbps, 40 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 160 kbps, 192 kbps, 224 kbps, 256 kbps, and 320 kbps or a variable bit rate.
Page 212 • Minimize the length of the ﬁle, folder, or playlist names. Long ﬁle, folder, or playlist names, or a combination of a large number of ﬁles and folders, or playlists can cause the player to be unable to play up to the maximum number of ﬁles, folders, playlists, or sessions.
Page 213 Order of Play Tracks recorded to the CD-R or CD-RW are played in the following order: • Play begins from the ﬁrst track in the ﬁrst playlist and continues sequentially through all tracks in each playlist. When the last track of the last playlist has played, play continues from the ﬁrst track of the ﬁrst playlist.
Page 214 EJECT: Press to eject CD-R(s) or CD-RW(s). To eject the CD-R or CD-RW that is currently playing, press and release this button. A beep sounds and Ejecting Disc displays. Once the disc is ejected, Remove Disc displays. The CD-R or CD-RW can be removed. If the CD-R is not removed, after several seconds, the CD-R or CD-RW automatically pulls back into the player and begins playing.
Page 215 (Music Navigator): Use the music navigator feature to play MP3 ﬁles on the CD-R or CD-RW in order by artist or album. Press the pushbutton located below the music navigator tab. The player scans the disc to sort the ﬁles by artist and album ID3 tag information. It can take several minutes to scan the disc depending on the number of MP3/WMA ﬁles recorded to the CD-R or CD-RW.
Page 216 Using an MP3 (Radio with CD and DVD Player) MP3/WMA CD-R or CD-RW Disc Compressed Audio or Mixed Mode Discs The radio also plays discs that contain both uncompressed CD audio (.CDA ﬁles) and MP3/WMA ﬁles depending on which slot the disc is loaded into. By default the radio reads only the uncompressed audio (.CDA) and ignores the MP3/WMA ﬁles on the DVD deck.
Page 217 Root Directory The root directory of the CD-R or CD-RW is treated as a folder. If the root directory has compressed audio ﬁles, the directory is displayed as F1 ROOT. All ﬁles contained directly under the root directory are accessed prior to any root directory folders.
Page 218 File System and Naming The song name that displays is the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio displays the ﬁle name without the extension (such as .mp3) as the track name. Track names longer than 32 characters or four pages are shortened.
Page 219 DVD (Eject): Press and release to eject the CD-R or CD-RW that is currently playing in the top slot. A beep sounds and Ejecting Disc displays. Once the disc is ejected, Remove Disc displays. The CD-R or CD-RW can be removed. If the CD-R or CD-RW is not removed, after several seconds, the CD-R or CD-RW automatically pulls back into the player.
Page 220 The radio could begin playing while it is scanning the disc in the background. When the scan is ﬁnished, the CD-R or CD-RW begins playing again. Once the disc has been scanned, the player defaults to playing MP3/WMA ﬁles in order by artist. The current artist playing is shown on the second line of the display between the arrows.
Page 221: Xm Radio Messages
XM Radio Messages XL (Explicit Language Channels): These channels, or any others, can be blocked at a customer’s request, by calling 1-800-852-XMXM (9696). XM Updating: The encryption code in the receiver is being updated, and no action is required. This process should take no longer than 30 seconds.
Page 222: Voice Recognition
Check XM Receivr: If this message does not clear within a short period of time, the receiver could have a fault. Consult with your dealer/retailer. XM Not Available: If this message does not clear within a short period of time, the receiver could have a fault.
Page 223: Bluetooth Controls
Bluetooth Controls Use the buttons located on the steering wheel to operate the in-vehicle Bluetooth system. See Audio Steering Wheel Controls on page 3-118 for more information. (Push To Talk): Press to answer incoming calls, to conﬁrm system information, and to start speech recognition.
Page 224 Pairing a Phone 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Bluetooth”. The system responds with “Bluetooth ready” followed by a tone. 3. Say “Pair”. The system responds with instructions and a four digit PIN number.
Page 225 Linking to a Different Phone 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Bluetooth”. The system responds with “Bluetooth ready” followed by a tone. 3. Say “Change phone”. The system responds with “Please wait while I search for other phones”.
Page 226 5. Say a name tag for the phone number. The name tag is recorded and the system responds with “About to store <name tag>. Does that sound OK?”. • If the name tag does not sound correct, say “No” and repeat Step 5. •...
Page 227: Making A Call
Deleting Name Tags The system uses the following commands to delete name tags: • Delete • Delete all name tags Using the Delete Command The delete command allows speciﬁc name tags to be deleted. To use the delete command: 1. Press and hold for two seconds.
Page 228 Using the Dial Command 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Dial”. The system responds with “Dial using <phone name>. Number please” followed by a tone. 3. Say the entire number without pausing. •...
Page 229: Receiving A Call
Using the Call Command 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Call”. The system responds with “Call using <phone name>. Please say the name tag” followed by a tone. 3.
Page 230 Call Waiting Call waiting must be supported on the Bluetooth phone and enabled by the wireless service carrier to work. • Press to answer an incoming call when another call is active. The original call is placed on hold. • Press again to return to the original call.
Page 231 To Transfer Audio to the Cell Phone During a call with the audio in the vehicle: 1. Press . The system responds with “Ready” followed by a tone. 2. Say “Transfer Call.” The system responds with “Transferring call” and the audio will switch from the vehicle to the cell phone.
Page 232 Dual Tone Multi-Frequency (DTMF) Tones The in-vehicle Bluetooth system can send numbers and numbers stored as name tags during a call. This is used when calling a menu driven phone system. Account numbers can be programmed into the phonebook for retrieval during menu driven calls. Sending a Number During a Call 1.
Page 233: Other Information
Other Information ® The Bluetooth word mark and logos are owned by ® the Bluetooth SIG, Inc. and any use of such marks by General Motors is under license. Other trademarks and trade names are those of their respective owners. This device complies with Part 15 of the FCC Rules.
Page 234 Before Driving The RSE is designed for rear seat passengers only. The driver cannot safely view the video screen while driving and should not try to do so. In severe or extreme weather conditions the RSE system might not work until the temperature is within the operating range.
Page 235 Battery Replacement To change the batteries on the headphones, do the following: 1. Turn the screw to loosen the battery door located on the left side of the headphones. Slide the battery door open. 2. Replace the two batteries in the compartment. Make sure that they are installed correctly, using the diagram on the inside of the battery compartment.
Page 236 To use the auxiliary inputs of the RSE system, connect an external auxiliary device to the color-coded A/V jacks and turn both the auxiliary device and the video screen power on. If the video screen is in the DVD player mode, pressing the AUX button on the remote control switches the video screen from the DVD player mode to the auxiliary device.
Page 237: Remote Control
Video Screen The video screen is located in the overhead console. To use the video screen, do the following: 1. Push the release button located on the overhead console. 2. Move the screen to the desired position. When the video screen is not in use, push it up into its locked position.
Page 238: Remote Control Buttons
Remote Control Buttons (Power): Press this button to turn the video screen on and off. (Illumination): Press this button to turn the remote control backlight on. The backlight automatically times out after 7 to 10 seconds if no other button is pressed while the backlight is on.
Page 239 (Play/Pause): Press this button to start playing a DVD. Press this button while a DVD is playing to pause it. Press it again to continue playing the DVD. When the DVD is playing, depending on the radio, slow play may be performed by pressing the play/pause button then pressing the fast forward button.
Page 240 (Clear): Press this button within three seconds after inputting a numeric selection, to clear all numeric inputs. 10 (Double Digit Entries): Press this button to select chapter or track numbers greater than 9. Press this button before inputting the number. If the remote control becomes lost or damaged, a new universal remote control can be purchased.
Page 241: Dvd Distortion
Problem Recommended Action The auxiliary source is Check that the RSE video running but there is no screen is in the auxiliary picture or sound. source mode. Check the auxiliary input connections at both devices. Sometimes the wireless Check for obstructions, headphone audio cuts out low batteries, reception or buzzes.
Page 242: Audio Steering Wheel Controls
Cleaning the RSE Overhead Console When cleaning the RSE overhead console surface, use only a clean cloth dampened with clean water. Cleaning the Video Screen When cleaning the video screen, use only a clean cloth dampened with clean water. Use care when directly touching or cleaning the screen, as damage can result.
Page 243: Radio Reception
(Previous / Phone On Hook): Press to go to the previous radio station stored as a favorite, the previous track if a CD/DVD is playing, to reject an incoming call, or end a current call. (Push to Talk / Mute): Press to silence the vehicle speakers only.
Page 244: Multi-Band Antenna
XM™ Satellite Radio Service XM Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada. Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out.
Page 245: Driving Your Vehicle
Section 4 Your Driving, the Road, and the Vehicle ...4-2 Driving for Better Fuel Economy ...4-2 Defensive Driving ...4-2 Drunk Driving ...4-3 Control of a Vehicle ...4-3 Braking ...4-4 Antilock Brake System (ABS) ...4-5 Braking in Emergencies ...4-5 ® StabiliTrak System ...4-6 Traction Control System (TCS) ...4-7 All-Wheel Drive (AWD) System ...4-8...
Page 246: Your Driving, The Road, And The Vehicle
Your Driving, the Road, and the Vehicle Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. • Avoid fast starts and accelerate smoothly. • Brake gradually and avoid abrupt stops. •...
Page 247: Drunk Driving
Drunk Driving CAUTION: Drinking and then driving is very dangerous. Your reﬂexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Do not drink and drive or ride with a driver who has been drinking.
Page 248: Braking
Braking See Brake System Warning Light on page 3-30. Braking action involves perception time and reaction time. Deciding to push the brake pedal is perception time. Actually doing it is reaction time. Average reaction time is about three-fourths of a second.
Page 249: Antilock Brake System (Abs)
Antilock Brake System (ABS) This vehicle has the Antilock Brake System (ABS), an advanced electronic braking system that helps prevent a braking skid. When the engine is started and the vehicle begins to drive away, ABS checks itself. A momentary motor or clicking noise might be heard while this test is going on, and it might even be noticed that the brake pedal moves a little.
Page 250: Stabilitrak System
Brake Assist This vehicle has a Brake Assist feature designed to assist the driver in stopping or decreasing vehicle speed in emergency driving conditions. This feature uses the stability system hydraulic brake control module to supplement the power brake system under conditions where the driver has quickly and forcefully applied the brake pedal in an attempt to quickly stop or slow down the vehicle.
Page 251: Traction Control System (Tcs)
The system may be heard or felt while it is working. This is normal. This light may also come on after extended heavy braking, indicating the brakes have become too hot to limit wheel spin. StabiliTrak can be turned off using the StabiliTrak/ TCS control button.
Page 252: All-Wheel Drive (Awd) System
TCS can be turned off by pressing the StabiliTrak/ TCS button, located next to the gear shift lever. When TCS is turned off, the StabiliTrak/TCS warning light comes on the instrument panel cluster and TRACTION CONTROL OFF brieﬂy displays. The traction control system can be activated again by pressing the traction control button.
Page 253: Steering
The All-Wheel Drive Disabled Light comes on along with the ALL WHEEL DRIVE OFF message when the rear drive system is overheating. This light will turn off when the rear drive system cools down. If this light stays on, it must be reset. To reset the light, turn the ignition off and then back on again.
Page 254: Steering In Emergencies
Hydraulic Power Steering (3.6L V6 Engine) If power steering assist is lost because the engine stops or the power steering system is not functioning, the vehicle can be steered but it will take more effort. Steering Tips It is important to take curves at a reasonable speed. Traction in a curve depends on the condition of the tires and the road surface, the angle at which the curve is banked, and vehicle speed.
Page 255: Off-Road Recovery
An emergency like this requires close attention and a quick decision. If holding the steering wheel at the recommended 9 and 3 o’clock positions, it can be turned a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
Page 256: Passing
Passing Passing another vehicle on a two-lane road can be dangerous. To reduce the risk of danger while passing: • Look down the road, to the sides, and to crossroads for situations that might affect a successful pass. If in doubt, wait. •...
Page 257: Driving At Night
Of course, traction is reduced when water, snow, ice, gravel, or other material is on the road. For safety, slow down and adjust your driving to these conditions. It is important to slow down on slippery surfaces because stopping distance will be longer and vehicle control more limited.
Page 258: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can reduce vehicle traction and affect your ability to stop and accelerate. Always drive slower in these types of driving conditions and avoid driving through large puddles and deep-standing or ﬂowing water. CAUTION: Wet brakes can cause crashes.
Page 259: Before Leaving On A Long Trip
Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having it serviced by your dealer/retailer before departing. Things to check on your own include: • Windshield Washer Fluid: Reservoir full? Windows clean — inside and outside? •...
Page 260: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or through mountains is different than driving on ﬂat or rolling terrain. Tips for driving in these conditions include: • Keep the vehicle serviced and in good shape. • Check all ﬂuid levels and brakes, tires, cooling system, and transmission.
Page 261: Winter Driving
Winter Driving Driving on Snow or Ice Drive carefully when there is snow or ice between the tires and the road, creating less traction or grip. Wet ice can occur at about 32°F (0°C) when freezing rain begins to fall, resulting in even less traction. Avoid driving on wet ice or in freezing rain until roads can be treated with salt or sand.
Page 262 Blizzard Conditions Being stuck in snow can be in a serious situation. Stay with the vehicle unless there is help nearby. If possible, use the Roadside Assistance Program on page 7-7. To get help and keep everyone in the vehicle safe: •...
Page 263: If Your Vehicle Is Stuck In Sand, Mud
Repeat this until help arrives but only when you feel really uncomfortable from the cold. Moving about to keep warm also helps. If it takes some time for help to arrive, now and then when you run the engine, push the accelerator pedal slightly so the engine runs faster than the idle speed.
Page 264: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out Turn the steering wheel left and right to clear the area around the front wheels. Turn off any traction or stability system. Shift back and forth between R (Reverse) and a forward gear, spinning the wheels as little as possible. To prevent transmission wear, wait until the wheels stop spinning before shifting gears.
Page 265 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label lists the number of occupant seating positions (A),and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 266 Steps for Determining Correct Load Limit Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs” on your vehicle’s placard. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 267 Example 1 Item Description Maximum Vehicle Capacity Weight for Example 1 = Subtract Occupant Weight 150 lbs (68 kg) × 2 = Available Occupant and Cargo Weight = Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Maximum Vehicle...
Page 268 Example 3 Item Description Maximum Vehicle Capacity Weight for Example 3 = Subtract Occupant Weight 200 lbs (91 kg) × 5 = Available Cargo Weight = Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s maximum vehicle capacity weight and seating positions.
Page 269 The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called the Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle.
Page 270: Towing
Towing Towing Your Vehicle To avoid damage, the disabled vehicle should be towed with all four wheels off the ground. Consult your dealer/retailer or a professional towing service if the disabled vehicle must be towed. See Roadside Assistance Program on page 7-7. To tow the vehicle behind another vehicle for recreational purposes, such as behind a motorhome, see “Recreational Vehicle Towing”...
Page 271 Dinghy Towing (Vehicles with a 5-speed Transmission) Notice: Towing an all-wheel-drive vehicle with all four wheels on the ground, or even with only two of its wheels on the ground, will damage drivetrain components. Do not tow an all-wheel-drive vehicle with any of its wheels on the ground.
Page 272 For vehicles being dinghy towed, re-install the fuse and run the vehicle at the beginning of each day and at each RV fuel stop for about ﬁve minutes. This will ensure proper lubrication of transmission components. To tow a vehicle with a 6–speed transmission from the front with all four wheels on the ground: 1.
Page 273 Dolly Towing (Front-Wheel-Drive Vehicles with a 5-speed Transmission) To dolly tow a front-wheel drive vehicle with a 5–speed transmission from the front with two of its wheels on the ground: 1. Attach the dolly to the tow vehicle following the dolly manufacturer’s instructions.
Page 274 Dolly Towing (All-Wheel-Drive Vehicles with a 5-speed Transmission) Notice: Towing an all-wheel-drive vehicle with all four wheels on the ground, or even with only two of its wheels on the ground, will damage drivetrain components. Do not tow an all-wheel-drive vehicle with any of its wheels on the ground.
Page 275 3. Shift the transmission to P (Park). 4. Firmly set the parking brake. 5. Clamp the steering wheel in a straight-ahead position with a clamping device designed for towing. 6. Secure the vehicle to the dolly following the manufacturer’s instructions. 7.
Page 276 Towing the Vehicle From the Rear 4-32 Notice: Towing the vehicle from the rear could damage it. Also, repairs would not be covered by the vehicle warranty. Never have the vehicle towed from the rear.
Page 277: Towing A Trailer
Towing a Trailer CAUTION: The driver can lose control when pulling a trailer if the correct equipment is not used or the vehicle is not driven properly. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 278: Weight Of The Trailer
Pulling A Trailer Here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure the rig will be legal, not only where you live but also where you will be driving. A good source for this information can be state or provincial police.
Page 279: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total gross weight of the vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo carried in it, and the people who will be riding in the vehicle.
Page 280: Safety Chains
Total Weight on the Vehicle’s Tires Be sure the vehicle’s tires are inﬂated to the upper limit for cold tires. These numbers can be found on the Certiﬁcation label or see Loading the Vehicle on page 4-20 for more information. Make sure not to go over the GVW limit for the vehicle, or the GAWR, including the weight of the trailer tongue.
Page 281: Driving With A Trailer
Driving with a Trailer CAUTION: When towing a trailer, exhaust gases may collect at the rear of the vehicle and enter if the liftgate, trunk/hatch, or rear-most window is open. Engine exhaust contains carbon monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death.
Page 282: Following Distance
Electronic Trailer Sway Control Electronic Trailer Sway Control is integrated into the StabiliTrak system of the vehicle. This feature detects the occurrence of trailer sway that may be caused by improper trailer weight balance, or excessive vehicle speed. When the system detects trailer sway, the StabiliTrak system may begin to apply the front brakes, without you pressing the brake pedal, to help in stabilizing the vehicle.
Page 283: Making Turns
Making Turns Notice: Making very sharp turns while trailering could cause the trailer to come in contact with the vehicle. The vehicle could be damaged. Avoid making very sharp turns while trailering. When turning with a trailer, make wider turns than normal.
Page 284: Parking On Hills
Parking on Hills CAUTION: Parking the vehicle on a hill with the trailer attached can be dangerous. If something goes wrong, the rig could start to move. People can be injured, and both the vehicle and the trailer can be damaged.
Page 285: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-4 California Perchlorate Materials Requirements ...5-4 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of the Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-6 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7...
Page 286 Section 5 Tire Pressure Monitor Operation ...5-59 Tire Inspection and Rotation ...5-62 When It Is Time for New Tires ...5-63 Buying New Tires ...5-64 Different Size Tires and Wheels ...5-66 Uniform Tire Quality Grading ...5-66 Wheel Alignment and Tire Balance ...5-68 Wheel Replacement ...5-68 Tire Chains ...5-69 If a Tire Goes Flat ...5-70...
Page 287: Service
Service For service and parts needs, visit your dealer/retailer. You will receive genuine GM parts and GM-trained and supported service people. Genuine GM parts have one of these marks: Accessories and Modiﬁcations When non-dealer/non-retailer accessories are added to the vehicle, they can affect vehicle performance and safety, including such things as airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like antilock brakes,...
Page 288: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 289: Adding Equipment To The Outside Of The Vehicle
Keep a record with all parts receipts and list the mileage and the date of any service work performed. See Maintenance Record on page 6-17. Adding Equipment to the Outside of the Vehicle Things added to the outside of the vehicle can affect the airﬂow around it.
Page 290: Gasoline Speciﬁcations
Gasoline Speciﬁcations At a minimum, gasoline should meet ASTM speciﬁcation D 4814 in the United States or CAN/CGSB-3.5 or 3.511 in Canada. Some gasolines contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). We recommend against the use of gasolines containing MMT. See Additives on page 5-6 for additional information.
Page 291: Fuels In Foreign Countries
Also, your dealer/retailer has additives that will help correct and prevent most deposit-related problems. Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines might be available in your area. We recommend that you use these gasolines, if they comply with the speciﬁcations described earlier. However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels.
Page 292: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off the engine when you are refueling.
Page 293 CAUTION: Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if the tank is nearly full, and is more likely in hot weather.
Page 294: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in the vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and the vehicle damaged if this occurs.
Page 295: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located inside the vehicle, to the left of the brake pedal. 2. Then go to the front of the vehicle and move the secondary hood release lever to the right.
Page 296: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 3.4L V6, here is what you will see: 5-12...
Page 297 A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-20. B. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 5-15. C. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-15. D.
Page 298 When you open the hood on the 3.6L V6, here is what you will see: 5-14...
Page 299: Engine Oil
A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-20. B. Power Steering Fluid Reservoir (Out of View). See Power Steering Fluid on page 5-30. C. Engine Oil Fill Cap (Out of View). See “When to Add Engine Oil” under Engine Oil on page 5-15. D.
Page 300: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, add at least one quart/liter of the recommended oil. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-97.
Page 301: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for three things: • GM6094M Use only an oil that meets GM Standard GM6094M. • SAE 5W-30 SAE 5W-30 is best for the vehicle. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils such as SAE 20W-50.
Page 302: Engine Oil Life System
Engine Oil Additives / Engine Oil Flushes Do not add anything to the oil. The recommended oils with the starburst symbol that meet GM Standard GM6094M are all that is needed for good performance and engine protection. Engine oil system ﬂushes are not recommended and could cause engine damage not covered by the vehicle warranty.
Page 303: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change the engine oil and ﬁlter based on vehicle use. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where the oil is changed prior to a change engine oil light or CHANGE ENGINE OIL SOON message being turned on, reset the system.
Page 304: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter The engine air cleaner/ﬁlter is located in the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (80 000 km) interval.
Page 305 4. Remove the air outlet duct. 5. Undo the clamps on the ﬁlter cover. To remove the cover, pull up on the front and then pull the cover out. 6. Inspect or replace the engine air cleaner/ﬁlter. Wipe all dust from inside of the housing and inspect the air cleaner and air outlet duct for cracks, cuts, and deterioration.
Page 306: Automatic Transmission Fluid
Automatic Transmission Fluid It is not necessary to check the transmission ﬂuid level. A transmission ﬂuid leak is the only reason for ﬂuid loss. If a leak occurs, take your vehicle to the dealer/retailer and have it repaired as soon as possible. Change the ﬂuid and ﬁlter at the intervals listed in Additional Required Services on page 6-7, and be sure to use the transmission ﬂuid listed in Recommended...
Page 307: Engine Coolant
CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury. Keep hands, clothing, and tools away from any underhood electric fan. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
Page 308: What To Use
What to Use CAUTION: Adding only plain water to the cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. The vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, the engine could get too hot but you would not get the overheat warning.
Page 309: Checking Coolant
Checking Coolant The vehicle must be on a level surface when checking the coolant level. Check to see if coolant is visible in the coolant surge tank. If the coolant inside the coolant surge tank is boiling, do not do anything else until it cools down. If coolant is visible but the coolant level is not at or above the COLD FILL mark, add a 50/50 mixture of clean, drinkable water and DEX-COOL...
Page 310 CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the coolant surge tank pressure cap — even a little — they can come out at high speed. Never turn the cap when the cooling system, including the coolant surge tank pressure cap, is hot.
Page 311 4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fans. By this time, the coolant level inside the coolant surge tank may be lower.
Page 312: Engine Overheating
Engine Overheating The vehicle has several indicators to warn of engine overheating. You will ﬁnd a coolant temperature gage on your vehicle’s instrument panel. See Engine Coolant Temperature Gage on page 3-33. There are also several different types of engine overheating messages that may be displayed in the Driver Information Center (DIC).
Page 313: Overheated Engine Protection
If No Steam Is Coming From The Engine Compartment If an engine overheat warning is displayed but no steam can be seen or heard, the problem may not be too serious. Sometimes the engine can get a little too hot when the vehicle: •...
Page 314: Power Steering Fluid
Power Steering Fluid See Engine Compartment Overview on page 5-12 for reservoir location. When to Check Power Steering Fluid Power steering ﬂuid is used in all vehicles with the 3.6L V6 engine. Vehicles with the 3.4L V6 engine have electric power steering and do not use power steering ﬂuid.
Page 315: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield or rear window washer ﬂuid be sure to read the instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 316: Brakes
Brakes Brake Fluid The brake master cylinder reservoir is ﬁlled with DOT 3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down: •...
Page 317 What to Add Use only new DOT 3 brake ﬂuid from a sealed container. See Recommended Fluids and Lubricants on page 6-13. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it. This helps keep dirt from entering the reservoir.
Page 318: Brake Wear
Brake Wear This vehicle has disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound can come and go or be heard all the time the vehicle is moving, except when applying the brake pedal ﬁrmly.
Page 319: Battery
Battery This vehicle has a maintenance free battery. When it is time for a new battery, see your dealer/retailer for one that has the replacement number shown on the original battery’s label. For battery replacement, see your dealer/retailer or the service manual.
Page 320: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 321 4. Open the hoods and locate the positive (+) and negative (−) terminal locations on each vehicle. You will not need to access your battery for jump starting. Your vehicle has a remote positive (+) and a remote negative (−) jump starting terminal for that purpose.
Page 322 3.6L V6 Engine The remote negative (−) terminal is located in the front of the engine compartment, near the engine oil dipstick. See Engine Compartment Overview on page 5-12 for more information on the location of the remote positive (+) terminal and the engine oil dipstick. 5-38 CAUTION: An electric fan can start up even when the engine...
Page 323 CAUTION: (Continued) Battery ﬂuid contains acid that can burn you. Do not get it on you. If you accidentally get it in your eyes or on your skin, ﬂush the place with water and get medical help immediately. CAUTION: Fans or other moving engine parts can injure you badly.
Page 324 10. Connect the other end of the negative (−) cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, and the chance of sparks getting back to the battery is much less. Your vehicle has a remote negative (−) terminal for this purpose.
Page 325: All-Wheel Drive
To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative (−) cable from the vehicle that had the dead battery. 2. Disconnect the black negative (−) cable from the vehicle with the good battery. 3.
Page 326: Rear Drive Module
PTU for 3.6L V6 Model A. Fill Plug B. Drain Plug To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, you’ll need to add some lubricant. Add enough lubricant to raise the level to the bottom of the ﬁller plug hole, located on the transfer case.
Page 327: Headlamp Aiming
To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, you’ll need to add some lubricant. Add enough lubricant to raise the level to the bottom of the ﬁller plug hole. A ﬂuid loss could indicate a problem;...
Page 328: Headlamps, Front Turn Signal, Sidemarker, And Parking Lamps
Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps To replace one of these bulbs: 1. Open the hood. See Hood Release on page 5-11. 2. Remove the three headlamp assembly attachment screws. 3. Pull the headlamp assembly toward you to release it from the hidden, lower headlamp mount.
Page 329: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
7. Reconnect the electrical connector. 8. Push the headlamp back into the lower headlamp mount carefully. 9. Reinstall the three headlamp assembly screws. Taillamps, Turn Signal, Stoplamps and Back-up Lamps A. Stoplamp/Taillamp/Sidemarker Lamp B. Turn Signal Lamp/Taillamp C. Backup Lamp To replace one of these bulbs: 1.
Page 330: License Plate Lamp
8. Insert the bulb socket into the taillamp assembly and turn it clockwise to secure. 9. Push the taillamp assembly straight into place on the vehicle. 10. Reinstall the taillamp screws. Do not overtighten. 11. Reinstall the taillamp screw covers. License Plate Lamp To replace one of these bulbs: 1.
Page 331: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Maintenance Replacement Parts on page 6-15.
Page 332: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. For additional information refer to the tire manufacturer.
Page 333: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 334 (F) Uniform Tire Quality Grading (UTQG) Tire manufacturers are required to grade tires based on three performance factors: treadwear, traction, and temperature resistance. For more information see Uniform Tire Quality Grading on page 5-66. (G) Maximum Cold Inﬂation Load Limit Maximum load that can be carried and the maximum pressure needed to support that load.
Page 335 (F) Tire Size A combination of letters and numbers deﬁne a tire’s width, height, aspect ratio, construction type, and service description. The letter T as the ﬁrst character in the tire size means the tire is for temporary use only. (G) TPC Spec (Tire Performance Criteria Speciﬁcation) Original equipment tires designed...
Page 336: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight This means the combined weight of optional accessories.
Page 337 Intended Outboard Sidewall asymmetrical tire, that must always face outward when mounted on a vehicle. Kilopascal (kPa) The metric unit for air pressure. Light Truck (LT-Metric) Tire light duty trucks and some multipurpose passenger vehicles. Load Index An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire.
Page 338 Radial Ply Tire A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread. A metal support for a tire and upon which the tire beads are seated. Sidewall The portion of a tire between the tread and the bead.
Page 339: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 340: High-Speed Operation
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are under-inﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 341: Tire Pressure Monitor System
If your vehicle has P235/50R18 size tires, they will require inﬂation pressure adjustment when driving your vehicle at speeds of 100 mph (160 km/h) or higher. Set the cold inﬂation pressure to the maximum inﬂation pressure shown on the tire sidewall, or 35 psi (241 kPa), whichever is lower.
Page 342 Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inﬂation has not reached the level to trigger illumination of the TPMS low tire pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly.
Page 343: Tire Pressure Monitor Operation
Tire Pressure Monitor Operation This vehicle may have a Tire Pressure Monitor System (TPMS). The TPMS is designed to warn the driver when a low tire pressure condition exists. TPMS sensors are mounted onto each tire and wheel assembly, excluding the spare tire and wheel assembly. The TPMS sensors monitor the air pressure in the vehicle’s tires and transmits the tire pressure readings to a receiver located in the vehicle.
Page 344: Tpms Malfunction Light And Message
TPMS Malfunction Light and Message The TPMS will not function properly if one or more of the TPMS sensors are missing or inoperable. When the system detects a malfunction, the low tire warning light ﬂashes for about one minute and then stays on for the remainder of the ignition cycle.
Page 345: Tpms Sensor Matching Process
TPMS Sensor Matching Process Each TPMS sensor has a unique identiﬁcation code. Any time you rotate your vehicle’s tires or replace one or more of the TPMS sensors, the identiﬁcation codes will need to be matched to the new tire/wheel position. The sensors are matched to the tire/wheel positions in the following order: driver side front tire, passenger side front tire, passenger side rear tire, and driver side rear tire...
Page 346: Tire Inspection And Rotation
8. Proceed to the driver side rear tire, and repeat the procedure in Step 5. The horn sounds two times to indicate the sensor identiﬁcation code has been matched to the driver side rear tire, and the TPMS sensor matching process is no longer active. The TIRE LEARNING ACTIVE message on the DIC display screen goes off.
Page 347: When It Is Time For New Tires
Reset the Tire Pressure Monitor System. See Tire Pressure Monitor Operation on page 5-59. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Speciﬁcations on page 5-97. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time.
Page 348: Buying New Tires
You need new tires if any of the following statements are true: • You can see the indicators at three or more places around the tire. • You can see cord or fabric showing through the tire’s rubber. • The tread or sidewall is cracked, cut, or snagged deep enough to show cord or fabric.
Page 349 GM recommends replacing tires in sets of four. This is because uniform tread depth on all tires will help keep your vehicle performing most like it did when the tires were new. Replacing less than a full set of tires can affect the braking and handling performance of your vehicle.
Page 350: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this could affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover.
Page 351 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
Page 352: Wheel Alignment And Tire Balance
Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Adjustments to wheel alignment and tire balancing will not be necessary on a regular basis.
Page 353: Tire Chains
Notice: The wrong wheel can also cause problems with bearing life, brake cooling, speedometer or odometer calibration, headlamp aim, bumper height, vehicle ground clearance, and tire or tire chain clearance to the body and chassis. See Changing a Flat Tire on page 5-70 for more information.
Page 354: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly. But if you should ever have a blowout, here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire creates a drag that pulls the vehicle toward that side.
Page 355 CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people. You and they could be badly injured or even killed. Find a level place to change your tire.
Page 356: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools If your vehicle has the rear compartment storage panel/cover, you will have to remove it to access the load ﬂoor. See Rear Compartment Storage Panel/Cover on page 2-44 for more information. To access the spare tire and tools: 1.
Page 357: Removing The Flat Tire And Installing The Spare Tire
5. Remove the wing-bolt holding the jack and then remove it. 6. Remove the hook and loop fastener straps holding the bag containing the wheel wrench. Remove the wheel wrench from the bag. 7. Extend the socket portion of the wrench from the handle.
Page 358 3. Pull the cover or center cap away from the wheel. Store the wheel cover in the cargo area until you have the ﬂat tire repaired or replaced. 4. Use the wheel wrench to loosen all the wheel nuts. Do not remove them yet. 5.
Page 359 With the jack head positioned correctly on the metal jacking ﬂange, it should look like this underneath the vehicle. Do not lift the vehicle using the plastic lower body panel. 8. Put the compact spare tire near you. CAUTION: Getting under a vehicle when it is jacked up is dangerous.
Page 360 CAUTION: Lifting a vehicle and getting under it to do maintenance or repairs is dangerous without the appropriate safety equipment and training. If a jack is provided with the vehicle, it is designed only for changing a ﬂat tire. If it is used for anything else, you or others could be badly injured or killed if the vehicle slips off the jack.
Page 361 10. Remove all of the wheel nuts. 11. Remove the ﬂat tire. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident.
Page 362 13. Place the compact spare tire on the wheel-mounting surface. CAUTION: Never use oil or grease on bolts or nuts because the nuts might come loose. The vehicle’s wheel could fall off, causing a crash. 14. Reinstall the wheel nuts. Tighten each nut by hand until the wheel is held against the hub.
Page 363: Storing A Flat Or Spare Tire And Tools
16. Tighten the wheel nuts ﬁrmly in a crisscross sequence, as shown. 17. Lower the jack all the way and remove the jack from under the vehicle. 18. Tighten the wheel nuts ﬁrmly with the wheel wrench. When reinstalling the wheel cover or center cap on the full-size tire, tighten all ﬁve plastic caps hand snug with the aid of the wheel wrench and tighten them with the wheel wrench an additional one-quarter of a turn.
Page 364 4. Remove the wheel stow rod from the left side of the ﬂoor compartment. 5. Screw the threaded wheel stow rod onto the spare tire bracket. The ﬁnal position of the wheel stow rod must be turned to the farthest forward position. 5-80 6.
Page 365: Compact Spare Tire
Compact Spare Tire CAUTION: Driving with more than one compact spare tire at a time could result in loss of braking and handling. This could lead to a crash and you or others could be injured. Use only one compact spare tire at a time.
Page 366: Appearance Care
Appearance Care Interior Cleaning The vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on the upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces. Regular vacuuming is recommended to remove particles from the upholstery.
Page 367: Fabric/Carpet
Do not clean the vehicle using: • A knife or any other sharp object to remove a soil from any interior surface. • A stiff brush. It can cause damage to the vehicle’s interior surfaces. • Heavy pressure or aggressive rubbing with a cleaning cloth.
Page 368: Leather
To clean: 1. Saturate a lint-free, clean white cloth with water or club soda. 2. Wring the cloth to remove excess moisture. 3. Start on the outside edge of the soil and gently rub toward the center. Continue cleaning, using a clean area of the cloth each time it becomes soiled.
Page 369: Instrument Panel, Vinyl, And Other Plastic Surfaces
Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt. Never use spot lifters or removers on plastic surfaces.
Page 370: Washing Your Vehicle
Washing Your Vehicle The best way to preserve the vehicle’s ﬁnish is to keep it clean by washing it often. Notice: Certain cleaners contain chemicals that can damage the emblems or nameplates on the vehicle. Check the cleaning product label. If it states that it should not be used on plastic parts, do not use it on the vehicle or damage may occur and it would not be covered by the warranty.
Page 371: Finish Care
Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint ﬁnish. Approved cleaning products can be obtained from your dealer/retailer. If the vehicle has a basecoat/clearcoat paint ﬁnish, the clearcoat gives more depth and gloss to the colored basecoat.
Page 372: Aluminum Or Chrome-Plated Wheels And Trim
Aluminum or Chrome-Plated Wheels and Trim The vehicle may have either aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied.
Page 373: Sheet Metal Damage
Sheet Metal Damage If the vehicle is damaged and requires sheet metal repair or replacement, make sure the body repair shop applies anti-corrosion material to parts repaired or replaced to restore corrosion protection. Original manufacturer replacement parts will provide the corrosion protection while maintaining the vehicle warranty.
Page 374: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for the vehicle. It appears on a plate in the front corner of the instrument panel, on the driver side. It can be seen through the windshield from outside the vehicle. The VIN also appears on the Vehicle Certiﬁcation and Service Parts labels and the certiﬁcates of title and registration.
Page 375: Electrical System
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to the vehicle unless you check with your dealer/retailer ﬁrst. Some electrical equipment can damage the vehicle and the damage would not be covered by the vehicle’s warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 376: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located on the passenger side of the center console, to the left of the glove box near the ﬂoor. Remove the console cover to access the fuse block. 5-92 Fuses Usage Sunroof, Inside Rear View Mirror, Compass...
Page 377: Engine Compartment Fuse Block
Fuses Usage Automatic Occupant Sensing Module Power Mirrors Passenger Side Turn Signal Ampliﬁer Steering Wheel Illumination Infotainment Climate Control System, Remote Function Actuator Canister Vent Radio Cluster Ignition Switch Body Control Module Communications Integration Module Center High-Mounted Stoplamp, Dimmer Interior Lights Relays Usage RAP RLY...
Page 378 To remove the fuse block cover, release the rear of the cover ﬁrst, by unlocking both of the tabs in the back. Then lift the cover off. Do not lift the front of the cover until the tabs at the rear have been unlocked. To reinstall, ﬁt together the tabs located on the front of the cover, and push down on the cover until the tabs on the rear of the cover click into place.
Page 379 Fuses Usage Cooling Fan 2 Cooling Fan 1 Auxiliary Power Rear HVAC Spare Sun Roof Antilock Brake System Air Conditioning Clutch Driver Side Low-Beam Daytime Running Lamp 2 Passenger Side High-Beam Passenger Side Park Lamp Horn Driver Side Park Lamp Starter Electronic Throttle Control, Engine Control Module...
Page 380 Fuses Rear Defogger Antilock Brake System Motor Battery Main 2 Daytime Running Lamps Fog Lamps Climate Control System Blower Battery Main 1 Electric Power Steering When changing relays, observe the location of the notch on the old relay. Install new relays with the notch in the same location.
Page 381: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-13 for more information. Application Air Conditioning Refrigerant R134a Cooling System 3.4L V6 Engine 3.6L V6 Engine Engine Oil with Filter 3.4L V6 Engine 3.6L V6 Engine Capacities...
Page 382 Application Fuel Tank Front-Wheel Drive All-Wheel Drive Transmission Fluid Automatic 5-Speed AF33 Transmission Automatic 6-Speed 6T70 Transmission Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the approximate level, as recommended in this manual. Recheck ﬂuid level after ﬁlling. Engine 3.4L V6 3.6L V6...
Page 383 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-7 Maintenance Footnotes ...6-8 Maintenance Schedule Owner Checks and Services ...6-10 At Each Fuel Fill ...6-10 At Least Once a Month ...6-11 At Least Once a Year ...6-11 Recommended Fluids and Lubricants ...6-13...
Page 384: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements the vehicle warranties. See the Warranty and Owner Assistance booklet or your dealer/retailer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 385 This schedule is for vehicles that: • carry passengers and cargo within recommended limits on the Tire and Loading Information label. See Loading the Vehicle on page 4-20. • are driven on reasonable road surfaces within legal driving limits. • use the recommended fuel.
Page 386: Scheduled Maintenance
Scheduled Maintenance When the change engine oil light and/or CHANGE ENGINE OIL SOON message displays, service is required for the vehicle. Have the vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 387 Change engine oil and ﬁlter. See Engine Oil on page 5-15. Reset oil life system. See Engine Oil Life System on page 5-18. An Emission Control Service. Visually check for any leaks or damage. See footnote (k). Inspect engine air cleaner ﬁlter. If necessary, replace ﬁlter. See Engine Air Cleaner/Filter on page 5-20.
Page 388 Perform any needed additional services. See “Additional Required Services” in this section. Inspect suspension and steering components. See footnote (b). Inspect engine cooling system. See footnote (c). Inspect wiper blades. See footnote (d). Inspect restraint system components. See footnote (e). Lubricate body components.
Page 389: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 390: Maintenance Footnotes
Service and Miles (Kilometers) Engine cooling system service (or every ﬁve years, whichever occurs ﬁrst). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. See footnote (m). Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc.
Page 391 (e) Make sure the safety belt reminder light and safety belt assemblies are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired. Have any torn or frayed safety belts replaced.
Page 392: Owner Checks And Services
(k) A ﬂuid loss in any vehicle system could indicate a problem. Have the system inspected and repaired and the ﬂuid level checked. Add ﬂuid if needed. (l) If driving regularly under dusty conditions, inspect the ﬁlter at each engine oil change. (m) Visually inspect belt for fraying, excessive cracks, or obvious damage.
Page 393: At Least Once A Month
Engine Coolant Level Check Check the engine coolant level and add DEX-COOL coolant mixture if necessary. See Engine Coolant on page 5-23. Windshield Washer Fluid Level Check Check the windshield washer ﬂuid level in the windshield washer ﬂuid reservoir and add the proper ﬂuid if necessary.
Page 394: Ignition Transmission Lock Check
Automatic Transmission Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before starting this check, be sure there is enough room around the vehicle. It should be parked on a level surface.
Page 395: Recommended Fluids And Lubricants
Parking Brake and Automatic Transmission P (Park) Mechanism Check CAUTION: When you are doing this check, the vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of the vehicle in case it begins to roll. Be ready to apply the regular brake at once should the vehicle begin to move.
Page 396 Usage Fluid/Lubricant Windshield ® Optikleen Washer Solvent. Washer Hydraulic GM Power Steering Fluid Power Steering (GM Part No. U.S. 89021184, System (3.6L in Canada 89021186). V6 engine only) Use only T-IV Automatic 5-speed Transmission Fluid Automatic (GM Part No. U.S. 88900925, Transmission in Canada 22689186).
Page 397: Maintenance Replacement Parts
Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter Engine Oil Filter 3.4L V6 Engine 3.6L V6 Engine Passenger Compartment Air Filter Element Spark Plugs 3.4L V6 Engine 3.6L V6 Engine Wiper Blades Front Driver Side –...
Page 398: Engine Drive Belt Routing
Engine Drive Belt Routing 3.6L V6 Engine 3.4L V6 Engine 6-16...
Page 399: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-10 can be added on the following record pages. You should retain all maintenance receipts.
Page 400 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 401 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-19...
Page 402 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-20...
Page 403: Customer Assistance Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-5 Customer Assistance for Text Telephone (TTY) Users ...7-6 Customer Assistance Offices ...7-6 GM Mobility Reimbursement Program ...7-7 Roadside Assistance Program ...7-7 Scheduling Service Appointments ...7-10 Courtesy Transportation Program ...7-10 Collision Damage Repair ...7-12 Customer Assistance Information...
Page 404: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Pontiac. Normally, any concerns with the sales transaction or the operation of the vehicle will be resolved by the dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 405 STEP THREE — U.S. Owners: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, you can ﬁle with the BBB Auto Line Program to enforce your rights.
Page 406 STEP THREE — Canadian Owners: In the event that you do not feel your concerns have been addressed after following the procedure outlined in Steps One and Two, General Motors of Canada Limited wants you to be aware of its participation in a no-charge Mediation/Arbitration Program.
Page 407: Online Owner Center
— all in one convenient place. • Digital owner manual, warranty information, and more • Online service and maintenance records • Find Pontiac dealers for service nationwide • Exclusive privileges and offers • Recall notices for your speciﬁc vehicle • ®...
Page 408: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Pontiac encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Pontiac, the letter should be addressed to: United States — Customer Assistance Pontiac Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 www.Pontiac.com...
Page 409: Gm Mobility Reimbursement Program
GM Mobility Reimbursement Program This program, available to qualiﬁed applicants, can reimburse you up to $1,000 of the cost of eligible aftermarket adaptive equipment required for your vehicle, such as hand controls or a wheelchair/scooter lift. The offer is available for a very limited period of time from the date of vehicle purchase/lease.
Page 410 Roadside Assistance program at any time without notiﬁcation. Pontiac and General Motors of Canada Limited reserve the right to limit services or payment to an owner or driver if they decide the claims are made too often, or the same type of claim is made many times.
Page 411 Services Not Included in Roadside Assistance • Impound towing caused by violation of any laws. • Legal ﬁnes. • Mounting, dismounting or changing of snow tires, chains, or other traction devices. • Towing or services for vehicles driven on a non-public road or highway.
Page 412: Scheduling Service Appointments
Scheduling Service Appointments When your vehicle requires warranty service, contact your dealer/retailer and request an appointment. By scheduling a service appointment and advising your service consultant of your transportation needs, your dealer/retailer can help minimize your inconvenience. If your vehicle cannot be scheduled into the service department immediately, keep driving it until it can be scheduled for service, unless, of course, the problem is safety-related.
Page 413: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Shuttle service is the preferred means of offering Courtesy Transportation.
Page 414: Collision Damage Repair
Additional Program Information All program options, such as shuttle service, may not be available at every dealer. Please contact your dealer for speciﬁc information about availability. All Courtesy Transportation arrangements will be administered by appropriate dealer personnel. General Motors reserves the right to unilaterally modify, change or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms and conditions described...
Page 415 Aftermarket collision parts are also available. These are made by companies other than GM and may not have been tested for your vehicle. As a result, these parts may ﬁt poorly, exhibit premature durability/corrosion problems, and may not perform properly in subsequent collisions. Aftermarket parts are not covered by your GM New Vehicle Limited Warranty, and any vehicle failure related to such parts are not covered by that warranty.
Page 416: If A Crash Occurs
If a Crash Occurs Here is what to do if you are involved in a crash. • Check to make sure that you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured. •...
Page 417: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 418: Reporting Safety Defects To The Canadian Government
General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, please notify General Motors. Call 1-800-762-2737, or write: Pontiac Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, call 1-800-263-3777 (English) or 1-800-263-7854 (French), or write:...
Page 419: Vehicle Data Recording And Privacy
Current and Past Model Order Forms Technical Service Bulletins and Manuals are available for current and past model GM vehicles. To request an order form, specify year and model name of the vehicle. ORDER TOLL FREE: 1-800-551-4123 Monday-Friday 8:00 AM - 6:00 PM Eastern Time For Credit Card Orders Only (VISA-MasterCard-Discover), visit Helm, Inc.
Page 420: Event Data Recorders
Event Data Recorders This vehicle has an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed.
Page 421: Onstar
® OnStar If your vehicle has OnStar and you subscribe to the OnStar services, please refer to the OnStar Terms and Conditions for information on data collection and use. ® See also OnStar System on page 2-38 in this manual for more information.
Page 422 ✍ NOTES 7-20...
Page 423 Accessories and Modiﬁcations ... 5-3 Accessory Power ... 2-21 Accessory Power Outlets ... 3-18 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-68 Additional Required Services, Scheduled Maintenance ... 6-7 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-91 Adjustments Headlamp Range ... 1-7 Air Cleaner/Filter, Engine ...
Page 424 Audio System ... 3-64 Audio Steering Wheel Controls ... 3-118 Navigation/Radio System, see Navigation Manual ... 3-98 Setting the Clock ... 3-65 Audio System(s) ... 3-67 Audio Systems Radio Reception ... 3-119 Theft-Deterrent Feature ... 3-118 Automatic Headlamp System ... 3-14 Automatic Transmission Fluid ...
Page 425 Care of Safety Belts ... 5-85 Cargo Lamp ... 3-16 CD, MP3 ... 3-87, 3-92 Center Console Storage ... 2-42 Chains, Tire ... 5-69 Charging System Light ... 3-30 Check Engine Lamp ... 3-34 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ...
Page 426 Customer Assistance ... 7-6 Offices ... 7-6 Text Telephone (TTY) Users ... 7-6 Customer Information Service Publications Ordering Information ... 7-16 Customer Satisfaction Procedure ... 7-2 Damage Repair, Collision ... 7-12 Data Recorders Event ... 7-18 Daytime Running Lamps (DRL) ... 3-13 Defensive Driving ...
Page 427 EDR ... 7-17 Electrical Equipment Add-On Equipment ... 5-91 Electrical System Engine Compartment Fuse Block ... 5-93 Fuses and Circuit Breakers ... 5-91 Instrument Panel Fuse Block ... 5-92 Windshield Wiper Fuses ... 5-91 Electronic Immobilizer ® PASS-Key III+ ... 2-17 Electronic Immobilizer Operation ®...
Page 428 Fuel ... 5-5 Additives ... 5-6 California Fuel ... 5-6 Economy Driving ... 4-2 Filling a Portable Fuel Container ... 5-10 Filling the Tank ... 5-8 Fuels in Foreign Countries ... 5-7 Gage ... 3-41 Gasoline Octane ... 5-5 Gasoline Speciﬁcations ... 5-6 Low Fuel Warning Light ...
Page 429 Height Adjuster, Driver Seat ... 1-3 Highbeam On Light ... 3-38 High-Speed Operation, Tires ... 5-56 Highway Hypnosis ... 4-15 Hill and Mountain Roads ... 4-16 Hood Checking Things Under ... 5-10 Release ... 5-11 Horn ... 3-6 How to Wear Safety Belts Properly ... 1-17 Ignition Positions ...
Page 430 Lights ... 3-13 Airbag Readiness ... 3-28 All-Wheel Drive Disabled ... 3-39 Antilock Brake System (ABS) Warning ... 3-31 Brake System Warning ... 3-30 Change Engine Oil ... 3-37 Charging System ... 3-30 Cruise Control ... 3-38 Door Ajar ... 3-40 Engine Coolant Temperature Warning ...
Page 431 Maintenance Schedule (cont.) Recommended Fluids and Lubricants ... 6-13 Scheduled Maintenance ... 6-4 Using ... 6-2 Your Vehicle and the Environment ... 6-2 Malfunction Indicator Lamp ... 3-34 Manual Lumbar Controls ... 1-4 Manual Reclining Seatbacks ... 1-5 Manual Seats ... 1-2 Map Lamps ...
Page 432 Paint, Damage ... 5-89 Park Shifting Into ... 2-32 Shifting Out of ... 2-33 Parking Over Things That Burn ... 2-34 Parking Brake ... 2-31 Passenger Airbag Status Indicator ... 3-29 Passenger Compartment Air Filter ... 3-23 Passenger Sensing System ... 1-63 Passing ...
Page 433 Rearview Mirrors ... 2-36 Reclining Seatbacks, Manual ... 1-5 Recommended Fluids and Lubricants ... 6-13 Recreational Vehicle Towing ... 4-26 Reduced Engine Power Light ... 3-38 Reimbursement Program, GM Mobility ... 7-7 Remote Keyless Entry (RKE) System ... 2-4 Remote Keyless Entry (RKE) System, Operation ... 2-5 Remote Vehicle Start ...
Page 434 Security Light ... 3-37 Service ... 5-3 Accessories and Modiﬁcations ... 5-3 Adding Equipment to the Outside of the Vehicle ... 5-5 All-Wheel-Drive Light ... 3-39 Doing Your Own Work ... 5-4 Engine Soon Lamp ... 3-34 Publications Ordering Information ... 7-16 Scheduling Appointments ...
Page 435 Tilt Wheel ... 3-6 Time, Setting ... 3-65 Tire Pressure Light ... 3-33 Tires ... 5-48 Aluminum or Chrome-Plated Wheels, Cleaning ... 5-88 Buying New Tires ... 5-64 Chains ... 5-69 Changing a Flat Tire ... 5-70 Cleaning ... 5-88 Compact Spare ...
Page 436 Vehicle Control ... 4-3 Loading ... 4-20 Running While Parked ... 2-36 Service Soon Light ... 3-40 Symbols ... iii Vehicle Data Recording and Privacy ... 7-17 Vehicle Data Recording, Radio Frequency (RFID) ... 7-19 Vehicle Identiﬁcation Number (VIN) ... 5-90 Service Parts Identiﬁcation Label ...

Pontiac 2009 Torrent Owner's Manual

Section 1 Seats and Restraint System

Seats and Restraint System

Front Seats

Rear Seats

Safety Belts

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and the Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

All-Wheel Drive

Bulb Replacement

Headlamp Aiming

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Pontiac 2009 Torrent

Summary of Contents for Pontiac 2009 Torrent
