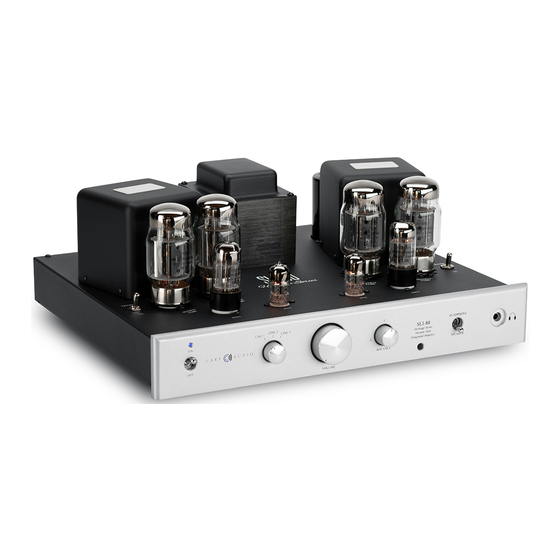

SLI-80HS
Integrated Stereo Amplifier
NOTE: Before installing your new component, please read this manual
carefully as it will inform you of the product specifications, proper
installation and correct operating procedures for your unit. Also included
in this manual are guidelines on how to service and care for your new
Cary Audio Design product.
Advertisement
Table of Contents
Related Manuals for Cary Audio Design SLI-80HS
Summary of Contents for Cary Audio Design SLI-80HS
- Page 1 NOTE: Before installing your new component, please read this manual carefully as it will inform you of the product specifications, proper installation and correct operating procedures for your unit. Also included in this manual are guidelines on how to service and care for your new Cary Audio Design product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions ....................... 2 Welcome ..............................5 Features ..............................6 Specifications ............................7 Installation Unpacking ............................. 9 Warranty Card ............................9 Placement .............................. 9 Power Requirements ..........................9 Speaker Cables ............................9 Operation Front ..............................10 Rear .............................. -
Page 3: Important Safety Instructions
(such as a paper clip, coin, or staple) accidentally falls inside the unit, disconnect it from the AC power source immediately and contact Cary Audio Design for further instructions. Position the unit away from heat sources such as radiators, heat registers, stoves, or other units (including amplifiers) that produce heat. - Page 4 IMPORTANT SAFETY INSTRUCTIONS 22. Before connecting a new product to your audio or home theater system, turn off all other equipment (preferably unplugging them from the AC power source). Many audio components feature automatic turn-on circuits that may activate during an installation, potentially causing damage to electronic components and/or speakers.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS Disposal Instructions NORTH AMERICAN WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT DIRECTIVE When discarding the unit, comply with local rules or regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with the local regulations concerning battery disposal. EUROPEAN UNION (EU) WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE The European Union’s WEEE directive requires that products sold into EU countries must have the crossed out trashbin label on the product (or the package in some cases).
-
Page 6: Welcome
WELCOME THANK YOU Cary Audio would like to thank you for purchasing our products. Since its founding in 1989, Cary Audio has stayed at the forefront of home entertainment equipment by stubbornly adhering to the principles of quality and musicality upon which it was founded. It’s not enough just to be able to build great sounding gear, but it needs to be well-made, reliable, and maintain its performance and value for many years. -
Page 7: Features
6SN7 octal base dual triode. The preamplifier circuit is a Series Regulated Push-Pull (SRPP) Class A triode voltage amplification stage direct coupled to the phase inverter. The power supply in the SLI-80HS features a 200% duty cycle EI laminate power transformer. -
Page 8: Specifications
SPECIFICATIONS This section describes the basic specifications of the SLI-80HS at the time of printing. Specifications are subject to change without notice or obligation. When the following cautionary terms are used in this manual, these definitions apply: WARNING • Electrical hazard! Misuse or failure to follow instructions properly may... - Page 9 SPECIFICATIONS ................................DIMENSIONS 7" H x 17" W x 16" D ................................WEIGHT 42 lbs................................
-
Page 10: Installation
50/60Hz. SPEAKER CABLES The speaker cables from the output posts of the SLI-80HS to the speaker system can be any convenient length your set-up requires. Select speaker cables of sufficient size to preserve the outstanding performance capabilities of your SLI-80HS. Heavy gauge #16 wire is suitable for distances up to 10... -
Page 11: Operation
Listen carefully to each setting and choose the setting that matches your speakers best. 3. 1 thru 3 Right and Left RCA Line Level Inputs – Connect line level sources to the corresponding right and left inputs of SLI-80HS. -
Page 12: Break-In Period
The tubes, capacitors and output transformers take approximately 100 hours of music playing to fully settle in for peak performance. The SLI-80HS will sound good from the start and after the first couple of hours you will notice increased depth and tighter bass. This break-in period defies all engineering theory but is true with high performance vacuum tube audio amplifiers. -
Page 13: Service And Care
SERVICE AND CARE CARE AND CLEANING The cabinet housing and front panel of the SLI-80HS may be cleaned with a soft cloth and Windex or a window cleaner. The frequency of cleaning will be governed by how many hours the SLI-80HS is operated and by operating environment cleanliness. -
Page 14: Non-Warranty Repairs
WARNINGS • MAKE NO ATTEMPT TO PUT THE SLI-80HS IN SERVICE WITH THE BOTTOM PLATE REMOVED. CONTACT WITH HIGH VOLTAGES FOUND IN THE UNIT CAN BE FATAL. COMPLETELY REMOVE AC POWER PLUG FROM THE WALL AND ALLOW 30 MINUTES FOR THE HIGH VOLTAGE CAPACITORS TO... -
Page 15: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM CAUSE REMEDY Hum or "Buzzing" through Ground Loop Install 2-pin adapter on speakers A.C. cord to float the Ground Intermittent or poor connection Replace interconnect of interconnect ground "Popping or Spitting" noise Noisy tube If noise is in one channel, through the speaker swap one section of tubes at a time until the noise swaps channels. -
Page 16: Diagrams
DIAGRAMS... -
Page 17: Bias Adjustment
• Adjust for 75-85mA reading on DC current meter. • Re-adjust to 75-85mA after SLI-80HS is warmed up for 15 minutes. • Remove plug and enjoy the music! Note: Bias is factory preset; Bias should be reset when installing replacement KT88 tubes. -
Page 18: Tube Placement Chart
DIAGRAMS Tube Placement Chart 4/8 OHM Switch Settings Rear of Amplifier... -
Page 19: Side Panel Installation
DIAGRAMS Side Panel Installation Remote Control See Remote Control insert page. -
Page 20: Safety Requirments For Servicing
SAFETY REQUIREMENTS FOR SERVICING In order to provide safety protection for the amplifier itself as well as any future service related issues, the following replacement parts should be purchased in their original packaging and direct from the factory. It is not recommended to use any replacement parts other than the original brand. 1. -
Page 21: Limited Warranty
LIMITED WARRANTY This warranty has been included with a Cary Audio product that is intended to be sold and used only within the United States and Canada. Accordingly, this Warranty only applies to Products which are purchased in the United States or Canada, and only applies while such products are used in the United States or Canada. - Page 22 LIMITED WARRANTY 5. Accessories, including but not limited to, batteries, cables, mounting hardware and brackets, cleaning accessories, antenna and detachable power cords. 6. Warranty is void if purchase was made from anyone other than directly from Cary Audio or an authorized Cary Audio dealer.
- Page 23 LIMITED WARRANTY Limitation of Implied Warranties All implied warranties, including warranties of merchantability and fitness for particular purpose, are limited in duration to the length of this warranty. Exclusion of Damages Cary Audio’s liability for any defective product is limited to repair or replacement of the product at Cary Audio’s option.
- Page 24 CARY AUDIO 6301 Chapel Hill Road Raleigh, NC 27607 919.355.0010 caryaudio.com carydirect.com o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o...
