Back Panel - TP-Link Archer AX23 User Manual

Chapter 1
Name
(5 GHz Wireless)
(Internet)
(Ethernet)
(WPS)
1 2 2

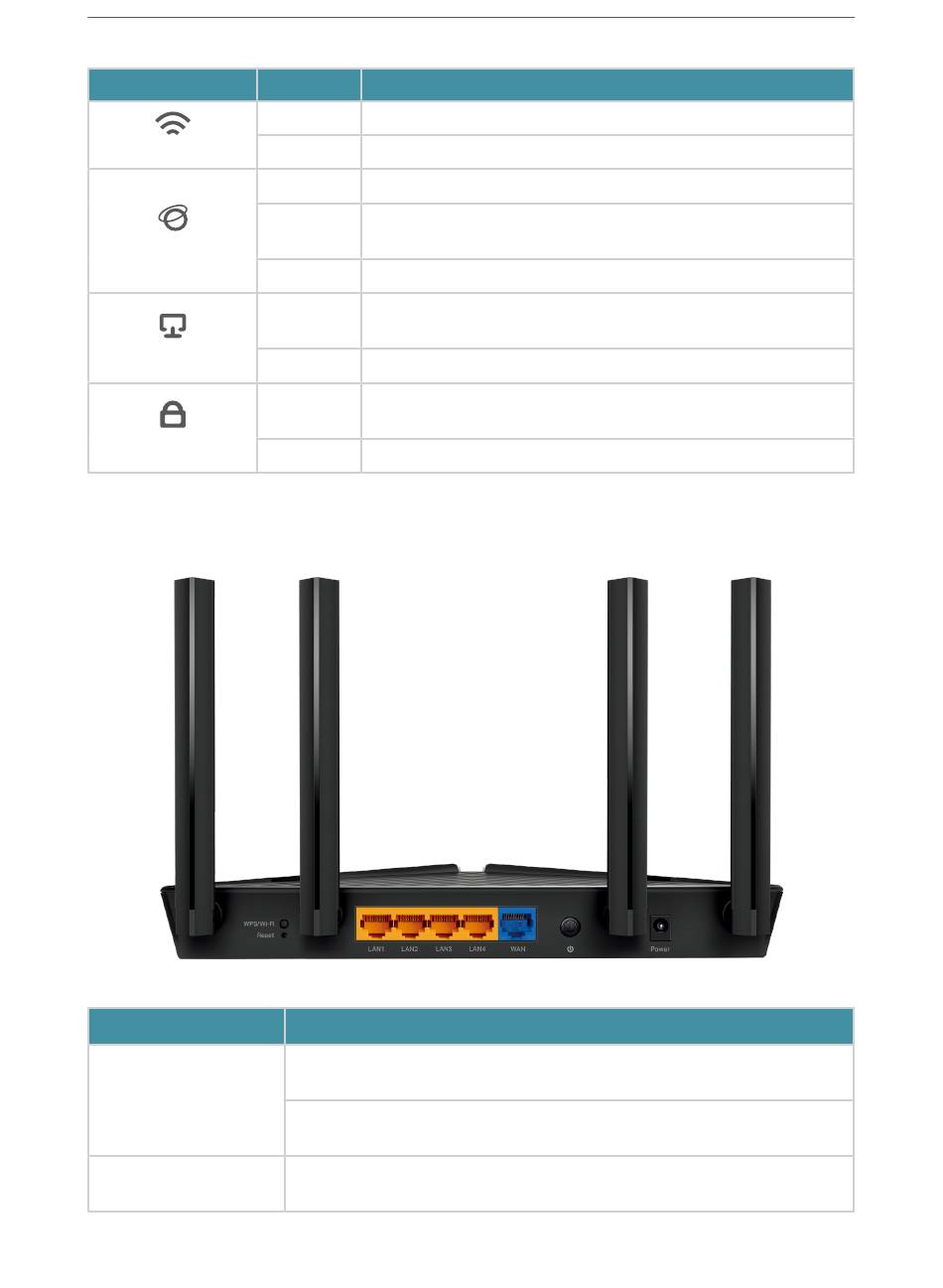

Back Panel

The following parts (view from left to right) are located on the back panel.
Item
WPS/Wi-Fi Button
Reset Button
Status
On The 5 GHz wireless band is enabled.
Off The 5 GHz wireless band is disabled.
Green On Internet service is available.
The router's Internet port is connected, but the internet service
Orange On
is not available.
Off The router's Internet port is unplugged.
At least one powered-on device is connected to the router's
On
Ethernet port.
Off No powered-on device is connected to the router's Ethernet port.
This light remains on for 5 minutes when a WPS connection is
On/Off
established, then turns off.
Blinking WPS connection is in progress. This may take up to 2 minutes.
Press this button for 1 second, and immediately press the WPS button on
your client device to start the WPS process.
Press and hold this button for more than 2 seconds to turn on or off the
wireless function of your router.
Press and hold the button for about 6 seconds until the Power LED blinks to
reset the router to its factory default settings.
