AOpen AX6B Quick Installation Manual

Thanks for purchasing AOpen's AX6B motherboard. This Guide will help you installing the system.

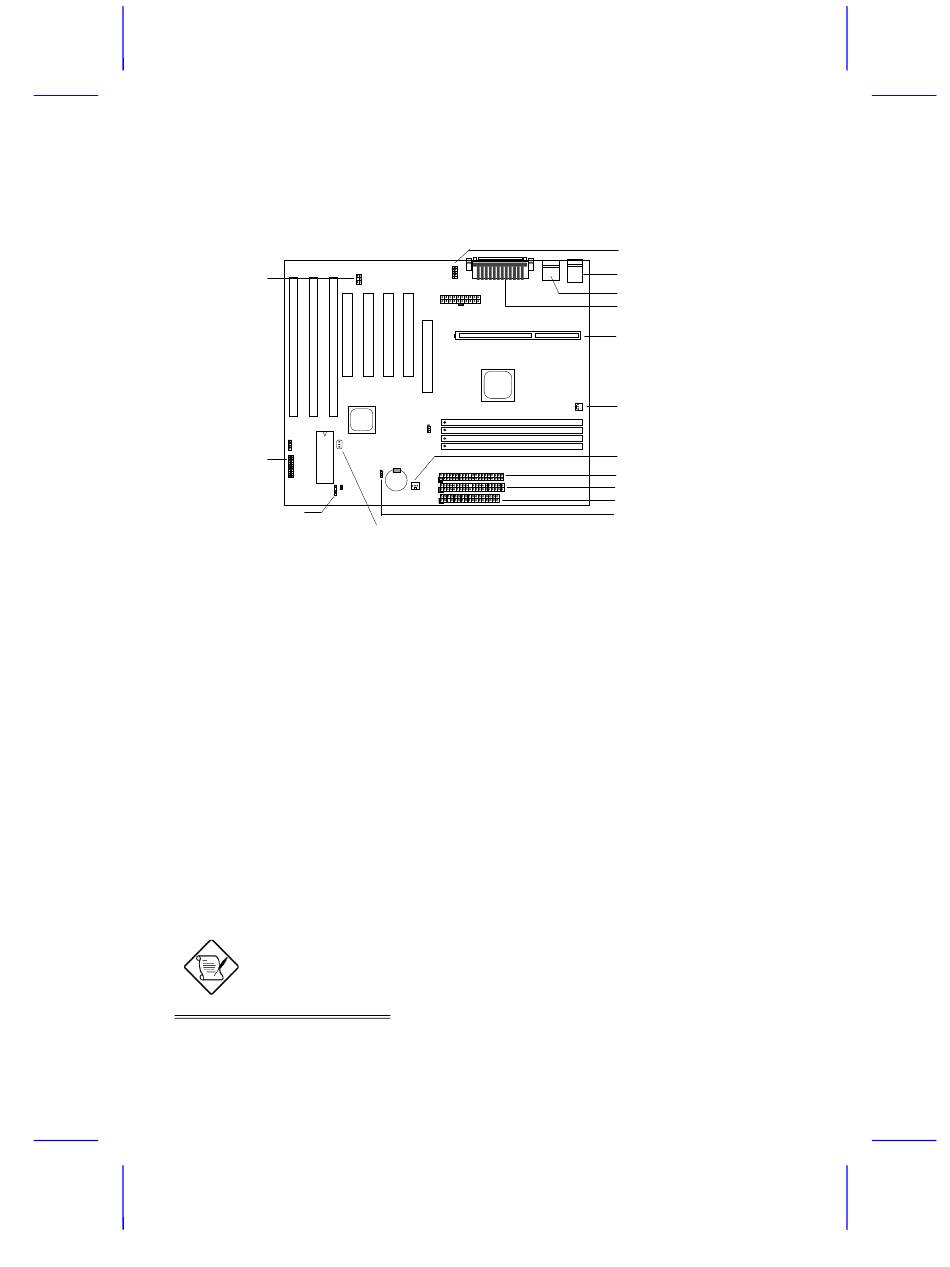

Following figure shows the location of the jumpers and connectors on this motherboard:
SB-Link connector
Panel
WKUP: Wake Up connector
AX6B implements many special features as following:
Jumper-less Design Pentium II VID signal and SMbus clock generator provide CPU voltage
auto-detection and allows user to set CPU frequency through CMOS setup, no jumper or switch is
needed.
Full-range CPU core voltage This motherboard supports the CPU core voltage from 1.3V to
3.5V, that can be applied to various CPU type in future.
Battery-less Motherboard AX6B implements EEPROM and special circuit (patent applied) that
allows you to save your current CPU and CMOS Setup configurations without the need of battery.
The RTC (real time clock) can also keep running as long as power cord is plugged.
Suspend to Hard Drive This function saves your work to HDD and resumes within a short time.
Zero Voltage Modem Wake Up Through this feature, it is possible to have system totally power
off and wakeup to automatically answer a phone call, such as answering machine or to
send/receive fax.
RTC Wake Up Timer Program the date/time to wake up your system.
Over-current Protection CPU over-current protection to prevent any accident short circuit.
CPU Thermal Protection Warning when CPU temperature is higher than a predefined value.
Fan Monitoring Two fan connectors, warning when CPU or housing fan is malfunction.
System Voltage Monitoring This design will monitor your system working voltage continuously.
Switching Regulator High efficient switching regulator for future CPU.
PCI Sound Card connector If you have a Creative-compatible PCI sound card, it is necessary to
link the card to this connector for compatibility issu under DOS environment.
FCC DoC certificate AX6B has passed FCC DoC test. The radiation is very low, you can use any
kind of housing.
Note: This Quick Installation Guide is only for quick reference. For more information,
please see the User's manual.
Setting CPU Core Voltage
This motherboard supports Pentium II VID funtion, the CPU core voltage is automatically detected,
the range is from 1.3V to 3.5V.
Quick Installation Guide
LAN-WKUP: LAN Wake Up connector
~1
~
IrDA connector
PS/2 MS and KB2 connector
USB connector
COM1, COM2 and PRINTER
CPU SLOT 1
CPU FAN
FAN
IDE2 connector
IDE1 connector
FDC connector
JP14: Clear CMOS
