F. Winlink VHF Operation — Hardware Setup

The information in this section is for reference only. The radio is set up for Winlink

using the Timewave PK-96 TNC, and you should not need to access these settings in

normal operation.

The TNC is connected to the radio's DATA2 connector. See Figure 4.

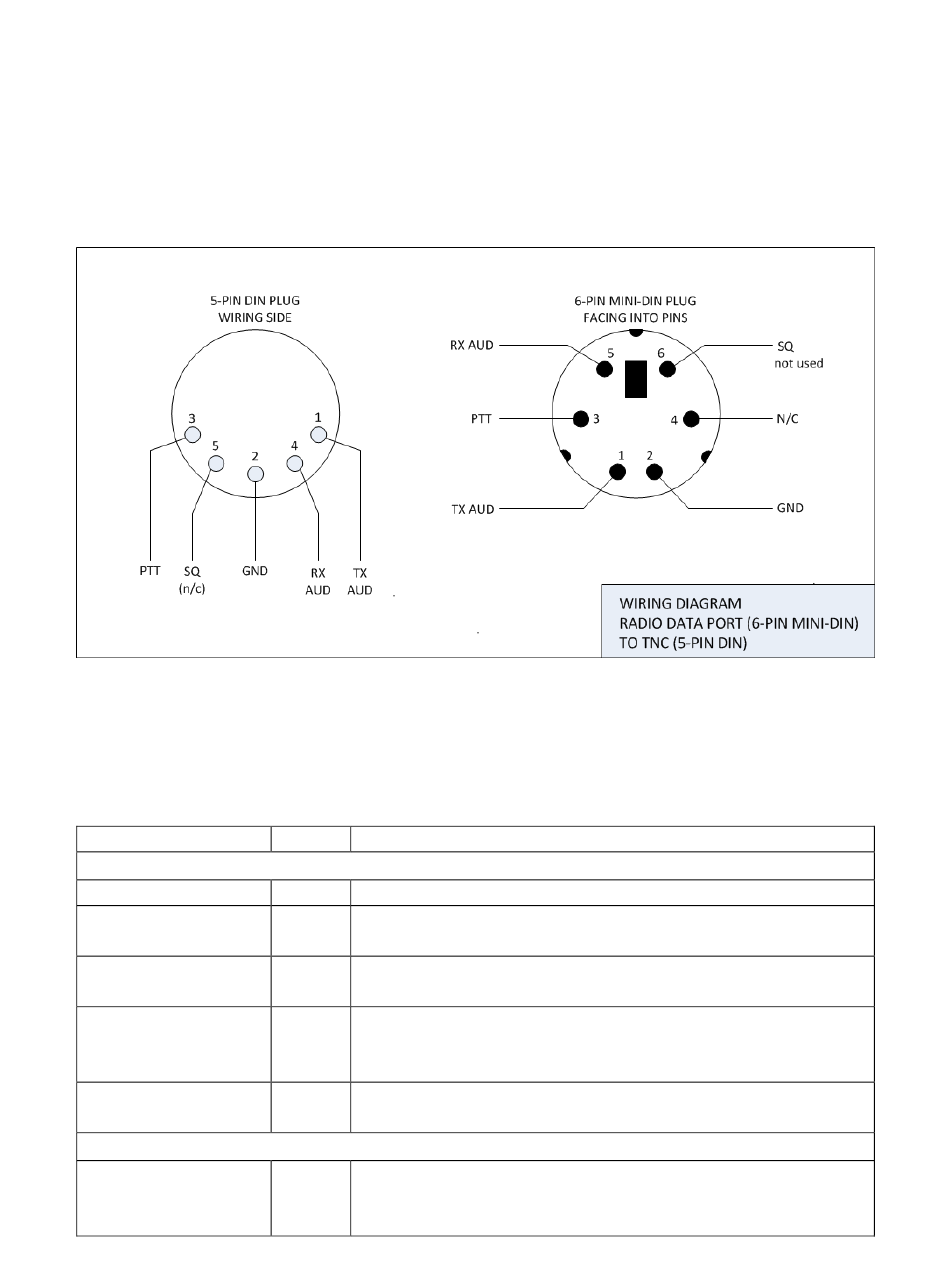

Figure 4

Several configuration parameters affect the TNC performance. These are found in the SET

mode under the Connectors and Function menus. The IC-7100 User Guide is a little

fuzzy on the details. By experimentation, here is what I found.

Parameter

Connectors

DATA OFF MOD

DATA MOD

DATA MOD Level

ACC/USB AF Level

ACC/USB Output

Select

FUNCTION

RF/SQL Control

Setting Explanation

MIC

Sets the source of transmitted audio when in FM mode

ACC

Sets the source of transmitted audio when in FM-D (data)

mode.

50%

Sets the transmitted audio level coming from the DATA2 or

ACC connector

35%

Sets the level of received audio sent to the ACC, USB, and

DATA2 outputs. Note: the received audio is unsquelched

and independent of the radio's front-panel volume control.

Set to IF when using an external Digital Radio Mondiale

decoder; otherwise, set to AF.

Auto

Knob functions as a conventional RF Gain control in CW and

SSB modes, and as a conventional squelch control (with RF

gain fixed at maximum) in AM and FM modes.
