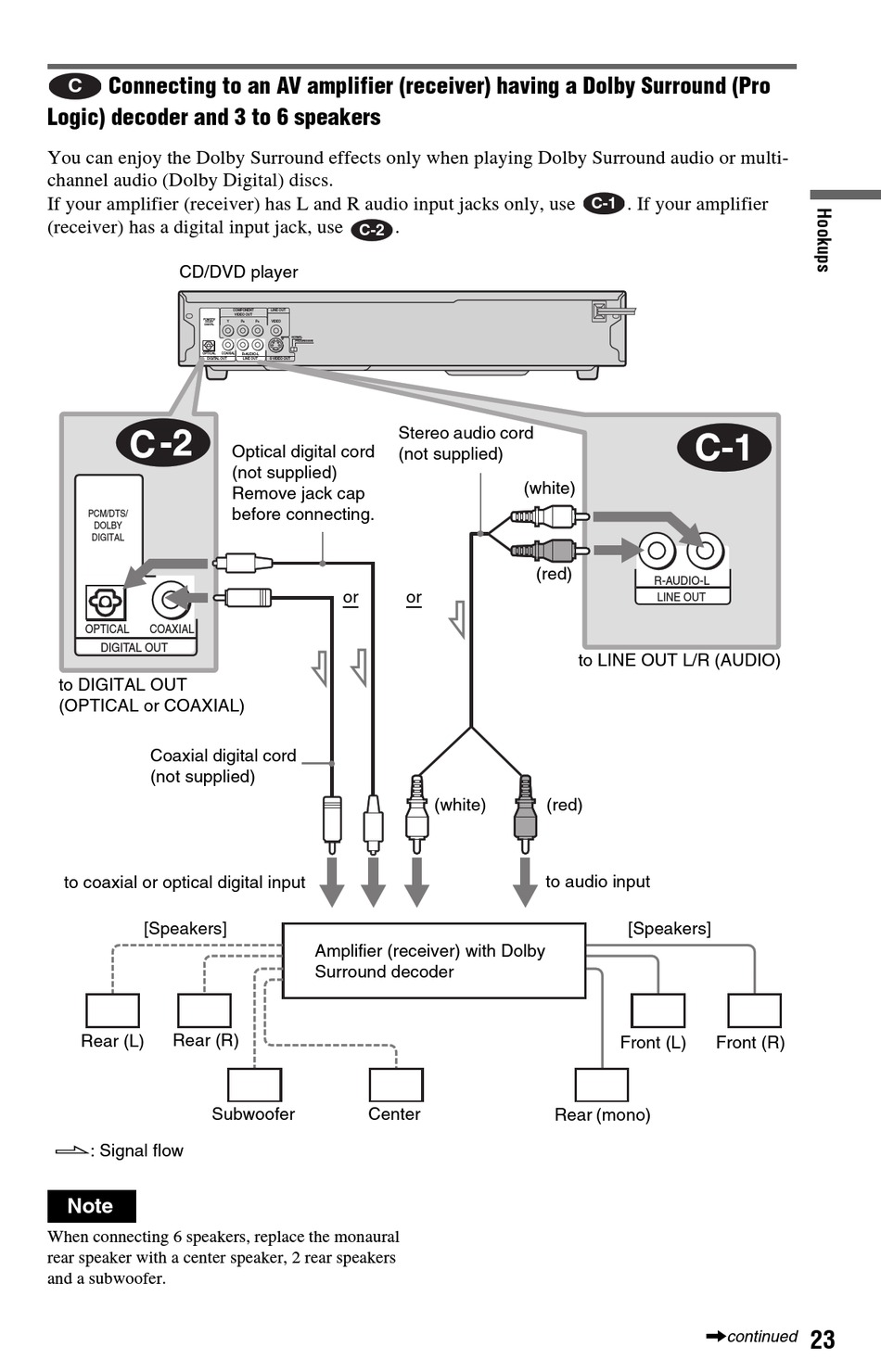

Connecting to an AV amplifier (receiver) having a Dolby Surround (Pro
C
Logic) decoder and 3 to 6 speakers
You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi-
channel audio (Dolby Digital) discs.
If your amplifier (receiver) has L and R audio input jacks only, use
(receiver) has a digital input jack, use
CD/DVD player
PCM/DTS/
DOLBY
DIGITAL
OPTICAL
DIGITAL OUT
PCM/DTS/
DOLBY
DIGITAL
OPTICAL COAXIAL
DIGITAL OUT
to DIGITAL OUT
(OPTICAL or COAXIAL)
Coaxial digital cord
(not supplied)
to coaxial or optical digital input
[Speakers]
Rear (L) Rear (R)
Subwoofer
l: Signal flow
Note
When connecting 6 speakers, replace the monaural
rear speaker with a center speaker, 2 rear speakers
and a subwoofer.
C-2
COMPONENT LINE OUT
VIDEO OUT
Y P P VIDEO
B R
NORMAL
PROGRESSIVE
COAXIAL
R-AUDIO-L
LINE OUT S VIDEO OUT
Optical digital cord
(not supplied)
Remove jack cap
before connecting.
or
Amplifier (receiver) with Dolby
Surround decoder
Center
.
Stereo audio cord
(not supplied)
(white)
(red)
or
(white) (red)
to audio input
Rear (mono)
. If your amplifier
C-1
R-AUDIO-L
LINE OUT
to LINE OUT L/R (AUDIO)
[Speakers]
Front (L) Front (R)
,continued
23
