Devolo ADSL PCI Technical Specifications

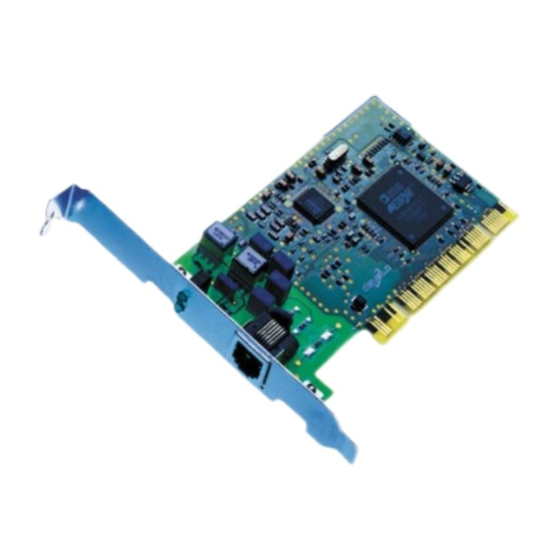

MicroLink ADSL PCI
Internal devolo ADSL modem

Technical specifications

Chip set
ADSL standard
Transmission rates
WAN connection
LEDs
Computer interface
Protocols
Power supply
Environment
System requirements
Operating systems
Approvals
d e v o l o A G S o n n e n w e g 1 1
E - m a i l : v e r t r i e b s i n f o @ d e v o l o . d e
ADSL chip set of Analog Devices
ADSL over ISDN ITU G.992.1 (G.dmt, Annex B)
Telekom specification (U-R2)
or
ADSL over POTS ANSI T1.413 Issue 2
ITU G.992.1 (G.dmt, Annex A, Annex B)
Download: up to 8 Mbps, upload: up to 1 Mbps (e.g. T-DSL 1000, T-DSL 3000)
Connector Typ: RJ11 connector
2 LEDs:
Rx/Tx (receive data/transmit data)
Connect
PCI 2.2
PPP over Ethernet (RFC 2516)
PPP over ATM (RFC 2364)
Via PCI—no external power adapter required
0–70° C (=32–158° F), 10–90% humidity (non-condensing)
CD-ROM drive
•
For Internet access: ADSL connection by Deutsche Telekom or another
•
provider
PCI interface
•
® ®
Windows 98, Windows Me, Windows
CE compliant in accordance with all technical requirements for all EU countries and
Switzerland:
EN60950: 1992+A1 : 1993+A2 : 1993+A3 : 1995+A4 : 1997+A11 : 1997
EN55022: 1998 Class B
EN55024: 1998
5 2 0 7 0 A a c h e n
®
2000, Windows
G e r m a n y
I n t e r n e t : w w w . d e v o l o . d e
®
XP
Stand: 03.12.2004
