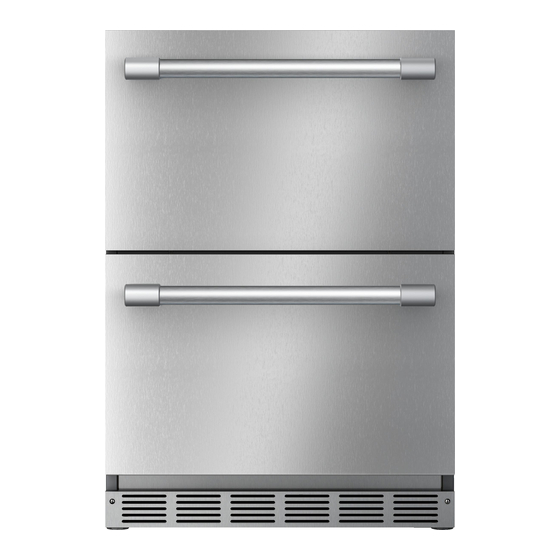

- Page 1 INSTALLATION GUIDE GUIDE Model/Modele/Modelo T24UR925DS D'INSTALLATION T24UR915DS T24UR905DP GUIA DE Double Drawer Refrigerator Réfrigérateur à double tiroir INSTALACION Refrigerador de doble cajón Page | 1...
-
Page 2: Table Of Contents
IMPORTANT: Before you begin, read these instructions completely and carefully. INSTALLER: Please leave this manual with owner for future reference. OWNER: Save these installation instructions for local electrical inspector’s use and for future reference. Table of Contents ….…………. 3 Important Safety Instructions Inspect the Refrigerator Tools needed for installation …………….. -
Page 3: Important Safety Instructions
Important Safety Instructions READ AND SAVE THESE INSTRUCTIONS! These installation instructions are intended for use by qualified installers. In addition to these instructions, the appliance shall be installed: In the United States, in accordance with the National Electric Code/State and municipal codes and/or local codes. -
Page 4: Tools Needed For Installation
Tools needed for installation Tape Measure Philips Screwdriver Level These are the tools that you may need for the installation of the appliance. However, if you need to modify the counter or cabinetry to fit the unit, you may need other tools to make counter/cabinetry modifications before installing the appliance. -
Page 5: Installing The Appliance
Installing the appliance Most of the installation work must be done before the Refrigerator is moved into place. Have a Qualified technician install and connect the appliance according to the enclosed installation instructions. WARNING: Do not install this appliance: - Outdoors - In an environment with dripping water - In rooms where there is a risk of frost Transporting... -
Page 6: Installation Location
Installation location A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distance from the heat source: ▪... -
Page 7: Installing Side-By-Side
Installing Side-by-Side The appliance can be installed beside another Thermador appliance. Follow the next dimensions and notes for the correct installation of the appliance in a side-by-side layout. NOTE: Before placing the unit into the niche, adhere the Insulating Foam (included with the product) on the side of the unit that will be placed next to the additional appliance. - Page 8 One Double Drawer and one swing door appliance: opening of the door should be opposite to the Double Drawer to avoid interference or damage by hitting. 1224mm 48 3/16 in 13mm 607mm 607mm ½ in 23 7/8 in 23 7/8 in (MÍNIMUM) Opposite to Drawer Do not place a swing door appliance with the opening of the door right beside the Double Drawer.
-
Page 9: Ventilation
Ventilation The Refrigerator unit is ventilated only at the Toe-Kick in the base. Never cover that area or place anything in front of it. Otherwise the refrigeration cooling performance will be affected, and the unit must work harder increasing power consumption. All legs are adjustable by up to ½... - Page 10 The receptacle must be near the appliance, 61” (1550mm) to the right of the appliance or 37” (940mm) to the left of the appliance, and also freely accessible following installation of the appliance for future service. The appliance complies with protection class I. Connect the appliance to 115 V/ 60Hz alternating current via a correctly installed receptacle with grounded terminal.
-
Page 11: Installing The Anti-Tip-Bracket
Installing the anti-tip-brackets The appliance includes two anti-tip-brackets. If your cabinetry is not designed for the specific dimensions of your appliance, or if you plan to use the appliance as a free-standing unit, you should use these brackets to avoid your appliance tilting due to unbalanced overweight situations where both drawers are opened at the same time. - Page 12 3. Peel the adhesive foam and paste the anti-tip-bracket at both sides on the back of the appliance as shown in the illustrations. Paste the anti-tip-bracket to the back of the appliance. 4. With the anti-tip-brackets pasted on the back of the appliance, slide the appliance to the wall until the anti-tip-bracket is touching the wall.
- Page 13 For under counter use 1. Consider the distance necessary for the appliance to be flush with the front of your cabinetry. 2. Take the measurement from the top of the cabinet of the unit to the bottom of the counter. The measurement X”(mm) may vary depending on the design of the counter, extension of the legs of the product, etc Distance= X”...
- Page 14 4. Peel the adhesive foam and paste the anti-tip-bracket at the front on the top of the cabinet of the appliance, near the corners as shown in the picture: 5. Slide the appliance into the cabinet until the front of the appliance is flush with the front of the cabinetry.
-
Page 15: Installing The Overlay Panel
Installing the overlay panel (For T24UR905DP models only) If you plan to install a custom overlay panel, you will need to create the panel yourself or consult a qualified cabinetmaker or carpenter. A full sized template for easier marking the hole pattern is included in the manual package. IMPORTANT: - The thickness of both the overlay panels must be ¾”... - Page 16 Bottom drawer: 1. Install the custom handle of your preference on the overlay panel before installing the panel on the drawer. - Every custom handle is different, and it is the responsibility of the customer to make the necessary adjustments to place the handle on the overlay panel. - The screws used to affix the custom handle to the panel must be flat and flush with the surface of the panel (Fig A);...
- Page 17 2. Remove the gasket from the top corners of the door pulling it gently. Under the gasket in each corner there is a recess with a guide to break through to use as screw positions for the panel. It is not necessary to remove all the gasket, only a portion enough to make the recess accessible.
-
Page 18: Customer Service Information
(in the order listed below) until the problem is corrected to your satisfaction. 1. Contact your dealer or the Thermador Authorized Servicer in your area. 2. E-mail us from the Customer Service section of our web site, www.Thermador.com. 3. Write to us at the address below: BSH Home Appliances Corporation... - Page 19 Data Rating Label The data rating label shows the model and serial number of your appliance. It is located at the right side of the bottom compartment. Service Information For handy reference, copy the information in the form below from the data rating plate located at the right side of the bottom compartment.
- Page 20 Page | 20...
- Page 21 PN: ARAH1E1050500 / 8001087776 04/2021 T24UR925DS Printed in Mexico T24UR915DS lmpreso en Mexico lmprime au Mexique T24UR905DS Page | 21...
