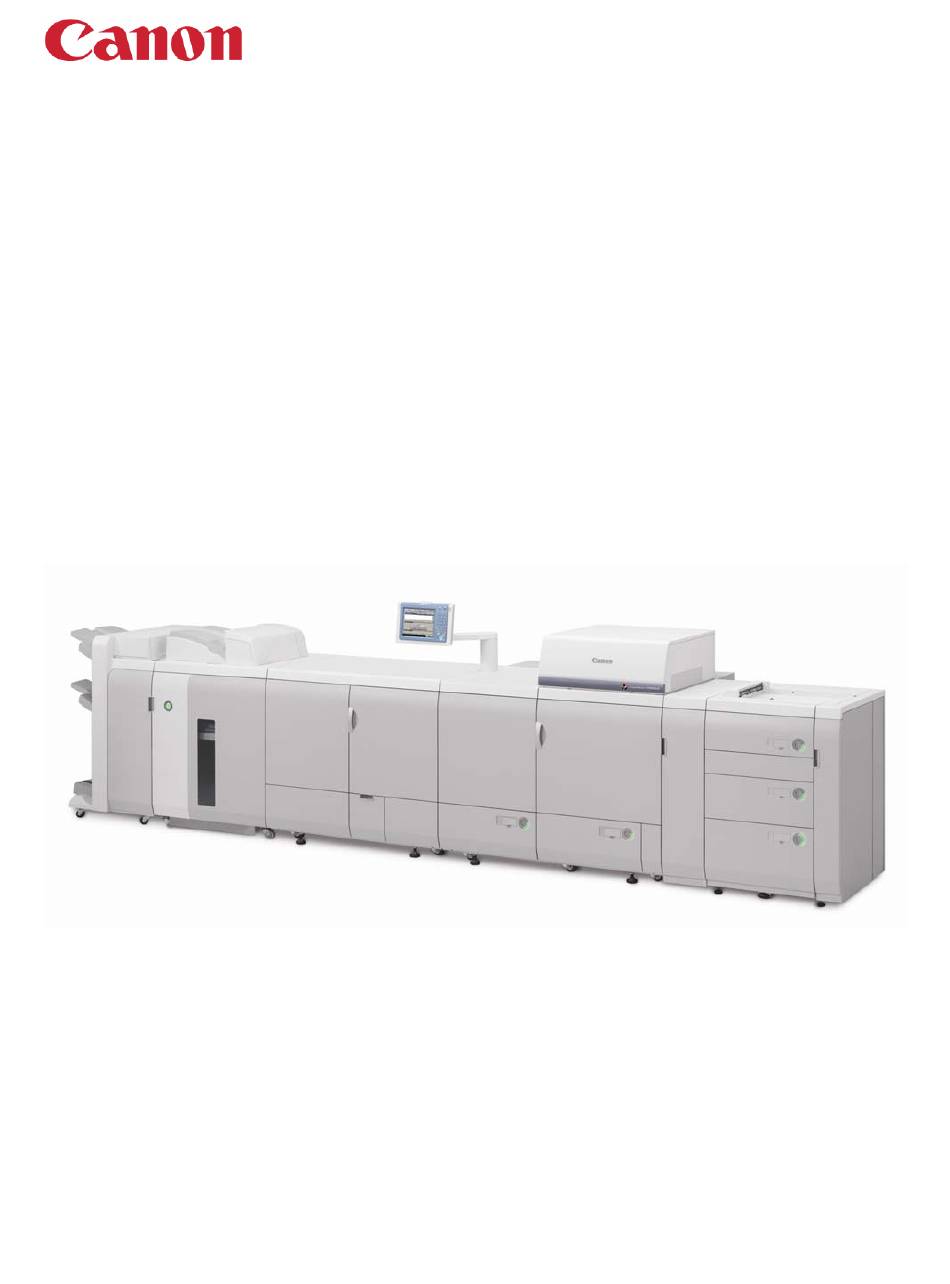

imagePRESS C7000VP
Customer Expectations Document
Version 7
Systems & Technical Support Division
Imaging Systems Group, Canon U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Canon imagePRESS C7000VP

Summary of Contents for Canon imagePRESS C7000VP

  • Page 1 C7000VP Customer Expectations Document Version 7 Systems & Technical Support Division Imaging Systems Group, Canon U.S.A.

  • Page 2: Table Of Contents

    6.16 Booklet Trimmer-C1 ..................29 6.17 Two-Knife Booklet Trimmer-A1 ..............30 7. System Options ....................30 Color UFR II/PCL/PS Printer Kit-T1 .............. 30 imagePRESS Server A2100 V2 ..............31 imagePRESS Server A3100 V2 ..............31 Version 7 imagePRESS C7000VP Customer Expectations Document Page 2...
  • Page 3 7.14 Access Management System Kit..............33 7.15 Authorized Send Kit ..................34 7.16 Removable Hard Disk Drive Kit..............34 7.17 Other imagePRESS C7000VP Main Unit Accessory Options ....... 34 7.18 Notes on the Hard Disk ................. 34 8. Installation Review....................35 Installation Time ....................

  • Page 4: Introduction

    C7000VP. This document should be used as part of the presale, and preinstallation planning process to help clarify the requirements and responsibilities associated with owning and operating the imagePRESS C7000VP. It is also recommended that those interested in purchasing the imagePRESS C7000VP have, and familiarize themselves with, the information in this document prior to making their purchase.

  • Page 5: Summary Of Functions

    A digital press uses an electrostatic process to produce “offset-like” image quality at a fraction of the cost of an offset press. In the imagePRESS C7000VP digital press, the drum is imaged; the toner is applied, and then transferred to the AITB (Advanced Imaging Transfer Belt).

  • Page 6: Machine Dimensions And Space Requirements

    “Main Unit.” *2 The expansion tray is attached. *3 The auxiliary booklet tray is attached. *4 The Insertion Unit is included. *5 The auxiliary tray is extended. Version 7 imagePRESS C7000VP Customer Expectations Document Page 6...

  • Page 7: Weight

    • The minimum elevator depth used to transport the machine prior to installation must be at least 56”. • At least 44 3/4” (1,135 mm) in width is necessary to negotiate turns prior to installation. Version 7 imagePRESS C7000VP Customer Expectations Document Page 7...

  • Page 8: Dimensions Diagrams

    44.7" opening of the Stacker door (approx. 34 1/4"). Approx. 52.4" Approx. 58.1" Approx. 40.9" Approx. Approx. Approx. Approx. Approx. Approx. Approx. 95.7” 101.8” 36.3” 70.6” 33.9” 33.9” 22.0” Approximately 394” Version 7 imagePRESS C7000VP Customer Expectations Document Page 8...

  • Page 9: Installation Space Diagrams

    [4] Saddle Finisher-AB2 The optional High Capacity Stacker-C1 and Paper Deck-AC1 are attached. 172.20” 39.4” 39.4” [1] Main Station [4] Paper Deck-AC1 [2] Sub Station [5] High Capacity Stacker-C1 [3] Power Unit Station Version 7 imagePRESS C7000VP Customer Expectations Document Page 9...
  • Page 10 2-High Capacity Stackers-C1, Perfect Binder-B1, Saddle Finisher-AB2, Booklet Trimmer-C1, and Two-Knife Booklet Trimmer-A1. • The fully configured width of the machine includes opening space for the POD Deck door and the extended tray of the Two-Knife Booklet Trimmer. Version 7 imagePRESS C7000VP Customer Expectations Document Page 10...

  • Page 11: Recommended Floor Space Requirements

    39.4” 413.9” IMPORTANT The imagePRESS C7000VP was created to be modular in design. Your floor space, budget, monthly copy/print volume, and applications will determine which configuration will work best for you. Any configuration of up to 2-POD Decks-A1 and 2-High Capacity Stackers-C1 may be connected at once. The Saddle Finisher-AB2 or Finisher-AB1, and Booklet Trimmer-C1 may be connected at the same time as well.

  • Page 12: Delivery Pathway

    A USB 2.0 High-Speed interface port ships standard with all configurations for direct connection to centralized environments that want to drive all jobs through a single host PC. Power/Electrical Requirements The imagePRESS C7000VP requires a NEMA L21-30 receptacle for the main unit and proper operation. NEMA L21-30 Receptacle Version 7...

  • Page 13: Power Requirements For The Main Unit And Optional Accessories

    • We recommend an additional standard 115 V/15 A outlet for service tools, such as a laptop computer or vacuum that may be attached. • Use only dedicated outlets for the main unit and each optional accessory. Do not use extension cords. Version 7 imagePRESS C7000VP Customer Expectations Document Page 13...
  • Page 14 The internal logic and programming of the imagePRESS C7000VP will not perform reliably because there is an insufficient difference between the internal operating signal voltages and the poor ground reference signal.

  • Page 15: Environmental Factors And Requirements

    To avoid these issues, control the temperature gradient so that it does not exceed 18°F/H (10°C/H). Version 7 imagePRESS C7000VP Customer Expectations Document Page 15...

  • Page 16: Ventilation

    A professional assessment of the air quality in the room in which the machine is to be installed is recommended prior to its installation. Version 7 imagePRESS C7000VP Customer Expectations Document Page 16...

  • Page 17: Specifications

    (In all cases, at a room temperature of 68°F.) Full Color: 29 seconds (without the Reader) Black-and-White*: 29 seconds (without the Reader) First Copy Time * When the Black mode is set Version 7 imagePRESS C7000VP Customer Expectations Document Page 17...
  • Page 18 194 5/8" x 73 1/8" (4,942 mm x 1,856 mm) (when clearing paper jams, and when the optional POD Deck-A1 and Finisher-AB1 are attached) Altitude 13,123' (4,000 m (607.8 hPa)) maximum Temperature while in 68 to 80.6°F (20 to 27°C) Humidity 30 to 70% RH Version 7 imagePRESS C7000VP Customer Expectations Document Page 18...

  • Page 19: Color Image Reader-H1

    4 1/8" x 28 7/8" x 23 1/2" (105 mm x 732 mm x 595 mm) (excluding the Dimensions (H x W x D)/ document feeder) Weight Approximately 38.5 lb (17.5 kg) (excluding the document feeder) Version 7 imagePRESS C7000VP Customer Expectations Document Page 19...

  • Page 20: Feeder (Dadf-R1)

    5 5/8" x 25 1/2" x 22 3/8" (143 mm x 646 mm x 569.5 mm) Dimensions (H x W x D)/ Weight Approximately 47.3 lb (21.5 kg) (excluding the output tray) Version 7 imagePRESS C7000VP Customer Expectations Document Page 20...

  • Page 21: Pod Deck-A1/Secondary Pod Deck-A1

    22 1/2" x 23 5/8" x 24 1/2" (570 mm x 601 mm x 621 mm) Weight Approximately 112.4 lb (51 kg) Installation Space 125 1/2" x 44 3/4" (3,187 mm x 1,135 mm) (W x D) Version 7 imagePRESS C7000VP Customer Expectations Document Page 21...

  • Page 22: Stack Bypass-A1

    Professional Puncher Integration Unit-A1: 130 W maximum Dimensions (H x W x D)/ 41” x 22” x 31 1/4” (1,040 mm x 560 mm x 792 mm) Weight Approximately 264 lb (120 kg) Version 7 imagePRESS C7000VP Customer Expectations Document Page 22...

  • Page 23: Finisher-Ab1

    12" x 18", 11" x 17", LGL, LTR, LTRR, STMTR, EXEC: 1,000 sheets/100 sets (or 5 3/4" (147 mm) in height) - The Staple mode cannot be used with 12" x 18" and STMTR paper - STMTR cannot be output to Tray B Version 7 imagePRESS C7000VP Customer Expectations Document Page 23...
  • Page 24 (H x W x D)/Weight *When the extension tray is pulled out. Installation Space 175 7/8" x 44 7/8" (4,468 mm x 1,141 mm) (when the optional POD Deck-A1 is (W x D) attached) Version 7 imagePRESS C7000VP Customer Expectations Document Page 24...

  • Page 25: Saddle Finisher-Ab2

    - The Staple mode cannot be used with 12" x 18" and STMTR paper - STMTR cannot be output to Tray B Saddle Stitch Mode 2 to 20 sheets/30 sets maximum Version 7 imagePRESS C7000VP Customer Expectations Document Page 25...
  • Page 26 Approximately 392 lb (178 kg) *When the auxiliary booklet tray is pulled out. Installation Space 182 1/2" x 44 7/8" (4,635 mm x 1,141 mm) (when the optional POD Deck-A1 (W x D) is attached) Version 7 imagePRESS C7000VP Customer Expectations Document Page 26...

  • Page 27: Puncher Unit-V1

    Power Consumption 72 W Dimensions (H x W x D)/ 8 3/8" x 24 5/8" x 26 1/4" (213 mm x 625 mm x 667 mm) Weight Approximately 37.4 lb (17 kg) Version 7 imagePRESS C7000VP Customer Expectations Document Page 27...

  • Page 28: Card Reader-C1

    *1 To neatly square off tab paper, only output tab paper to the High Capacity Stacker’s Proof Tray. *2 The maximum stack capacity may differ, depending on the content or paper type. The maximum stack capacity is limited to 2,000 sheets when B5 or EXEC paper is used. Version 7 imagePRESS C7000VP Customer Expectations Document Page 28...

  • Page 29: Perfect Binder-B1

    From the finisher. 41" x 52 3/8" x 30 3/8" (1,040 mm x 1,330 mm x 770 mm) Dimensions (H x W x D)/ (without expansion tray) Weight Approximately 335 lb (152 kg) Version 7 imagePRESS C7000VP Customer Expectations Document Page 29...

  • Page 30: Two-Knife Booklet Trimmer-A1

    Booklet Trimmer-C1’s conveyor tray. Therefore, the conveyor capacity is the same as the booklet trimmer’s conveyor tray. System Options You can expand the functionality of your imagePRESS C7000VP by installing system related optional accessories. This section describes the system related optional accessories and their functions.

  • Page 31: Imagepress Server A2100 V2

    7.3 imagePRESS Server A3100 V2 The imagePRESS Server A3100 V2 is the most powerful and highest performing controller for the imagePRESS C7000VP. The imagePRESS Server A3100 V2 is built for maximum color control, superior image quality, variable data printing, and optimum workflow versatility for professionals in both Windows and Macintosh environments.

  • Page 32: Color Universal Send Kit-G1

    The HDD Data Encryption Kit-B3 is a tool that enables you to encrypt all of the data stored on the hard disk of the machine. This prevents encrypted hard disk data that is extracted from the machine from being read. Version 7 imagePRESS C7000VP Customer Expectations Document Page 32...

  • Page 33: Hdd Data Erase Kit-A1

    The Access Management System Kit enables you to assign users and user groups access restrictions to entire or specific machine functions. The Access Management System works with the SSO (Single Sign-On) login service. Version 7 imagePRESS C7000VP Customer Expectations Document Page 33...

  • Page 34: Authorized Send Kit

    • ADF Access Handle-A1 • System Accessory Attachment Kit-A1 7.18 Notes on the Hard Disk The imagePRESS C7000VP has two hard disks to realize high-speed data transfer by striping – a set of data is divided and written onto both hard disks simultaneously.

  • Page 35: Installation Review

    Installation Review 8.1 Installation Time The time required to install the imagePRESS C7000VP depends on the options and accessories to be installed, and the number of technicians performing the installation. Customers should discuss the time requirements with their servicing dealer and schedule the installation accordingly.

  • Page 36: Customer Responsibilities

    The tables below state estimated life expectancy yields based on LTR size paper. Using paper larger than LTR will reduce the supply yields and parts life accordingly. Version 7 imagePRESS C7000VP Customer Expectations Document Page 36...

  • Page 37: Usage Conditions

    Therefore, consumable parts do not have a warranty, and Canon U.S.A., Inc. cannot guarantee a minimum life. NOTE All consumable parts shown in the table below are for reference purposes only, and are subject to change without notice.

  • Page 38: Consumables

    A toner container holds approximately 1,200 grams of toner, and will yield approximately 35,500 impressions at 10% coverage per color totaling 40%. The hopper unit holds approximately 2,100 grams, and will yield approximately 40,000 impressions. Version 7 imagePRESS C7000VP Customer Expectations Document Page 38...

  • Page 39: Waste Toner Yields

    (up to approximately 10,000 sheets of LTR paper). When the waste toner buffer becomes full, the imagePRESS C7000VP stops. The Dealer should empty the full waste toner bottle and dispose of the toner waste only in a manner that is applicable to the law in the geographical area where the machine is located.

  • Page 40: Machine Reliability And Productivity

    14. Machine Reliability and Productivity The imagePRESS C7000VP should be available approximately 95% of the time under the following conditions: • Genuine Canon parts and supplies are used exclusively. • Your installation and operating environment meets the specifications detailed in this document and other Canon service documentation.

  • Page 41: Print Speed

    14.1 Print Speed One of the key features of the imagePRESS C7000VP is its print speed technology. The imagePRESS C7000VP maintains print speed regardless of paper weight. A letter-sized sheet of bond paper weighing 17 lb (64 g/m²) will print at 70 ppm.

  • Page 42: Two Hour Unattended Operation

    Similar to the paper, the toner bottle may be removed and replaced while a job is printing. The imagePRESS C7000VP has a large toner hopper, making it possible for the press to run much longer with no bottle. The operator is not required to replace the bottle immediately after removing the old bottle.

  • Page 43: Media Usage/Compatibility

    The imagePRESS C7000VP maintains reliable, predictable, and high-quality output. Consistency of the output is dependent on knowing and compensating for variables of a print job. The imagePRESS C7000VP incorporates many control systems which compensate for environmental and print process conditions.

  • Page 44: Selecting The Correct Media

    • Problems Caused by Paper Curl • Storing/Editing Irregular Paper Types • Acceptable Paper Type List To obtain the Specialty Media Handling Guide for the imagePRESS C7000VP, please contact your local authorized Canon dealer. Version 7 imagePRESS C7000VP Customer Expectations Document...

  • Page 45: Paper Grain And Curl

    Also, the composition of electrostatic paper is different from offset paper, and produces better quality results in a digital press machine. When selecting paper for the imagePRESS C7000VP choose paper intended for use in electrostatic machines, such as laser printers and copiers.

  • Page 46: Note For Customers Who Cut Their Own Paper

    16.6 Media Feed Locations As with all Canon copiers, certain feed locations within the device are capable of feeding specific media sizes and weights. Naturally, the stack bypass accommodates heavier and a wider variety of paper sizes than other feed locations.
  • Page 47 2-Sided Coated 7 (257 to 300 g/m *1 Use of 100% recycled paper is acceptable. *2 If you are using the stack bypass, feed one sheet of paper at a time. Version 7 imagePRESS C7000VP Customer Expectations Document Page 47...
  • Page 48 *2 If you are using the stack bypass, feed one sheet of paper at a time. *3 Use only LTR transparencies made especially for machines which use the electrostatic process to transfer images. Version 7 imagePRESS C7000VP Customer Expectations Document Page 48...

  • Page 49: Paper Sizes And Feed Location Chart

    - If the Long Strip Original mode is set in the Perfect Binding mode: 10 1/8” x 7 3/16” to 11 11/16” x 18” (257 mm x 182 mm to 297 mm x 457 mm) Version 7 imagePRESS C7000VP Customer Expectations Document Page 49...

  • Page 50: Image Quality Capabilities

    IMPORTANT Following installation and set up, it is strongly recommended that owners of the imagePRESS C7000VP print and store samples of the image quality the product is capable of producing. These samples should serve as a benchmark against which subsequent image quality can be referenced. Samples should be made using as many applications, media, and paper types the owner intends to use on the imagePRESS C7000VP.

  • Page 51: Customer-Defined Image Quality Adjustments And Recommendations

    Auto Gradation Adjustment whenever a change in print quality is noticed and when dither pattern adjustments are made. Use only 28 lb (105 g/m ) Hammermill Laser 11” x 17” paper when performing an Auto Gradation Adjustment. Version 7 imagePRESS C7000VP Customer Expectations Document Page 51...

  • Page 52: Device Management Settings

    You may experience a decrease in productivity if a job contains different paper thicknesses or types, or if a job requires the optional Document Insertion Unit-C1. Productivity may be improved by setting the Fixing Temperature Mode Switch mode to ‘Productivity Priority’. Version 7 imagePRESS C7000VP Customer Expectations Document Page 52...

  • Page 53: Paper Type Management Settings

    • Gloss Adjustment • Saddle Stitch Position Adjust • Paper Separation Fan Level • Hole Punch Position Adjust • Paper Fiber Direction Selection • Tail End White Patch Correct. • Image Location Adjustment Version 7 imagePRESS C7000VP Customer Expectations Document Page 53...

  • Page 54: Responsibility Matrix

    *1 For more information, see Chapter 6, “System Manager Settings,” in the Reference Guide included with your machine. Primary customer applications for using this equipment: Special considerations or performance limitations: I have received a copy of this document. Customer: Sales Person: Version 7 imagePRESS C7000VP Customer Expectations Document Page 54...
