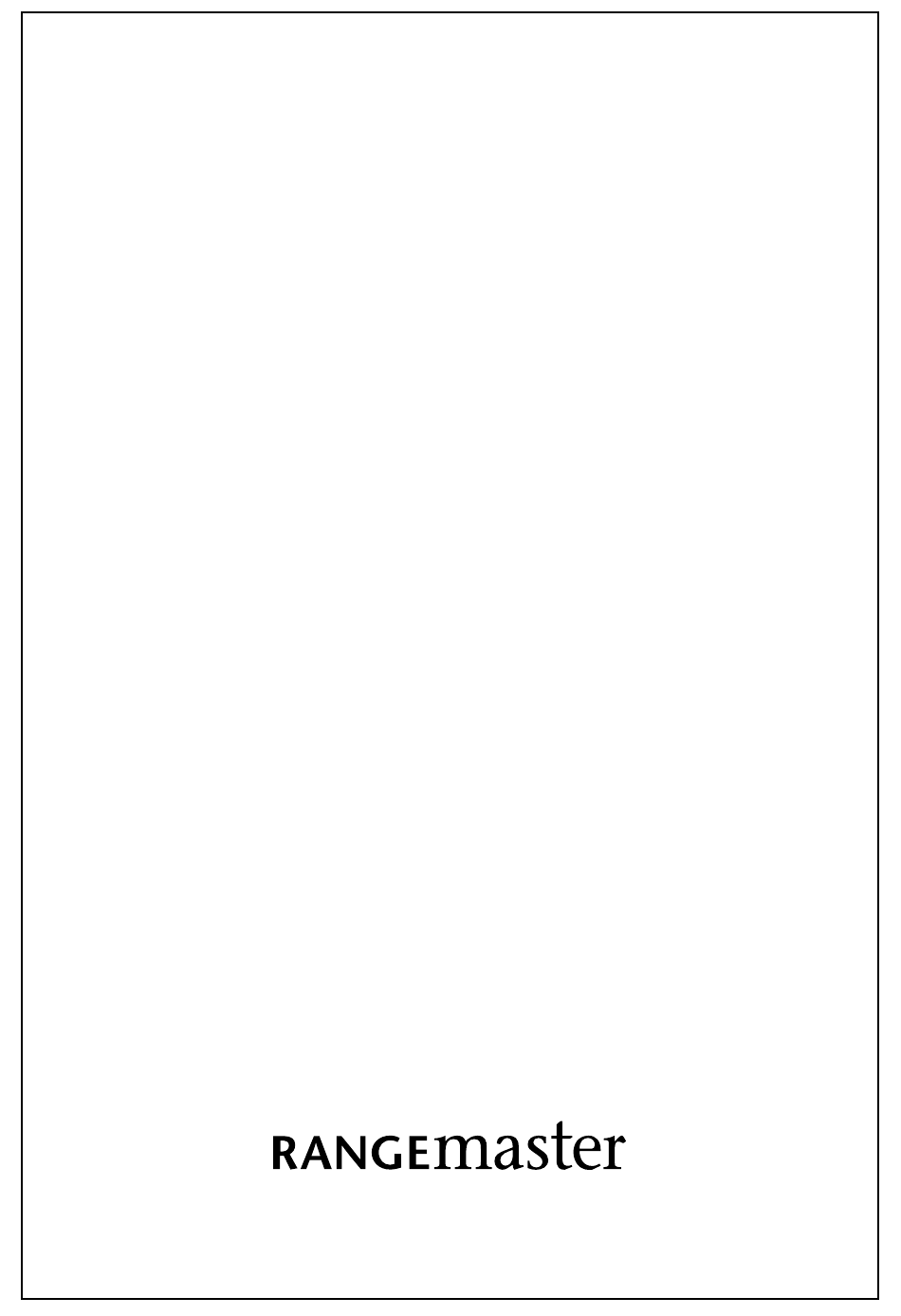

- Page 1 Eclipse 90 Induction Hob User Guide & Installation & Service Instructions U111125-01...
-
Page 3: Table Of Contents
Contents Before You Start... Installation and Maintenance Ventilation Personal Safety Hob Care Hob Overview The Hob Touch Panel Heat Settings Pan Detector, Operating the Hob Residual Heat Indicator, ‘H’ Child Lock Key Lock Timer Function Boost Function Bridge Zone Switching the Bridge Zone off Automatic Shutdown Cleaning Your Cooker Troubleshooting... -
Page 5: Before You Start
Before You Start... DO NOT spray aerosols in the vicinity of the hob Thank you for buying a Rangemaster hob. It should give you while it is on. many years trouble-free cooking if installed and operated correctly. It is important that you read this section before Use dry oven gloves when applicable –... -
Page 6: Hob Care
To fully utilise the power of your induction hob and to ensure longevity of performance, we recommend the use of AGA Rangemaster Induction Pots and Pans. If you decide to purchase an alternative set of pans for use on your induction cooker, we would strongly recommend that composite aluminium pans with steel inserts, example shown Fig. - Page 7 We recommend that you avoid wiping any surface unit areas until they have cooled and the residual heat indicator has gone out. Sugar spills are the exception to this (see ‘Cleaning your Hob’). After cleaning, use a dry cloth or paper towel to remove any cleaning cream residue.
-
Page 8: Hob Overview
DocNo.023-0002 - Overview - RI77 hob Hob Overview Fig. 2.1 Control Panel Induction zone When you first switch on the hob after connection, a rapid self-test of the control unit (calibration adjustment) is then carried out. The induction hob comprises of four cooking zones containing induction elements with different ratings and diameters (Fig. -
Page 9: The Hob
The Hob Fig. 2.2 Use only pans that are suitable for induction hobs. We recommend stainless steel, enamelled steel pans or cast iron pans with enamelled bases. Note that some stainless steel pans are not suitable for use with an induction hob so please check carefully before purchasing any cookware. -
Page 10: Touch Panel
Touch Panel Fig. 2.4 Each zone is controlled via the touch sensitive controls with 11. Boost an audible signal when operated (Fig. 2.4). 12. Bridge function selection On off key 13. Key lock Smart pause selection 14. Key lock indicator Heater display Sliding button Timer selection... -
Page 11: Heat Settings
Heat Settings Switching ALL Cooking Zones Off To switch all the cooking zones off at once, press the button The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment In the stand-by mode, a “H” will appear on all cooking zones with the induction hob to find the settings that best suit you. -
Page 12: Child Lock
Child Lock Fig. 2.5 The child lock function can be activated after switching the appliance on. To activate the child lock, press the front left heater timer button (5) and rear left heater timer button (5), simultaneously hold for at least 2 seconds until the ‘L’ displays (Fig. -
Page 13: Boost Function
Cooking zone timer (1 to 99 minutes): Boost Function When the hob is switched on, an independent timer can be This function allows for rapid heating on the selected zone. programmed for every cooking zone. Once the selected zone has reached the required cooking temperature the power level will reduce automatically to the Select the temperature setting and activate the related heater preset level. - Page 14 Special Cooking Function Fig. 2.6 Press the boiling, frying, keep-warm and chocolate-melting buttons to activate the special cooking functions. Boiling and frying functions cannot be selected simultaneously (for the right side of the hob) until after one beep is heard from the hob.
-
Page 15: Bridge Zone
Bridge Zone Fig. 2.10 Switching the Bridge Zone On Touch the bridge function button to activate the bridge zone (Fig. 2.10). When the bridge zone function has been activated the two left heater displays will show “b”, and “r” Select the temperature setting by using the sliding button. Increase the heat setting by pressing the right side of the sliding button or decrease the heat setting by pressing the left side of the sliding button. -
Page 16: Cleaning Your Cooker
ArtNo.040-0002 - Cleaning - 90 induction GENERIC Cleaning Your Cooker Isolate the electricity supply before carrying out any major Fig. 3.1 cleaning. Allow the cooker to cool. Never use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. -
Page 17: Troubleshooting
DocNo.050-0001 - Troubleshooting - Induction GENERIC Troubleshooting Interference with and repairs to the hob MUST NOT My hob is scratched be carried out by unqualified persons. Do not try Always use the cleaning methods recommended in this to repair the hob as this may result in injury and guide, and make sure that the pan bottoms are smooth and damage to the hob. - Page 18 Problem Possible Cause Solution Check the household fuse for the Hob control card’s display is blacked appliance. Check whether there is a out. The hob or cooking zones cannot There is no power supply. power cut by trying other electronic be switched on appliances.
-
Page 19: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Installation Dear Installer Provision of Ventilation Before you start your installation, please complete the details All rooms require a window that can be opened, or below equivalent, while some rooms require a permanent vent in addition to the window. -
Page 20: Instructions For The Installer General Instructions
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Instructions for the Installer Fig. 5.1 General instructions • After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately. -
Page 21: Installation Of The Hob
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Surfaces of furniture and walls at the sides and rear of the hob Electrical Connections should be heat, splash and steam resistant. Certain types of This appliance must be installed by a qualified electrician vinyl or laminate kitchen furniture are particularly prone to to comply with the relevant Institution of Engineering heat damage and discolouration. - Page 22 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Fig. 5.4 Separator Separator Worktop mounting B (mm) min. A (mm) bracket T (mm) min. C (mm) H (mm) min. E (mm) C1 (mm) min. F (mm) C2 (mm) G (mm) Self-adhesive...
- Page 23 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Hob Check Check each cooking zone in turn. Customer Care Please complete your contact details in the front of this section. Please inform the user how to operate the hob and hand over the instruction pack.
-
Page 24: Circuit Diagram
Circuit Diagram... -
Page 25: Technical Data
Technical Data INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Base of the hob. COUNTRY OF DESTINATION: GB, IE. Dimensions Outside Inside Width 520 mm 483 mm Length 890 mm 852 mm Depth 60 mm from top 56 mm Mass (kg) 16.7... - Page 26 Hotplate Efficiency Data Brand Rangemaster Model Identification RMB90HPEIBLGL Size (mm) Type Induction Type of Hob Electric Number of electric zones Heating Technology 1 Induction Zone 1 - Ø cm 16,0 Energy Consumption-1 Wh/kg 189,0 Heating Technology 2 Induction Size-2 Ø cm...
-
Page 27: Warranty/After Sales Service
Any cosmetic damage to the appliance must be reported within 90 days of delivery. Please note that AGA Rangemaster Limited have appointed UK Warranty Solutions to administer in warranty repairs on our behalf. If you make a request for an in warranty repair,... - Page 28 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. Tel: +44 (0) 800 8046261 E-mail: consumers@agarangemaster.co.uk...
