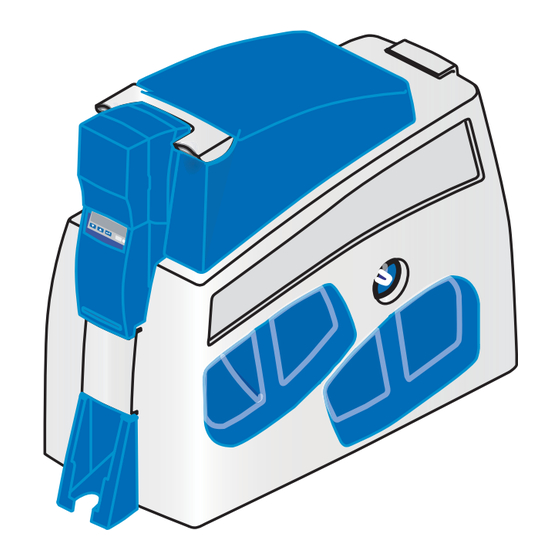

DataCard SP75 Plus Quick Install Manual
With built-in ethernet
Hide thumbs
Also See for SP75 Plus:
- Manual (136 pages) ,
- Product manual (25 pages) ,
- Quick install manual (24 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for DataCard SP75 Plus
Summary of Contents for DataCard SP75 Plus
- Page 2 Open the printer cover. Remove the protective wrap from the cleaning roller (b) and install the cleaning roller in the printer (c). a Load the ribbon on the ribbon cartridge. b Load the ribbon cartridge in the printer. Fan the cards, and then load them in the input hopper.
- Page 3 Network connection using the Built-in Ethernet port Benefits • Connects to Ethernet 10base-T • Economical—several users can send cards to one printer • No print server required See “Built-In Ethernet” on page 5 Network connection using a print server connected to the network Benefits •...
- Page 4 Me), or Default Document Properties (Windows NT®) opens at the end of installation. Change the Laminator “Apply Material” settings to match the material loaded in the printer. Change other settings if needed. Open the Printer Toolbox when Printing Preferences, Properties, or Document Default Properties opens.
- Page 5 Connect the printer to the network using an Ethernet cable. Use the printer LCD panel to set the IP address mode—DHCP or Static IP. Set the IP address if needed. The printer restarts if you changed settings. Retrieve the IP address and record it.
- Page 6 (Windows 98 and Me), or Default Document Properties (Windows NT) dialog box and change the laminator “Apply Material” settings to match the supplies loaded in the printer. Change other settings if needed. Open the Printer Toolbox when Printing Preferences, Properties, or Document Default Properties opens.
- Page 7 (can take up to 20 minutes). IP Address: Insert the Smart Driver CD-ROM. Click “Install the Printer” after the window opens. Choose “DIrect Network” during installation. Ports\Configure or Properties\Details\Port Settings dialog box.
- Page 8 952.933.7971 FAX www.datacard.com Datacard is a registered trademark and the Smart Driver logo is a trademark of DataCard Corporation. Windows and Windows NT are registered trademarks of Microsoft Corporation. HP and Web Jetadmin are registered trademarks of Hewlett-Packard Development Company.
