DataCard SP75 Plus Supplementary Manual

DATACARD
SP75 PLUS CARD

PRINTER SUPPLIES

Ensure peak performance

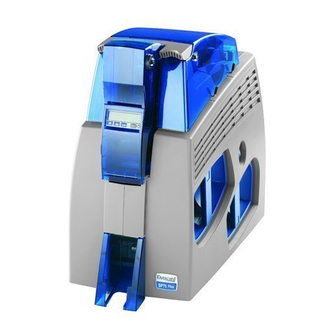

The SP75 Plus card printer features
Datacard ® proprietary print ribbons,
topcoats and laminates, designed
specifically for the SP75 Plus card
printer and featuring our patented
radio frequency (RF) technology.
When the card printer recognizes
that Datacard ® Certified Supplies are
installed, all enhanced product
features are enabled and successful
card printing and lamination can
begin. The SP75 Plus card printer
requires Datacard Certified Supplies
with RFID tags. Datacard Group is
your exclusive source for proprietary
ribbons, topcoats and laminates for
the SP75 Plus card printer.
Your best choice for supplies
Protect your investment in Datacard
solutions by only using Datacard
Certified Supplies. You can count
on Datacard Group for all of your
supplies needs. We engineer superior
performance and reliability into
every system-matched supply item
we offer. For you, that means smooth
printing, brilliant image quality, high
security and exceptional performance.
Worldwide representation creates a
fast, direct connection with the
supplies and support you need, when
and where you need them. To ensure
you are using Datacard Certified
Supplies, look for ribbons that
feature our distinctive
with platinum flecks
DATACARD
CERTIFIED SUPPLIES
®
COLOR RIBBONS, DATACARD
AND TOPCOATS
Datacard ® SP75 Plus card printer ribbon kits include all necessary cleaning supplies for the SP75 Plus card printer's
daily operations. Each kit includes one ribbon, one isopropanol cleaning card and one adhesive cleaning sleeve.
Additional cleaning cards and cleaning sleeves can also be ordered separately.
Item Number
Color Panel Ribbon Kits
552854-502
715059
552854-204
715054
552854-504
715064
552854-520
718875
552854-506
715066 1
552854-509
715069
552854-510
715060 1
552854-514
715061
552854-530
718876
Datacard ®
562750-001
562751-001
562752-001
562753-001
562754-001
562755-001
562810-001
Datacard ®
562756-001
562757-001
562757-003
562759-001
562759-003
562763-001
562763-003
562765-001
562765-003
1 Recommended for two-sided printing only.
blue cores
2 Variable information can be printed in UV using the F-panel.
® .
3 Random, mechanical-resolution design.
4 Registered, high-security image.
* Not backwards compatible with Datacard
®
®
Description
YMCK full-color ribbon kit
Case,YMCK ribbon kit (contains 16 of 552854-502 ribbon kits)
YMCKT full-color ribbon kit with inline topcoat
Case,YMCKT ribbon kit (contains 16 of 552854-204 ribbon kits)
YMCKT full-color ribbon kit with inline topcoat
Case,YMCKT ribbon kit (contains 16 of 552854-504 ribbon kits)
YMCKT-K full-color ribbon kit with inline topcoat*
Case,YMCKT-K ribbon kit (contains 16 of 552854-520 ribbon kits)*
1 YMCKT-KT full-color ribbon kit with inline topcoat
Case,YMCKT-KT ribbon kit (contains 16 of 552854-506 ribbon kits)
KT ribbon kit with inline topcoat
Case, KT ribbon kit (contains 16 of 552854-509 ribbon kits)
1 YMCK-K full-color ribbon kit
Case,YMCK-K ribbon kit (contains 16 of 552854-510 ribbon kits)
1, 2 YMCKF-KT full-color ribbon kit with inline topcoat and fluorescent panel 300 cards
Case,YMCKF-KT ribbon kit (contains 16 of 552854-514 ribbon kits)
ymcKT short panel color ribbon kit with inline topcoat*
Case, ymcKT ribbon kit (contains 16 of 552854-530 ribbon kits)*
DuraGard ® Clear Laminates and Topcoats
DuraGard 0.5 mil clear laminate (full card)
DuraGard 0.5 mil clear laminate (full card with smart card window)
DuraGard 0.5 mil clear laminate (magnetic stripe)
DuraGard 1.0 mil clear laminate (full card)
DuraGard 1.0 mil clear laminate (full card with smart card window)
DuraGard 1.0 mil clear laminate (magnetic stripe)
Clear topcoat (full card)
DuraGard ® Generic Security Laminates
DuraGard 0.6 mil security laminate,"Genuine Authentic" (full card)
DuraGard 0.6 mil security laminate,"Genuine Authentic" (full card)
DuraGard 0.6 mil security laminate,"Secure Globe" (full card)
DuraGard 0.6 mil security laminate,"Genuine Authentic"
(full card with smart card window)
DuraGard 0.6 mil security laminate,"Secure Globe"
(full card with smart card window)
DuraGard 1.0 mil security laminate,"Genuine Authentic" (full card)
DuraGard 1.0 mil security laminate,"Secure Globe" (full card)
DuraGard 1.0 mil security laminate,"Genuine Authentic"
(full card with smart card window)
DuraGard 1.0 mil security laminate,"Secure Globe"
(full card with smart card window)
® SP Series card printers.
DURAGARD ® LAMINATES
4
4
4
4
4
4
Yield
500 images
8,000 images
250 images
4,000 images
500 images
8,000 images
375 cards
6,000 cards
300 cards
4,800 cards
1,000 images
16,000 images
500 cards
8,000 cards
4,800 cards
650 images
10,400 images
375 laminates
375 laminates
375 laminates
300 laminates
300 laminates
300 laminates
1,000 images
3 350 laminates
4 350 laminates
350 laminates
350 laminates
350 laminates
4 300 laminates
300 laminates
300 laminates
300 laminates
