DK Digital AS-290 Owner's Manual

Home theater surround system
Hide thumbs
Table of Contents

Advertisement

Quick Links

3

Advertisement

Table of Contents
loading

Related Manuals for DK Digital AS-290

Summary of Contents for DK Digital AS-290

  • Page 2 . . . for choosing one of our Home Theatre Systems. For your own safety and in order to learn all about the functions available, please read this manual and keep it for future reference. And if you once sell the unit please include the manual. www.dk-digital.com © 2006 Copyright, manufacturer: DK digital GmbH...

  • Page 3: Important Safety Instructions, Please Read Carefully

    Important Safety Instructions, please Read Carefully! • This unit is meant to reproduce audio signals in 5.1- or stereo format. Using it in any other way warranty invalidates the warranty and you risk electric shock. • Never attempt to open the housings of your surround speaker set or to service the product beyond that described in this manual.

  • Page 4: Scope Of Delivery

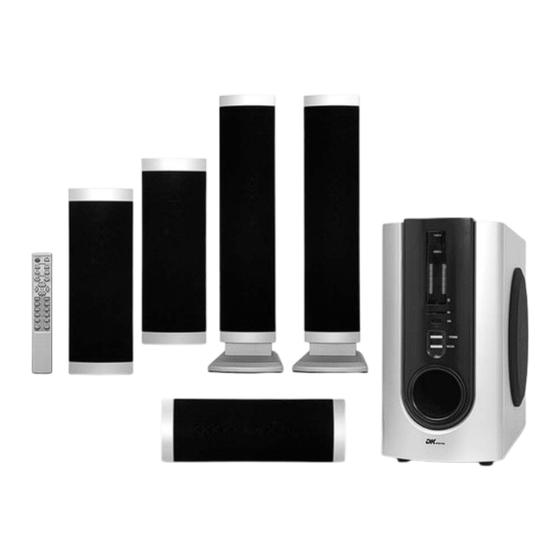

    Scope of delivery 1. Remote control handset 2. Subwoofer / main unit 3. Centre speaker 4. Front speaker 5. Surround speaker 6. This manual 7. Speaker cable Setting up the system You can mount the speakers of your new home cinema system on a plane and stable surface.

  • Page 5: Operating Elements On The Subwoofer

    Operating elements on the subwoofer on the front . . . on top . . . 1. LED display 2. IR 3. SD 4. USB 5. POWER 6. SD / USB 7. Master Volume - display area for operating information - infrared sensor, receives the remote control signals - slot for SD cards - USB socket...
  • Page 6 . . . and on the rear panel 1) 5.1 CH INPUT Please connect here the input signal for the left front speaker. FR Please connect here the input signal for the right front speaker. SL Please connect here the input signal for the left surround speaker. SR Please connect here the input signal for the right surround speaker.
  • Page 7 9) FUSE - CAUTION! This cab holds the primary fuse. You must never open the cab as long as the unit is connected to the mains power. Otherwise you face the risk of life by electric shock! This fuse may only be serviced or replaced by an authorised technician. 10) MAIN POWER ON/OFF Using this power switch you connect the unit to the mains and activate it.

  • Page 8: Connecting The Speakers

    Connecting the Speakers For the connection of the speaker boxes we recommend to use the speaker cable enclosed. 1. Connect the left front speaker with the FL +/- terminals at the back side of the subwoofer. 2. Connect the right front speaker with the FR +/- terminals at the back side of the subwoofer.
  • Page 9 1 STANDBY - Power on / off: Using this key, you switch the device on from standby operation or back to standby. For this purpose, the MAIN POWER switch on the back of the subwoofer must be switched on (I / ON position). 2 INPUT SELECT DVD/5.1 : Using this key, you select the 5.1 input as active input of the device.
  • Page 10 Operating the Home Cinema Set 1. Switch the main switch (MAIN POWER) on the back of the subwoofer to ON (I). The device is now operating and the indication of the currently activated input is shining red in the display on the front 2.

  • Page 11: Disposal Advice

    Disposal advice When the operating life of this device has ended it must not be disposed as domestic waste, but in accordance with national environmental guidelines.

  • Page 12: Technical Specification

    / P.M.P.O. 40 watts / 200 watts 12 watts / 60 watts per channel 12 watts / 60 watts 12 watts / 60 watts per channel AC230V~ / 50 Hz © 2006 Copyright DK digital GmbH 40878 Ratingen Germany www.dk-digital.com...
