Function Keys

6.2.4.1 Slide-in Identification Strips for the Function Keys

The function of function keys can be assigned as required (softkey func-
tionality). The function keys can optionally be used as direct selection
keys for menu control or to trigger a function in the controller.
The identifications strips can be replaced when the operating device is
built-in or removed. Inserting the strip from the rear side of the front
plate does not influence the specified seal of the operator terminal. A
set of identification strips is supplied with the operator terminal.
For the labeling use:
Single pieces, prototypes
Small series
Large series

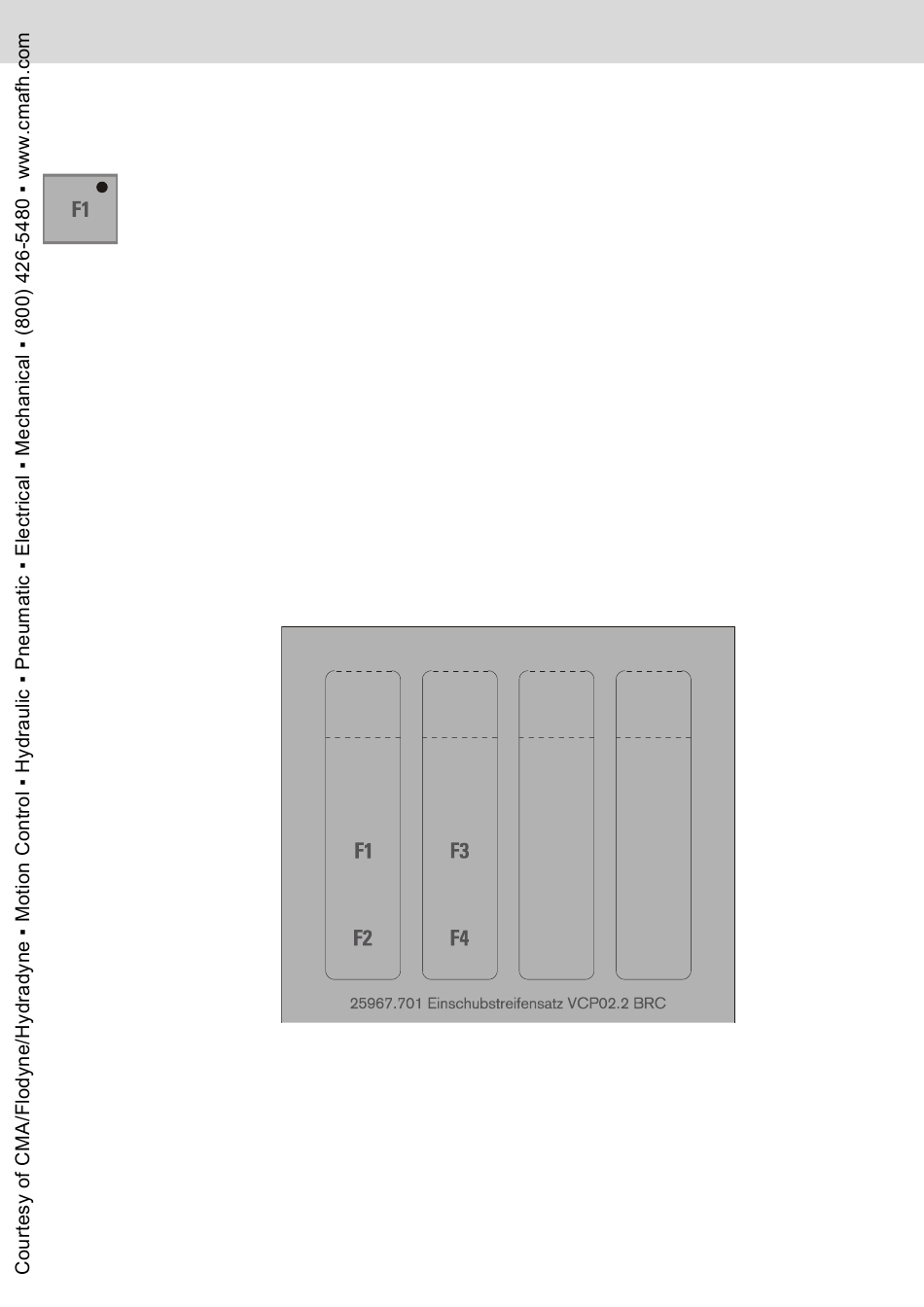

Fig. 6-2: Set of slide-in identifications strips

Rexroth IndraControl VCP 02 | R911310375 / 02
Label with a water-resistant pen
Copying foil (thickness <= 70 µm) with
laser print
Customer-specific labeled identification
strips
