Discovery I
3

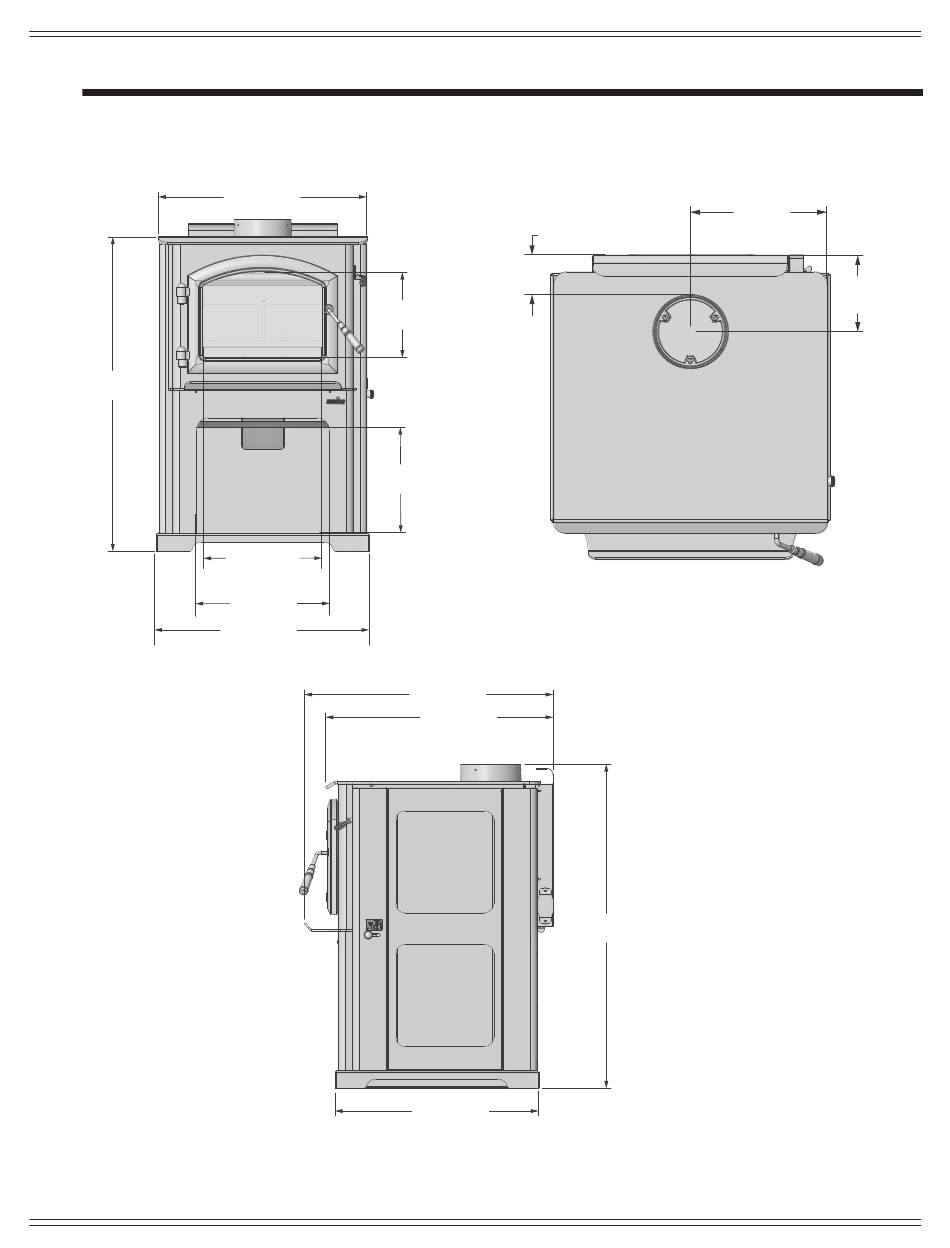

Dimensions and Clearances

A. Appliance Dimensions
33-7/8 in
[860mm]
Figure 8.1 Front View
8
23-5/8 in [600mm]
9-1/4 in
[233mm]
11-1/2 in
[292mm]
13-1/2 in [343mm]
15 in [381mm]
24-1/8 in [613mm]
Figure 8.3 Side View
NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
3-1/2 in
[89mm]
Figure 8.2 Top View
26-5/8 in [675mm]
24-3/8 in [618mm]
35-3/4 in
[907mm]
21-3/4 in [552mm]
7039-174K
11-7/8 in
[300mm]
6-3/4 in
[170mm]
August 13, 2018
