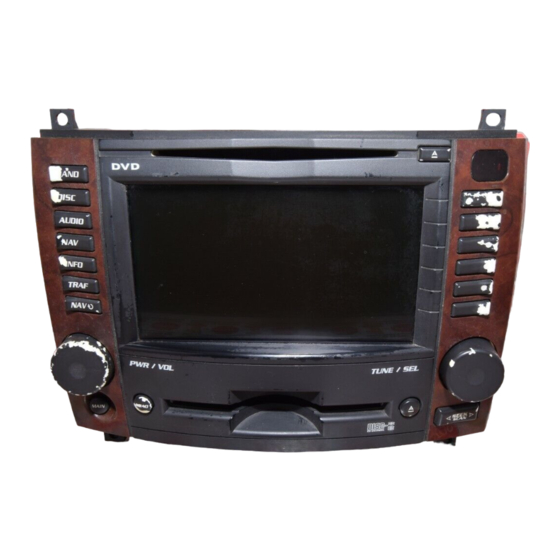

Cadillac 2006 CTS Navigation System Manual

Hide thumbs Also See for 2006 CTS Navigation System:
Table of Contents

Advertisement

Quick Links

Download this manual

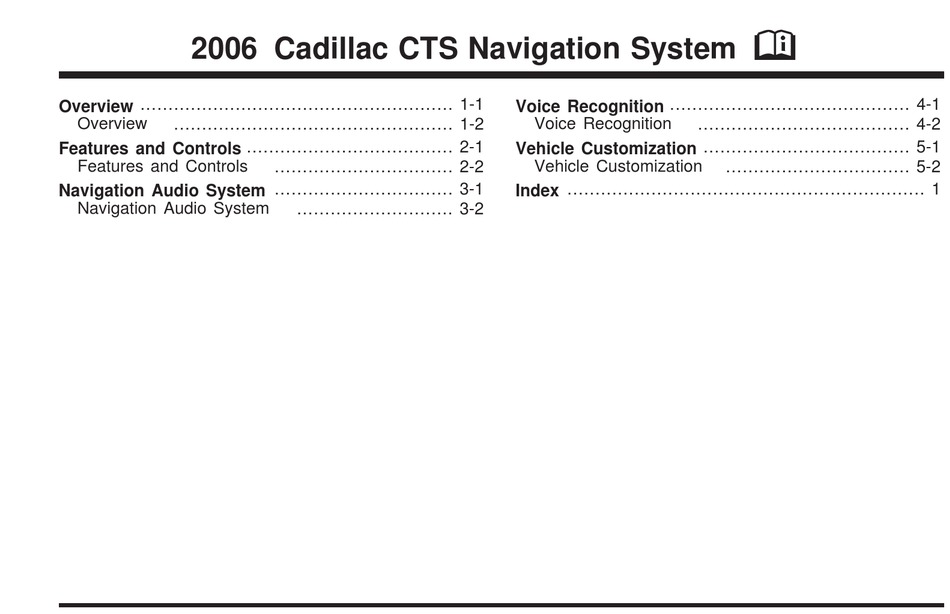

2006 Cadillac CTS Navigation System
Overview ........................................................ 1-1
Overview
.................................................. 1-2
Features and Controls ..................................... 2-1
Features and Controls
Navigation Audio System ................................ 3-1
Navigation Audio System
................................ 2-2
............................ 3-2
Voice Recognition ........................................... 4-1
Voice Recognition
Vehicle Customization ..................................... 5-1
Vehicle Customization
Index ................................................................ 1
M
...................................... 4-2
................................. 5-2
