- Page 1 SIMATIC RTLS4330G Introduction Device description SIMATIC RTLS Installation & Operation Technical specifications Localization systems SIMATIC RTLS4330G Approvals Operating Instructions 09/2021 C79000-G8976-C559-03...
- Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 3: Table Of Contents
Notes on installation ......................17 Mounting for ceiling mount ....................20 Mounting for corner and pole mount ................. 21 Ethernet ..........................22 Operation .......................... 22 Cleaning and maintenance....................22 Technical specifications ........................23 Approvals ............................. 25 SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03... - Page 4 Table of contents SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03...
-
Page 5: Introduction
Industrial Ethernet network. You can find the system manual at the following link: (https://support.industry.siemens.com/cs/us/en/ps/25277) Trademarks The following and possibly other names not identified by the registered trademark sign ® registered trademarks of Siemens AG: SIMATIC RTLS SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03... - Page 6 Introduction Industry Online Support In addition to the product documentation, the comprehensive online information platform of Siemens Industry Online Support offers support at the following Internet address: (https://support.industry.siemens.com/cs/start?lc=en-US) Apart from news, there you will also find: • Project information: Manuals, FAQs, downloads, application examples etc.
- Page 7 In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions form one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks.
- Page 8 – Open The port is open at the start of the configuration. – Closed The port is closed at the start of the configuration. • Configurable port Indicates whether the port number can be configured. SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03...
- Page 9 Do not dispose of the products at public disposal sites. For environmentally compliant recycling and disposal of your electronic waste, please contact a company certified for the disposal of electronic waste or your Siemens representative. Note the different national regulations.
- Page 10 Introduction SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03...
-
Page 11: Device Description

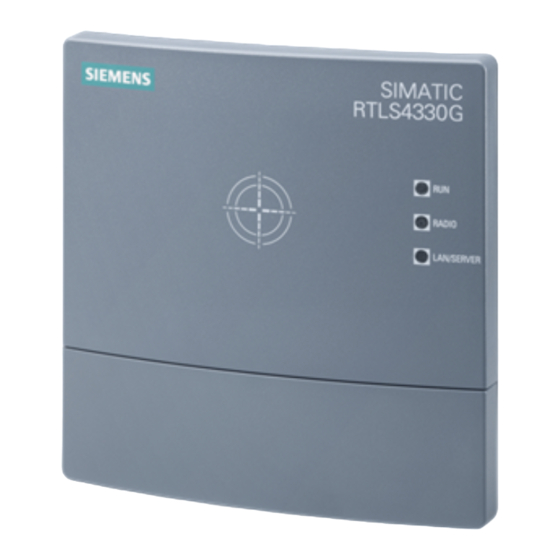

Device description Characteristics SIMATIC RTLS4330G Characteristics Design ① Status indicators (LEDs) ② Connector for supply voltage and digital output ③ Ethernet port; Alternative power supply using Power over Ethernet (PoE) General The device is the home location for localization in the RTLS localization system. -
Page 12: Order Data Rtls4330G And Accessories
2.2 Order data RTLS4330G and accessories Order data RTLS4330G and accessories Table 2- 1 Order data RTLS4330G Article number SIMATIC RTLS4330G 6GT2701-5EB03 Table 2- 2 Accessories order data (not included in scope of delivery) Article number Connecting cable for gateway 6GT2791-2AH50 Bulgin 400 Series Buccaneer®... -
Page 13: Pin Assignment
• Sealing cover: PX0480 The pins are occupied as illustrated below: Description Supply voltage (red) 8 ... 30 V DC Digital output (brown) Switched input voltage, max. current 200 mA Grounding terminal (black) GND (0 V) SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03... -
Page 14: Led Status Indicator
Locating Manager LAN/SERVER LED Flashes blue once per second when the device has an Ethernet connection but no connection to the Locating Manager server LAN/SERVER LED Off when the device has no Ethernet connection SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03... -
Page 15: Dimension Drawing
Device description 2.5 Dimension drawing Dimension drawing Figure 2-2 Dimension drawing SIMATIC RTLS4330G - All dimensions specified in millimeters SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03... -
Page 16: Troubleshooting
The blue LED (LAN/SERVER) is off. Device has no Ethernet connection Check local network, Check firewall The blue LED (LAN/SERVER) flashes once Device is not connected to the Enable Locating Manager per second. Locating Manager SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03... -
Page 17: Installation & Operation
Make sure that the ambient temperature does not exceed 50 °C and that the device is not installed in a location where it is exposed to direct sunlight. SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03... - Page 18 Make sure that the wiring is correct before you start up the device. Only use the cables described in the order data, supplied with the device or otherwise prescribed. Siemens AG is not liable for damage or functional limitations caused by the use of other cables.
- Page 19 3. Insert the suitable anchors in the holes. (Anchors are not supplied with the device.) 4. Mount the device to the wall using screws (4 mm). (Screws are not supplied with the device.) Figure 3-1 Drilling pattern - All dimensions specified in millimeters SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03...
-
Page 20: Mounting For Ceiling Mount
(Screws are supplied with the device.) Figure 3-2 Ceiling support - all dimensions specified in millimeters. SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03... -
Page 21: Mounting For Corner And Pole Mount
Figure 3-3 Universal support - all dimensions specified in millimeters. Note If drilling is not possible, you can also fasten the universal support to the given position using with cable ties, for example. SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03... -
Page 22: Ethernet
Unauthorized opening of and improper repairs to the device may cause substantial risks to the user. As soon as the device was opened without permission, warranty and liability of the Siemens AG are rendered null and void. Do not clean the enclosure with abrasive, alkaline or aggressive cleaning products or aids. -
Page 23: Technical Specifications
Technical specifications Table 4- 1 Technical specifications of the gateway RTLS4330G 6GT2701-5EB03 Product name SIMATIC RTLS4330G PULSE radio frequencies Wireless method IEEE 802.15.4-2015 UWB HRP PHY Transmission speed 850 kbit/s Operating frequency rated value 3993.6 MHz (UWB channel 2; CE) 6489.6 MHz (UWB channel 5;... - Page 24 Fixed mounting on walls or ceilings Enclosure Plastic enclosure (ASA and PC) Color Titanium gray Power plug 3-pin plug-in connector with screw-type terminal Bulgin Buccaneer® PX0412/03P Ethernet RJ45 Ethernet with PoE, Amphenol LTW PCP-00AMMA-TLM7001 SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03...
-
Page 25: Approvals
You can find the current EU Declaration of Conformity for these products on the Internet at Siemens Industry Online Support. Link: (https://support.industry.siemens.com/cs/en/en/ps/25277/cert) The products described in this document meet the requirements of the following EU directives: •... - Page 26 Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for residential, commercial and light-industrial environments • EN 61000-6-4 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03...
- Page 27 60950-1 / EN 60950-1 / VDE 0805-1 or IEC 62368-1 / EN 62368-1 / VDE 62368-1 may be connected to the power supply terminals. • The power supply unit for the device must meet NEC Class 2 according to the National Electrical Code (r) (ANSI / NFPA 70). SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03...
- Page 28 60950-1 / EN 60950-1 / VDE 0805-1 ou CEI 62368-1 / EN 62368-1 / VDE 62368-1. • Le bloc d'alimentation de l'appareil doit être conforme à NEC Class 2 selon National Electrical Code (r) (ANSI/NFPA 70). The labeling of electrical equipment is as follows: LISTED E115352 SIMATIC RTLS4330G Operating Instructions, 09/2021, C79000-G8976-C559-03...
