- Page 1 Remote Data Manager SITRANS RD500 Module 8 Inputs, 6 Relay Outputs Operating Instructions 01/2010 SITRANS...
- Page 2 The user is responsible for all changes and repairs made to the device by the user or the user’s agent. • All new components are to be provided by Siemens Milltronics Process Instruments Inc. • Restrict repair to faulty components only.
-
Page 3: General Description

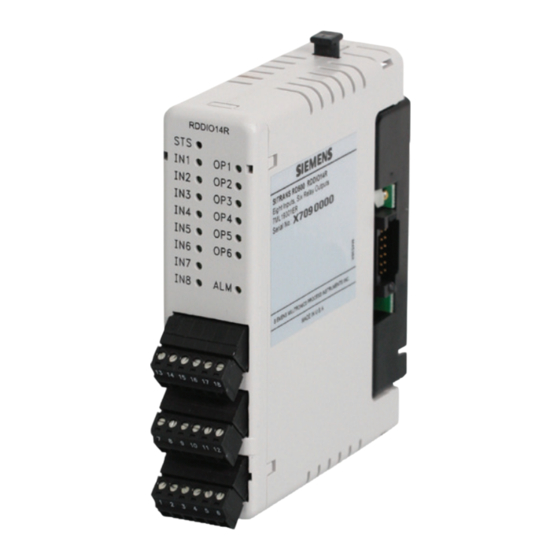

INPUTS INDEPENDENTLY SWITCH SELECTABLE FOR HIGH OR LOW FREQUENCY SIGNALS GENERAL DESCRIPTION CONFIGURATION The module is a digital I/O module designed for use with the SITRANS RD500. Sitrans RD500 is configured using standard browser software such as Internet ® ®... -
Page 4: General Specifications
13. WEIGHT: 6.6 oz (187.1 g) directions. Altitude: Up to 2000 meters BLOCK DIAGRAM ISOLATED ISOLATED PORT 1 PROGRAMMING INPUTS PORT 2 COMMUNICATIONS RELAY COM 3,4 OUTPUTS ISOLATED PORT 3 ETHERNET COM 5,6 POWER POWER 24VDC SUPPLY SUPPLY RD500 Module SITRANS RD500 Page 2 7ML19985MD01... -
Page 5: Emc Installation Guidelines
EMC INSTALLATION GUIDELINES 5. In extremely high EMI environments, the use of external EMI suppression Although Siemens Products are designed with a high degree of immunity to devices such as Ferrite Suppression Cores for signal and control cables is Electromagnetic Interference (EMI), proper installation and wiring methods must effective. -
Page 6: Output Connections
Green Module performing normally. Error States Solid Red Module not controlling, and not communicating. Green/Pulsing Red Module is controlling properly, but has lost communication with the RD500. SITRANS RD500 Page 4 7ML19985MD01... - Page 8 Siemens Milltronics Process Instruments Inc. Subject to change without prior notice Industry Automation (IA) 7ML19985MD01 Rev. 1.1 1954 Technology Drive LP0801 *7ML19985MD01* P.O. Box 4225 © Siemens Milltronics Process Instruments Inc. 2010 Peterborough, ON Canada K9J 7B1 Printed in Canada email: techpubs.smpi@siemens.com www.siemens.com/processautomation...
