CHAPTER 5: RETRIEVING AND VIEWING DDFR ARCHIVER DATA
5.1.2
DDFR Archiver Installation
5.1.3
Archiver Directory and File Structure
DISTRIBUTED DIGITAL FAULT RECORDER – INSTRUCTION MANUAL
• An internal run-time Event Log created by the Archiver, that records all the
operations performed by the Archiver.
Documented in this Event Log is:
•
Communication failures between the Archiver and the DDFRs.
•
Communication re-connects between the Archiver and the DDFRs.
•
Date and Time of each instance of data archiving from each of the
DDFRs.
Once the Archiver has archived data from a DDFR to its storage location, the original data
on the DDFR is not deleted. The function of cleansing the data on the DDFR is undertaken
by the DDFR's automatic record clearing function.
The DDFR Archiver can be installed only on a computer running one of the following
systems:
• Windows XP Professional with Internet Information Services installed.
• Windows 2003 Server.
• Windows 2000 Server.
• Windows 2000 Professional with Internet Information Services installed.

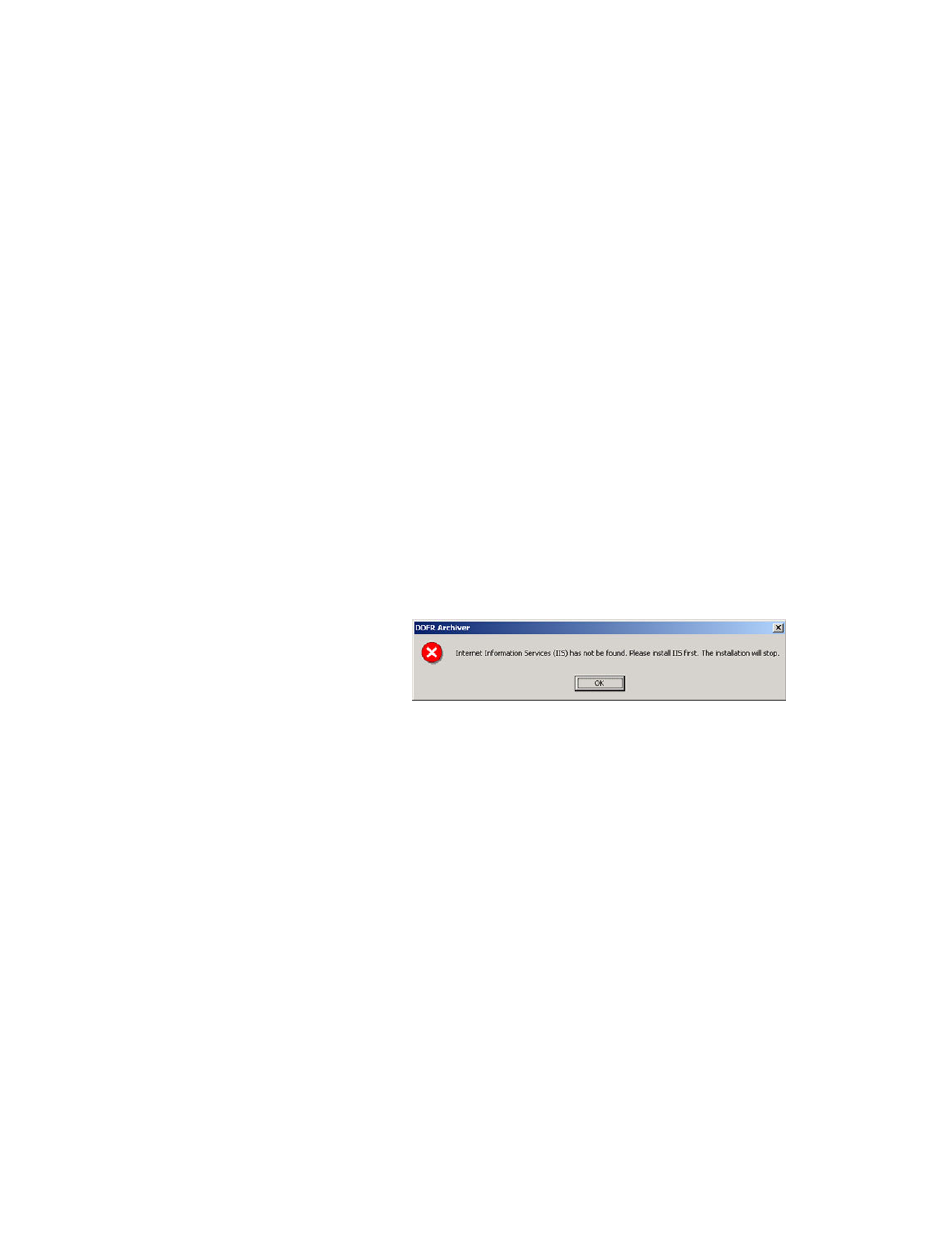

If your computer does not have the Internet Information Services installed, contact your
IT department to have it installed, as shown by this warning message:
The DDFR Archiver stores the retrieved files in a defined directory structure that branches
out from a Root Folder, which you can configure (see section 5.2.3 below).
The Root Folder is defaulted to:
C:\Documents and Settings\All Users\Documents\GE Power
Management\DDFRArchiver\Data\<DDFR folders>
Below the Root Folder, a separate folder is created for each DDFR. Each folder name uses
the exact name of a DDFR.
Within each DDFR folder there are three folders:
1.
<DDFR name>\Waveforms: Contains the CFG, DAT and HDR files created for
each oscillography record generated by any relay.
The Waveforms files use the following naming convention:
<Relay name>-yyyymmdd-hhmmss-OSC.cfg
<Relay name>-yyyymmdd-hhmmss-OSC.hdr
<Relay name>-yyyymmdd-hhmmss-OSC (DAT file)
THE DDFR ARCHIVER
83
