9
OTHER FUNCTIONS

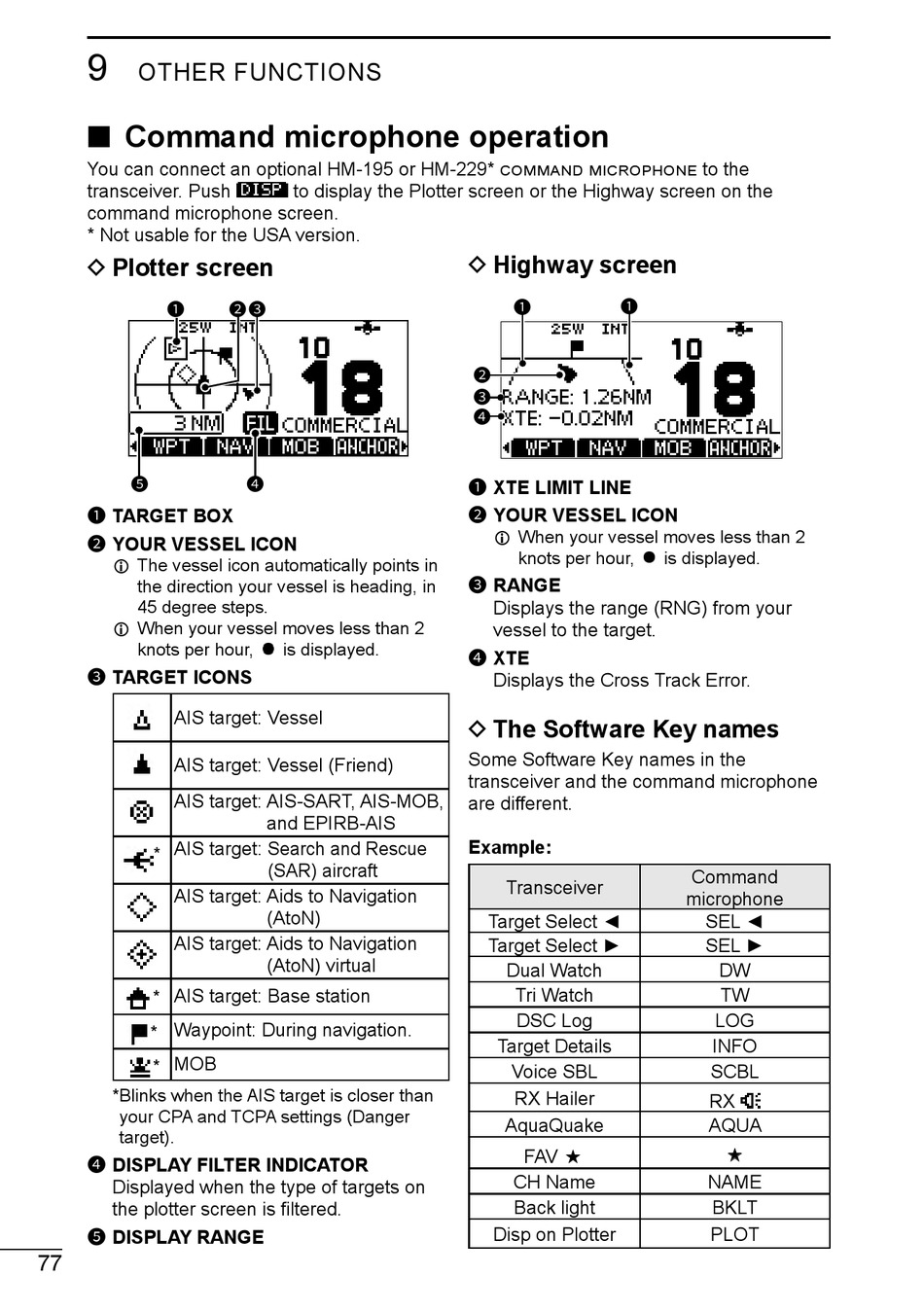

■ Command microphone operation

You can connect an optional HM-195 or HM-229* command microphone to the
transceiver. Push
command microphone screen.
* Not usable for the USA version.
D Plotter screen
1
5
1 TARGET BOX
2 YOUR VESSEL ICON
L The vessel icon automatically points in
the direction your vessel is heading, in
45 degree steps.
L When your vessel moves less than 2
knots per hour,
3 TARGET ICONS
AIS target: Vessel
AIS target: Vessel (Friend)
AIS target: AIS-SART, AIS-MOB,
* AIS target: Search and Rescue
AIS target: Aids to Navigation
AIS target: Aids to Navigation
* AIS target: Base station
* Waypoint: During navigation.
* MOB
* Blinks when the AIS target is closer than
your CPA and TCPA settings (Danger
target).
4 DISPLAY FILTER INDICATOR
Displayed when the type of targets on
the plotter screen is filtered.
5 DISPLAY RANGE
77
to display the Plotter screen or the Highway screen on the
2 3
4
is displayed.
and EPIRB-AIS
(SAR) aircraft
(AtoN)
(AtoN) virtual
D Highway screen
1
1
2
3
4
1 XTE LIMIT LINE
2 YOUR VESSEL ICON
L When your vessel moves less than 2
knots per hour,
3 RANGE
Displays the range (RNG) from your
vessel to the target.
4 XTE
Displays the Cross Track Error.
D The Software Key names
Some Software Key names in the
transceiver and the command microphone
are different.
Example:
Transceiver
Target Select ◄
Target Select ►
Dual Watch
Tri Watch
DSC Log
Target Details
Voice SBL
RX Hailer
AquaQuake
FAV 
CH Name
Back light
Disp on Plotter
is displayed.
Command
microphone
SEL ◄
SEL ►
DW
TW
LOG
INFO
SCBL
RX
AQUA

NAME
BKLT
PLOT
