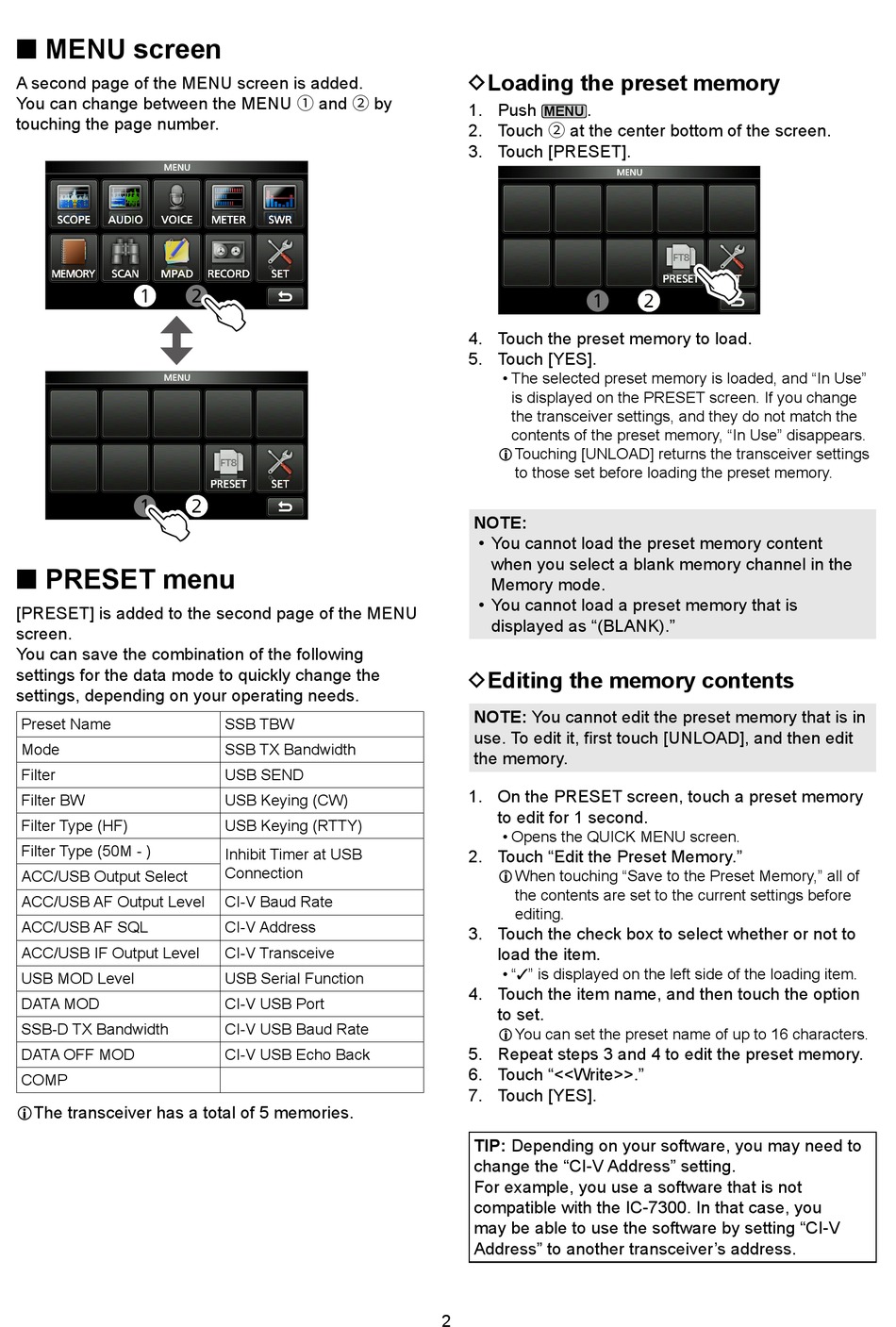

■ MENU screen

A second page of the MENU screen is added.
You can change between the MENU 1 and 2 by
touching the page number.

■ PRESET menu

[PRESET] is added to the second page of the MENU
screen.
You can save the combination of the following
settings for the data mode to quickly change the
settings, depending on your operating needs.
Preset Name
Mode
Filter
Filter BW
Filter Type (HF)
Filter Type (50M - )
ACC/USB Output Select
ACC/USB AF Output Level
ACC/USB AF SQL
ACC/USB IF Output Level
USB MOD Level
DATA MOD
SSB-D TX Bandwidth
DATA OFF MOD
COMP
LThe transceiver has a total of 5 memories.
SSB TBW
SSB TX Bandwidth
USB SEND
USB Keying (CW)
USB Keying (RTTY)
Inhibit Timer at USB
Connection
CI-V Baud Rate
CI-V Address
CI-V Transceive
USB Serial Function
CI-V USB Port
CI-V USB Baud Rate
CI-V USB Echo Back
DLoading the preset memory
1. Push .
MENU
2. Touch 2 at the center bottom of the screen.
3. Touch [PRESET].
4. Touch the preset memory to load.
5. Touch [YES].
• The selected preset memory is loaded, and "In Use"
is displayed on the PRESET screen. If you change
the transceiver settings, and they do not match the
contents of the preset memory, "In Use" disappears.
L Touching [UNLOAD] returns the transceiver settings
to those set before loading the preset memory.
NOTE:
• You cannot load the preset memory content
when you select a blank memory channel in the
Memory mode.
• You cannot load a preset memory that is
displayed as "(BLANK)."
DEditing the memory contents
NOTE: You cannot edit the preset memory that is in
use. To edit it, first touch [UNLOAD], and then edit
the memory.
1. On the PRESET screen, touch a preset memory
to edit for 1 second.
• Opens the QUICK MENU screen.
2. Touch "Edit the Preset Memory."
L When touching "Save to the Preset Memory," all of
the contents are set to the current settings before
editing.
3. Touch the check box to select whether or not to
load the item.
• "✓" is displayed on the left side of the loading item.
4. Touch the item name, and then touch the option
to set.
L You can set the preset name of up to 16 characters.
5. Repeat steps 3 and 4 to edit the preset memory.
6. Touch "<<Write>>."
7. Touch [YES].
TIP: Depending on your software, you may need to
change the "CI-V Address" setting.
For example, you use a software that is not
compatible with the IC-7300. In that case, you
may be able to use the software by setting "CI-V
Address" to another transceiver's address.
2
