Summary of Contents for Clarion CZ301

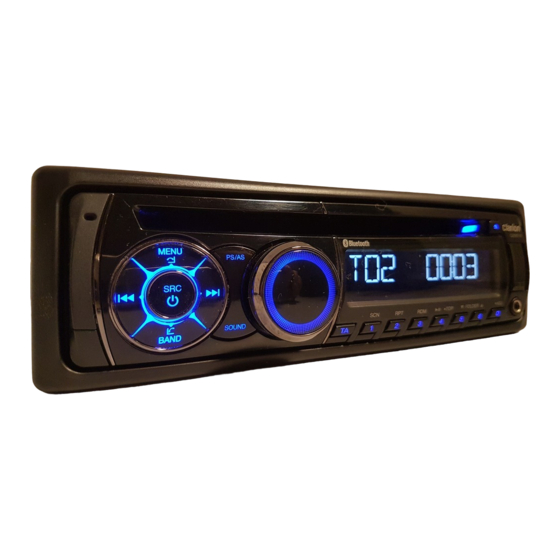

- Page 1 Owner's manual & Installation manual Mode d'emploi et manuel d'installation Manual de instrucciones y de instalación CD/USB/MP3/WMA RECEIVER LECTEUR CD/USB/MP3/WMA RECEPTOR CD/USB/MP3/WMA...
-
Page 3: Table Of Contents
Contents Thank you for purchasing this Clarion product. • Please fully read this owner’s manual before operating this equipment. • Check the contents of the enclosed warranty card and store it in a safe place with this manual. 1. FEATURES ... 3 Expanding Systems ... -
Page 4: Features
1. FEATURES HD Radio Ready™ and SIRIUS Radio Direct Connect Ready ® Compatible with iPod 2ch/2V RCA Output with Subwoofer Control and BEAT-EQ with 3 Band Parametric Equalizer Expanding Systems Expanding audio features 4 Channel Amplifier iPod/iPhone (Connect via CCA-748) SIRIUS Connect™... -
Page 5: Precautions
SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP. CLARION CO.,LTD. 7-2,SHINTOSHIN,CHUO-KU,SAITAMA-SHI,SAITAMA-KEN,JAPAN HD Radio™, HD Radio Ready™, and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corporation. -
Page 6: Front Panel / Generalities
Some models may not operate correctly. When the memorized data is lost or damaged by any chance, Clarion shall not be liable for any damage. When using an USB memory stick, we recommend that you backup your data stored on it before using a personal computer etc. -
Page 7: Remove The Dcp
Remove the DCP The control panel can be detached to prevent theft. When detaching the control panel, keep it in the safety place and prevent scratches. We recommend taking the DCP (DETACHABLE CONTROL PANEL) with you when leaving the car. 1. -
Page 8: Controls
3. CONTROLS Operational Panel [PS/AS] [MENU] [SOUND] [BAND] [OPEN] [ SRC / Names of Buttons [SRC / ] Button • Power/Toggle the audio source [BAND] Button • Select tuner band • SIRIUS mode – Select tuner band/Select category (long press) [MENU] Button •... -
Page 9: Remote Control (Rcx001)
Remote Control (RCX001) [SRC / ] Button • Toggle the audio source • Power on / Power off (long press) ] Buttons • Preset station up/down • Previous / next track • Search (long press) [SCN/PS/AS] Button • Scan play / Preset scan •... -
Page 10: Cautions On Handling
4. CAUTIONS ON HANDLING Handling Discs Handling • New discs may have some roughness around the edges. If such discs are used, the player may not work or the sound may skip. Use a pen or similar tool to remove any roughness from the edge of the disc. -
Page 11: Operations
5. OPERATIONS Basic Operations Note: • Refer to the diagrams in “3. CONTROLS” when reading this chapter. CAUTION When the unit is turned on, starting and stopping the engine with its volume raised to the maximum level may harm your hearings. Be careful about adjusting the volume. -
Page 12: System Setup
System Setup At all mode, press and hold [ D ] button to enter system setup. Press [ button to select options, rotate the [VOLUME] knob to adjust. CLOCK Press the [VOLUME] knob to enter clock setting mode, rotate the [VOLUME] knob to set clock, press [ ] or [ select hour or minute, press and hold the... -
Page 13: Audio Setup
Audio Setup Press the [SOUND] button to enter sound effect setting mode. First press shows current EQ. Rotate the [VOLUME] knob to changes BEAT EQ in this order: OFF -> B-BOOST -> IMPACT -> EXCITE -> CUSTOM Rotate the [VOLUME] knob to changes CUSTOM, and press the [VOLUME] knob, the press [ ] or [... -
Page 14: Radio Operations
2. The unit has 4 bands, such as FM1, FM2, FM3 and AM. FM3 and AM can store by AS function. Each bands can store 6 stations, CZ301 can store 24 stations in total. ] button Manual store... -
Page 15: Satellite Radio Mode
Satellite Radio Mode Listeners can subscribe to SIRIUS on the Web by visiting www.sirius.com, or by calling (888) 539-SIRIUS. Customers should have their SIRIUS ID ready (SIRIUS ID is located on the SCC1: SIRIUS Connect Vehicle Tuner, solid separately). Customers can listen to music samples by tuning to channel 184. -
Page 16: Hd Radio Operations
Satellite Radio Mode LOCK Refer to System Setup page 11. UNLOCK Refer to System Setup page 11. HD Radio Operations About HD Radio™ Technology HD Radio Technology allows CD-quality digital broadcasting of your local AM and FM radio stations. HD Radio broadcasts can include multiple channels on the same frequency, which is called multicasting. - Page 17 HD Radio Operations Preset scan Press the [PS/AS] button to scan and play all preset stations for 10 seconds each. Press [PS/AS] again to stop scanning and play the current station. Note: Be careful not to press and hold the [PS/AS] button for 1 second or longer, otherwise the auto store function is engaged and the unit starts storing stations.
-
Page 18: Itunes Tagging
® connecting THD301 (sold separately). iPod compatibility For detailed information on the playable iPod models, see our home page: www.clarion. Note: • iPhones can also be connected to this system and “iPod” appearing in this manual should be referred to as “iPod/ iPhone”. -
Page 19: Cd/Mp3/Wma Operations
CD/MP3/WMA Operations This unit can play back MP3/ WMA files Notes: • I f you play a WMA file with active DRM (Digital Rights Management), no audio is output. To disable DRM (Digital Rights Management) When using Windows Media Player 9/10/11, click on Tool -> Options -> Copy music tab, then under Copy settings, unclick the Check box for Copy protect music. -
Page 20: Displaying Cd Titles
CD/MP3/WMA Operations • If the CD is not inserted easily, there may be another CD in the mechanism or the unit may require service. • Discs without the TEXT CD-ROMs cannot be played by this unit. • Some CD-R/CD-RW disc may not be usable. Pausing play 1. - Page 21 CD/MP3/WMA Operations Top function The top function resets the CD player to the first track of the disc. Press and hold the [ 4 ] button (1 sec.) to play the first track (track No. 1) on the disc. * In case of MP3/WMA, the first track of the current folder will be played.
-
Page 22: Usb Operations
USB Operations 1. Open the cover of the USB connector to the right. Insert a USB cable (CCA-755) intothe USB connector. Insert a USB deviceinto the USB cable. When connecting a USB device, the unit will read the files automatically. 2. -
Page 23: Aux Operations
• Some iPod models do not support this function. Consult your nearest Clarion dealer or website to confirm which models do not support this function. AUX Operations... -
Page 24: Trouble Shooting
6. TROUBLE SHOOTING GENERAL Problem Unit fuse blown. Unit can not power Car battery fuse blown. Unit can not power Nothing happens The microprocessor has when buttons are malfunctioned due to noise, etc. pressed. Display is not accurate. Battery depleted. Remote control does not work Battery installed incorrectly. -
Page 25: Error Displays
USB Devices Problem The USB device has been inserted with wrong direction. USB device cannot be inserted. The USB connector is broken. The USB device is damaged. USB device is not recognized. Connectors are loose. No sound heard with No MP3/WMA file is stored in the the display “No File”... -
Page 26: Specifications
8. SPECIFICATIONS FM Tuner Frequency range: 87.9-107.9MHz Usable sensitivity: 8dBμ Frequency response: 30Hz-15kHz Stereo separation: 30dB(1kHz) Signal/noise ratio: >55dB AW Tuner Frequency range: 530- 1710kHz Usable sensitivity (S/N=20dB): 30dBμ CD Player System: Disc digital audio system Frequency response: 20Hz-20kHz Signal/noise ratio: >80dB Total harmonic distortion: Less than 0.1% (1kHz) Channel separation: >60dB MP3/WMA mode... -
Page 27: Installation / Wire Connection Guide
1. Do not open the case. There are no user serviceable parts inside. If you drop anything into the unit during installation, consult your dealer or an authorized Clarion service center. Wire connector ... 1 Remote control unit (with battery)... 1 DCP case ... 1 Owner’s manual... -
Page 28: Cautions On Installation
4. Take care of the top and bottom of the trim ring and mount it so that all the hooks are locked. Notes: 1. Some car models require special mounting kits for proper installation. Consult your Clarion dealer for details. 2. Fasten the front stopper securely to prevent the source unit from coming loose. • Console opening dimensions 7-3/16"... -
Page 29: Unit Installation
Notes of installation 1. Before installation, please make sure proper connections are conducted and the unit operates normally. Improper connection may result in damage to the unit. 2. Use only accessories designed and manufactured for this unit and other unauthorized accessories may result in damage to the unit. -
Page 30: Removing The Source Unit
Method B 1. Insert this unit directly to the opening of the dashboard. 2. Place M5×6 cylindrical screw through the holes of the mounting frame located inside the opening to holes of the unit and fasten the screws to left & right. Trim ring installation Attach the trim ring around the front panel. -
Page 31: Wiring And Connections
7) Wiring and Connections Black Steering wheel control terminal (Black) (Black) (Black) White Black Black White Gray Black 4 Channel Amplifier SIRIUS HD BUS Antenna Rear audio output (Left)/ Subwoofer output 1 Rear audio output (Right)/ Subwoofer output 2 Left Front audio output terminal Right... -
Page 32: Connecting The Accessories
Gray Front Right Gray/Black White Front Left White/Black Purple Rear Right Purple/Black Green Rear Left Green/Black 4-Speaker system 2-Speaker system Gray Front Right Gray/Black White Front Left White/Black Purple Purple/Black Green Not used. Green/Black Insulate each wire 8) Connecting the accessories •... - Page 33 Clarion Co., Ltd. All Rights Reserved. Copyright © 2010: Clarion Co., Ltd. Printed in China / Imprimé en Chine / Impreso en China PN:127075002839...
