- Page 1 EvaDrive Instructions for use - English Bruksanvisning - Svenska SystemRoMedic Brukermanual - Norsk Brugsvejledning - Dansk Käyttöohje - Suomi Gebrauchsanweisung - Deutsch Handleiding – Nederlands Manuel utilisateur - Français Manuale utente – Italiano Manual de usuario – Español 60900012 60900013 60900002 60900003 SWL: 205 kg/450 lbs...
-
Page 2: Safety Information
Always make sure that you have the right version of the user manual. The most recent editions of user manuals are available for downloading from our website, www.handicare.com. Under no circumstances may a lift with EvaDrive be used by persons who have not received instruction in the operation of a lift with the accessory mounted. -
Page 3: Intended Use Of The Product

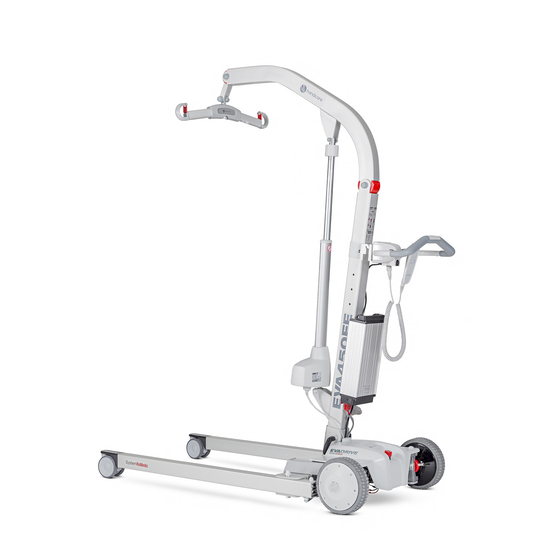

Intended use of the product EvaDrive in an add-on system to Handicare Eva Mobile lifts in order to provide a power assisted drive function to the rear wheels. The EvaDrive system can either be delivered as an accessory to be retro-fitted to Eva450EE or Eva600EE, or as a complete unit with the drive system fitted from the factory. -
Page 4: Final Inspection
Installation of cables Connect the battery cable and the cable for the hand control. Secure the hand control cable with the retainer. Connect the motor cable and turn to lock in place. Cable for hand control Motor cable Battery cable Final inspection •... -
Page 5: Using The Product
Using the product Important information • The accessory must be assembled according to the assembly instructions included with the product. • The lift, with the accessory installed, may only be operated indoors on a dry and level surface. • Never leave a user unattended during a transfer. •... -
Page 6: Safe Working Load
The lowest allowable safe working load always determines the safe working load of the assembled system. Always check the safe working loads for the lift and accessories before use. Contact your local Handicare representative or dealer if you have any questions. -
Page 7: Information Panel
Preventative service/maintenance The symbol for service/maintenance lights up automatically when the lift unit has been in service for 12 months. Contact an authorized Handicare service technician for maintenance and resetting. SystemRoMedic I N S T R U C T I O N S F O R U S E... -
Page 8: Operation
Operation Press the power button once to activate EvaDrive. The lift is ready for opera- tion after about 2 seconds. No load should be applied to the handlebar or the orange safety switch when the lift is being started; calibration takes place instantaneously when the the system is starting up. -
Page 9: Troubleshooting
- Contact Handicare If unusual sounds are heard: - Try to locate the source of the sound. - Take the lift unit out of service and contact Handicare. The lift cannot be started - Check the battery switch. - Check battery connection. - Page 10 Optimal pattern of operation Normal travel in corridors and open areas Ensure that the rear wheels are in the normal position, see Fig. 1. Grasp the handlebar and hold in the safety switch, then move the lift. The lift will sense both the desired direction of travel and speed. The lift has a greater turning radius at this setting.
-
Page 11: Battery Charging
Battery charging Always charge the lift after use to ensure that the battery is fully charged. Charging procedure: 1. The green LED light confirms that the charger • Connect the charger cable to the batterypack, plug in is connected to the power outlet and is receiving the wall socket and switch on at plug socket. -
Page 12: Maintenance
-10 °C 700 hPa Service agreements Handicare offers service agreements for maintenance and regular testing of your lift unit. Contact your local Handicare representative. Serial number I N S T R U C T I O N S F O R U S E SystemRoMedic... -
Page 13: Technical Information
Technical information Maximum speed (normal) Forward: 4.3 mph / 7 km/h, Backwards: 2.1 mph / 3,5 km/h Maximum speed (low speed ) 2.1 mph / 3,5 km/h Batteries 24V, 17,6 Ah Li-Ion Charger Modiary MDA10129402000. Output: DC 29, 40 V, 2.0 A AC power input cable HD3VV-F 3G0,75mm². - Page 14 Dimensions All measurement are in mm/inch Tolerance +/- 5 mm/ 0.2” *When the handle is placed 1000 mm from floor Eva450Drive 240/9.4 25/0.9 427/16.8 1307/51.4 *1450/57.1 I N S T R U C T I O N S F O R U S E SystemRoMedic...
- Page 15 All measurement are in mm/inch Tolerance +/- 5 mm/ 0.2” *When the handle is placed 1000 mm from floor Eva600Drive 240/9.4 25/0.9 432/17 1408/55.4 *1566/61.6 SystemRoMedic I N S T R U C T I O N S F O R U S E...
- Page 16 Guidance and manufacturer’s declaration – electromagnetic emissions The EvaDrive is intended for use in the electromagnetic environment specified below. The customer or the user of the EvaDrive should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance RF emissions...
-
Page 17: Electromagnetic Environment - Guidance
Guidance and manufacturer’s declaration – electromagnetic immunity The EvaDrive is intended for use in the electromagnetic environment specified below. The customer or the user of the EvaDrive should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance... -
Page 18: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
Guidance and manufacturer’s declaration – electromagnetic immunity The EvaDrive is intended for use in the electromagnetic environment specified below. The customer or the user of the EvaDrive should assure that it is used in such an environment. Immunity test IEC 60601 test Compliance Electromagnetic environment - guidance level... - Page 19 Recommended separation distances between portable and mobile RF communications equipment and the EvaDrive The EVADRIVE is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the EvaDrive can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the EvaDrive as recommended below, according to the maximum output power of the communications equipment.
- Page 20 Please contact your local Handicare and SystemRoMedic™ representative. A complete list of all our partners with their contact details can be found on our website; www.handicare.com. Handicare offers solutions and support to increase the independence of disabled or elderly people as well as to improve the convenience of those who are caring for them.
