QuickMove
Service manual - English
SystemRoMedic
TM
SWL: 170 kg/375 lbs
Functional inspection
Visual inspection
Check the condition and function of the assistive device regularly. Check to ensure that seams and material are free from damage.
If there are signs of wear, the product must be inspected and serviced.
Always read the manual
Always read the manuals for all assistive devices used during a transfer.
Keep the manual where it is accessible to users of the product.
Do not leave the patient unattended during a transfer situation.
The product should be inspected yearly, and wotherwise as required, by a qualified technician.
Service must be performed by a qualified technician.
Manual nr: 733 Ver. 4 160614
Advertisement
Table of Contents
Related Manuals for Handicare QuickMove
Summary of Contents for Handicare QuickMove
- Page 1 QuickMove Service manual - English SystemRoMedic SWL: 170 kg/375 lbs Functional inspection Visual inspection Check the condition and function of the assistive device regularly. Check to ensure that seams and material are free from damage. If there are signs of wear, the product must be inspected and serviced.
-
Page 2: Table Of Contents
Table of contents Description of parts ..............Functions ....................General ....................Exploded view ................Component list ..................Spare parts ................... Spare part list ..................Replacing spare parts ................Periodic inspection ..............9-11 ..........Detail descriptions for Periodic inspection Periodic inspection, instruction ............10-11 Care of the product ..............12 Technical information... -
Page 3: Description Of Parts

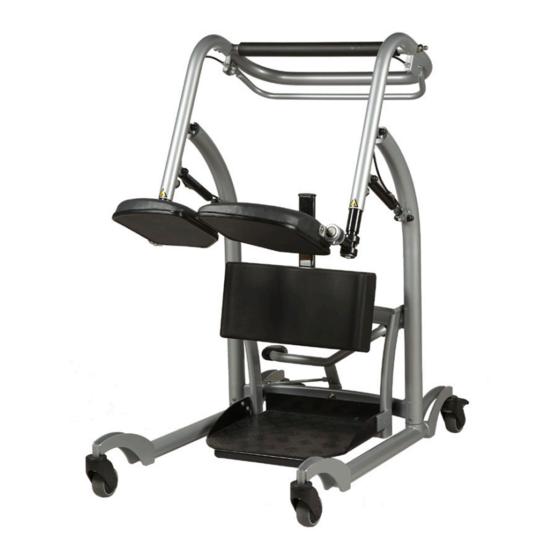

Description of parts 1. Seat support 2. Depth adjustable kneepad 3. Angle adjustment of the seat 4. Manual adjustment of seat depth 5. Hight adjustable kneepad 6. Footpedal for leg spread adjustment 7. 2 x rear braked castors 8. Detachable footplate Functions Split seat pads: both swing away and flip-up. -
Page 4: Exploded View
Exploded view SystemRoMedic... -
Page 5: Component List
Component list Number Name Size Frame Bronze plain bearing Disc Left leg mounted Right leg mounted Legspread mounted Footplate mounted Threaded pin M8 DIN 975 Knee pad holder Top hanger Right seat assembly Left seat assembly Off-center adjuster Belt bolt Screw with spring and ball Clamping bolt Screw... -
Page 6: Spare Parts
Spare parts Spare part list Artikelnummer Produkt Enhet Komponenter Bilder 80100084 Seat kit left QM 1 set 1 x Seat left 2 x Screw M8x20 80100084 80100085 Seat kit right QM 1 set 1 x Seat right 2 x Screw M8x20 80100085 80100049 Front castor kit 80mm... -
Page 7: Replacing Spare Parts
Change of spareparts Seat support Disassemble and change the seat support by unlocking the two screws according to picture. Use the attached screws to assemble the new seat support and please note that there is a left and right seat support. Front castors Disassemble and change the front castors by unlocking the underneath mounted screw according to picture. - Page 8 Footplate Remove the footplate. No tools are required. Install the new footplate. Gas spring cabel set for gas spring Disassemble and change the gas springs by unlocking the nuts according to picture. Disconnect the cable set by first loosen the adjustment screw on the cable and secondly unhook the cable from the bracket.
-
Page 9: Periodic Inspection
Periodic inspection Detail descriptions for Periodic inspection 1. Frame and pivote points Page 7 2. Brakes Page 7 3. Castors Page 7 4. Footpedal for leg spread adjustment Page 7 5. Detachable footplate Page 7 6. Leg support Page 8 7. -
Page 10: Periodic Inspection, Instruction
Lock the brakes. Check that the castors do not turn when the QuickMove is pushed. Castors Roll the QuickMove unloaded on the floor, check that the castors roll and turn freely. Check that the castor fasteners are tight and if necessary, remove dirt and hair from wheels. - Page 11 Knee pad Check the knee pad for visible damage to the surfaces, finish, etc. Make sure it is correctly assembled. Check the adjustment for knee pad, depth, height and tiltable. Angle adjustment crossbar Check that the angle adjustment crossbar is activating the gas springs. Gas spring Check that the gas springs are moving smooth and soft.
-
Page 12: Care Of The Product
Care of the product: • Use a soft cloth and mild cleaning agent such as dishwashing liquid or car shampoo to clean the QuickMove. Do not use abrasive cloths or brushes. • Do not use solvents. • To disinfect, use 70% alcohol. -
Page 13: Technical Information
Technical information A Length 900-1030 mm 35.4 – 40.5” B Width, inner. Min. leg spread. Castor to castor. 455 mm 17.9” C Width, inner. Max. leg spread. Castor to castor. 830 mm 32.6” D Width, outer. Min. leg spread. Castor to castor. 615 mm 24.2”... - Page 14 SystemRoMedic...
- Page 15 SystemRoMedic...
- Page 16 Please contact your local Handicare and SystemRoMedic™ representative. A complete list of all our partners with their contact details can be found on our website; www.handicare.com. Handicare offers solutions and support to increase the independence of disabled or elderly people as well as to improve the convenience of those who are caring for them.
