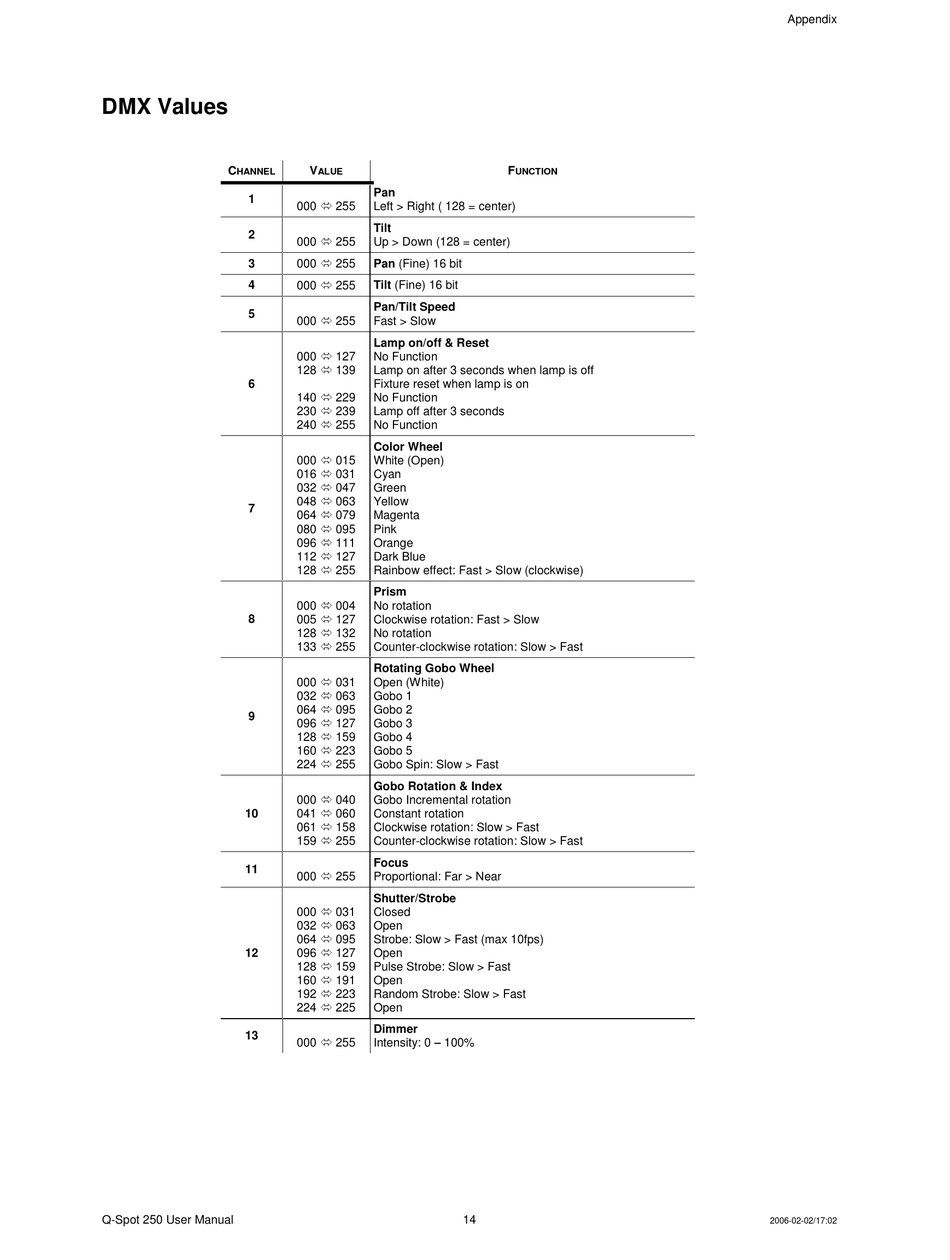

Chauvet Q-Spot 250 Supplementary Manual

DMX Values

C
HANNEL
1
2
3
4
5
6
7
8
9
10
11
12
13
Q-Spot 250 User Manual
V
ALUE
Pan
000  255
Left > Right ( 128 = center)
Tilt
000  255
Up > Down (128 = center)
000  255
Pan (Fine) 16 bit
000  255
Tilt (Fine) 16 bit
Pan/Tilt Speed
000  255
Fast > Slow
Lamp on/off & Reset
000  127
No Function
128  139
Lamp on after 3 seconds when lamp is off
Fixture reset when lamp is on
140  229
No Function
230  239
Lamp off after 3 seconds
240  255
No Function
Color Wheel
000  015
White (Open)
016  031
Cyan
032  047
Green
048  063
Yellow
064  079
Magenta
080  095
Pink
096  111
Orange
112  127
Dark Blue
128  255
Rainbow effect: Fast > Slow (clockwise)
Prism
000  004
No rotation
005  127
Clockwise rotation: Fast > Slow
128  132
No rotation
133  255
Counter-clockwise rotation: Slow > Fast
Rotating Gobo Wheel
000  031
Open (White)
032  063
Gobo 1
064  095
Gobo 2
096  127
Gobo 3
128  159
Gobo 4
160  223
Gobo 5
224  255
Gobo Spin: Slow > Fast
Gobo Rotation & Index
000  040
Gobo Incremental rotation
041  060
Constant rotation
061  158
Clockwise rotation: Slow > Fast
159  255
Counter-clockwise rotation: Slow > Fast
Focus
000  255
Proportional: Far > Near
Shutter/Strobe
000  031
Closed
032  063
Open
064  095
Strobe: Slow > Fast (max 10fps)
096  127
Open
128  159
Pulse Strobe: Slow > Fast
160  191
Open
192  223
Random Strobe: Slow > Fast
224  225
Open
Dimmer
000  255
Intensity: 0 – 100%
