Parts - Canon imagePROGRAF iPF650 Basic Manual

Parts

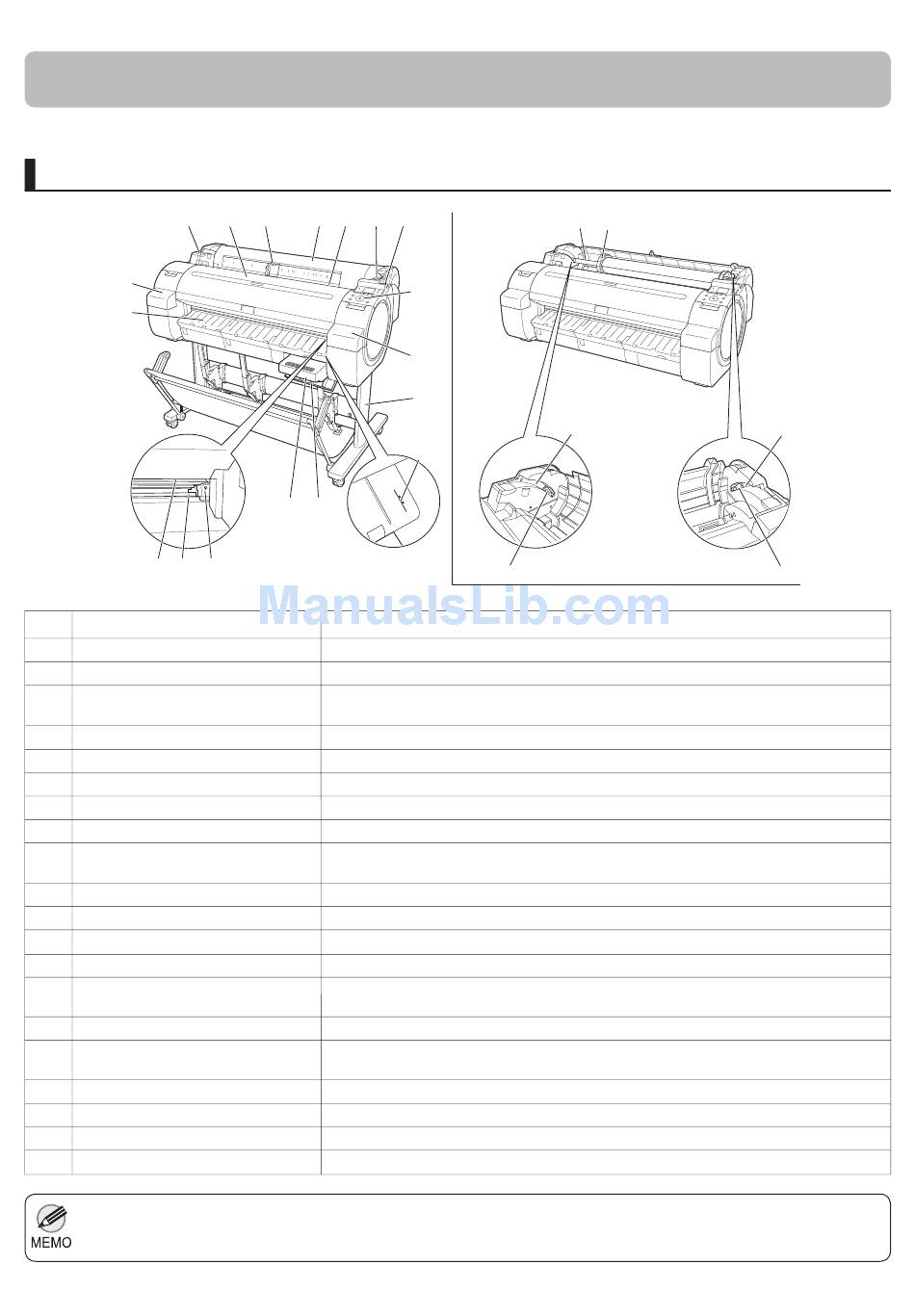

Names and functions of printer parts are as follows.
Front
c
f
m
l k
Name
a Roll Cover
b Paper Feed Slot
c Roll Ledge
d Release Lever
e Control Panel
f Ink Tank Cover
g Paper Alignment Line
h Maintenance Cartridge Cover
i Maintenance Cartridge
j Cutter Unit
k Cutter Rail
l Output Tray
m Ejection Guide
n Top Cover
o Width Guide
p Stand
q Roll Holder
r Holder Stopper
s Roll Loading Slots
t Roll Holder Slot
• The Stand is provided as a standard accessory with the iPF750 and iPF755.
• With the iPF650 and iPF655, the Stand is normally offered as an option, but it may be provided as a standard
accessory in some sales regions.
n o a b c d
i h
j
Open this cover to load rolls.
When loading paper, insert it here.
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder
Slot .
When releasing the Paper Retainer , push this lever back.
Use this panel to operate the printer and check the printer status.
Open this cover to replace an Ink Tank .
An orange line for alignment of paper.
Open this cover to replace the Maintenance Cartridge .
Absorbs ink used for maintenance purposes such as head cleaning. (Replace the
cartridge when it is full.)
A round-bladed cutter for automatic roll cutting.
The Cutter Unit passes over this rail to cut paper.
All printed documents are ejected from this slot.
Guides printed documents as they are ejected.
Open this cover to install the Printhead and remove any jammed paper from inside
the printer, as needed.
When loading the sheets , move the guide to match the paper size.
A stand that holds the printer. Equipped with casters to facilitate moving it. (iPF750
and iPF755 only.)
Load the roll on this holder.
Secure rolls on the Roll Holder with this part.
Slide the Roll Holder along these slots.
Load the Roll Holder into this holder slot.
q
e
f
p
s
g
t
Operation
8
r
s
t
