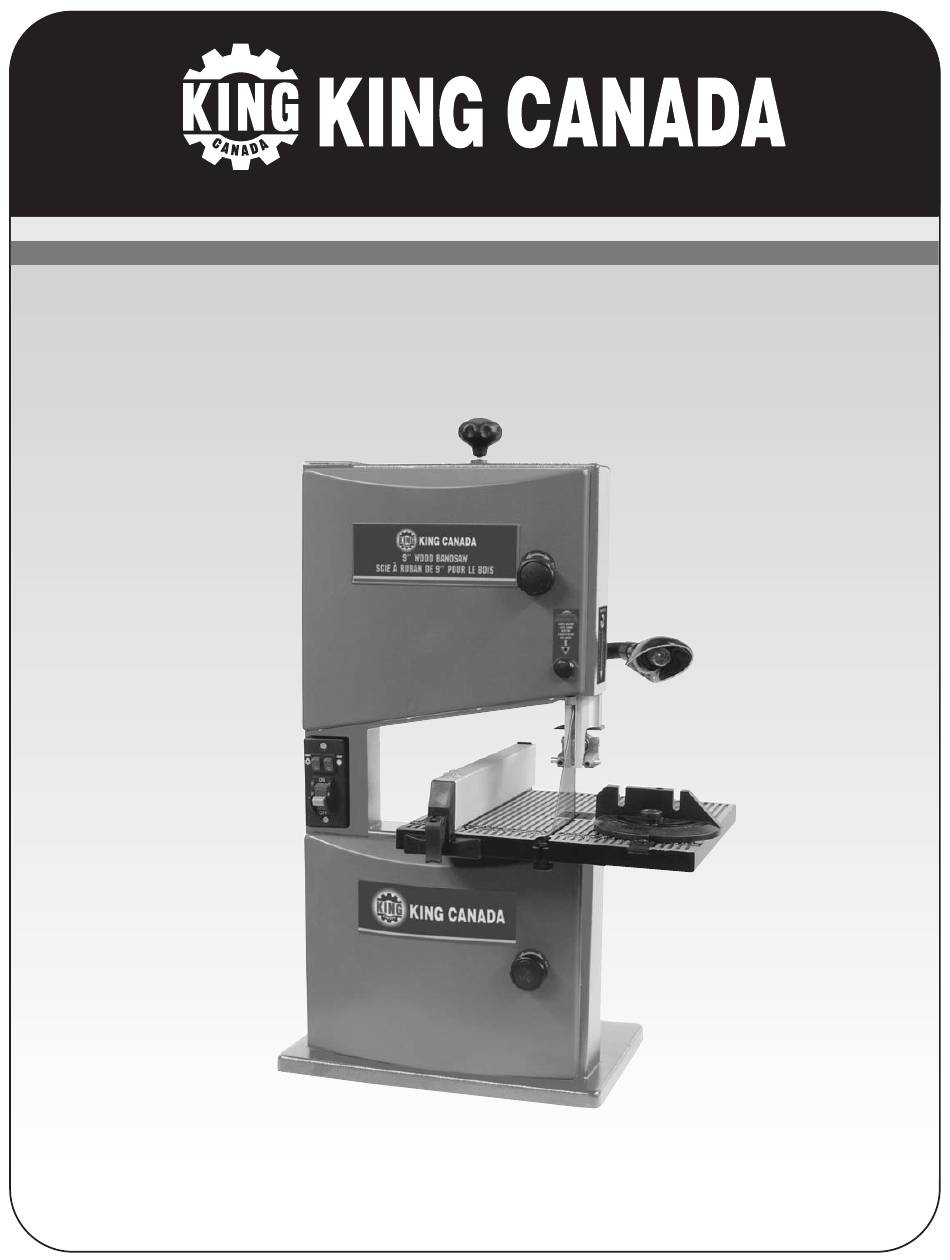

- Page 1 9” WOOD BANDSAW WITH LASER MODEL: KC-902C INSTRUCTION MANUAL COPYRIGHT © 2009 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday eye-glasses only have impact resistant lenses, thet are NOT the tool. -
Page 4: Specific Safety Instructions For Bandsaws
SPECIFIC SAFETY INSTRUCTIONS FOR BANDSAWS Safety is a combination of common sense, staying alert and • Use extra supports (tables, blocks, etc...) for any workpieces knowing how your bandsaw works. Read and understand the large enough to tip when not held down to the table top. following safety rules before operating. -
Page 5: Electrical Information
ELECTRICAL INFORMATION WARNING ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE BAND SAW DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY GROUNDED OUTLET WARNING: YOUR BANDSAW IS WIRED AT THE FACTORY FOR 110-120V... - Page 6 12. Laser On/Off switch. blade tracking lock knob. 13. Rip fence. Use as a support guide for ripping operations. MODEL KC-902C ” Cutting capacity frame to blade Maximum depth of cut 3 1/2”...
-
Page 7: Installing The Table
ASSEMBLY WARNING: To avoid injury, if any parts are missing, do not attempt to assemble the bandsaw, plug in the power cord, or turn the switch on, until the missing parts are obtained and installed correctly. WARNING: For your own safety, never connect plug to power source outlet, or insert switch key until all assembly steps are complete and until you have read and understood the entire instruction manual. -
Page 8: Adjusting The Table
ADJUSTMENTS WARNING! Turn off the saw, remove the main On/Off switch safety key and unplug the power cord before making any adjustments on the saw. ADJUSTING POSITION OF THE THE UPPER BLADE GUIDE ASSEMBLY The upper blade guide assembly (C) Fig.7 should always be set about 1/8” above or as close as possible to the top of the surface of the workpiece being cut. -
Page 9: Changing /Installing The Blade
ADJUSTMENTS WARNING! Turn off the saw, remove the main On/Off switch safety key and unplug the power cord before making any adjustments on the saw. CHANGING /INSTALLING THE BLADE CAUTION: Wear safety glasses to avoid being scraped if the blade should suddenly uncoil. - Page 10 ADJUSTMENTS WARNING! Turn off the saw, remove the main On/Off switch safety key and unplug the power cord before making any adjustments on the saw. ADJUSTING UPPER AND LOWER BLADE GUIDES AND BACK-UP BEARINGS NOTE: The upper and lower blade guides and back-up bearings support the bandsaw blade during cutting operations.
- Page 11 ADJUSTMENTS & OPERATION USING THE LASER GUIDE SYSTEM The laser guide system is controlled by the laser guide switch and will only turn on when the bandsaw is plugged into a power source. This laser guide is used for ripping operations only and the rip fence should be used.
-
Page 12: Maintenance And Troubleshooting
MAINTENANCE & TROUBLE SHOOTING MAINTENANCE the wood to slide easily while cutting. Also apply wax to the inside surfaces of the trunnion. WARNING! For your own safety, turn the switch “OFF”, remove the MOTOR/ELECTRICAL safety key, unplug the power cord from the power outlet before maintaining or lubricating you bandsaw.
