Compact Dialer
Installation & Programming Guide
© Copyright 1999 Mitel Inc. All rights reserved.
® Registered Trademark of MITEL Corporation
8346-382-115-BA
™ Trademark of MITEL Corporation
Issue 1, January 1999

Advertisement

Table of Contents
loading

Related Manuals for Mitel SMarT-1 Compact

Summary of Contents for Mitel SMarT-1 Compact

  • Page 1 Compact Dialer Installation & Programming Guide © Copyright 1999 Mitel Inc. All rights reserved. ® Registered Trademark of MITEL Corporation 8346-382-115-BA ™ Trademark of MITEL Corporation Issue 1, January 1999...
  • Page 2 Mitel Corporation (MITEL). The information is subject to change without notice and should not be construed in any way as a commitment by Mitel or any of its affiliates or subsidiaries. Mitel and its affiliates and subsidiaries assume no responsibility for any errors or omissions in this document.

  • Page 3: Table Of Contents

    Table of Contents Compact Dialer Register Index ........5 Glossary of Terms .
  • Page 4 Table of Contents 8346-382-115-BA 4 - Compact Dialer Issue 1, January 1999...

  • Page 5: Compact Dialer Register Index

    Section Compact Dialer Register Index REGISTER DEFAULT DESCRIPTION PAGE System/Trunk On-hook Timing Rotary Inter-digit Pause Inter-digit Time-out MF4 Rate Exchange Type Subscriber Type Off-hook Beep Centrex Digit Route Registers Blank Route 1 Digit String Blank Route 2 Digit String Blank Route 3 Digit String Blank Route 4 Digit String...
  • Page 6 Compact Dialer Register Index REGISTER DEFAULT DESCRIPTION PAGE Blank Search Table B, Set 1 Blank Search Table B, Set 2 Blank Search Table B, Set 3 Blank Search Table B, Set 4 Blank Search Table B, Set 5 Blank Search Table B, Set 6 Blank Search Table B, Set 7 Blank...

  • Page 7: Glossary Of Terms

    Section Glossary of Terms Indicates the Default for the register Represents a burst of 400 Hertz tone transmitted over the phone to the subscriber. Absorbed Digits Absorbed digits are digits that are “absorbed” by the Compact Dialer via the Search Tables. The digits that are “absorbed” are copied to a special buffer, which can hold a maximum of 8 digits.
  • Page 8 Glossary of Terms 8346-382-115-BA 8 - Compact Dialer Issue 1, January 1999...

  • Page 9: Hardware Installation

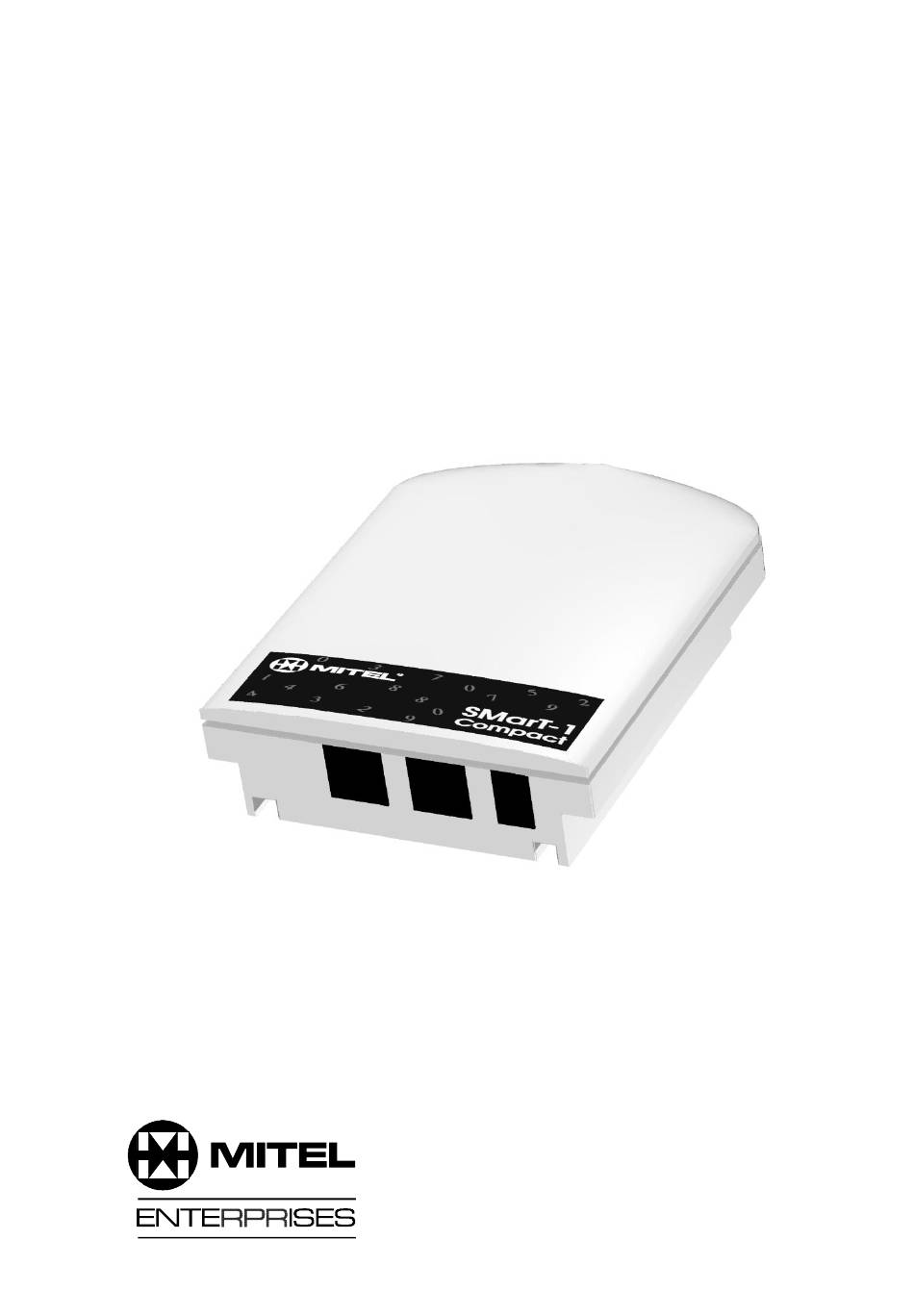

    Section Hardware Installation Description The Compact Dialer package consists of: • 1 Unit • 1 Safety Instructional Sheet • 2 Line Cords (one for the network and one for the telephone). Mounting The Compact can be placed on a desk or any other flat surface or mounted vertically using self tapping screws.
  • Page 10 Hardware Installation Checking whether the Compact will work on your line • Pick up the telephone handset and dial 0002. • If you hear a continuous tone you may hang up. The Compact will now call the management centre for programming. Please wait 10 minutes before using your telephone.
  • Page 11 Hardware Installation Installing the Compact Connection Leads There are two cables supplied with the Compact. One cable has a BT plug on one end; the other end, a BT socket. Using these two cables, follow the listed steps to install your Compact.
  • Page 12 Hardware Installation Basic Hardware Description Mechanical Description The Compact consists of a plastic case, enclosed circuitry and an optional outboard power supply. MECHANICAL Weight: Main Unit - 250g Power Supply - 150g Dimensions: Main Unit - 30 x 90 x 130mm Power Supply - 50 x 55 x 65mm Mounting: Flush wall mount or desk mount...
  • Page 13 Hardware Installation Hardware Specifications Ringer Impedance 15k min Ringing Sensitivity (25 Hz): 25 VAC min Off-hook Current 17.5 mA min, 50 mA max Battery Feed Open Circuit 12 VDC nominal Constant Current 13 mA min, 13.5 mA max Short Circuit Current 13.5 mA max MF4 Receiver Level...
  • Page 14 Hardware Installation 8346-382-115-BA 14 - Compact Dialer Issue 1, January 1999...

  • Page 15: General Notes On Programming

    Section General Notes on Programming Acknowledgment Tones for Local Programming While programming the Dialer with an MF4 telephone, you will hear tones that indicate correct entries, incorrect entries and programming time-outs. In general, after each correct entry, the Dialer will respond with two tones. If You Hear means that the command you have entered has been recognized as being valid (correct), i.e.
  • Page 16 Because of the fact that variable length registers need to be terminated with the MF4 digit D, Mitel recommends that the Compact Dialer be programmed with a 4th column telephone (A phone with a key pad including the buttons A, B, C and D).
  • Page 17 General Notes on Programming Call Home Well Call Home Well will occur when the programmed time and date stored in Register 74 (Alarm register for Call Home) is reached. The unit will go off-hook and dial the phone number (refer to Register 72 on page 18) to the CHWMC. The unit will then wait for a response from the CHWMC for a period of twenty-five seconds.
  • Page 18 General Notes on Programming Commands Special Function Commands allow access to specific data in the Compact Dialer. You must be in the programming mode to use these commands. Commands Definition Clear Search Tables Clear default Route string (20-33) Display software revision Display Serial Number Display Call Home Number Display Search Tables...
  • Page 19 General Notes on Programming Call Home Date/Time—74 When the command 74 is entered, a will be heard. The Compact Dialer will then expect a desired Call Home time and date to be entered in the following format: MM(Month)DD(Day)HH(Hour)mm(Minute). Following the minute digits (mm), the Compact Dialer will return , indicating that the entry was accepted.
  • Page 20 General Notes on Programming Drop from Program Mode—88 When the command 88 is entered, a will be heard, followed by a click sound. The Compact Dialer will then connect the user with the subscriber side without saving any changes that were made to the program during the current programming session. This command does not affect registers 72, 73, or 74.

  • Page 21: System And Trunk Registers

    Section System and Trunk Registers General You may want to change System Wide Data if the Default data does not meet your requirements. On-hook Timing An on-hook is determined by the absence of loop current on the line from the Exchange, for the specified amount of time.
  • Page 22 System and Trunk Registers MF4 Rate This register controls the amount of on and off time that the Dialer will dial MF4 digits. Register 4 for 80 ms for 200 ms 5 for 100 ms # for 220 ms 6 for 120 ms A for 240 ms 04 T 7 for 140 ms...
  • Page 23 System and Trunk Registers Centrex Digit This register determines whether the user will first dial a centrex digit before dialling the destination number. Typically, the centrex service will require a 9 to be dialled before dialling a destination number. When a 9 is not dialled, the destination number can be treated as an extension number After the pre-determined centrex digit is dialled, it is stored in a buffer (refer to token 25 on page 27).
  • Page 24 System and Trunk Registers 8346-382-115-BA 24 - Compact Dialer Issue 1, January 1999...
  • Page 25 Section Route Register General Information Route Stings The route strings are used to store numbers, such as access numbers, personal identification numbers, etc. Each string entry must be terminated with an MF4 “D”. Digit Stings A digit string is used to dial a string of digits based on the route selected. The route token 24 can be used in any Dialling Rule (refer to page 27) to dial out these digits, based on the respective route chosen.

  • Page 26: Route Registers

    Route Registers Route 2 Digit String The number stored in this register will be dialled out when the Dialling Rule token 24 is executed in Route 2. Register Route Digit String for Route 2, up to 30 digits in length 21 S (Blank Route 3 Digit String...
  • Page 27 Route Registers Dialling Rules The dialling rules are a set of tokens that are used by the Compact Dialer to control activity, such as dialling access numbers, to the Exchange. Once a match is found in the search tables that contains a routing command, the dialling rules begin execution. There are a total of four dialling rules available.
  • Page 28 Route Registers System String 1 The number stored in this register will be dialled out when the Dialling Rule token 31 (refer to page 27) is executed. Register 28 S System String 1, up to 30 digits in length (Blank System String 2 The number stored in this register will be dialled out when the Dialling Rule token 32 (refer to page 27) is executed.

  • Page 29: Programming Access Codes

    Section Programming Access Registers General For your convenience, several methods of programming the Compact Dialer are available. This device can be programmed locally or remotely. Each string entry must be terminated with an MF4 “D”. Local MF4 Password The password defined by this register must be entered before entering into local MF4 programming mode.
  • Page 30 Programming Access Registers 8346-382-115-BA 30 - Compact Dialer Issue 1, January 1999...

  • Page 31: Search Tables

    Section Search Tables General The Search Tables consist of two buffers, Buffer A and Buffer B, in which the user’s dialled digits are screened for the purpose of assigned a pre-defined set of instructions. It is here in the Search Tables where calls can be barred or sent to a select carrier via a Dialling Rule.
  • Page 32 Search Tables Example 3 When the user dials the number 147, the Compact Dialer, using Table A, will: not change routes; not lock the route; not begin executing the route; not absorb any digits; not discard any digits; not screen; and finally, not provide tones.The following example explains where tones would be heard if programming the Dialer via MF4: 1470D Note that in this example, the D terminating character was entered after the Route Code.
  • Page 33 Search Tables Search Table Buffers (X) There are two Search Table buffers, Buffer A and Buffer B. Either buffer can screen up to 15 digits. Collectively, they can screen a 30 digit number. The Search Tables are designed to analyzed the digits dialled by the user based on a pre-programmed set of instructions, the call is processed accordingly.
  • Page 34 Search Tables Discard Codes (C) When a match of digits is found, and the Route, Lock, Execute and Absorb Codes have been executed, the Compact Dialer will execute the command defined by this code. If the value is 0, then no digits will be discarded. If the value is any digit from 1 through D, then the number of digits defined by this code will be discarded.
  • Page 35 Search Tables Description of Search Tables Format X-N-D-R-L-E-A-D-C-S-T SEARCH TABLE BUFFER, EACH TABLE CONTAINING 15 TABLE SETS 0 = Buffer A 1 = Buffer B NUMBER OF DIGITS IN THE DESTINATION NUMBER (D) 1 = 1 digit 6 = 6 digits # = 11 digits 2 = 2 digits 7 = 7 digits...
  • Page 36 Search Tables 8346-382-115-BA 36 - Compact Dialer Issue 1, January 1999...

  • Page 37: Index

    FirstPage Index Acknowledgment Tones 15 Mechanical Description 12 MF4 Password Local 29 Remote 29 Call Home for Programming 16 MF4 Rate 22 Call Home Number 18 Mounting 9 Call Home Number Display 19 Call Home Time/Date 19 Call Home Well 17 Call Home, Forced 17 Off-hook Beep 22 Centrex Digit 23...
  • Page 38 Index Route Codes 33 Search Codes 34 Table Matrix 36 Tone Codes 34 Serial Number Display 19 Software Revision Display 19 Statistic Display 20 Statistic Reset 20 Subscriber Type 22 System String Four 28 One 28 Three 28 Two 28 Terminating Variable Length Entries 15 Verify Mode Enter 20 Verify Mode Exit 20...

  • Page 39: Wall Mounting Template

    Wall Mounting Template Wall M ou nting Te m plate Sc re w Loc ation s 40m m Use a 3m m D ril 8346-382-115-BA Issue 1, January 1999 Compact Dialer - 39...
  • Page 40 Wall Mounting Template 8346-382-115-BA 40 - Compact Dialer Issue 1, January 1999...
