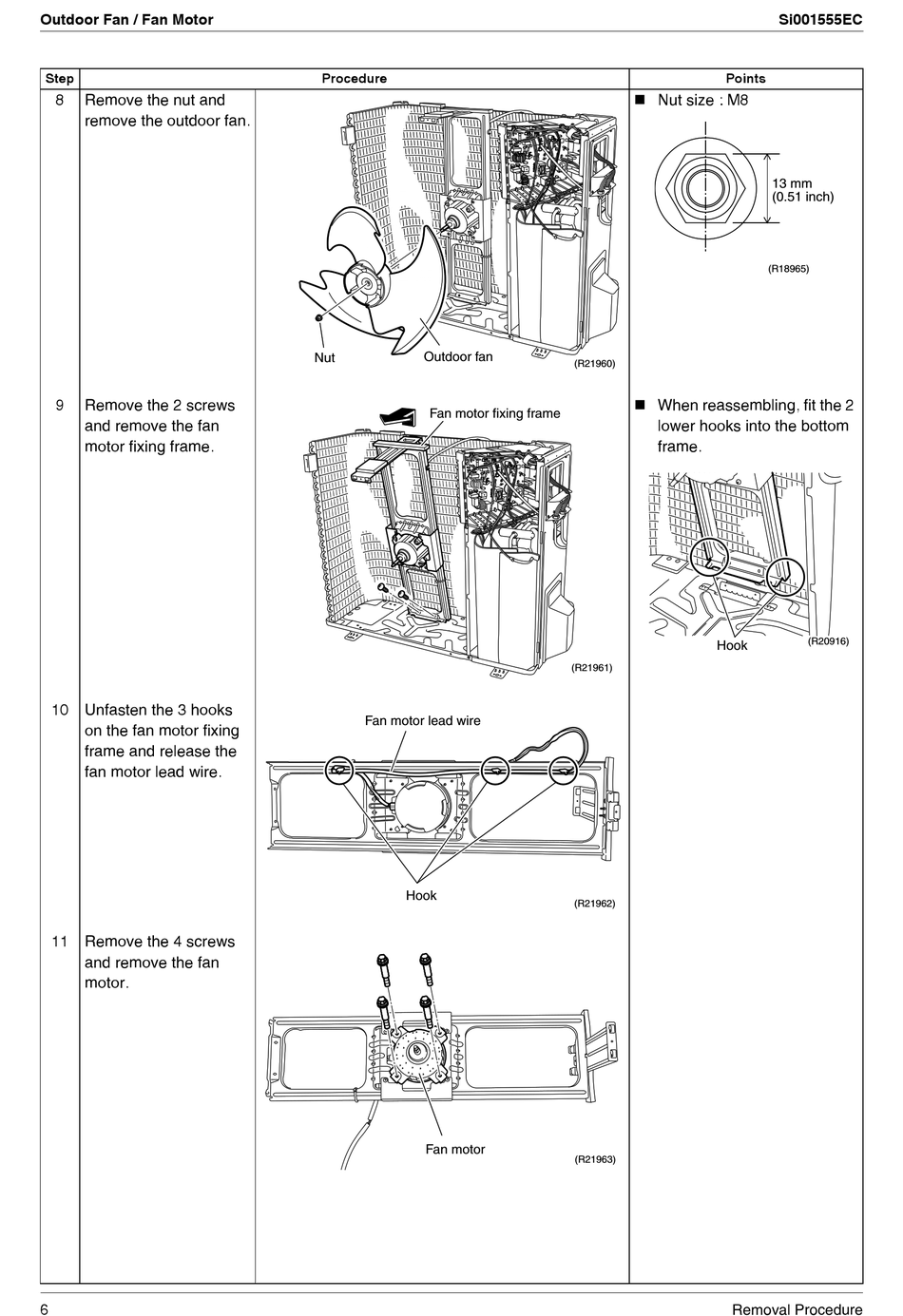

Daikin RK18NMVJU Service Manual page 8

Outdoor Fan / Fan Motor
Step
8 Remove the nut and
remove the outdoor fan.
9 Remove the 2 screws
and remove the fan
motor fixing frame.
10 Unfasten the 3 hooks
on the fan motor fixing
frame and release the
fan motor lead wire.
11 Remove the 4 screws
and remove the fan
motor.
6
Procedure
Outdoor fan
Nut
Fan motor fixing frame
Fan motor lead wire
Hook
Fan motor
Points
 Nut size : M8
(R21960)
 When reassembling, fit the 2
lower hooks into the bottom
frame.
Hook
(R21961)
(R21962)
(R21963)
Removal Procedure
Si001555EC
13 mm
(0.51 inch)
(R18965)
(R20916)
