Daikin RK18NMVJU Service Manual page 7

Si001555EC

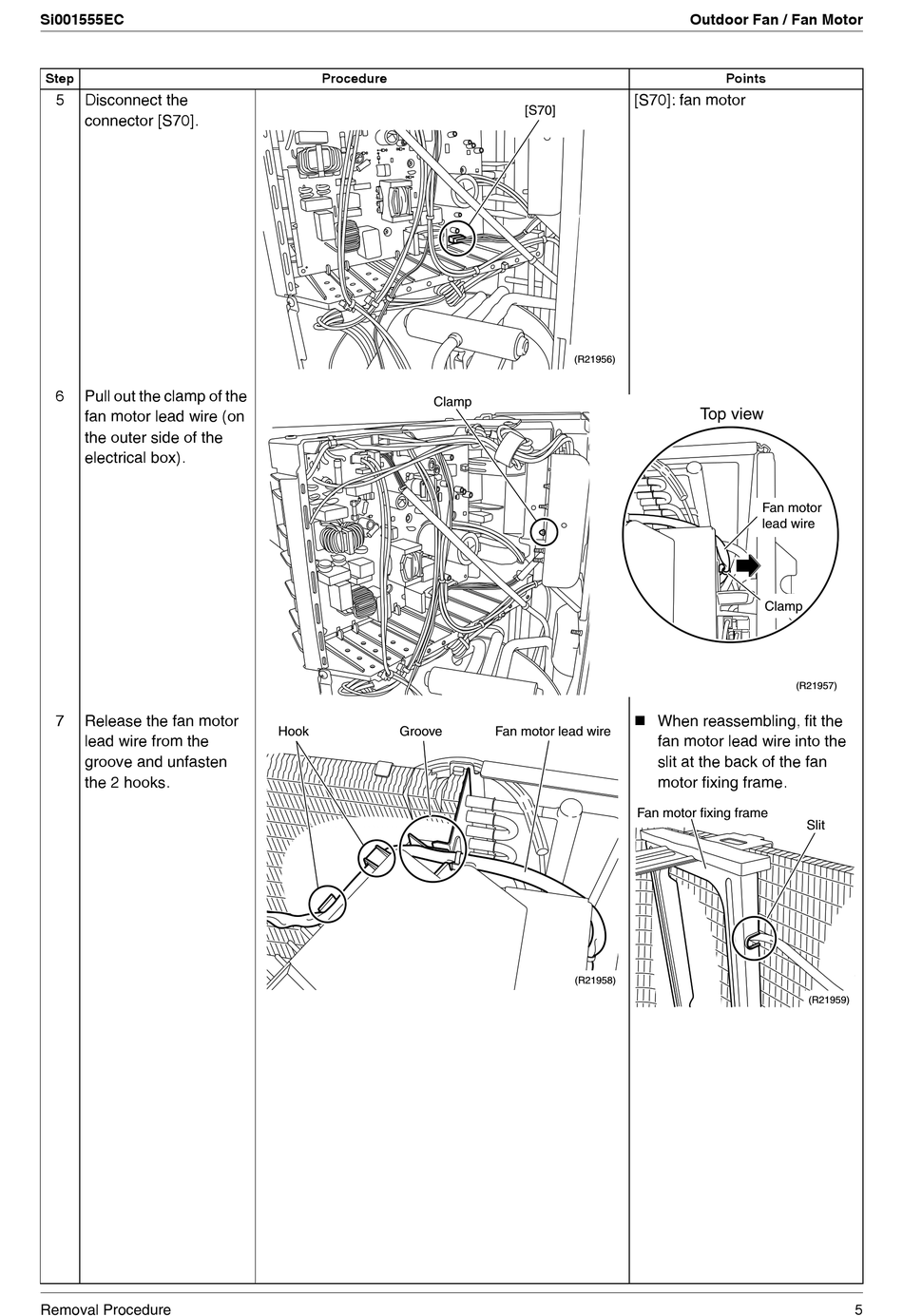

Step
5 Disconnect the
connector [S70].
6 Pull out the clamp of the
fan motor lead wire (on
the outer side of the
electrical box).
7 Release the fan motor
lead wire from the
groove and unfasten
the 2 hooks.
Removal Procedure
Procedure
Clamp
Hook Groove
[S70]: fan motor
[S70]
(R21956)
 When reassembling, fit the
Fan motor lead wire
fan motor lead wire into the
slit at the back of the fan
motor fixing frame.
Fan motor fixing frame
(R21958)
Outdoor Fan / Fan Motor
Points
Top view
Fan motor
lead wire
Clamp
(R21957)
Slit
(R21959)
