Owner's Manual

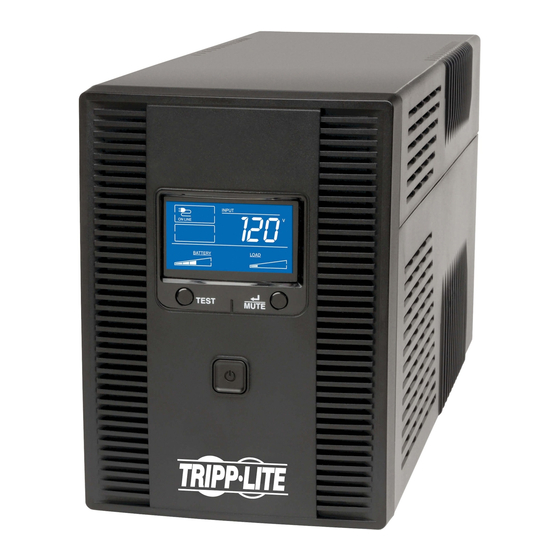

LCDT-Series UPS System
Model: SMX1500LCDTA
(Series Number: AG-04F3)
TEST
MUTE
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved. SmartPro
TEST
2
3
4
4
5
6
6
7
7
8
9
10
11
is a registered trademark of Tripp Lite.
®
1
MUTE

Advertisement

Table of Contents
loading

Related Manuals for Tripp Lite LCDT Series

Summary of Contents for Tripp Lite LCDT Series

  • Page 1: Table Of Contents

    Enable/Disable Alarm Self-Test Error Messages Features Battery Replacement Storage and Service Product Registration 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support Copyright © 2020 Tripp Lite. All rights reserved. SmartPro is a registered trademark of Tripp Lite. ®...
  • Page 2 Important Safety Instructions SAVE THESE INSTRUCTIONS This manual contains instructions and warnings that should be followed during the installation, operation and storage of this product. Failure to heed these warnings may affect the warranty. UPS Location Warnings • Install your UPS indoors, away from excess moisture or heat, conductive contaminants, dust or direct sunlight. •...

  • Page 3: Important Safety Instructions

    The batteries are recyclable. Refer to your local codes for disposal requirements or visit tripplite.com/support/recycling- program for recycling information. Tripp Lite offers a complete line of UPS System Replacement Battery Cartridges (R.B.C.). Visit Tripp Lite on the Web at tripplite.com/products/battery-finder/ to locate the specific replacement battery for your UPS.

  • Page 4: Quick Installation

    1. Make sure that the UPS is plugged into a live AC outlet. 2. Press and hold the POWER BUTTON for one second to turn on the UPS. A beep should sound when the UPS starts. 3. If the UPS still does not start, contact Tripp Lite Tech Support for assistance.

  • Page 5: Basic Operation

    Basic Operation UPS ON/OFF • Plug the UPS into a live, grounded outlet. The LCD display will illuminate, the battery charger will engage as necessary and the SURGE PROTECTED outlets will begin passing power. Before turning the UPS on, the input voltage range of the UPS can be selected after plugging it into a live grounded outlet.

  • Page 6: Lcd Display

    Basic Operation continued LCD Display The LCD Display indicates a variety of UPS modes and operating conditions. To view the various screens, press the button while the UPS is operating in line or battery power mode. The LCD DISPLAY is shown here fully illuminated to identify all available icons and labels.

  • Page 7: Display Ups/Power Conditions

    Basic Operation continued Display UPS/Power Conditions Line Power Mode LCD Data The LCD screen offers 6 screens of UPS and site power information as the UPS is operating in line power mode. To advance to the next screen, press the button.

  • Page 8: Self-Test

    If this occurs, charge the batteries for 12 hours and repeat the self-test. If there is another failure, contact Tripp Lite for battery replacement options. If the UPS passes the self-test, the LCD screen will read “PAS”. Connected equipment can remain on during the test.

  • Page 9: Features

    5. USB Communication Port: This port can connect your UPS to any computer for automatic file saves and unattended shutdown in the event of a power failure. Use with Tripp Lite’s PowerAlert Software (available as a FREE download at tripplite.com) and appropriate USB cable. A USB cable is included with your UPS. This connection is optional. Your UPS will work properly without this connection.

  • Page 10: Battery Replacement

    Refer to “Battery Warnings” in the Safety section for complete battery safety information. Your UPS requires two Tripp Lite RBC51 replacement battery cartridges. For further information about replacement compatibility and ordering, visit Tripp Lite on the Web at tripplite.com/support/battery/index.cfm.

  • Page 11: Storage And Service

    Any damages (direct, indirect, special or consequential) to the product incurred during shipment to Tripp Lite or an authorised Tripp Lite service centre is not covered under warranty. Products shipped to Tripp Lite or an authorised Tripp Lite service centre must have transportation charges prepaid. Mark the RMA number on the outside of the package.

  • Page 12: Product Registration

    Regulatory Compliance Identification Numbers For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information.
