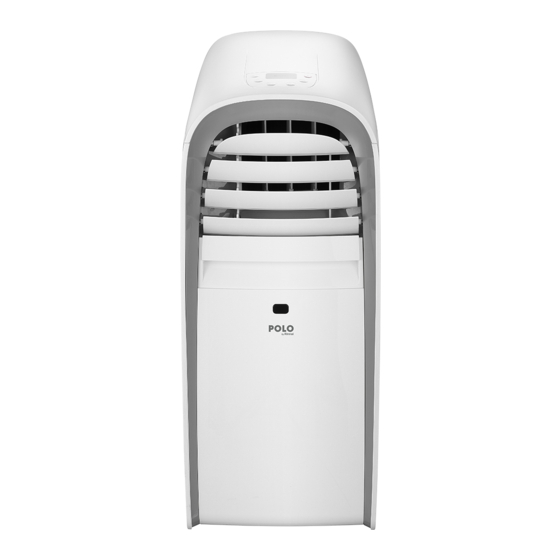

- Page 1 Models: REFRIGERANT R290 EX10C POLOCOOL Portable Room Air Conditioner Operation & Installation Manual Page 1...
- Page 2 Before proceeding with the operation of your new Rinnai Portable Room Air Conditioner, please read this manual thoroughly and gain a full understanding of the requirements, features and operation of your new appliance.
-
Page 3: Table Of Contents
Table of Contents Important Information Safety Precautions Warnings and Important Information .....................13 Introduction Mandatory Inspection Prior to Installation .....................14 Specifications Description of each part and function Selection of Installation Location ......................16 Assembly of Exhaust Hose, Hose Inlet, Hose Outlet and Window Slider ..........16 Installation Mounting of Assembled Air Exhaust Hose .....................17 Window Slider Installation ........................18... -
Page 4: Important Information
Important Information Important Topics Regarding the Proper Use of this Air Conditioner Please contact your supplier for advice before returning unit Use this air conditioner only as described in this instruction manual. This appliance is fitted with a special safety device. When the compressor switches off or when the appliance is first turned on, this device prevents the compressor from switching on again for at least three minutes. -
Page 5: Safety Precautions
Safety Precautions Safety Precautions Read Safety Precautions Before Operation and Installation Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire. To prevent death or injury to the user or other people and property damage, the following instructions must be followed. - Page 6 In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning. • Your air conditioner should be used in such a way that it is protected from moisture. • e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid.
- Page 7 Disconnect the power if strange sounds, smell, or smoke comes from it. • • Do not press the buttons on the control panel with anything other than your fingers. Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has •...
- Page 8 WARNING for Using R290 Refrigerant Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). Do not pierce or burn.
- Page 9 1.Transport of equipment containing flammable refrigerants See transport regulations 2.Marking of equipment using signs See local regulations 3.Disposal of equipment using flammable refrigerants See national regulations. 4.Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions. 5.Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.
- Page 10 8)Checks to the refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: The charge size is in accordance with the room size within which the refrigerant containing parts are installed;...
- Page 11 Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. 10.
- Page 12 14.Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.
-
Page 13: Warnings And Important Information
Introduction This portable air conditioner can alter the room temperature and humidity. It has multiple functions of cooling, dehumidifying (drying) and fan ventilation, and can be moved from room to room and transported from building to building easily. In addition, the desired humidity level can be set between 35-85%. The air conditioner can maintain set room indoor air temperatures between 18°C and 32°C. -
Page 14: Mandatory Inspection Prior To Installation
For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be installed or operated under any circumstances. Installation of damaged or incorrect appliances may contravene local government regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the installation or operation of damaged or incorrect appliances. Page 14... -
Page 15: Description Of Each Part And Function
Description of each part and function Page 15... -
Page 16: Selection Of Installation Location
Installation INSTALLATION Selection of Installation Location SELECTION OF INSTALLATION LOCATION (Fig.3) Place the portable air conditioner in a flat location where the air inlets and outlets cannot be covered up. Place the unit no less than 50cm away from a wall or other obstacle. In addition a minimum 50cm clearance is required from all faces of the air conditioner including the rear face. -
Page 17: Mounting Of Assembled Air Exhaust Hose
Mounting of Assembled Air Exhaust Hose Page 17... -
Page 18: Window Slider Installation
Window Slider Installation Page 18... -
Page 19: Description Of The Control Panel
Operating Instructions Description of the Control Panel Page 19... -
Page 20: Operating From The Control Panel
Operating from the Control Panel Page 20... - Page 21 MODE • Ideal to reduce room humidity (spring and autumn, damp rooms, rainy periods, etc). In dry mode, the appliance should be prepared in the same way as for cool mode, with the air exhaust hose attached to enable the moisture to be discharged outside. To set this mode correctly: •...
-
Page 22: Description Of The Remote Control
Operating from the Remote Control Description of the Remote Control DESCRIPTION OF THE REMOTE CONTROL 1. Mode indicator - COOL I DEHUMIDIFY (DRY)/ FAN 2. Sleep indicator 3. Timer on 4. Timer off 5. Auto speed indicator 6. Fan speed indicator 7. -
Page 23: Operating From The Remote Control Operating The Remote Control
OPERATING FROM THE REMOTE CONTROL Operating the Remote Control ON/OFF BUTTON 1. Press the ON/OFF button to turn the unit ON or OFF. 2. Each time the unit is turned ON it will start operation in last selected mode. ( SLEEP ) SLEEP FUNCTION �... -
Page 24: Timer
Timer [(9] (TIMER) TIMER FUNCTION The Timer Function is used to set the ON or OFF time interval of the unit. This function can only be set using the remote control. Timer ON and Timer OFF can not be set concurrently, only one or the other can be set at any one time. The air conditioner must be running in the desired operating settings before selecting either the Timer ON °... -
Page 25: Self Diagnosis
Self Diagnosis Page 25... -
Page 26: Continuous Drainage
Water Drainage WATER DRAINAGE METHOD This air conditioner is equipped with the very latest MIST technology which means that the water tank generally never needs emptying even in high humidity areas. Water drainage will generally only be required at the end of the season (see End of Season Operations - page 27) NOTE As a safety measure, to positively prevent water spillage, the air conditioner is equipped with a fail safe device, if, the water tank fills. -
Page 27: Cleaning
Maintenance Cleaning Page 27... -
Page 28: Troubleshooting
Troubleshooting Page 28... -
Page 29: Terms Of Warranty - Australia
Terms of Warranty - Australia Rinnai Australia Pty. Ltd. ABN 74 005 138 769, 100 Atlantic Drive, Keysborough VIC 3173. NOTICE TO CONSUMERS UNDER AUSTRALIAN CONSUMER LAW Our goods and services come with guarantees that cannot be excluded under the Australian Consumer Law. - Page 30 Normal Business Hours by an Authorised Service Representative. Repair by persons other than an Authorised Service Representatives may void the Warranty. 2.4 Alternatively to clause 2.3 above, Rinnai can at its discretion elect to pay you an amount equivalent to the cost of repairing or replacing the Product.
- Page 31 “7 Purchaser’s Responsibilities” on page 32; c) notifies Rinnai within 30 days of a defect occurring or, in the case of a latent defect, becoming apparent, that a claim is being made under this Warranty; and d) provides, in support of the claim made under this Warranty, a Proof of Purchase.
- Page 32 Rinnai to enquire about alternative arrangements. If you wish to make a warranty claim in respect of any fixed Product, please contact Rinnai on the details set out below to make arrangements for an Authorised Service Representative to inspect the product.
- Page 33 NOTES Page 33...
- Page 34 NOTES Page 34...
- Page 35 NOTES Page 35...
-
Page 36: Contacts
Monday to Friday, 8.00 am to 5.00 pm EST. *Cost of a local call higher from mobile or public phones. www.mypolo.com.au For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au innai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your innai appliance.
