Bunn CWA-APS Illustrated Parts Catalog

Bunn CWA-APS Illustrated Parts Catalog

Bunn cwa-aps: reference guide
Hide thumbs Also See for CWA-APS:
Table of Contents

Advertisement

Quick Links

See also: Operation & Service Manual
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC

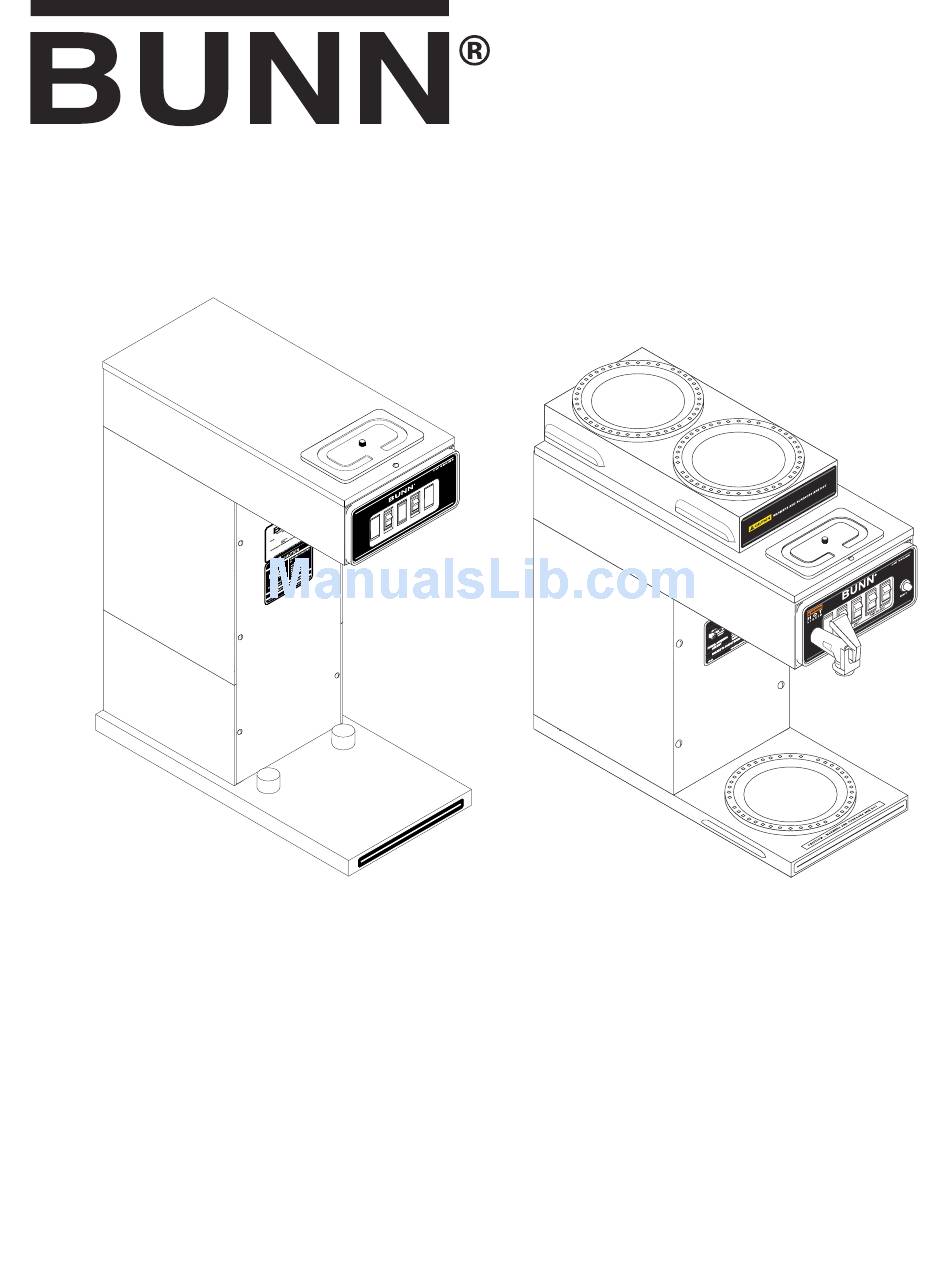

ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
www.bunnomatic.com
10716.0001 10/03 ©1998 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading

Related Manuals for Bunn CWA-APS

Summary of Contents for Bunn CWA-APS

  • Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 www.bunnomatic.com 10716.0001 10/03 ©1998 Bunn-O-Matic Corporation...
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Electrical and Operating Controls ... 24 Faucet and Tubing ... 22 Funnels and Filter Basket ... 28 Fill Basin ... 12 Hood and Top Covers - Automatics W/Warmer ... 8 Hood and Top Covers - Automatics ... 10 Hood and Top Covers - Pour Overs ...

  • Page 4: Trunks, Extensions And Panel

    ® BUNN EARLY CWA - TS Models TRUNKS, EXTENSIONS AND PANELS 16 12 3 CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC 10716.1 031003 P1459.75...
  • Page 5 ITEM PART NO. QTY. 25352.0001 25352.0007 27928.1000 34061.1002 34061.1004 34081.1000 02308.0000 26225.0000 00656.0000 00831.0000 23318.0001 23319.0001 25144.0002 25144.0019 01382.0000 00988.0000 00658.0000 00754.0001 22740.0000 23321.0002 23321.0003 22306.0000 22999.0000 02332.0002 00670.0000 27929.0000 02308.0000 25137.0001 22748.0001 02308.0000 28233.0000 24600.0000 32540.0000 TRUNKS, EXTENSIONS AND PANELS DESCRIPTION Trunk W/Decals, SST (11.69"...

  • Page 6: Hood And Top Covers - Pour Overs

    ® BUNN HOOD AND TOP COVERS - POUR OVERS CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC P1458 10716.1 021500...
  • Page 7 HOOD AND TOP COVERS - POUR OVERS ITEM PART NO. QTY. 12981.0001 13110.0000 20615.0000 12978.0000 20616.0000 25324.1000 01303.0000 00916.0000 00833.0000 02999.0000 13350.0006 02308.0000 DESCRIPTION Lid/Chain Kit (Includes items 2, 3, 4 & 5) Lid, Pour-In Rivet, Drive .187" Dia. Chain Assy, Lid Washer, Nylon .194"...

  • Page 8: Hood And Top Covers - Automatics W/Warmer

    CWA-APS,TS ® BUNN HOOD AND TOP COVERS - AUTOMATICS W/WARMER CWTA-APS,TS CWTFA-APS,TS,TC P2763 10716.1 091603...
  • Page 9 HOOD AND TOP COVERS - AUTOMATICS W/WARMER ITEM PART NO. QTY. 02722.0000 25353.0001 01303.0000 00916.0000 02999.0000 13350.0006 02308.0000 02765.0000 01592.0000 02732.0000 01315.0000 DESCRIPTION Lid, Pour-In Cover W/Decal, Top (Includes item 5 & 6) Screw, Pan Head #4-40 x .50" Clip, J-Type #4-40 x .50" Plug, Hole 1.19"...

  • Page 10: Hood And Top Covers - Automatics

    CWA-APS,TS ® HOOD AND TOP COVERS - AUTOMATICS BUNN CWTA-APS,TS CWTFA-APS,TS,TC P1460 10716.1 021500...
  • Page 11 HOOD AND TOP COVERS - AUTOMATICS ITEM PART NO. QTY. 02722.0000 01319.0000 00912.0000 02999.0000 25310.0001 01303.0000 00916.0000 13350.0006 02308.0000 DESCRIPTION Lid, Pour-In Screw, Thumb #8-32 x .75" Clip, J-Type #8-32 Plug, Hole 1.19" Dia (Early models) Cover Assy, Top Screw, Pan Head #4-40 x .50" Clip, J-Type #4-40 x .50"...

  • Page 12: Fill Basin

    ® BUNN FILL BASIN CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC Early Models P-128 10716.1 031003...
  • Page 13 ITEM PART NO. QTY. 04270.0002 01212.0000 27514.0000 12928.0000 01426.0000 01201.0000 32063.0000 - - - - - - - - 28526.1000 FILL BASIN DESCRIPTION Fill Basin Fitting, Tank Inlet (Early models) Plate, Splash Guard Grommet, Fill Basin Weld Pin, .250" Dia. (Not used in Automatic Brewers) Gasket, Tank Inlet Fitting Tube, Silicone .313"...

  • Page 14: Tank And Components - Cwa - Cwta

    TANK AND COMPONENTS CWA - CWTA ® BUNN “CWA” MODELS CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC P1461 10716.1 021500...
  • Page 15 TANK AND COMPONENTS CWA - CWTA ITEM PART NO. QTY. -------------- -------------- 01315.0000 00912.0000 04133.0000 04118.0000 01927.0000 04221.0000 25158.0002 00908.0000 00942.0000 29329.1000 00943.0000 01925.1000 23769.0000 23768.0000 11431.0002 00908.0000 05515.0000 05518.0000 22918.0000 22918.0001 04776.0000 20211.0100 ------------- 01075.0000 01082.0000 01082.0005 DESCRIPTION Tank Assy, 1850W 220V (CWA Models) (Includes items 1 thru 6, 8 thru 16)(Not available.

  • Page 16: Tank And Components - Cwtfa

    &200V W/O WARMER) TANK AND COMPONENTS - CWTFA 04227.0001 02308.0000(2) 07073.0000 00942.0000 (2) 00400.0001 (2) 12687.0000(2) 04680.0000 00943.0000 (2) 12688.0000 (2) 04236.0000 (1320W/120V) 20939.0000 (1600W/100V) CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC 14 15 00908.0000 (3) 11431.0002 KIT 12903.0002 00908.0000 (8) 05518.0000 12689.0000 P1462 10716.1 021500...
  • Page 17 ITEM PART NO. QTY. -------------- -------------- 01315.0000 00912.0000 04133.0000 04118.0000 01927.0000 04221.0000 25158.0003 00908.0000 00400.0001 12687.0000 12688.0000 12689.1000 29329.1000 00942.0000 00943.0000 01925.1000 04637.1000 20211.0100 23768.0000 11431.0002 00908.0000 05515.0000 05518.0000 01075.0000 01082.0000 01082.0005 22918.0001 -------------- TANK AND COMPONENTS CWTFA DESCRIPTION Tank Assy, 3500W 240V (Includes items 1 thru 18)(Not available. Order compo- nents) Tank Assy, 1850W 220V (Includes items 1 thru 18)(Not available.
  • Page 18 STRAINER - FLOW CONTROL - SOLENOID AND LINES ® BUNN NON - FAUCET MODELS CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC Solenoid Valve Repair Parts P1463 10716.1 021500...
  • Page 19 STRAINER - FLOW CONTROL - SOLENOID AND LINES NON - FAUCET MODELS ITEM PART NO. QTY. 24356.0222 22300.0222 22249.0000 23721.0000 - - - - - - - - 20526.1222 01155.0000 01154.0000 24354.0000 00459.0000 01532.0000 00463.0000 12645.0002 00402.0001 07441.0000 02308.0000 28005.0000 01327.0000 01502.0000 28020.0000...
  • Page 20 STRAINER - FLOW CONTROL - SOLENOID AND LINES ® BUNN FAUCET MODELS 13 14 SOLENOID VALVE REPAIR PARTS CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC P1464 10716.1 021500...
  • Page 21 STRAINER - FLOW CONTROL - SOLENOID AND LINES ITEM PART NO. QTY. 24394.0222 26216.0000 20577.0001 22300.0222 21814.0016 26217.0000 22249.0000 23721.0000 -------------- 20526.1222 01155.0000 01154.0000 00459.0000 01532.0000 00463.0000 20690.0000 12645.0002 00402.0001 28007.0000 02329.0000 28005.0000 01327.0000 01502.0000 28020.0000 28021.0000 12914.0002 12928.0000 FAUCET MODELS DESCRIPTION Strainer/Flow Control Assy (.222 GPM) (Includes items 2 thru 6) Tube Assy, Flow Control to Tee...

  • Page 22: Faucet And Tubing

    CWA-APS,TS FAUCET AND TUBING ® BUNN CWTA-APS,TS CWTFA-APS,TS,TC Early Models P-134 10716.1 021500...
  • Page 23 ITEM PART NO. QTY. 20691.0001 20691.0000 13059.0000 01532.0000 12915.0000 13061.0000 13053.0000 02858.0000 13060.0000 13055.0000 13054.0000 13056.0000 13057.0000 13058.0000 - - - - - - - - FAUCET AND TUBING DESCRIPTION Tube Assy, Coil to Faucet (Early Models) Tube Assy, Coil to Faucet (Late Models) Faucet Jam Nut Lockwasher, Internal Tooth .438"...

  • Page 24: Electrical And Operating Controls

    ® BUNN ELECTRICAL AND OPERATING CONTROLS Early Models CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC 9 10 12 11 19 18 P1465.61 10716.1 063000...
  • Page 25 ELECTRICAL AND OPERATING CONTROLS ITEM PART NO. QTY. 27727.0000 27904.0000 12921.0000 23227.1006 23227.1005 23227.1007 02301.0000 00973.0000 22289.0000 22289.0002 28010.0004 28010.0005 28010.0003 27691.0001 00606.0000 12698.0002 01347.0000 02308.0000 01327.0000 01533.0003 - - - - - - - - 32400.0003 21717.0000 02367.0000 01510.0000 12919.0008 07038.0000 01317.0000...
  • Page 26 ELECTRICAL AND OPERATING CONTROLS ® BUNN Early Models (Continued) 19 18 CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC 9 10 12 11 P1465.61 10716.1 063000...
  • Page 27 ELECTRICAL AND OPERATING CONTROLS ITEM PART NO. QTY. 27705.0000 02308.0000 05746.0000 28004.0000 25102.0001 23696.0000 23697.0000 28051.0000 27946.0000 12985.0003 25347.0000 12919.0000 13352.0008 32400.0001 DESCRIPTION Terminal Lug Screw, Pan Head #8-32 x .375" Bushing, Strain Relief Switch, Heater ON/OFF (Includes 24) Bracket, Switch Indicator/Guard Facenut, Hex.

  • Page 28: Funnels And Filter Basket

    ® BUNN Gourmet 'C' Funnel FUNNELS AND FILTER BASKET CWA-APS,TS CWTA-APS,TS CWTFA-APS,TS,TC P2804 10716.1 063000...

  • Page 29: Funnels And Filter Basket

    ITEM PART NO. QTY. 20583.0003 20216.0000 34559.0000 33088.0000 34546.0000 28553.0000 34558.0000 20244.1000 01331.0002 01031.0000 03408.0002 03409.0002 32964.0000 28694.0000 FUNNELS AND FILTER BASKET DESCRIPTION Funnel, Plastic (Black)(Includes items 6 & 7) Funnel, SST W/Black Handle (Includes items 2 thru 5) Funnel, Gourmet 'C' SST (7.125" Flange O.D.)(Includes items 2,3,4,6,7 & 9) Filter Basket Filter Basket, Gourmet 'C' Funnel W/Decals, SST (Includes items 6 &...

  • Page 30: Warmer Assemblies

    CWA-APS,TS ® BUNN CWTA-APS,TS WARMER ASSEMBLIES CWTFA-APS,TS,TC UPPER AND SIDE WARMERS LOWER WARMERS P2765 10716.1 091603...

  • Page 31: Warmer Assemblies

    ITEM PART NO. QTY. 11440.0009 01303.0000 01303.0001 00916.0000 11440.0008 01303.0000 01303.0001 00916.0000 03656.0000 11438.0000 05212.0000 00970.0000 -------------- -------------- 12364.0000 28382.0000 00908.0000 02332.0003 21016.0131 21016.0027 12985.0003 04828.1001 WARMER ASSEMBLIES DESCRIPTION Warmer Assembly 100W 220V, Top Warmers (Includes items 3, 4 & 5) Screw, Pan Head - SST #4-40 x .50”...

  • Page 32: Numerical Index

    PART NO. PAGE NO. PART NO. 00400.0001 ... 17 02765.0000 ... 9 00402.0001 ... 19,21 02858.0000 ... 23 00459.0000 ... 19,21 02999.0000 ... 7,9,11 00463.0000 ... 19,21 03408.0002 ... 29 00606.0000 ... 25 03409.0002 ... 29 00656.0000 ... 5 03656.0000 ... 31 00658.0000 ...
