Bunn CT Illustrated Parts Catalog

C, ct, cwtf series including dv, mv, pourover, aps/tc/ts, twins & single cw
Hide thumbs Also See for CT:
Table of Contents

Advertisement

Quick Links

See also: Operation & Service Manual
C, CT, CWTF Series
Including DV, MV, Pourover,
APS/TC/TS, Twins & Single CW
Supercedes Illustrated Parts Catalogs:
10716.####; 10789.####; 10790.0000;
10834.0000; 10895.0000; 33175.0000; 35279.0000

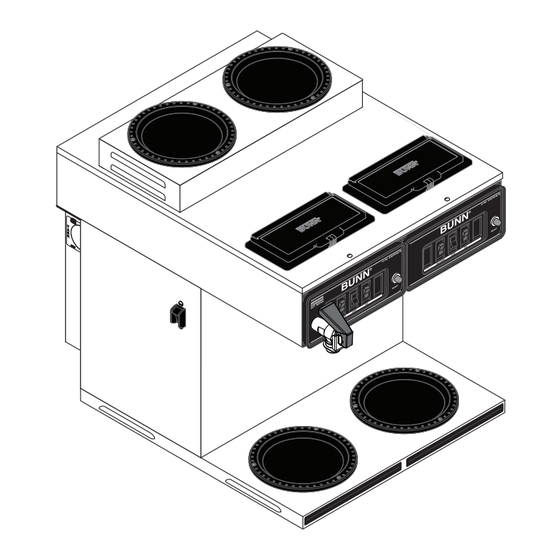

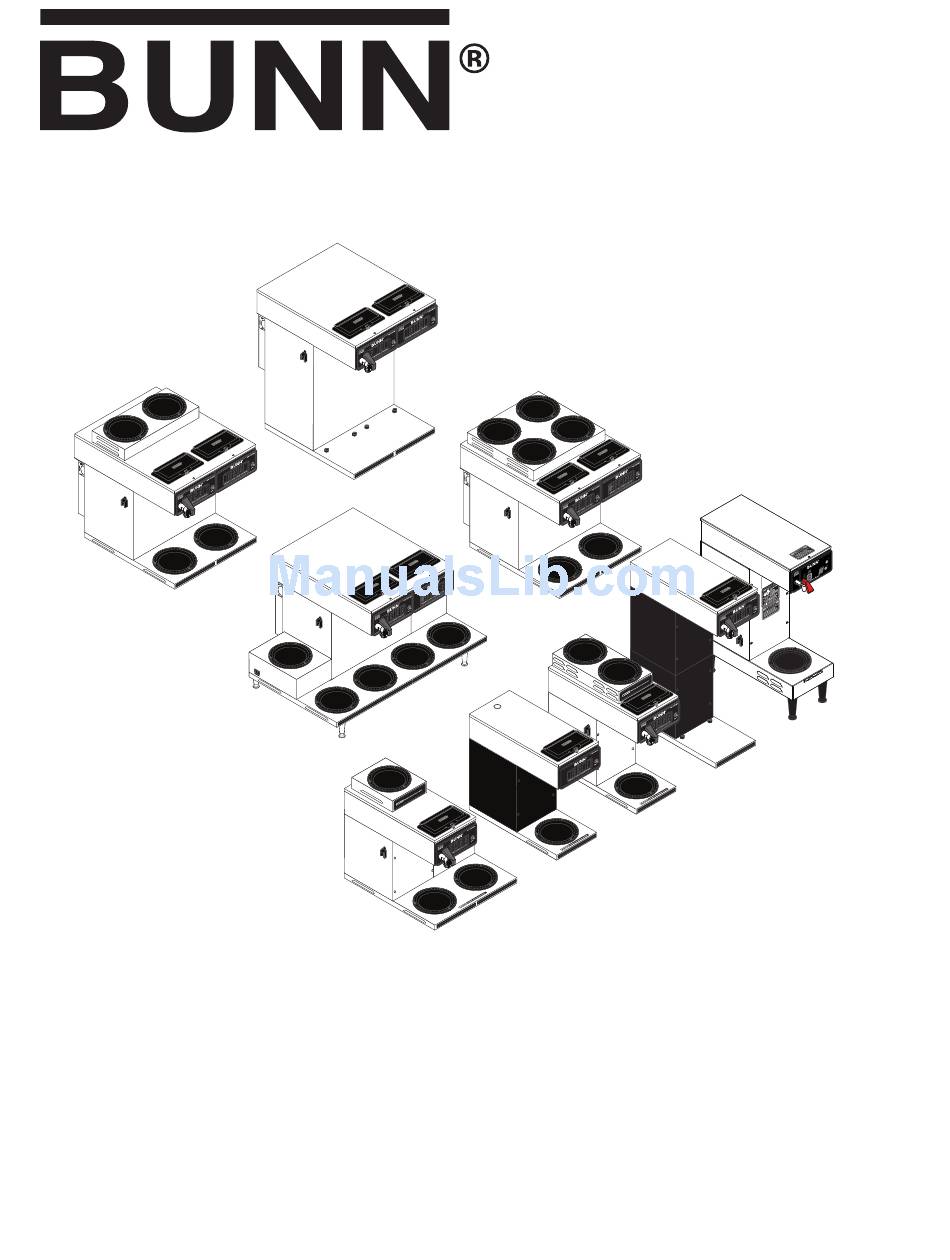

ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifi cations, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
40566.0000A
10/07 ©2006 Bunn-O-Matic Corporation
www.bunn.com
