Communication Ports
The RUGGEDCOM RP110 comes equipped with a standard BNC port for IRIG-B out,
an RS232/RS422/RS485 pluggable terminal for serial connections, and a 10Base-T
copper Ethernet port for connection with RUGGEDCOM WIN5000 Series devices.
2
1
1
2
3

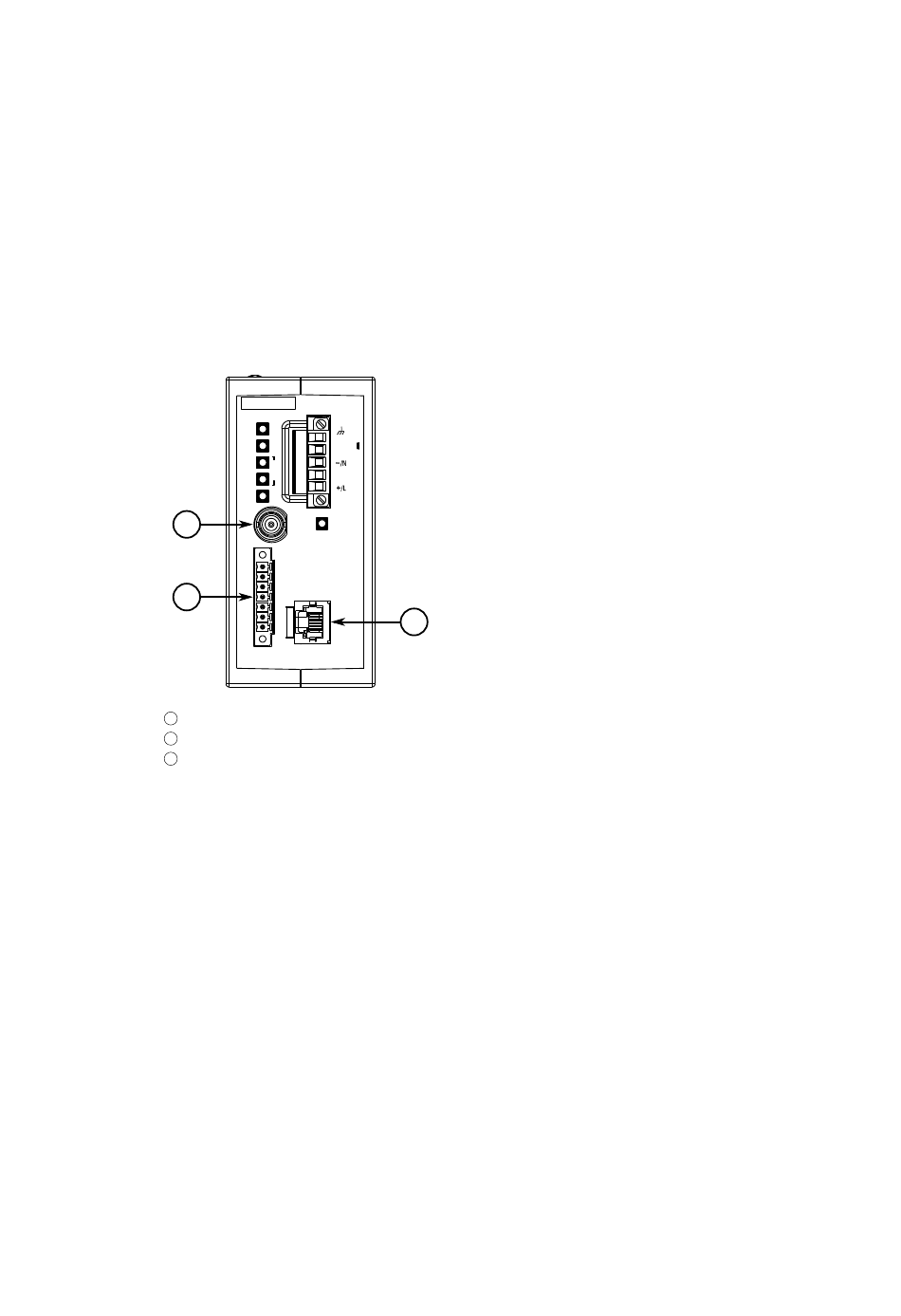

Figure 4.1
4.1
Serial Terminal
The RUGGEDCOM RP110 is equipped with a seven-terminal Phoenix-style connector.
This connector can accommodate one RS232 connection, and one RS485/422
connection.
The serial terminal serves a dual purpose:
•
•
RUGGEDCOM RP110
Installation Manual, 01/2021, C79000-G8976-1012-04
RS232/RS422/RS485 Serial Terminal
BNC Port
Copper Ethernet Port
Port Assignment
The RS232 terminals allow for a direct interface with the device to access initial
management functions
The RS422/RS485 terminals allow for half or full duplex serial connections
respectively
3
4
15
