Summary of Contents for Boss Audio Systems BV9700
- Page 2 FEATURES Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. • A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders.
-
Page 3: Table Of Contents
CONTENTS Safety Information ...4 Disc Notes...5 Installation...6 The Player ...9 Electrical Connections...11 Remote Control ...12 Location and Function of Keys...12 Preparing the Remote Control...15 Loading/Ejecting a disc ...15 Loading a Disc...15 Ejecting a Disc ...15 Operation ...16 Basic Operation ...16 Disc (DVD, VCD, CD, MP3) Operation...20 Radio Operation...26 TV Operation...27... -
Page 4: Safety Information
SAFETY INFORMATION CAUTION: MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. -
Page 5: Disc Notes
DISC NOTES Disc formats supported by this player 12 cm disc (Single-sided disc only) Video CD 12 cm disc 12 cm disc 12 cm disc Handling and Cleaning • Dirt, dust, scratches and warping disc will cause misoperation. • Do not place stickers or make scratches on discs. -
Page 6: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. - Page 7 INSTALLATION Tabs Screwdriver 6. Reconnect the wire harness and the antenna and be careful not to pinch any wires or cables. 7. Slide the unit into the sleeve until it locks into place. 8. To further secure the unit, use the supplied metal strap to secure the back of the unit in place.
- Page 8 INSTALLATION To fasten the unit to the factory radio mounting brackets. 1. Align the screw holes on the bracket with the screw holes on the unit, and then tighten the screws on each side. 2. Fasten with the supplied truss screws (5x5mm) or flush surface screws (4x5mm), depending on the shape of the screw holes in the bracket.
-

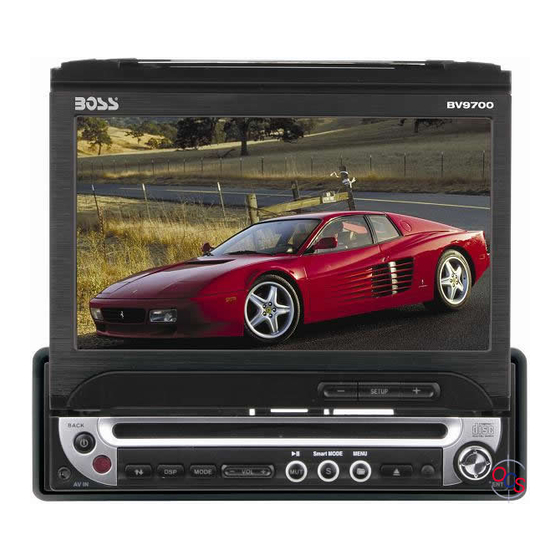

Page 9: The Player
THE PLAYER FRONT VIEW Remove the front panel: Closed Position 3 15 6 10 12 13 Open Position 3 15 6 10 12 13 4 14 4 14... - Page 10 THE PLAYER (BACK) 2. AV IN 3. (OPEN/CLOSE) (EJECT) 5. Disc Slot 6. MODE 7. VOL 8. + 9. - /MUT 11. 7“ COLOR TFT MONITOR 12. S (Smart MODE) (MENU) 15. DSP 16. ENT 17. SETUP 18. LOC 19. MO/ST 20.
-
Page 11: Electrical Connections
ELECTRICAL CONNECTION 15 14 13 12 11 10 9 FUSE 4-SPEAKER SYSTEM (GREEN/BLACK) (GREEN) (WHITE/BLACK) (WHITE) (GRAY/BLACK) (GRAY) (VIOLET/BLACK) (VIOLET) BRAKE (PINK) Connect to the negative side of the parking brake. FR (RED) PREAMP OUTPUT FL(WHITE) RR (RED) RL (WHITE) (WHITE) AV-INPUT(BLACK) (RED) -
Page 12: Remote Control
REMOTE CONTROL LOCATION AND FUNCTION OF KEYS 2 2 2... - Page 13 REMOTE CONTROL Press POWER button to turn the unit ON or OFF. EJECT Press to eject the disc. OP/CL Press to open/close the screen display. SUBT(BACK) Changes of the SUBTITLE language on multi-subtitle language DVD disc. In the MENU mode, press BACK can return to the previous menu.
- Page 14 REMOTE CONTROL 30. VOL- 31. RPT 32. A-B 33. AS/PS(BOOKMK) 34. BAND(PBC) 35. MUTE 36.TV-DVD-AUDIO Press VOL- button to decrease the volume level. Switch the Repeat mode of discs. A-B repeat allows a passage to be repeated continuously. In radio mode, press it to activate Automatic Memory Storing/Program Scanning function.
-
Page 15: Preparing The Remote Control
REMOTE CONTROL Remote Control Inserting the Battery 1. Open the battery compartment cover. 2. Insert the new batteries. Make sure that the positive and negative terminals of the battery are oriented as indicated. 3. Close the cover Battery: One button cell lithium battery. -
Page 16: Operation
OPERATION BASIC OPERATION Turning the player on/off Press and hold button on the front panel for several seconds or press remote control to turn the player on or off.(Note: Shortly press front panel will return the previous menu.) Open/Close the Monitor and Angle Adjustment •... - Page 17 OPERATION Remote Sensor There is a remote sensor on the front panel. You can point the remote control handset to the remote sensor on the front panel and press function keys on the remote control to control the DVD unit. The unit is also connected to an external remote receiver (See the electrical connection diagram above), and the...
- Page 18 OPERATION In EQ menu, use button to change the sound mode. In Treble menu, use or Level, use / to adjust the corresponding item. In Bass menu, use / cursor button to adjust Freq/Level/Q.Fac. In Loudness menu, use / to change the Loud on or off.
- Page 19 OPERATION The operation of Picture menu and Panel menu please refer to the before description. In ZoneCtr menu,you can adjust the the mode of the front or rear speakers. Use to select front speaker or rear speaker. Use / to change the speaker’s mode.
-
Page 20: Disc (Dvd, Vcd, Cd, Mp3) Operation
OPERATION NOTE (FOR THE UNIT WITH TEL-MUTE AND BRAKE FUNCTION): • When there is an incoming call, the unit will be in mute state, and “TEL MUTE” appears on the screen display. • If the brake wire isn’t connected to the ground wire of the parking brake, the picture will not be shown on the screen in DVD/TV/AV mode for safety purpose. - Page 21 SETUP REPEAT PLAY/ PARAGRAPH REPEAT PLAY Repeat play: When you want to repeat playing the whole disc or a track or a chapter in the disc. 1)Press RPT button repeatedly to select different repeat modes. 2)For different kinds of disc, pressing RPT button has different effects.
- Page 22 SETUP For how to set the program menu, please refer to the operation of the audio files in the media player below. Note: • After you have programmed the tracks, press PROG button can switch between program play and normal play.
- Page 23 SETUP 4) In Movie page, press on the remote control ENT button on the front panel to open the highlight folder in the play list or play the corresponding file. Music Photo Movie List 1-14053_2mpeg 2-BB_MPEGYEMANNVYOU.mpe 3-badluck.mpeg NOTE: For audio CD, the play interface and operation is similar with the Music page operation.
- Page 24 SETUP Example: MP3: (1) Press DSP for the first time will display the elapsed time of the disc: 00 : 00 : 55 (2) Press DSP for the second time will display the clock: 01 : 17 (3) Press DSP for the third time, the massage will resume: (1) Press DSP for the first time: REPT ALL...
- Page 25 SETUP 1/17 Item: Title Function: Display the current title number and the total title number; it can skip to the desired title number. Method: buttons or use numeric buttons to input and confirm with OK button on the remote control or ENT button on the front panel.
-
Page 26: Radio Operation
SETUP changed. In PBC OFF mode, use numeric buttons to input time and confirm with OK/ENT button. Stereo Item: Audio Function: Display the current audio mode; it can switch to other audio mode. Method: buttons or press AUD button. Normal Item: Sound Function: Display the current sound mode;... -
Page 27: Tv Operation
OPERATION And it will hold at each station for about 5 seconds. - Automatic memory storing Press and hold AS/PS button on remote control for about several seconds or press AS/PS button on the front panel, the radio searches from the current frequency and checks the signal strength until one cycle search is finished. -
Page 28: Setup
SETUP In DVD mode, when the disc is playing or in stop mode, press SETUP on the remote control to enter setup menu. • When the cursor is on the topside, use buttons to move between the different pages. • Press button to move the cursor to the setup page below and then you can buttons to move between the... -
Page 29: Audio Setup
SETUP AUDIO SETUP • When you open the AUDIO menu, you will see the following picture: AUDIO Dolby Digital Bitstream Bitstream Sample Freq. 48kHz Digital Output • “Dolby Digtial” means the Dolby digital out type. There are “Bitstream” and “PCM” to be selected. Bitstream: When connecting to the amplifier or other devices with the Dolby Digital Decoder, DTS Decoder... -
Page 30: Other Table
SETUP • “ Country Code” is used to set the country code. The code information standing for original producing area country will be written in every DVD disc when it is produced. There are two characters standing for the name of the country. -
Page 31: Trouble Shooting
TROUBLE SHOOTING If it appears that your DVD unit is faulty, first consult this checklist. It may be that something simple has been overlooked. Under no circumstances should you try to repair the player yourself, as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player. -
Page 32: Specification
SPECIFICATIONS GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Maximum Output Power Current Drain TV Sensitivity RADIO Frequency Coverage Sensitivity (S/N = 30 dB) : 4 V Image Rejection Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB) : 36 dBV Image Rejection : 4 x 80 watts : 15 Ampere (max.) -
Page 33: Specifications
SPECIFICATIONS Signal system Discs played Monitor Screen Size Resolution Note: Specifications and design are subject to modification, without notice, due to improvements in technology. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
