M S-7392 M ainboard

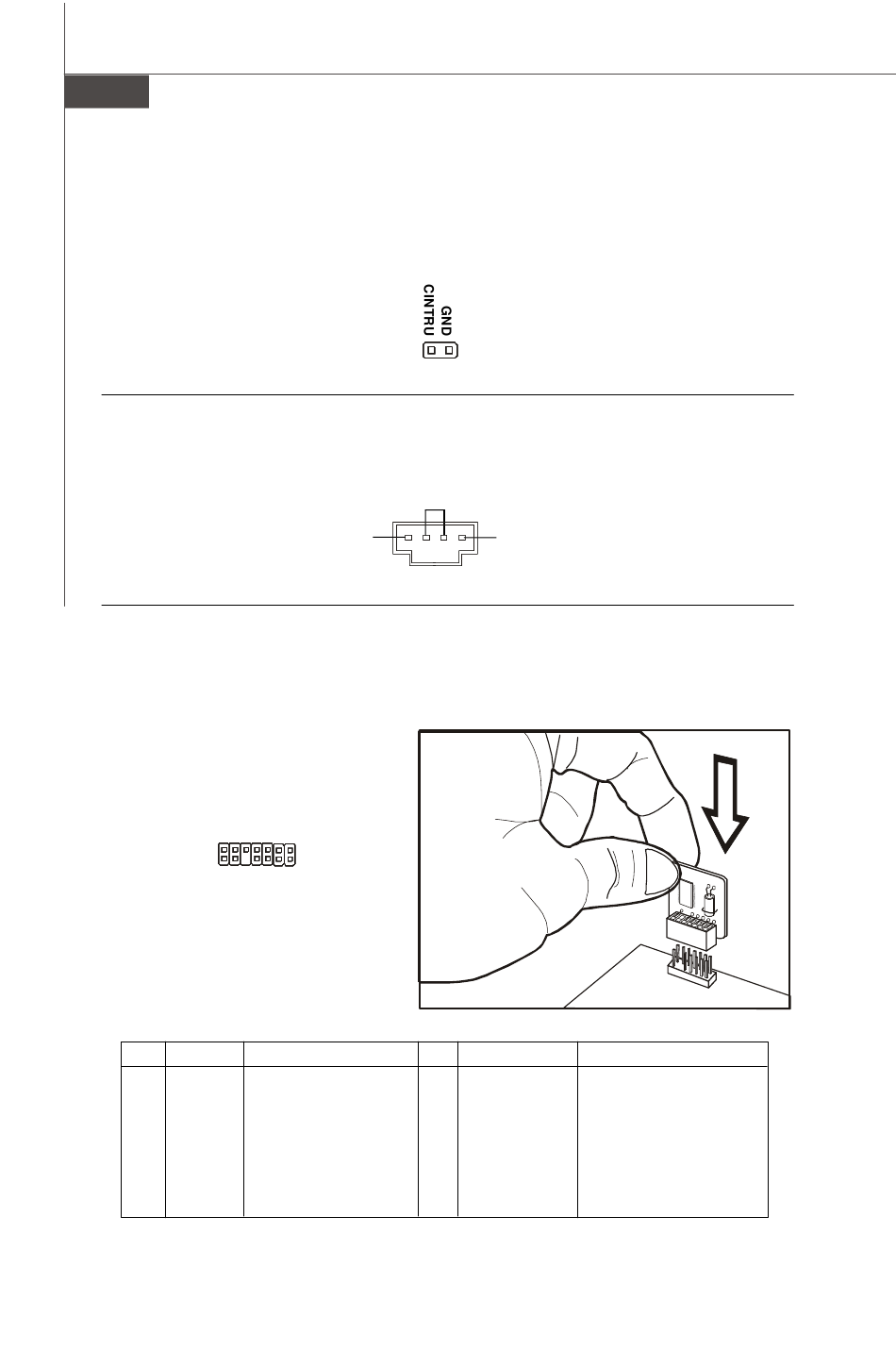

Chassis Intrusion Switch Connector: JCI1
This connector connects to a 2-pin chassis switch. If the chassis is opened, the
switch will be short. The system will record this status and show a warning mes-
sage on the screen. To clear the warning, you must enter the BIOS utility and clear the
record.
CD-In Connector: JCD1
This connector is provided for external audio input.
TPM Module connector: JTPM1
This connector connects to a TPM (Trusted Platform Module) module. Please refer to
the TPM security platform manual for more details and usages.
13
14
JTPM 1
Pin
Signal
Description
1
LCLK
LPC clock
3
LRST#
LPC reset
5
LAD0
LPC address & data pin0
7
LAD1
LPC address & data pin1
9
LAD2
LPC address & data pin2
11
LAD3
LPC address & data pin3
13
LFRAME#
LPC Frame
En-16
2
1
JCI1
GND
L
JCD1
1
2
Pin
2
4
6
8
10
12
14
R
Signal
Description
3V dual/3V_STB
3V dual or 3V standby power
VCC3
3.3V power
SIRQ
Serial IRQ
VCC5
5V power
KEY
No pin
GND
Ground
GND
Ground
