Bridged Mode - Boss Audio Systems Outcast OL2400 User Manual

Power and Speaker Wiring

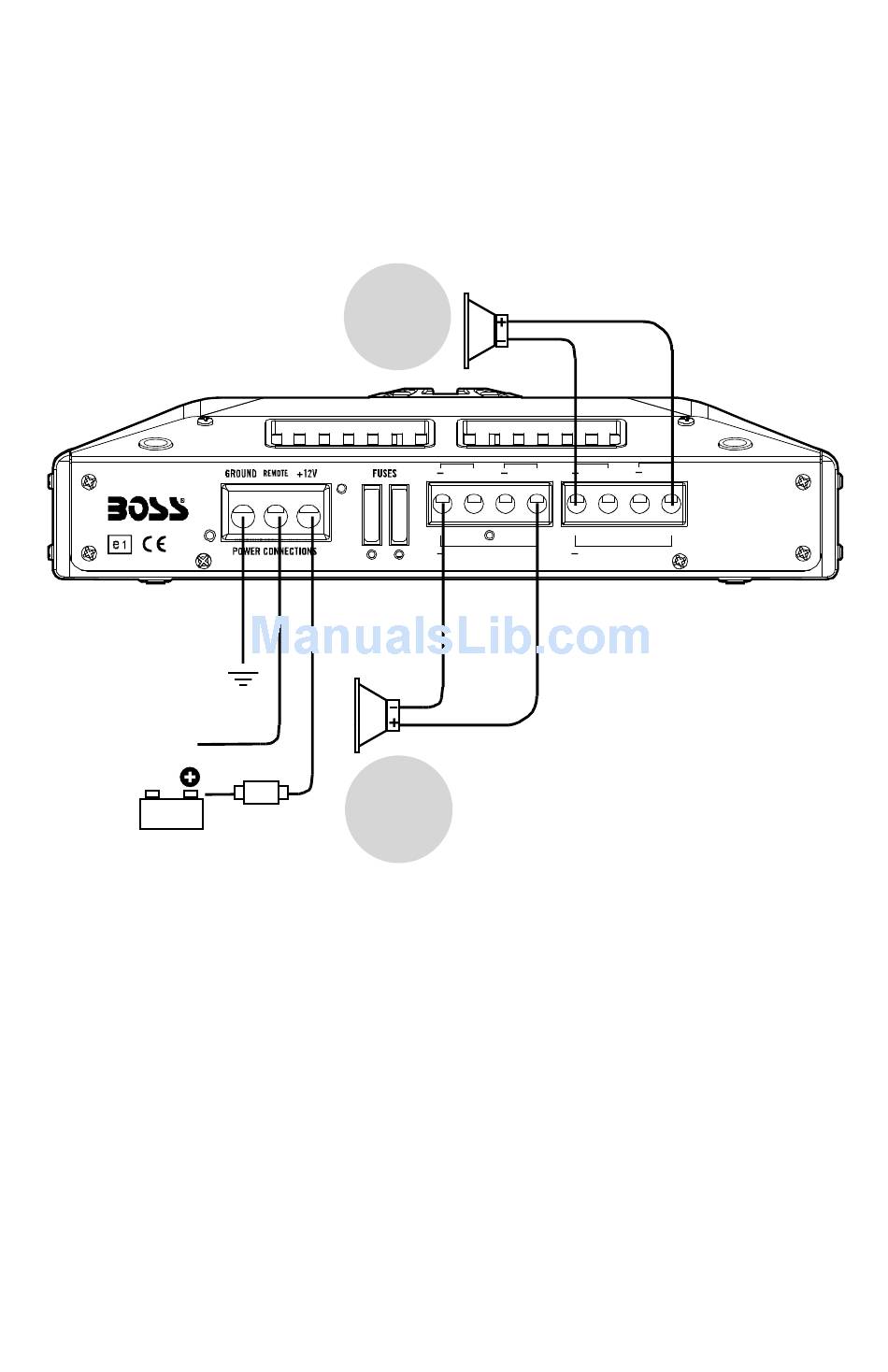

Bridged Modes
Bridged
Mode
Chassis
to REMOTE TURN-ON
terminal of head unit
Battery
SPEAKER
IMPEDANCE
4-8 OHMS
LEFT
Subwoofer
ground
point
SPEAKER
IMPEDANCE
FUSE
4-8 OHMS
4-Channel Amplifiers
OL1800 and OL2400
Connect the Negative (-) terminal of the
RIGHT subwoofer to the CH2 (-)
amplifier terminal.
Connect the Positive (+) terminal of
RIGHT
the RIGHT subwoofer to the CH1 (+)
Subwoofer
amplifier terminal.
+ + +
4 3 2
CH CH CH
+
CH3/4

BRIDGED MODE

CH1/2 BRIDGED MODE
Connect the Negative (-) terminal of
the LEFT subwoofer to the CH4 (-)
amplifier terminal.
Connect the Positive (+) terminal of
the LEFT subwoofer to the CH3 (+)
amplifier terminal.
OUTLAW MOSFET Amplifier User's Manual - page 9
1 +
CH
SPEAKER
CONNECTIONS
+
