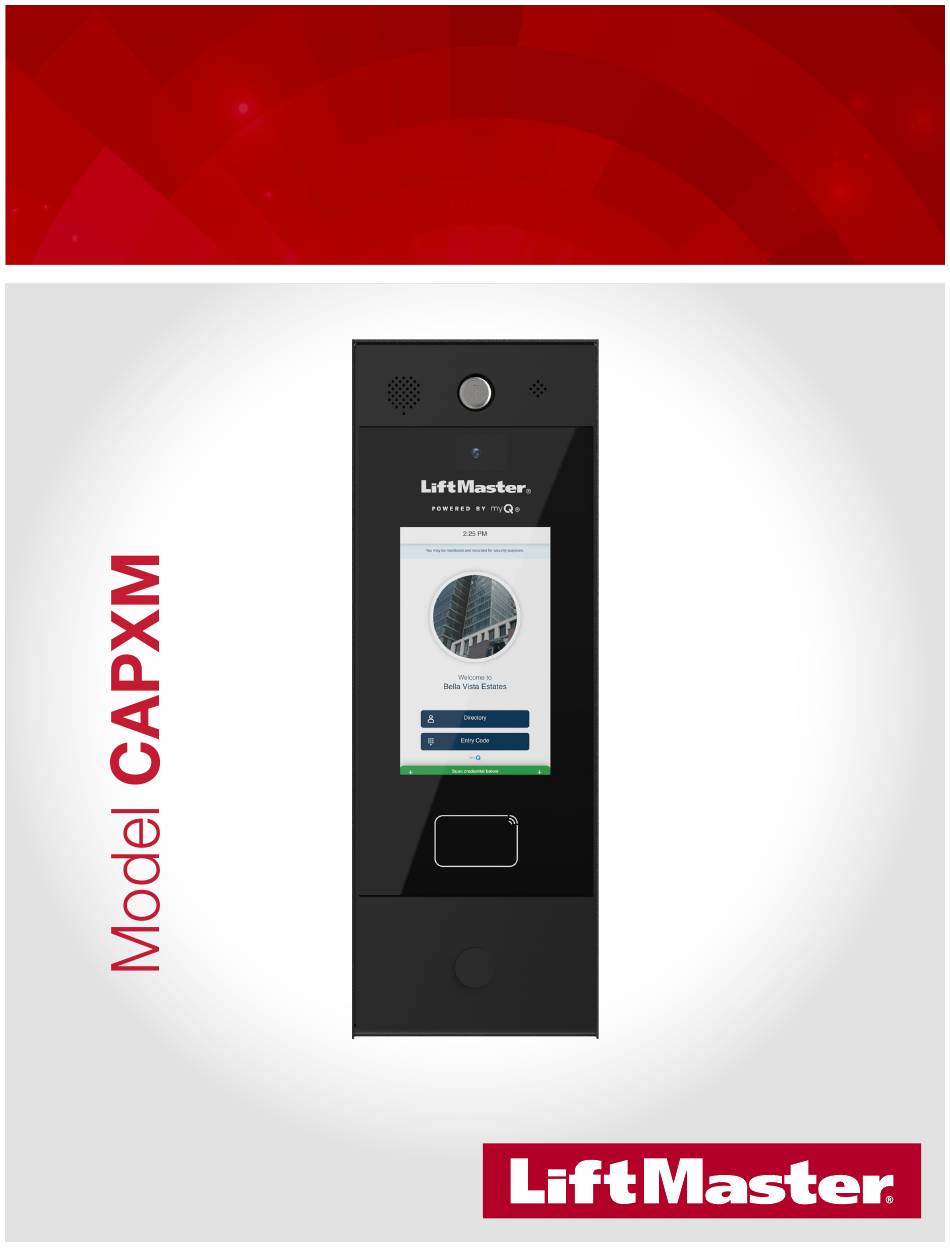

- Page 1 Business™ ® Smart Video Intercom M INSTALLATION MANUAL...
- Page 2 Safety Safety Symbol and Signal Word Review When you see these Safety Symbols and Signal Words on MECHANICAL the following pages, they will alert you to the possibility of serious injury or death if you do not comply with the warnings that accompany them.
-
Page 3: Table Of Contents
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL INTRODUCTION INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL CAPXM Overview ............4 Control Board Overview ..........5 Door Board Overview ............ 6 Carton Inventory ............7 Tools Needed ..............7 Dimensions ..............8 System Specifications ........... 8 INTRODUCTION PRE-INSTALL INSTALL... -
Page 4: Introduction
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL CAPXM Overview Smart Video Intercom M (Model CAPXM) is a cloud based access control solution INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL that includes an integrated video camera enabling advanced video features. SPEAKER INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL... -
Page 5: Control Board Overview
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Control Board Overview INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Switches and Diagnostic LEDs Microphone Speaker INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL + 3.4 FRONT VIEW BACK VIEW Volts Admin Mode Not Used Touch Panel + Voltage + 12 + 3.3... -
Page 6: Door Board Overview
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Door Board Overview INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL The CAPXM has a combination of access control inputs/outputs on the Door Board that work in conjunction to control up to 2 access points. DOOR BOARD Door 1 PRIMARY RELAY... -
Page 7: Carton Inventory
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Radio Antenna (Security+ 2.0 ® and Cable Ferrite Core Wi-Fi ® Carton Inventory INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Goose-neck Gasket INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Power Supply S10K30MOV PK625 Keys (2) (Metal Oxide Varistor)(4) INTRODUCTION PRE-INSTALL INSTALL... -
Page 8: Dimensions
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Dimensions FRONT VIEW SIDE VIEW BACK VIEW INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL 6-1/8 in (15.6 cm) 4 in 2.25 in (5.7 cm) (10.2 cm) 1-1/4" Conduit INTRODUCTION PRE-INSTALL INSTALL NETWORK Knockout ACCESS CONTROL 15 in (38.1 cm) 17 in (43.2 cm) 8.43 in... -
Page 9: Introduction Wire Specifications
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Wire Specifications Use this chart to pull wires in preparation of your installation. Check the national and local building codes BEFORE installation. INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL DESCRIPTION OF WIRE RUN WIRE SPECIFICATION MAXIMUM RUN DISTANCE Power Wire, secondary DC output 2-Conductor 14 AWG... -
Page 10: Internet Requirements
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Internet Requirements When selecting a router, use the information below to ensure compatibility. INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL MODEL: CAPXM - Smart Video Intercom M CAPXM can be connected to a router via a wired connection or Wi-Fi. LiftMaster recommends a minimum upload/download speed of 5Mbps for each CAPXM supporting video camera feeds. -
Page 11: Setup A Myq ® Business™ Account
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL The following services are required for CAPXM to fully function Setup a myQ Business Account ® ™ INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL NOTE: If you have an existing myQ account, your myQ Business account will have the ®... -
Page 12: Remove Knockouts
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Remove Knockouts Prepare the work surface by laying down a cloth or To prevent damage to the CAPXM from moisture or water: INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL other protective material. • DO NOT install during rain. Internal components MUST be kept from of water and moisture. -
Page 13: Introduction Mount The Capxm
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Mount CAPXM Make sure the CAPXM is properly sealed to Attach the goose-neck gasket (provided) if mounting to a goose-neck. prevent damage to the CAPXM from moisture. INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL 2. Mount the CAPXM securely to a flat surface or pedestal with appropriate (1/4 in.) hardware taking care to route wiring through appropriate knockouts. -
Page 14: Install The Ground
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Install the Ground IMPORTANT: An earth ground rod is strongly recommended and should be no To AVOID damaging gas, power or INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL further than 12 feet (3.7 m) from the CAPXM and use a minimum of 12 gauge other underground utility lines, contact underground utility locating wire in most cases. -
Page 15: Connect Power
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Connect Power The outlet for the CAPXM MUST be an external dedicated 120 Vac outlet. • DO NOT use ANY power supply other INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Refer to the table below for maximum wire run distances. This outlet should than those supplied with your CAPXM. -
Page 16: Connect Internet
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Connect Internet The CAPXM can connect to the Internet with a wired connection or with Wi-Fi (wireless). See page 10 for Internet ® requirements. Make sure you are in the Admin Mode before you connect to the Internet. If you are not in Admin Mode, flip switch #1 to the ON position on the Control Board, press the Network tab on the CAPXM display, and INTRODUCTION PRE-INSTALL... -
Page 17: Gate Access (Wired)
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Gate Access (Wired) Disconnect power BEFORE making electrical connections. Below is an example of a wiring setup for gate access. Gate access can be wired to Door 1 or 2 on the Door Board. LiftMaster Security+ 2.0 gate operators can also be programmed to communicate wirelessly ®... -
Page 18: Gate Access (Wireless)
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Gate Access (Wireless) The CAPXM can communicate wirelessly to LiftMaster UL325 gate operators to send open commands, monitor gate position, and send ® email notifications if an error occurs in the operator (email notifications are configured in myQ Business™). -
Page 19: Door Access
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Door Access Disconnect power BEFORE making electrical connections. Below is an example of a wiring setup for door access. Door access can be wired to Door 1 or 2 on the Door Board. WIEGAND NOTE: The length of the unshielded KEYPAD READER... -
Page 20: Rfid Reader
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL LiftMaster LMSC1000 RFID Reader Wiring Diagram Arming Loop Detector (Optional) Set Switch #5 to “ON” to enable. Power Transformer Power Loop Solid Black +12 V Arming RESET Loop Black w/Dash Detector - 12 VDC (GND) LP_INL LP_INH +12 V... -
Page 21: Wiegand Output
INTRODUCTION PRE-INSTALL INSTALL NETWORK ACCESS CONTROL Wiegand Output Disconnect power BEFORE making electrical connections. The CAPXM offers a Wiegand output capable of 26-bit transmission of the following data: • Success Call with access granted by the resident. The CAPXM will provide a myQ Business™...
