BELL SYSTEM PRACTICES
AT& TCo Standard
1.
GENERAL
1.01
This section contains identification, installation,
operating features, connections, and maintenance
information for the 831- and 2831-type telephone
sets.
1 .02
This section is reissued to:
Add 647AH5 key
Add Table C
Revise Tables B and F
Make wiring changes in sets equipped with
new line switch
Show necessary w1rmg changes when sets
are used with speakerphone (Table
Revise dial restriction information (Table D
and Fig. 6)
Add 533K diode for use with station busy
lamp.
2.
IDENTIFICATION
Purpose
2.01
The 831- (Rotary dial) and 2831- (TOUCH-TONE®
dial, Fig. 1) type telephone sets are obtainable
as modular or complete desk-type, 20-button, key
telephone sets equipped to provide standard key
system features.
Refer to Table A for available
colors.
Application
2.02
Us e d w i t h c e n t r a l o f f i c e , P B X o r
intercommunication line circuits in 1A1, 1A2,
or 6A KTS.
These sets are not equipped for use
with 1A KTS.
TELEPHONE SETS
831- AND 2831-TYPE
I)
2.03
may be used with the 3-type speakerphone.
However, due to the limited number of mounting
cord conductors an auxiliary mounting cord (D10R)
may be required.
Optional Components
2.04
NOTICE
Not for use or disclosure outside the
Bell System except under written agreement
Printed in U.S.A.
Issue 8,
RECALL BUTTON
( 831 OM AND 2831 OM
TELEPHONE SETS ONLY)

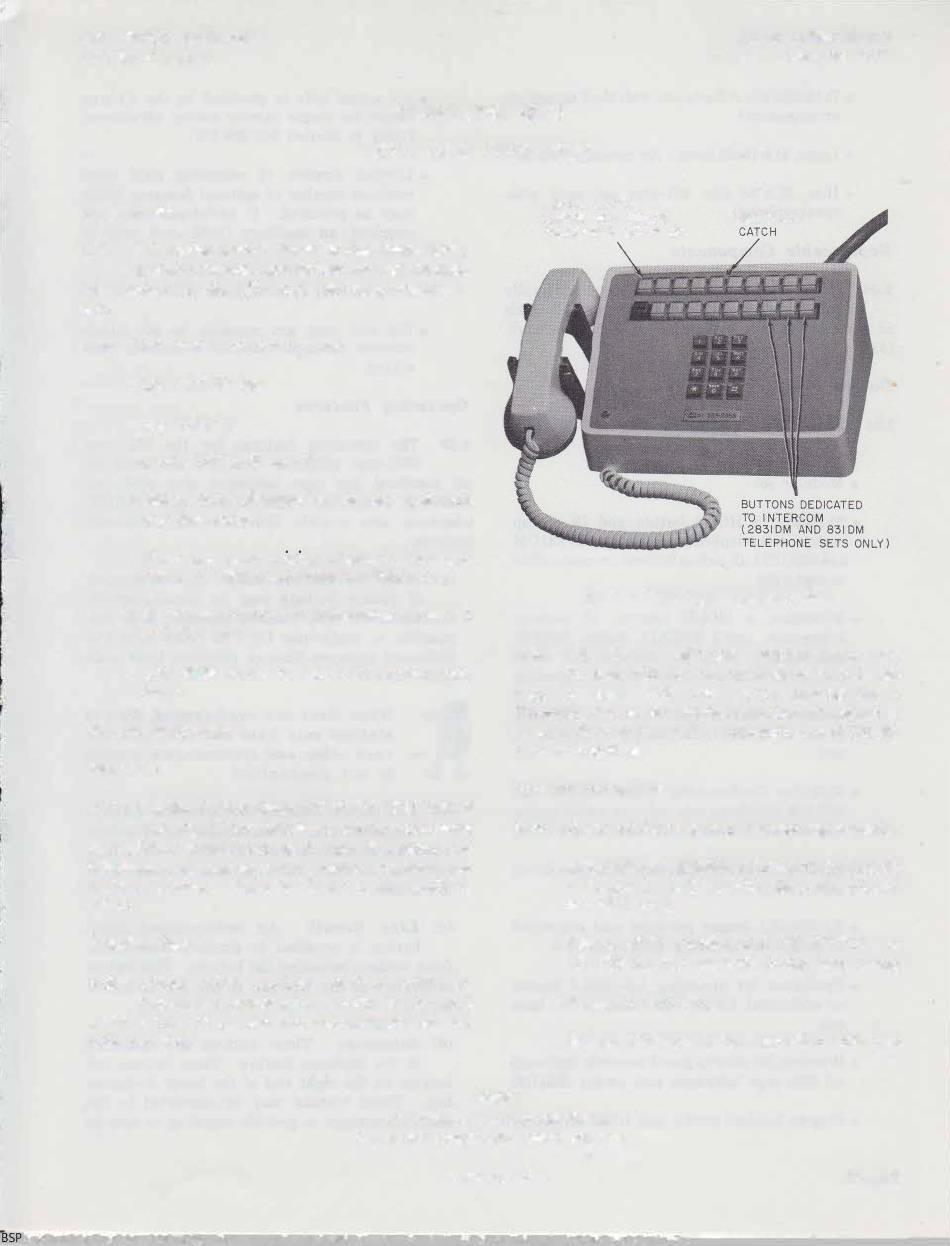

Fig. 1- 2831-Type Telephone Set
All 831- and 2831-type telephone sets may
be used with the 4A speakerphone. All sets
Optional Components (order separately):
819041708 (P-90D190) • or 819041971 (P - 90Dl97)
(adhesive backed) Polarity Guard• (optional
for 2831-type)
Diode, 533K (preferred), KS-21765L1, or
KS-15724L1 (for use with station busy lamp)
Buzzer, KS-8109L2
Buzzer, KS-20419L1 (one provided with set)
17:05:�1-
SECTION S03-702-1 01
December 1977
FACEPLATE
Page 1

Advertisement

loading

Summary of Contents for AT&T 831 Series

  • Page 1 BELL SYSTEM PRACTICES SECTION S03-702-1 01 Issue 8, December 1977 AT& TCo Standard TELEPHONE SETS 831- AND 2831-TYPE RECALL BUTTON ( 831 OM AND 2831 OM FACEPLATE GENERAL TELEPHONE SETS ONLY) 1.01 This section contains identification, installation, operating features, connections, and maintenance information for the 831- and 2831-type telephone sets.
  • Page 2 SECTION 503-702-101 • • D-180656 Kit of Parts (for wall shelf mounting An access hole is provided in the P1-type arrangement) ringer for ringer biasing spring adjustment (refer to Section 501-259-101) • Lamp, 51A (hold button for message waiting) • Limited number of mounting cord leads •...
  • Page 3: Installation

    ISS 8, SECTION 503-702-101 used for CO/PBX lines. However, CO/PBX lines 3.04 Dial Restrictio: when terminated at these positions will not be conferenceable. (1) 831-Type Telephone Set: (a) Install a 533K (preferred) KS-21765L1, or a 446F diode between terminals RR and INSTALLATION F of the network as shown in Fig.
  • Page 4 SECTION 503-702-101 Fig. 4 - 2831-Type Telephone Set with 819041708 (P-900170) Polarity Guard Installed Fig. 3 - D-180656 Kit of Parts for Wall Mounting Arrangements 3.05 Polarity guard (2831-type except the 2831DM; see 3.06) should be used only when specified by local instructions for end-to-end signaling installations where battery and ground reversals may be encountered.
  • Page 5: Maintenance

    SECTION 503-702-101 Refer to Division 501 for connections of these assembly, make wiring changes shown in Table I. handsets. When either of t hese handsets are used, The new line switch can be identified by two an H4CJ or equivalent handset cord must be used additional leads which are (BL).
  • Page 6 SECTION 503-702-101 CONNECTIONS 5.05 To provide 4A speakerphone connections refer to Section 512-740-470 and Table I. Due to the limited number of mounting cord conductors the telephone sets do 5.06 To provide polarity guard for all 2831-type no t f o l l o w s t and a r d w i r i n g telephone sets except the 2831DM, refer to...
  • Page 7 ISS 8, SECTION 503-702-101 HABLE Bt PICKUP-SIGNAL KEY CONVERSION (ALL TELEPHONE SETS EX CEPT OM) 647B5 KEY LEADS ( UPPER KEY) CONVERSION OPTION (NOTE) BL-BK BR-BK BK-BR BK-BL V-BR PPPPPPPPPP PPPPPPPPPS PPPPPPPPSS PPPPPPPSSS PPPPPPSSSS PPPPPSSSSS 647A5 KEY LEADS (LOWER KEY) CONVERSION OPTION (NOTE) BL-BK...
  • Page 8 SECTION 503-702-101 .TABLE C f PICKUP SIGNAL KEY CONVERSION (8310M OR 28310M TELEPHONE SET) 647AH5 KEY LEADS CONVERSION OPTION (NOTE) B L-BK BR-BK BK-BR BK-BL HPPPPPPPPP HPPPPPPPPS Connected via internal mounting cord wiring and terminated on HPPPPPPPSS Term. and can not be converted to signaling.
  • Page 9 SECTION 503-702-101 .TABLE D. DIAL RESTRICTION MODIFICATIONS (NOTE 1) LEAD REMOVE FROM CONNECT TO TELEPHONE FUNCTION COLOR NET. NET. Line Tip 831DM Line Tip 2831DM Line Ring Line Ring Line Tip 831CM and Line Tip 2831CM Mfg 2-77 or later Line Ring Line Ring Line Tip...
  • Page 10 SECTION 503-702-101 .TABLE F. STATION BUSY LAMP CONNECTIONS TABLE E POLARITY GUARD CONNECTIONS FOR 2831-TYPE TELEPHONE SET LEAD OPERATION REMOVE CONNECT TO Remove from terminal 22 FROM Hold Key and connect to 27 or other WIRE OR LEAD COLOR (G-W ) GUARD spare terminal NET.
  • Page 11 SECTION 503-702-101 TABLE H 2A1 MATRIX BLOCK LINE TERM. STATION TERM. LINE (LEFT) (RIGHT) *If more than 8 lines are provided, additional 2Al matrix blocks are required. Page BSP 503'702-101-i08_1977-12-ll.jpg Scanned by Fra nk Harrell, rcowboy Fran<) Castle Roc<, Coloraoo Oct OS, 2012...
  • Page 12 SECTION 503-702-101 • TABLE I. SPEAKERPHONE MODIFI CATION FOR TELEPHONE SETS EQUIPPED WITH NEW LINE SWITCH (NOTE) TELEPHONE LEAO REMOVE FROM CONNECT TO COLOR TERM. TERM. 831DM, 2831DM, or 831CM, and 2 831CM Mfg 2 -77 or later 831CM Mfg before 2-77 2831CM Mfg before 2·77...
  • Page 13 ISS 8, SECTION 503-702-101 RCVR G15A OR G12A H4DU OR HANDSET NETWORK P1 B RINGER LINE SWITCH H4DB HANDSET (NOTE JACK (NOTE 2) CORD � L2 ,. ( B K) � (Y-S) 81 � ( S -Y) R1 � '-" RCVR BCA OR G3A6 HANDSET...
  • Page 14 SECTION 503-702-101 G ISA HANDSET H4DU HANDSET NETWORK P18 RINGER LINE SWITCH CORD JACK (NOTE) f--- --7 I R I IBKI ( Y -S) 81 ( S -Y) R1 f--- --7 SCA O R DIAL NORit ( G ) NORM ( B l) I BL) I S )
  • Page 15 ISS 8, SECTION 503-702-101 15A HANDSET H4DU HANDSET NETWORK PlB RINGER LINE SWITCH / R l CORD JACK (NOTE) � ( R l ( B K) � ( Y -S) 81 � � ( S -Y) R1 BCA OR 8CA o SRA DIAL NORM ( 8 l)
  • Page 16 SECTION 503-702-1 0 1 H4DU OR H4DB CORD G12A OR G1SA G3A6 HANPSET H4CJ CORD HANDSET (,NOTE (NOTE 1) LINE HANDSET 3SAF3A OR 3SC3A DIAL SWITCH JACK (BK) (G) OR (0 ) (R-G) P1B RINGER (W-BL) (NOTE 2) (BK) ( Y -S) (BK) �...
  • Page 17 ISS 8, SECTION 503-702-101 NOTES, 1. LATER 2831 C TELEPHONE SET IS EQUIPPED WITH A G3AS HANDSET WHICH IS WIRED DIRECTLY TO THE TELEPHONE SET. EARLY PRODUCTION 2831 - TYPE TELEPHONE SETS WERE EQUIPPED WITH A G1 2 A PLUG-ENDED HANDSET. 2831Cit TELEPHONE SETS ARE EQUIPPED WITH G1 5 A HANDSET.
  • Page 18 SECTION 503-702-101 NOTES' 1. ON SETS PIANU F ACTlll E O BEFORE 2-77 EQUIPPED WITH NEW liNE SWITCH, TERII I NAlS B 16 ARE REVERSED. Cl'l 2. TERII I NAl B AND 16 ARE SET TERII I NAl BOARD. ()lj If SET HAS BEEN CONVERTED IN SERVICE CENTER TO A 2831 - TVPE AND HAS A 422BAA NETWORK lEADS SHOWN TERII I NATED ON S Will BE ON l1, AND RCVR...
  • Page 19 ISS 8, SECTION 503-702-101 PART OF �TING CORD { C ORD ASSEI'I I L Y AND TERMINAL BLOCK "' "' � "' "' "' "' � TABLE � { V i � { V ) { S -Y) � s 'f �...
  • Page 20 SECTION 503-702-101 PART OF PI O UNTING CORD (CORD ASSEMBlY *) AND TERMINAl BlOCK ..- N .,. N If) � � "' � C") - ..- ..CD N � � a: "' "' � � � :s �...
  • Page 21 ISS 8, SECTION 503-702-101 PART OF f'IJ U NTING CORD ( C ORD ASSEI'Ul L Y ANO TERMINAL BLOCK "' "' "' "' "' "' "' "' "' "' � "' "' � � � � � "' � < <0 1£...
  • Page 22 SECTION 503-702-101 PART OF MOUNTING CORD (CORD ASSEMBLY *) AND TERMINAL BLOCK C/) -1 � � � � � � � � > '" a. w .. � ( B L-BK) (BR-BK) � � � � � � � � �...
  • Page 24 SECTION S03-702-1 01 RCVR ( W ) G 15A HANDSET H4DU HANDSET NETWORK Pl B R I NGER LINE SWITCH CORD JACK � ( B K) L2 ;: ( Y -S) � ( S -Y) � 8CA OR 8RA DIAL ( W ) NORM ( W )
  • Page 25 ISS 8, SECTION 503-702-10 1 t IF SET HAS BEEN CONVERTED IN RCVR SERVICE CENTER TO A 2B31 - TYPE H4DU CORD G l SA HANDSET AND HAS A 422BAA NETWORK LEADS SHOWN TERMINATED ON S WILL BE ON L 1 AND LEADS SHOWN TERMINATED ON T WILL BE ON L2 AND TERMINAL F CANNOT BE USED AS A SPARE TERMINAL.
  • Page 26 SECTION 503-702-101 PART OF MOUNTIING CORD I 01 0 0K-87) m "' "' "' < ci � ci � (I) � � "' ... "' "' "' "' � "' "' "' <I: "' R1 ( S -Y) �� 81 ( Y -S) :i S "' A1 (Y)
  • Page 27 ISS 8, SECTION 503-702-101 PART OF MOUNTIING CORO ( 0 100K-87) "' "' "' "' "' "' "' "' "' < < � � ( B L) ( B L) ( B R OR Y) ( B R OR (BK-BR) ( B R-BK) IT W ( W )
  • Page 28 SECTION 503-702-1 01 PART OF I'IOU N TING CORD ( 0 100K-87) "' "' "' "' � "' "' "' "' "' "' >- � >- � � « « « '" '" "' "' � 2 � en '¥ �...
  • Page 29 ISS 8, SECTION 503-702-10 1 PART OF MOUNTING CORD ( 0 100K-87) ..0 lll NOTE, ..,. ..- .- TIP AND RING ARE COI't! O N TO ALL PICKUP SUTTONS THROUGH INTERNAL MOUNTING CORD WIRING. ( B R OR Y) T (G) R ( R ) T(G-W)
