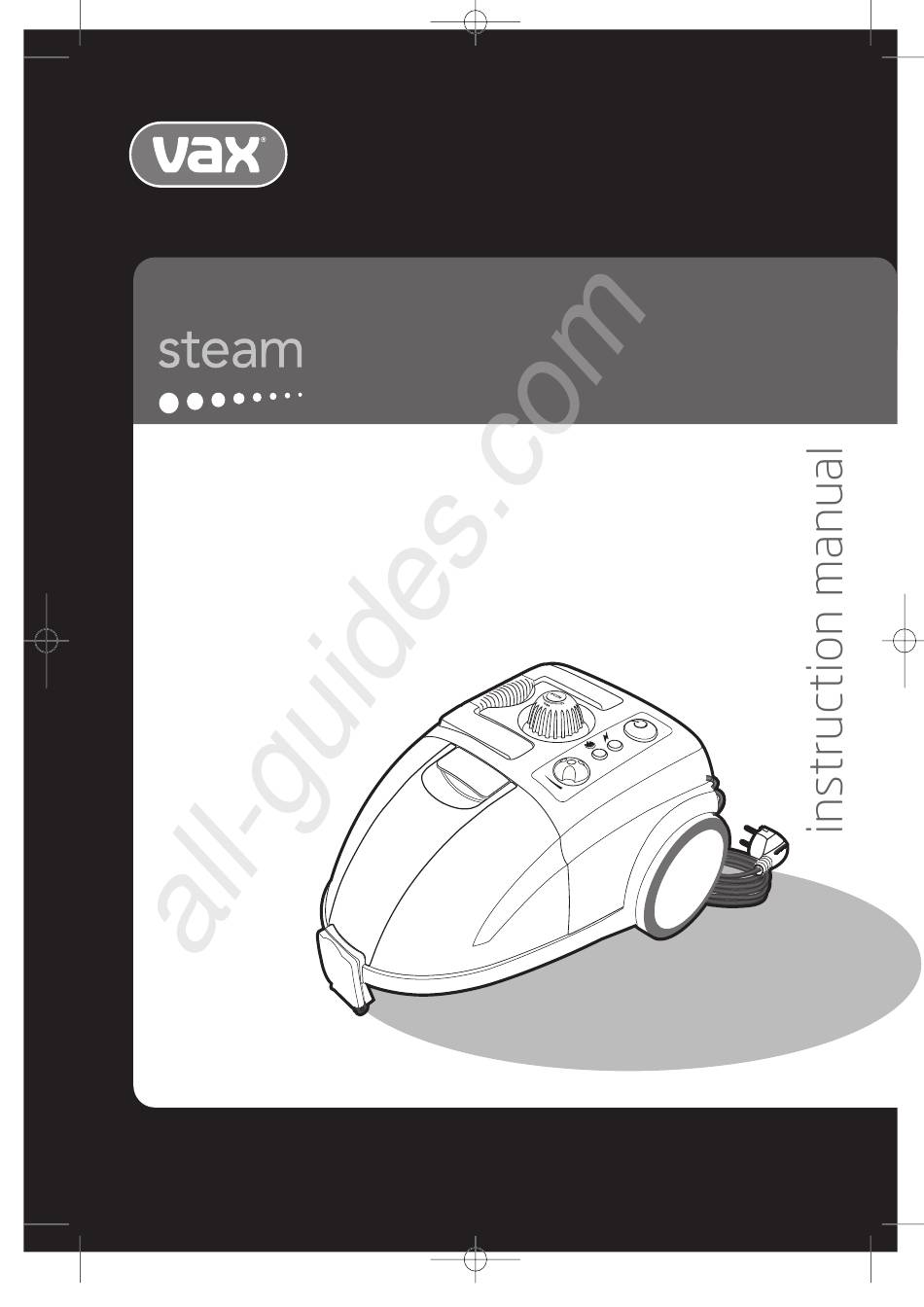

V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 1 All manuals and user guides at all-guides.com Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308 Steam Cleaner compact cleaner Vax model number: V-081 Series Version 1.0 Please read carefully before using this cleaner.
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 2 All manuals and user guides at all-guides.com vax.co.uk 1. Diagram V-081 Series Fig.1/1 Funnel 2-in-1 attachment (steam attachment) Measuring jug 10 Cotton cover Steam gun with hose and connector 11 2-in-1 attachment (window attachment)
17:26 Page 3 All manuals and user guides at all-guides.com Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308 2. Safety Information the tank. Always top up with water in good time. 23. Empty the water tank when the steam cleaner is not in use.
Page 4
NOTE: If the supply cord is damaged, it must be replaced by the manufacturer, a Vax service agent or similarly qualified persons in order to avoid hazard The hose with steam gun must be connected to the appliance and the desired accessory must be attached before the steam cleaner can be used.
22/4/10 17:26 Page 5 All manuals and user guides at all-guides.com Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308 4. How to operate Release button WARNING: The steam cleaner must always be disconnected from the mains when filling or CLICK topping up with water.
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 6 All manuals and user guides at all-guides.com vax.co.uk Connection to Mains Supply Plug the steam cleaner mains plug into a properly installed socket (Fig.4/3) and switch the steam cleaner on by pressing the on/off switch (Fig.4/4).
22/4/10 17:26 Page 7 All manuals and user guides at all-guides.com Vax Careline: (UK) 0844 412 8455 (ROI) 1-800 928 308 5. Accessories Floor Nozzle Attach the floor nozzle to the end of the extension tube. Ensure that the nozzle clicks into place on assembly (Fig.5/1).
Page 8
V-081 Series User Guide.qxd:User Guide 22/4/10 17:26 Page 8 All manuals and user guides at all-guides.com vax.co.uk Accessory Adaptor Jet Nozzle The steam cleaner has a range of different attachment Simply push the jet nozzle firmly onto the detail nozzle to nozzles to enable the most effective and thorough attach it (Fig.5/5).
Page 9
Do not use any cleaning agents, work surface (Fig.5/8). abrasives or alcohol since they may damage the housing. Vax recommend that the tank be rinsed out after 5 filling operations at the latest if water hardness is above 1.8 mmol/l (10°dH). Information regarding local water hardness may be obtained from the water or utility company.
Check the socket by unplugging the steam cleaner and plugging in a different appliance. Cause: The power cable is damaged. Solution: Have the cable replaced by a Vax Service Agent. Fig.7/1 PROBLEM: No steam is emitted when the steam button is pressed.
Saturday-Sunday 9.00am to 5.00pm Any queries or concerns about using the Vax, call the Subject to technical change without notice. Vax Careline. Please make a note of the serial number and model. For the nearest Service Agent, please call the Vax Careline.
Page 12
Page 12 All manuals and user guides at all-guides.com EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the Vax V-081Series is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive EMC: 2004/108/EC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
