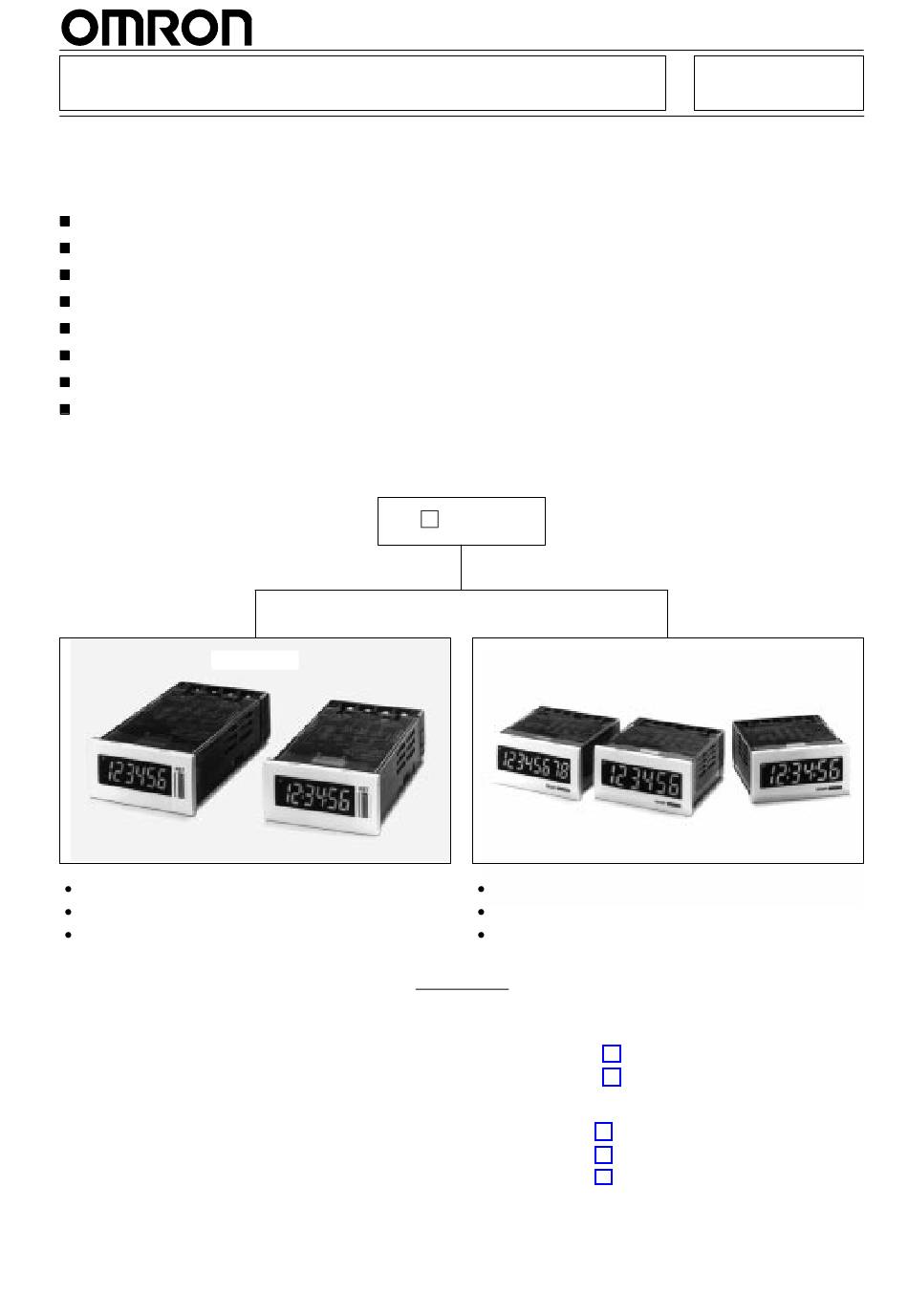

Total Counter/Time Counter
High-visibility, IP66/NEMA4 Protection Total Counter/Time Counter
Range
IP66 (JEM standard IP66G: oil resistance) and NEMA4 protection standards.
Switch between NPN and PNP operation.
Both external and manual resets provided.
Finger-protection terminal block cover prevents electrical shocks conforming to VDE0106/100.
Conforms to EMC standards.
Conforms to IEC standards, and approved by UL and CSA.
Wide power supply range.
Six-language instruction manual provided.
H7GP
6-digit total counter
6-digit time counter
DIN 48 x 24
H7 P Series
Contents
Total Counter/Time Counter
H7GP
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
H7HP
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Common to Both Counters
Input Connections
. . . . . . . . . . . . . . . . . .
Precautions
. . . . . . . . . . . . . . . . . . . . . . . .
Enclosure Ratings
. . . . . . . . . . . . . . . . . .
H7HP
6-digit total counter/time counter
8-digit total counter
DIN 72 x 36
2
8
14
15
16
H7GP/H7HP
1
Advertisement
Table of Contents
Related Manuals for Omron H7GP
Summary of Contents for Omron H7GP
- Page 1 Total Counter/Time Counter H7GP/H7HP High-visibility, IP66/NEMA4 Protection Total Counter/Time Counter Range IP66 (JEM standard IP66G: oil resistance) and NEMA4 protection standards. Switch between NPN and PNP operation. Both external and manual resets provided. Finger-protection terminal block cover prevents electrical shocks conforming to VDE0106/100.
-
Page 2: Ordering Information
H7GP Total Counter/Time Counter (DIN 48 x 24) Compact Total Counters and Time Counters with Easy-to-read Displays and IP66G/NEMA4 Water and Oil Resistance High-visibility, negative transmissive LCD display with 8.5-mm-high characters and built-in red LED backlight at low power consumption. -
Page 3: Specifications
H7GP H7GP Specifications Ratings Item 6-digit total counter 6-digit time counter H7GP-C H7GP-CD H7GP-T H7GP-TD Rated supply voltage 100 to 240 VAC 12 to 24 VDC 100 to 240 VAC 12 to 24 VDC (50/60 Hz) (see note 1) (50/60 Hz) - Page 4 H7GP H7GP Characteristics Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength 2,000 VAC, 50/60 Hz for 1 min between current-carrying terminal and exposed non-current-carrying metal parts (AC model) 1,000 VAC, 50/60 Hz for 1 min between current-carrying terminal and exposed non-current-carrying...
-
Page 5: Operation
The display will show “0” when the power is turned back on. See below for details. 4. Counting Speed DIP Switch (H7GP-C) Time Range DIP Switch (H7GP-T) When the setting has been changed, turned power off and on to continue. - Page 6 H7GP H7GP Dimensions Note: All units are in millimeters unless otherwise indicated. H7GP-C H7GP-T Panel Cutouts M3.5 terminal screw Panel cutouts are as shown below (according to DIN43700). Note: 1. The mounting panel thick- ness should be 1 to 6 mm.
-
Page 7: Installation
H7GP H7GP Installation Terminal Arrangement AC Models H7GP-C H7GP-T External power supply External power supply 12 VDC 50mA max. 12 VDC 50mA max. 100 to 240 VAC 100 to 240 VAC Power Power Power Power 12 VDC 12 VDC supply... - Page 8 H7HP Total Counter/Time Counter (DIN 72 x 36) Compact Total Counters and Time Counters with Easy-to-read Displays and IP66G/NEMA4 Water and Oil Resistance Large, easy-to-read displays: 15-mm-high charac- ters for 6-digit models; 12-mm-high characters for 8-digit models. High-visibility, negative transmissive LCD display with built-in red LED backlight at low power consumption.
- Page 9 H7HP H7HP Specifications Ratings Item 6-digit total counter/time counter 8-digit total counter H7HP-A H7HP-AD H7HP-C8 H7HP-C8D Rated supply voltage 100 to 240 VAC 12 to 24 VDC 100 to 240 VAC 12 to 24 VDC (50/60 Hz) (see note 1) (50/60 Hz) (see note 1) External power supply...
- Page 10 H7HP H7HP Characteristics Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength 2,000 VAC, 50/60 Hz for 1 min between current-carrying terminal and exposed non-current-carrying metal parts (AC model) 1,000 VAC, 50/60 Hz for 1 min between current-carrying terminal and exposed non-current-carrying metal parts (DC model) 2,000 VAC, 50/60 Hz for 1 min between power terminals and control input terminals (AC model) Impulse withstand voltage...
- Page 11 H7HP H7HP Operation DIP Switch Settings Switches 1 to 4 are all set to OFF before shipping. H7HP-C8/-C8D Pin no. Item Unused Counting speed 30 Hz 5 kHz Input mode H7HP-A/-AD (note) Unused Pin no. Item Note: When the setting has been changed, turned power off and Function Total counter Time counter...
- Page 12 H7HP H7HP Dimensions Note: All units are in millimeters unless otherwise indicated. H7HP-A H7HP-C8 M3.5 terminal screw Terminal cover (provided) Panel Cutouts Panel cutouts are as shown below (according to DIN43700). Note: 1. The mounting panel thickness should be 1 to 6 mm. 2.
- Page 13 H7HP H7HP Installation Terminal Arrangement AC Models H7HP-A H7HP-C8 100 to 240 VAC 100 to 240 VAC External power supply External power supply 12 VDC 50 mA max. 12 VDC 50 mA max. Power Power Power Power Unused Unused Unused 12 VDC Unused Unused Unused...
-
Page 14: Input Connections
H7GP/H7HP H7GP/H7HP Input Connections Note: The undermentioned is common for all H7GP/H7HP models. No-voltage Input (NPN Input Mode) Reset, Count 1, Count 2, and Count Inputs (12 to 24 VDC) Sensor Reset, Count 1, Count 2, and Count Inputs Specification Short-circuit (ON) impedance: 1 kΩ... - Page 15 Labels When turning the power ON and OFF, input signal reception is pos- Unit labels are included with the H7GP/H7HP and DIP switch labels sible, unstable, or impossible as shown in the diagram below. are included with the H7HP. Attach these labels as shown in the fol- lowing illustrations.
- Page 16 H7GP/H7HP H7GP/H7HP Enclosure Ratings IP - 6 6 G Protection Specification Code (International Protection) (IEC529) Protection against solid foreign objects Protection against harmful ingress of water Japan Electrical Manufacturers Association’s standards (JEM1030) Protection against oil Protection Against Solid Foreign Objects...
